What is Multi-axis CNC Machining? Advantages, Types

As the CEO of a leading CNC Machining Service, I’ve witnessed firsthand how multi-axis CNC machining has revolutionized manufacturing. This technology, a beacon of innovation, has transformed how we approach complex and precision parts, standing as a testament to human ingenuity and mechanical advancement.

Multi-axis CNC machining refers to the ability of a CNC machine to move a workpiece or tool on multiple axes simultaneously. This capability enables the creation of intricate and precise parts with smoother surfaces and more complex geometries. It’s not just a technological leap; it’s a gateway to new possibilities in manufacturing.

Maintaining the edge in today’s competitive market requires staying abreast of such technological advancements. Multi-axis CNC machining is no exception.

What Is Multi-Axis CNC Machining and How Does It Work?

At its core, multi-axis CNC (Computer Numerical Control) machining is an advanced manufacturing process where computer-controlled machine tools operate along multiple axes simultaneously. This method allows for intricate design execution that would be nearly impossible with traditional machining.

The cutting tool moves across the X, Y, and Z linear axes in multi-axis CNC machining. Additionally, there are rotations around these axes, known as the A, B, and C axes.

These multiple axes of motion provide unparalleled flexibility, enabling the machine to approach the workpiece from virtually any direction.

This versatility translates into several practical applications. For instance, with a 5-axis machine, I can perform complex cuts and detailed sculpting in a single setup. This capability significantly reduces setup time and eliminates the need for multiple devices or repositioning of the workpiece, ensuring higher precision and efficiency.

The process begins with a digital design, typically created in CAD (Computer-Aided Design) software. This design is then converted into a CNC program, instructing the machine to move the tools to create the desired part. The beauty of this process lies in its precision and repeatability. Once the program is set, it can be used to produce parts with consistent quality, time after time.

What Are the Different Types of Multi-Axis CNC Machines?

3-Axis CNC Machines

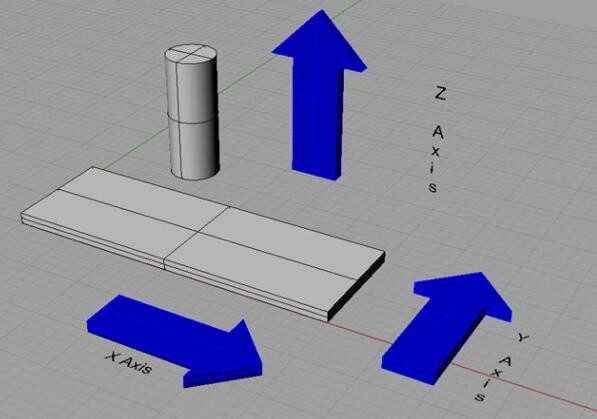

3-axis CNC machines are the most straightforward type in the multi-axis category. They operate on the three primary axes: X (horizontal), Y (vertical), and Z (depth). The process starts with a digital 3D model, converted into a set of precise instructions in G-code, the language CNC machines understand. This code controls the movement of the machine’s tools, guiding them along the three axes to cut and shape the material into the final part.

Advantages

1. Simplicity and Ease of Use: 3-axis machines are less complex than their multi-axis counterparts, making them easier to program and operate. This simplicity is a significant advantage for businesses as it reduces training time and costs.
2. Cost-Effective: These machines are generally more affordable in terms of initial investment and maintenance. This makes them a great entry point for small to medium-sized businesses looking to incorporate CNC machining into their operations.
3. Versatility: Despite their simplicity, 3-axis machines are incredibly versatile. They can handle various materials and suit multiple products, from simple parts to somewhat complex designs.

Disadvantages

1. Limited Complexity: While versatile, 3-axis machines have limitations in producing parts with undercuts or requiring complex geometries. This limitation sometimes necessitates additional operations, increasing production time.
2. Manual Intervention Required: For some problematic parts, manual repositioning of the workpiece might be necessary to achieve all machining angles, which can introduce errors and inconsistencies.

Applications and Use Cases

3-axis CNC machines are widely used across various industries due to their versatility. They are trendy in producing mechanical parts, basic molds, and prototypes. Our factory often uses these machines for rapid prototyping, as they offer a quick and cost-effective way to create high-quality parts with standard geometries.

4-Axis CNC Machines

4-Axis CNC machines add an axis of rotation, typically the A-axis, which rotates around the X-axis. This additional degree of freedom allows the workpiece to be rotated, enabling the cutting tool to reach areas that would be inaccessible in a 3-axis setup. The working process is similar to 3-axis machines but with the added Complexity of synchronizing the rotational movement with the linear axes. The G-code for a 4-axis device directs the tool’s path and controls the rotational positioning of the workpiece.

Advantages

1. Increased Complexity in Design: The additional axis allows for more complex geometries and undercuts. This capability is beneficial for creating more intricate designs without needing to reposition the workpiece manually.
2. Enhanced Efficiency: 4-axis machining reduces the need for multiple setups, significantly reducing production time and improving efficiency.
3. Improved Surface Finish: The ability to position the workpiece at optimal angles can lead to a better surface finish, as the tool can make more effective cuts.

Disadvantages

1. Higher Complexity in Programming and Operation: Adding an extra axis requires more advanced programming skills and a deeper understanding of the machining process.
2. Increased Investment: 4-axis machines are generally more expensive than 3-axis machines in terms of initial cost and maintenance.

Applications and Use Cases

4-axis CNC machines are well-suited for applications that require complex geometries, such as aerospace components, automotive parts, and intricate molds. In our facility, we often employ 4-axis machining for parts that need high precision and detailed features that cannot be efficiently achieved with a 3-axis machine.

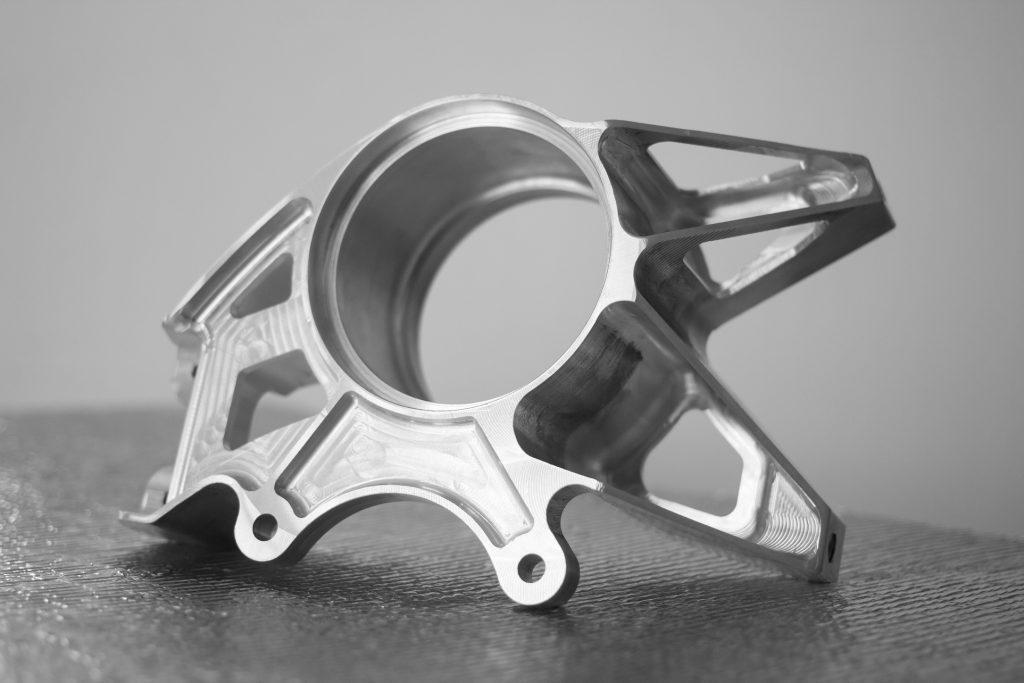

5-Axis CNC Machines

5-axis CNC machines represent the pinnacle of CNC machining complexity and capability. These machines operate on the traditional X, Y, and Z axes but also include two additional rotational axes, often referred to as the A and B axes. This configuration allows the cutting tool to move and approach the workpiece from virtually any direction. The programming for 5-axis machines is highly complex, as it involves coordinating five different axes simultaneously for precise and fluid motion.

Advantages

1. Unmatched Precision and Complexity: 5-axis CNC machines can produce parts with complex geometries and tight tolerances that are impossible on 3- or 4-axis devices.
2. Reduced Setup Time: The ability to machine complex parts in a single setup saves time and reduces the chance of errors associated with multiple designs.
3. Improved Tool Life and Surface Finish: The additional axes allow the tool to maintain an optimal cutting position and angle, leading to better surface finishes and extended tool life.

Disadvantages

1. High Cost: 5-axis machines are the most expensive in terms of both initial investment and operational costs.
2. Steep Learning Curve: The Complexity of these machines requires highly skilled operators and programmers, which can be a limiting factor for some businesses.

Applications and Use Cases

5-axis CNC machining is essential in high-precision industries like aerospace, automotive, and medical device manufacturing. Our factory uses 5-axis machines for creating complex aerospace components and intricate medical devices, where precision and adherence to strict specifications are paramount.

3+2 Machining

3+2 machining, also known as 5-sided machining or indexed 5-axis machining, is a technique where a 5-axis CNC machine is used, but the cutting tool does not move simultaneously in all five axes. Instead, the machine positions the workpiece in a fixed orientation using two rotational axes and then proceeds with the machining operation using the traditional 3-axis approach. This method combines the flexibility of 5-axis machines with the simplicity of 3-axis machining.

In 3+2 machining, the workpiece is first positioned using the machine’s rotational axes at a specific angle. Once set, these axes are locked, and the machining is carried out using only the linear X, Y, and Z axes. This process allows for complex parts to be machined in fewer setups than would be required with a standard 3-axis machine but without the Complexity of continuous 5-axis machining.

Advantages

1. Increased Access to Complex Geometries: By repositioning and locking the workpiece at various angles, 3+2 machining provides access to areas that would be challenging to machine with a 3-axis machine.
2. Reduced Complexity Compared to Full 5-Axis Machining: Since the cutting tool moves only in three axes at any given time, the programming and operation are more straightforward than continuous 5-axis machining.
3. Improved Surface Finish and Tool Life: Positioning the workpiece optimally allows for more efficient cutting paths and angles, leading to better surface finishes and prolonged tool life.

Disadvantages

1. Not Suitable for Extremely Complex Geometries: 3+2 machining allows for greater Complexity than 3-axis machining, but it cannot match the capabilities of continuous 5-axis machining for specific intricate designs.
2. Requires 5-Axis Capable Machine: Despite its more straightforward operation, 3+2 machining still requires a 5-axis machine, which is a significant investment.

Applications and Use Cases

3+2 machining is widely used for parts that need complex angles and features but don’t require the full capabilities of continuous 5-axis machining. It’s viral in the aerospace and automotive industries, where precision and efficiency are key. We often use 3+2 machining for complex components that need precise angled features or pockets.

How Does Multi-Axis Machining Compare to Traditional CNC Methods in Terms of Efficiency?

As a seasoned expert in CNC machining, I have seen the remarkable evolution from traditional methods to advanced multi-axis techniques. This progression has been about adding more axes and significantly enhancing efficiency and capability in the manufacturing process.

Traditional CNC Machining

Traditional CNC machining typically involves 3-axis machines. These machines are efficient for many applications, mainly when dealing with less complex parts. However, their capabilities are limited to the movement along the X, Y, and Z axes, which can be a constraint when producing parts with complex geometries or requiring multiple setups.

Efficiency of Multi-Axis Machining

Multi-axis machining, encompassing 4-axis and 5-axis machines, offers a substantial leap in efficiency for several reasons:

1. Reduced Setup Time: One of the most significant advantages is the reduction in setup time. Multi-axis machines can complete complex parts in a single setup, which is impossible with traditional 3-axis machines. This reduction in setup time speeds up production and reduces the potential for errors associated with multiple designs.
2. Complex Geometries with Precision: Multi-axis machines can produce complex shapes and intricate details with high precision. This ability is particularly crucial in aerospace and medical devices, where accuracy is non-negotiable.
3. Improved Surface Finish and Tool Life: The additional axes allow for optimal tool positioning, which results in better surface finishes and can extend tool life by reducing tool wear.
4. Flexibility and Versatility: Multi-axis machines offer greater flexibility to manufacture complex parts. This versatility means a broader range of factors can be produced on a single machine, reducing the need for specialized machinery.

Cost vs. Efficiency Trade-Off

It’s important to note that while multi-axis machining is more efficient, it also involves higher costs in terms of initial investment and operational expertise. Therefore, the decision to use multi-axis machining should be based on a thorough analysis of the specific needs, such as the Complexity of the parts, required precision, and production volume.

What Are the Key Industries That Benefit from Multi-Axis CNC Machining?

Aerospace Industry

The aerospace industry demands absolute precision and complex geometries in its components, making multi-axis machining indispensable. From engine parts to airframe components, multi-axis CNC machines can produce intricate designs with the tight tolerances required in aerospace applications.

Medical Device Manufacturing

Accuracy and reliability are critical in medical device manufacturing. Multi-axis CNC machining allows for producing complex, custom, and precision medical devices such as orthopedic implants, surgical instruments, and diagnostic equipment.

Automotive Industry

The automotive industry benefits significantly from the efficiency and precision of multi-axis machining. It produces complex engine components, transmission parts, and custom fixtures that require high precision and excellent surface finishes.

Defense and Military

In the defense sector, there’s a constant need for custom, high-precision parts. Multi-axis CNC machining caters to this need by producing components for military equipment, vehicles, and weaponry systems, all requiring the utmost precision and durability.

Electronics

As electronic devices become smaller and more complex, the need for precise and miniature components grows. Multi-axis machining is crucial in creating intricate parts for electronic devices, including connectors, housings, and various custom components.

Tool and Mold Making

Mold making and tooling are other areas where multi-axis machining shines. Creating complex molds and dies with precise contours and details is essential in producing high-quality plastic injection molding and die-casting tools.

Energy Sector

There’s a demand for significant, complex components in the energy sector, particularly in oil and gas, wind, and nuclear power. Multi-axis machining facilitates the creation of these parts with the precision and robustness required in such high-stress environments.

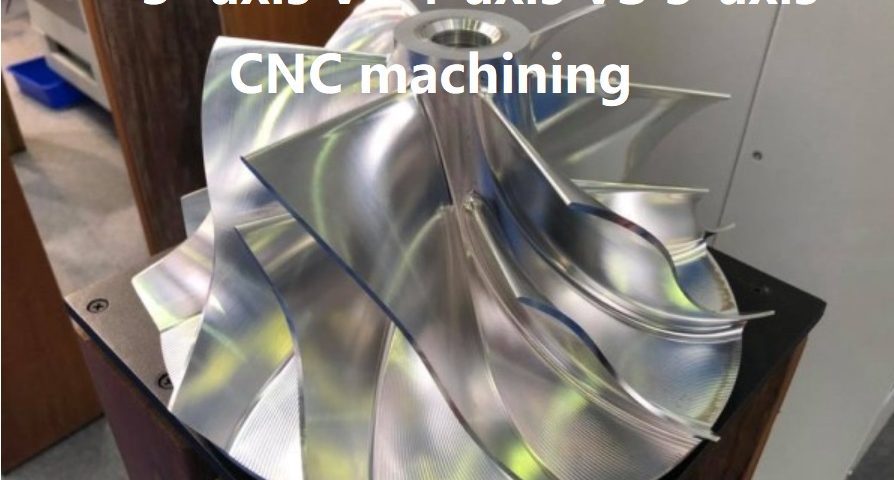

What is the Difference Between 3, 4, and 5-axis CNC Machining?

3-Axis CNC Machining

• Movement: In 3-axis CNC machining, the cutting tool moves in three linear directions – X, Y, and Z axes.
• Capabilities: Ideal for parts with relatively simple geometries. It’s excellent for milling slots, drilling holes, and cutting sharp edges.
• Limitations: It needs to be able to handle parts with undercuts and is limited in producing complex geometries.
• Industries: Widely used in essential parts production, such as simple mechanical components, frames, and brackets.

4-Axis CNC Machining

• Movement: Adds a rotational axis to the existing X, Y, and Z axes, usually the A-axis, which rotates around the X-axis.
• Capabilities: Enables the machining of more complex parts with undercuts. It can also perform operations on a piece’s side, which is impossible with 3-axis machines.
• Limitations: While more versatile than the 3-axis, it still has some geometric rules compared to 5-axis machining.
• Industries: Used in automotive, aerospace, and mold-making to produce more complex parts.

5-Axis CNC Machining

• Movement: Incorporates movements along X, Y, and Z axes and two rotational axes, A and B, allowing the cutting tool to move simultaneously in all five directions.
• Capabilities: Can produce highly complex and intricate parts with high precision. It’s capable of machining complex undercuts and contours.
• Limitations: Higher cost and requires more skilled programming and operation.
• Industries: Essential in high-precision fields like aerospace, medical devices, and complex automotive components.

Key Takeaways

• 3-Axis is best for more straightforward and less expensive parts.
• 4-Axis adds the ability to handle more complex shapes and undercuts.
• 5-Axis is the most advanced, suitable for highly complex and precision parts, but comes at a higher cost.
