Everything You Need to Know About Aluminum Punching

Punching aluminum is a core technique in the metal fabrication industry. It involves forcing a punch through the aluminum sheet to create holes or shapes. This highly efficient and cost-effective method makes it ideal for producing large quantities of precise metal parts. Aluminum, known for its lightweight and strength, is particularly suited for this process, allowing for high-speed production without compromising the material’s integrity.

Stay tuned as we dive deeper into the essentials of aluminum punching. I’ll share some insights and tips from my years of experience to help you understand why this process is pivotal in modern manufacturing.

What is Aluminum Punching?

Aluminum punching is a sheet metal fabrication process where a punch press is used to force a punch tool through an aluminum sheet or plate to create an opening or shape. This process can be performed on a single piece of metal or continuously on a roll of aluminum, known as coil punching. The punch press can be mechanical or hydraulic, depending on the force required and the complexity of the tasks.

The essence of aluminum punching is its ability to produce precise holes and shapes repeatedly and rapidly. Each strike of the punch tool is precisely controlled to ensure accuracy, making it an indispensable technique for industries requiring high precision and repeatability in their parts. This process is fast and minimizes material waste, making it a preferred method for various applications across diverse industries.

Properties of Aluminum

Aluminum is renowned for its unique blend of properties, making it a highly versatile metal for various industrial applications.

Lightweight: Aluminum is about one-third the weight of steel, making it an excellent choice for applications where weight reduction is crucial, such as in the aerospace and automotive industries.

Strength: Although lightweight, aluminum exhibits significant strength, primarily when alloyed with other metals like copper, magnesium, and zinc. This strength can be further enhanced through heat treatment and cold working processes.

Corrosion Resistance: Aluminum naturally forms a protective oxide coating when exposed to the atmosphere, which helps prevent the metal from further degradation. This characteristic is particularly beneficial for applications exposed to harsh environments.

Conductivity: Aluminum is a superb conductor of heat and electricity, making it ideal for applications in the electrical and electronics industries and heat exchangers.

Ductility: Aluminum is highly malleable and can be formed into complex shapes without breaking, which is essential for punching. Its flexibility allows it to deform under stress, making it easier to create intricate designs and shapes through punching.

Recyclability: Aluminum is 100% recyclable without losing its natural properties. This sustainability aspect is increasingly important in global manufacturing and construction industries, promoting environmental responsibility.

Aluminum Punching Techniques

Aluminum punching techniques can be broadly categorized into mechanical and hydraulic punching, each suited to different production needs based on speed, force, and precision.

Mechanical Punching

Mechanical punching is one of the most common techniques used in aluminum punching due to its speed and efficiency. This method utilizes a mechanically driven press that moves a punch through the aluminum using a crank, gear, or cam mechanism. The speed at which mechanical presses operate can be very high, making them ideal for large-volume production runs where consistency and speed are critical.

The key advantages of mechanical punching include:

• High Speed: Mechanical presses can achieve high stroke rates, making them suitable for high-volume production tasks.

• Precision: The rigid setup and the consistency of the mechanical drive allow for precise repeatability, which is crucial for producing uniform parts.

• Cost-Effectiveness: For large runs, the speed and efficiency of mechanical punching can significantly reduce the cost per part.


However, mechanical punching presses are generally less versatile than hydraulic presses when handling varying thicknesses and more complex shapes.

Hydraulic Punching

Hydraulic punching uses hydraulic cylinders to drive the punch into the aluminum. This method offers more power and can handle thicker and stricter materials than mechanical punching. The force applied in hydraulic punching is generated through hydraulic fluid pressure, which can be easily adjusted to accommodate different materials and thicknesses.

Advantages of hydraulic punching include:

• Versatility: Hydraulic presses can easily adjust to different thicknesses and more rigid materials without significant setup changes.

• Control: The hydraulic system allows for more precise control over the punching speed and force, which is beneficial when working with delicate or highly detailed parts.

• Capacity for Larger and More Complex Shapes: The flexibility in control and force makes hydraulic punching suitable for larger or irregularly shaped punches.


While hydraulic punching provides greater versatility and control, it is generally slower than mechanical punching. It can be more costly for high-volume production due to lower speeds and higher maintenance requirements.

CNC Turret Punching

CNC Turret Punching uses a computer-controlled system where multiple punch and die sets are housed in a rotating turret. This method offers high flexibility and speed for punching aluminum, as the turret can quickly switch between different punch tools to create complex arrays of holes and shapes in a single piece of material without manual intervention.

Critical features of CNC Turret Punching include:

• High Precision: CNC control allows for highly accurate positioning and movement of the sheet under the punching heads, which is critical for detailed and complex designs.

• Efficiency: The ability to hold multiple punch and die sets simultaneously and switch between them rapidly reduces setup times and increases throughput.

• Flexibility: Capable of creating a wide range of hole sizes and shapes by using different punches in the turret, making it suitable for varied design requirements.


CNC turret punching is particularly valuable when complex, multi-design components are needed quickly and in large numbers, maintaining high accuracy and repeatability throughout production.

Laser Punching

Laser Punching, more accurately described as laser cutting, uses a high-powered laser beam to cut and create holes in materials. While not a traditional “punching” technique, it performs similar functions with some distinct advantages for working with aluminum.

Advantages of Laser Punching include:

• No Physical Contact: Since the laser does not physically touch the material, the tooling has no mechanical wear and tear, and the material is less likely to deform.

• Complexity and Detail: Lasers can produce excellent and complex shapes that are difficult or impossible to achieve with traditional mechanical punching.

• Speed and Versatility: Laser cutters can move quickly across the material, cutting intricate designs without needing tool changes. They can also be adjusted to cut various material thicknesses by changing the laser’s power settings and focus.


Laser punching is ideal for prototypes, small runs, or projects requiring intricate detail, where setup time and design flexibility are paramount. Precision and versatility make it a highly favored choice in industries requiring custom designs or rapid production adaptation.

Rotary Punching

Rotary Punching is another sophisticated method used in aluminum fabrication, particularly effective for high-speed, continuous processing of aluminum coils or long sheets. This technique involves rotating cylindrical dies that punch out shapes or holes as the material passes through them at high speeds.

Characteristics of Rotary Punching include:

• Continuous Operation: Unlike traditional presses that stamp one part at a time, rotary punching can continuously process material fed through the machine on a reel. This constant operation significantly increases production speeds.

• Flexibility: Rotary punching machines can be equipped with various tools that can be quickly changed to continuously create different hole sizes and shapes.

• Reduced Material Stress: The rotary action is gentler on materials than the complex impact of a traditional punch, reducing material stress and minimizing the risk of cracking or warping the aluminum.

• Energy Efficiency: Rotary punching is generally more energy-efficient than traditional stamping presses because it requires less mechanical force and energy per punch.


Advantages of Rotary Punching:

• High-Speed Production: Ideal for large volumes, rotary punching excels in environments where speed and efficiency are critical.

• Versatility in Design: It allows for various hole shapes and sizes, which can be easily changed by swapping out rotary dies.

• Cost-Effectiveness: Especially in long runs, the quick setup and operation speeds can significantly reduce the cost per part.

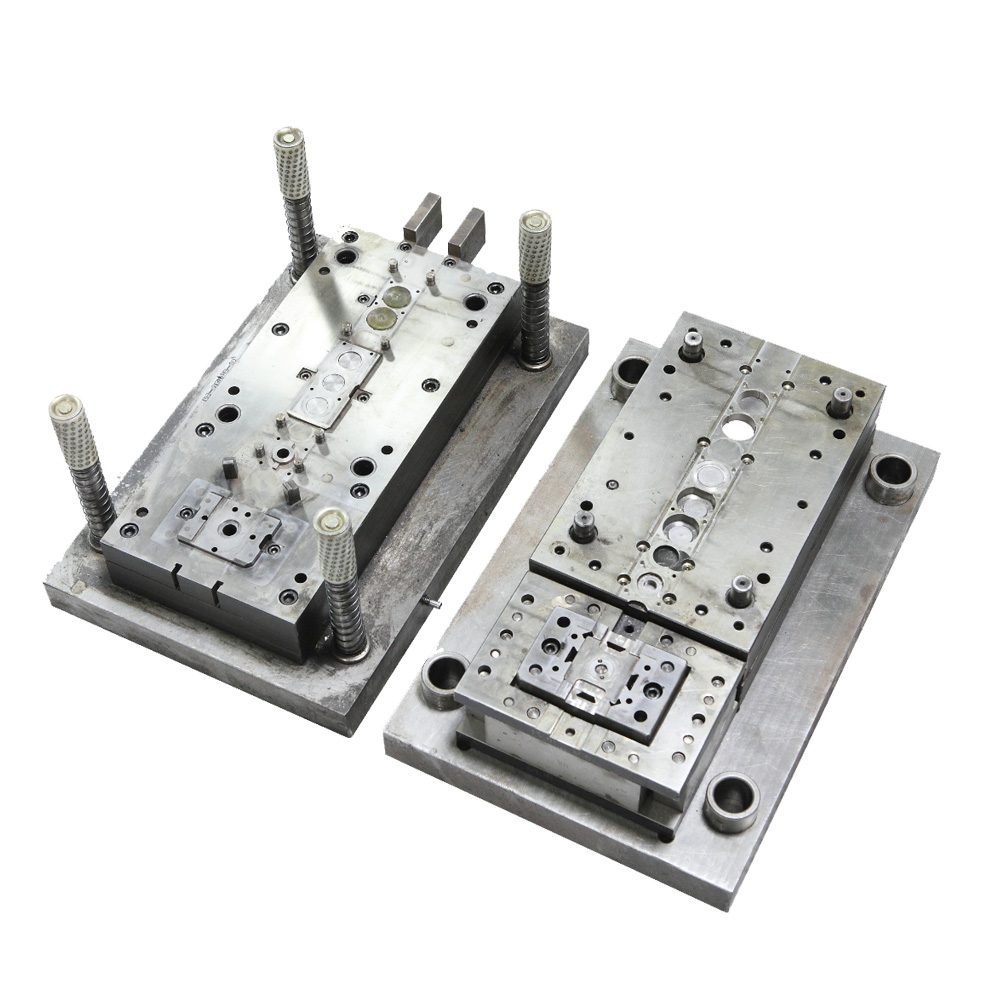

Tooling for Aluminum Punching

Punch and Die

The punch and die are the fundamental tools used in the punching process. The punch is a hard metal rod with a tip shaped to the desired hole or form, while the die is the opening that supports the material and helps to shear it as the punch drives through.

• Material: High-speed steel (HSS) or tungsten carbide are commonly used for punches and dies because of their durability and wear resistance.

• Coatings: Titanium nitride or other hard coatings can increase surface hardness, reduce friction, and improve tool life.


Stripper Plates

Stripper plates hold the material flat during punching and pull the punch out of the material after penetration to prevent sticking and material lifting, which can cause deformation or damage to the part.

• Material Consideration: Stripper plates are typically made from spring steel or another flexible yet durable material that can withstand repeated use without failing.


Guide Assemblies

Guide assemblies ensure that the punch and die are perfectly aligned as the punch enters the die, which is crucial for maintaining the integrity of the holes and preventing tool damage.

• Precision Alignment: Misalignment can lead to rapid wear and tear on the punch and die, so guide assemblies must be robust and precisely engineered.


Turrets

For CNC turret punches, the turret—the rotating tool holder—is a crucial component. It allows the machine to hold multiple punches and dies, enabling quick switching between different tools during operation.

• Configuration: The layout and capacity of the turret affect how many tools it can hold, thus influencing the versatility of the punching machine.


Tooling Setups

Tooling setups refer to the arrangement and configuration of punches, dies, and associated components on the punching machine. Efficient setups can reduce changeover times, enhance throughput, and increase production flexibility.

• Quick Change Systems: Many modern machines include quick change systems for tools that drastically reduce downtime during tool changes, enhancing overall productivity.


Applications of Aluminum Punching

The automotive industry creates lightweight, durable components like brackets, panels, and chassis elements, which contribute to fuel efficiency.

The aerospace sector relies on aluminum punching to fabricate structural components and skins of aircraft that require precision and strength.

In construction, punched aluminum parts are used in facades, window frames, and structural supports, offering aesthetic appeal and resilience. Electronics manufacturers also utilize aluminum punching to produce enclosures, heat sinks, and chassis components for devices, benefiting from aluminum’s excellent thermal properties.

Common Issues in Aluminum Punching

Burr Formation: One of the most prevalent issues in aluminum punching is the formation of burrs, which are rough edges or protrusions on punched parts. Burrs require additional finishing operations to smooth out, increasing production time and costs.

Tool Wear: Aluminum may be softer than steel but still abrasive. Frequent punching can lead to rapid wear and tear on tools, necessitating regular maintenance or replacement to ensure consistent quality.

Material Deformation: Aluminum’s softness can also lead to deformation around the punched areas, mainly if the wrong punch and die clearances are used. This can compromise the dimensional integrity of the part.

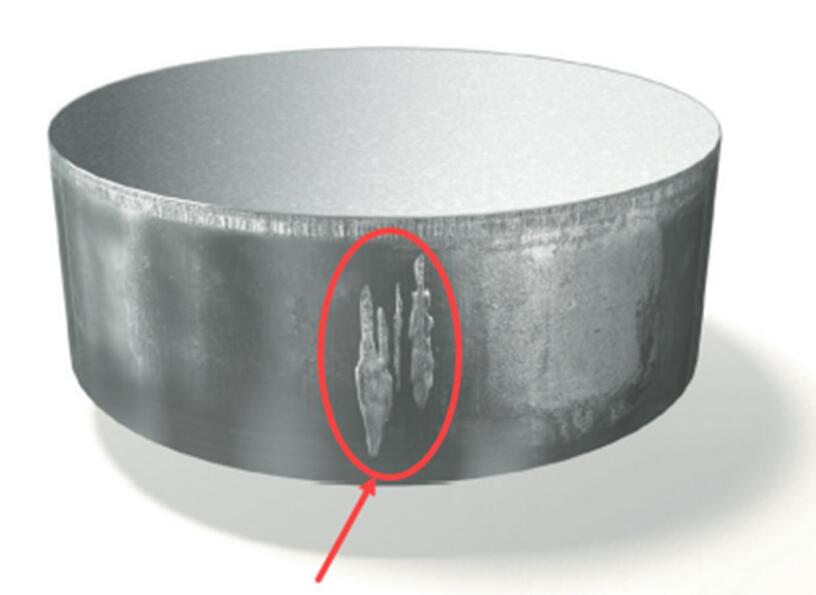

Galling occurs when aluminum sticks to the punch, potentially leading to clogged dies and interrupted production. Proper lubrication and choosing tools with suitable coatings can help mitigate this issue.

Inaccurate Hole Sizes: The precise size of punched holes can be challenging due to material spring back, where aluminum tends to revert slightly toward its original form after being punched.

Tips to Avoid Galling in Aluminum Punching Operations

Galling is a common issue during the aluminum punching process, where aluminum sticks to the punch, potentially causing damage to both the punch and the material. Here are several strategies to prevent galling and ensure smooth operation:

Use Proper Lubrication: Applying a suitable lubricant can reduce the friction between the punch and the aluminum sheet, minimizing the risk of the aluminum adhering to the punch. Lubricants also help cool the tools, which are essential for maintaining their integrity and performance.

Select Appropriate Tool Coatings: Coating the punching tools with materials like Titanium Nitride (TiN), Titanium Carbon Nitride (TiCN), or Diamond-Like Carbon (DLC) can provide a more complex, smoother surface that reduces sticking and extends tool life.

Maintain Sharp Tools: Regularly sharpening the punches ensures they cut cleanly through the aluminum, reducing the force required for punching and, consequently, the chances of galling.

Optimize Punch and Die Clearances: Proper clearance between the punch and die is crucial for minimizing the buildup of aluminum on the punch. If the clearance is too tight, it increases the friction and the likelihood of galling.

Choose the Right Material Grade: Some grades of aluminum are more prone to irritation due to their properties. Selecting an aluminum grade with good machinability can help reduce the occurrence of galling.

Control Punching Speed: Slowing down the punching speed can reduce the heat generated during the process, decreasing the tendency of aluminum to stick to the punch.

Use Polished Dies and Punches: Polishing the surfaces of dies and punches to a high finish can significantly reduce the likelihood of aluminum sticking. Smooth surfaces reduce the surface area in contact with the aluminum, thus minimizing friction.

Conclusion

If you’re intrigued by the precision and efficiency aluminum punching can bring to your projects, don’t hesitate to reach out. Our expert team is ready to discuss how we can tailor our services to meet your needs and help drive your success.

FAQ

What materials besides aluminum can be punched? Besides aluminum, materials such as steel, stainless steel, brass, and copper can be punched using similar techniques but may require adjustments in tooling and processing parameters.

Is aluminum punching suitable for complex shapes? Aluminum punching is well-suited for creating simple and complex shapes, especially when using advanced CNC turret punching machines that can handle intricate patterns and designs.

Can aluminum punching be combined with other metal fabrication processes? Absolutely! Aluminum punching can be integrated with bending, welding, and assembly to provide comprehensive fabrication solutions from a single source.
