What is Boring Machining? Process, Types
Boring Machining, often overshadowed by its more famous counterparts like milling and turning, is a hidden gem in manufacturing.
Boring Machining is used to enlarge a hole that has already been drilled or cast. The primary goal of this process is to achieve greater accuracy and a smoother finish than what drilling alone can offer. It’s a crucial technique in precision manufacturing, where even a micron’s difference matters.
Boring isn’t just about making holes bigger; it’s an art that balances precision and practicality. It’s not just about making holes bigger; it’s a sophisticated process that requires a deep understanding of materials, tools, and technology. In this post, I’ll guide you through the nuances of boring Machining, showing you why it’s a critical process in industries like aerospace, automotive, and even medical devices.
What is Boring Machining?
Let me paint a picture for you. Imagine you’re an artist, but instead of a canvas, you have a metal part, and your brush is a high-precision tool. That’s what boring Machining is like in the world of manufacturing. It’s a specialized process where I, as a machinist, use cutting tools to enlarge and refine an existing hole in a material. It’s not about making a hole from scratch – drilling’s job. Boring is about taking that hole and sculpting it into a more accurate and smoother version of itself.

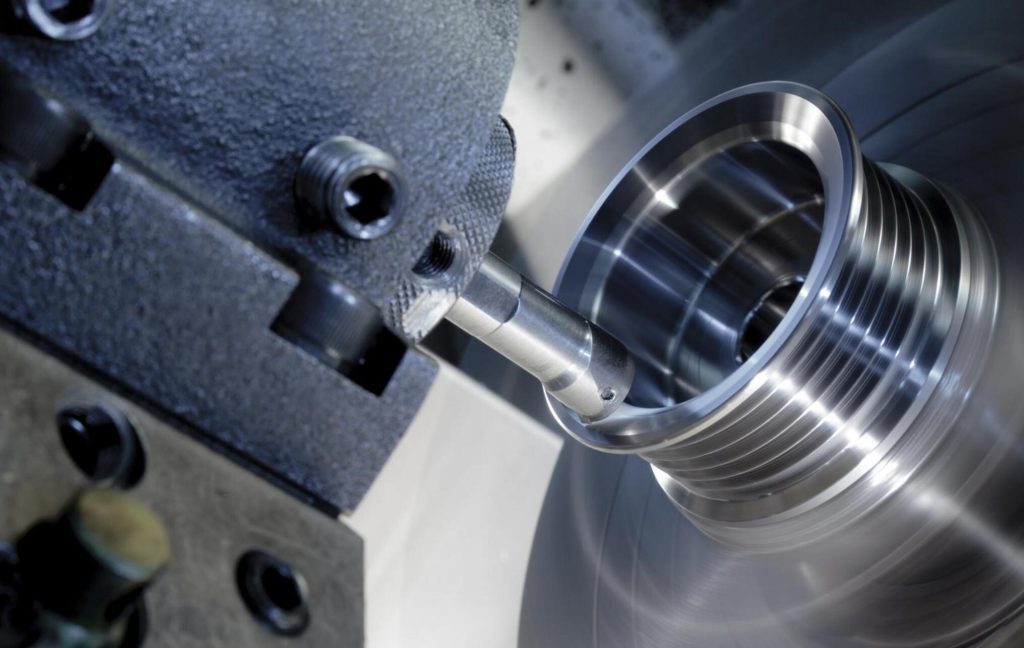

Boring Machining is akin to a meticulous fine-tuning exercise. It involves a boring bar, which holds a cutting tool, and this tool incrementally cuts into the workpiece. The beauty of this process is its ability to achieve exceptional precision. We’re talking about reaching tolerances that drilling can only dream of.
In industries where precision is not just a requirement but an obsession – think aerospace, automotive, and medical devices – boring Machining is the unsung hero. It allows for adjustments in the diameter of a hole, ensuring it’s not just the right size but also perfectly round and smooth.
How Does it Differ from Other Machining Processes?
Here’s a table that neatly outlines the differences between Boring, Drilling, Turning, and Reaming in machining processes:
| Feature | Boring | Drilling | Turning | Reaming |
| Definition | Enlarging and finishing an existing hole | Creating a new hole in a material | Rotating the workpiece to remove material and shape it | Finishing and slightly enlarging a drilled hole for precision |
| Primary Purpose | Precision enhancement of hole diameter and surface finish | Hole creation | External and internal shaping of cylindrical parts | Achieving high accuracy and finish in hole dimensions |
| Tool Movement | Tool moves linearly inside the hole | Tool moves linearly into the workpiece | Workpiece rotates while tool cuts | Tool rotates and moves linearly through the hole |
| Tool Type | Boring bar with a single-point cutting tool | Drill bits | Turning tool (single-point cutting tool) | Reamers |
| Material Removal | Minimal, focused on finishing | Significant, as it creates a hole | Varies, can remove large amounts in shaping | Minimal, focused on smoothing and sizing |
| Precision Level | Very high, for tight tolerances | Moderate, initial hole creation | High, especially for symmetrical shapes | Very high, for precision hole sizing |
| Surface Finish | Smooth, often requires no further finishing | Rougher finish, often needs further processing | Can be very smooth, depending on the tool | Very smooth, ideal for precision fits |
| Typical Use Cases | Aerospace components, precision engineering | General manufacturing, construction | Turning shafts, creating symmetrical parts | Precision engineering, fine-tuning fit |
What are the Fundamental Principles of Boring Machining?
Alignment and Setup
The first principle is ensuring the perfect alignment of the boring tool with the pre-existing hole. The workpiece is securely fastened to prevent any movement. This step is crucial as it sets the stage for the boring process. Any misalignment, no matter how slight, can lead to errors in the final product.
Tool Selection
Selecting the right boring tool is next. This depends on the material of the workpiece and the desired finish. The tool must be chosen for its size and ability to cut the specific material efficiently while minimizing wear and tear.
Speed and Feed Rate
Determining the correct cutting speed and feed rate is a delicate balancing act. Too fast, and you risk tool damage or a rough finish; too slow, and you’ll be inefficient. This decision is based on the material hardness, the tool material, and the precision required.
Cutting Process
The cutting process involves the boring tool mounted on a boring bar, making a linear movement into the hole. The cutting edge gently shaves off material, enlarging the hole diameter and improving its surface finish.
Depth and Diameter Control
Precision is vital in boring Machining. Controlling the cut’s depth and the hole’s final diameter is paramount. This requires continuous monitoring and fine adjustments to ensure the hole is the correct size and perfectly round and smooth.
Coolant Application
The use of coolant is essential in boring Machining. It helps reduce heat build-up, thereby preventing material deformation and tool wear. The right type of coolant and its application rate can significantly impact the quality of the finished hole.
Types of Boring Machines
Each type of boring machine has unique features and applications, making it well-suited for specific tasks in precision machining. Let’s delve into the main types of boring machines used in the industry:
Horizontal Boring Machine: The workhorse of the boring world, horizontal boring machines are robust and versatile. They are ideal for large workpieces and complex machining tasks. The horizontal orientation of the spindle provides stability and support, allowing for heavy-duty operations. These machines are commonly used in aerospace and heavy machinery manufacturing industries.
Vertical Boring Machine (or Vertical Turret Lathe): These machines stand tall with a vertically oriented spindle. They are handy for machining large, heavy, round workpieces. Think of large gears, flanges, and rings. The vertical setup allows for easy workpiece mounting and an excellent view of the machining process.
Jig Boring Machine: When precision is not just a requirement but a necessity, jig boring machines come into play. Renowned for their ultra-high accuracy, they are used for exact boring holes, often for jigs and fixtures. These machines are indispensable in tool-making and high-precision engineering applications.
CNC Boring Machines: The modern heroes of boring CNC (Computer Numerical Control) boring machines bring automation and precision to a new level. They allow intricate programming and adjustments, making them ideal for complex and high-volume production runs. Their ability to consistently produce parts with tight tolerances makes them a favorite in the automotive, medical devices, and electronics industries.
Fine Boring Machines: Specialized for the final stages of the boring process, fine boring machines focus on achieving the finest tolerances and surface finishes. They are typically used after rough boring and are essential for exact and smooth parts.
Portable Boring Machines: When the job can’t come to the machine, the machine goes to the job. Portable boring machines are designed for on-site repairs and adjustments. They are commonly used for large equipment, like in the construction and mining industries, where bringing the workpiece to a stationary machine is not feasible.
What Types of Boring Machining are Commonly Used in the Industry?
Line Boring
This is the process of boring a straight line through multiple holes in a significant component, ensuring perfect alignment. It’s commonly used in engine blocks, large gearboxes, and machine frames. Line boring ensures that holes on a large part are aligned perfectly, which is crucial for mechanical systems where shafts or other components must fit precisely.
Jig Boring
For ultra-precise hole-making, jig boring is the go-to process. It’s used to enlarge holes to a high degree of accuracy and surface finish. The process is typically used in producing jigs, fixtures, and dies, where pinpoint accuracy is essential.
Back Boring
Back boring is used to enlarge the backside of a hole that has been previously drilled, often in a situation where the hole’s front side cannot be accessed. This technique is instrumental in complex assemblies and is often employed in aerospace and automotive applications.
Micro Boring
As the name suggests, microboring creates tiny and precise holes. This process is essential in industries like electronics and medical equipment manufacturing, where tiny, accurate holes are required.
Horizontal Boring
This involves using a horizontal boring machine to perform various operations, including boring, drilling, and milling. It’s versatile and can be used for various applications, particularly in machining large and heavy components.
CNC Boring
With the advent of CNC technology, boring has become more precise and efficient. CNC boring uses computer-controlled machines for boring operations, offering high precision and repeatability. It’s widely used in modern manufacturing for both small and large-scale production.
What Are the Advantages of Boring Machining?
- Precision and Accuracy: CNC technology brings unparalleled precision to boring operations. With computer-controlled movements, the margin of error is significantly reduced. This means that holes are not just made to the correct size but are consistently perfect, batch after batch.
- Complexity and Flexibility: One of the remarkable aspects of CNC boring is its ability to handle complex operations that would be challenging, if not impossible, manually. Complex shapes and patterns, varying hole sizes, and intricate designs are all feasible with CNC technology.
- Repeatability: In mass production, consistency is critical. CNC machines excel in producing the same high-quality results over and over again. This repeatability is crucial for industries where uniformity in parts is non-negotiable, such as in the automotive or aerospace sectors.
- Efficiency and Speed: Time is a valuable commodity in manufacturing. CNC boring machines are precise and significantly faster than manual operations. This efficiency translates into shorter production times, allowing for quicker turnaround and increased productivity.
- Integration with CAD/CAM Systems: CNC machines work seamlessly with CAD (Computer-Aided Design) and CAM (Computer-Aided Manufacturing) systems. This integration allows for the direct translation of digital designs into physical parts, reducing the potential for human error and streamlining the production process.
- Reduced Labor Costs and Error Rate: With CNC technology, the need for manual intervention is drastically reduced. This automation cuts down on labor costs and minimizes the chances of human error, leading to a more reliable and consistent manufacturing process.
- Enhanced Safety: CNC boring machines improve safety in the manufacturing environment. With most of the process being automated, operators’ direct interaction with cutting tools is minimized, reducing the risk of accidents.
- Customization and Adaptability: CNC technology allows for easy customization. Changing production specifications is as simple as altering a program, making CNC boring and adaptable to varying production needs.
