What is Wire Forming? Everything You Need to Know

Are you struggling to find reliable wire forms that meet your unique requirements? Frustrated by the endless search for quality and precision? You’re not alone. Many businesses face the same challenge, and I’m here to solve it for you. Wire forming might sound like a technical mystery, but trust me, it’s more fascinating—and vital—than you think!

Wire forming is the process of bending, cutting, and shaping metal wires into specific forms to meet industrial or commercial needs. It’s a blend of art and science that transforms simple wires into complex, functional components. Whether it’s for automotive, medical, or aerospace applications, wire forming plays a crucial role in creating products we rely on daily.

Now that I’ve piqued your interest, let’s dive deeper into what wire forming is all about. From methods to materials, I’ll cover everything you need to know. Stick with me—you’ll learn a lot (and maybe even impress someone with your newfound knowledge).

What is Wire Forming?

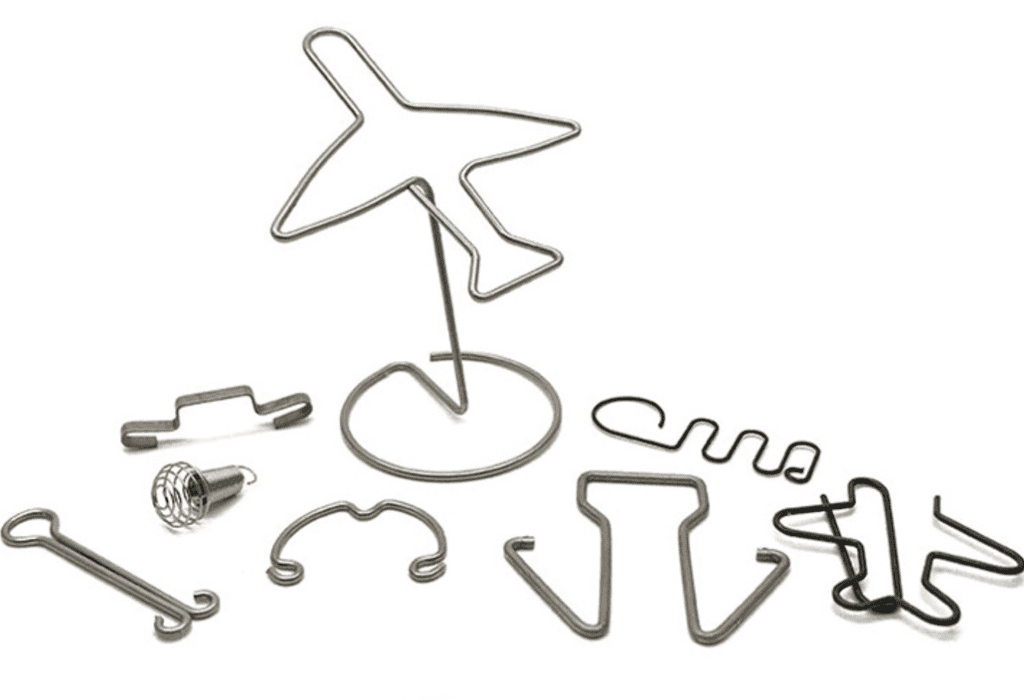

Wire forming is the process of manipulating metal wires into specific shapes using various tools and machines. It involves shaping, cutting, and assembling wire into both simple and complex forms. This technique serves numerous industries, including automotive, aerospace, and electronics, by producing parts such as springs, clips, and custom components. The flexibility and precision of wire forming allow for the creation of intricate designs that are critical for many applications, showcasing its essential role in modern manufacturing.

The Wire Forming Process

The wire forming process consists of several distinct steps that transform raw metal wire into a finished product. Here’s an overview of each stage:

1. Material Selection

The process begins with selecting the appropriate wire material based on the application’s specific requirements, such as tensile strength, flexibility, and corrosion resistance. Common materials include stainless steel, aluminum, and brass.

2. Wire Straightening

Before shaping, the wire must be straightened. Wire is typically fed from coils and may have curves or bends. Straightening ensures uniformity and accuracy during forming.

3. Cutting

Once straightened, the wire is cut to the required lengths. This step is crucial for maintaining precision in the final product’s dimensions.

4. Bending and Shaping

Using various machines, including CNC wire forming tools and manual bending equipment, the wire is then bent into the desired shapes. This is where the intricate details and specific forms are created.

5. Heat Treatment

After forming, some wire forms require heat treatment to enhance their mechanical properties, such as strength and durability. This process involves heating and cooling the wire under controlled conditions.

6. Finishing

The last step involves finishing treatments such as coating or plating, which protect the wire forms from corrosion and wear and can enhance electrical conductivity or aesthetic appeal.

Wire Forming Methods

Manual Wire Forming

Manual wire forming is typically used for low-volume productions or custom designs where intricate detailing or unique shapes are required. In this method, operators manually manipulate the wire using hand tools and simple machines, allowing for high customization and flexibility in design.

Coil Wire Forming

Coil wire forming is specialized in creating springs and other coil-shaped products. This method involves winding the wire around a mandrel to produce helical coils, which are then cut to length and finished as required. Coil forming is essential for producing components that require elasticity, such as compression springs and torsion springs.

Roll Wire Forming

Roll wire forming involves passing the wire between rollers that gradually shape the wire into a flat form or a specific profile. This method is particularly useful for creating large quantities of uniform shapes with high precision. Roll forming is often used for making clips, pins, and other elongated components.

Bending Wire Forming

Bending wire forming is done using CNC machines or other automated equipment to achieve consistent and accurate bends. This process is ideal for high-volume production where complex bends and multiple bend angles are required. Bending wire forming is widely used in automotive, aerospace, and industrial applications where precision and repeatability are paramount.

Fourslide Wire Forming

Fourslide wire forming, also known as multislide, involves multiple slides (tools) that approach the wire from different axes. This method allows for complex bends and twists in multiple planes simultaneously. Fourslide forming is highly efficient for intricate parts, such as electrical contacts and complex clips, which require multiple bends or twists along their length.

Hydraulic Wire Forming

Hydraulic wire forming uses hydraulic presses to bend the wire. This method provides significant power and control, making it suitable for thicker and stronger wires that require substantial force to shape. Hydraulic forming ensures high precision and is often used for automotive components, construction hardware, and large industrial applications.

Pneumatic Wire Forming

Pneumatic wire forming employs compressed air to power the bending tools, offering a cleaner alternative to hydraulic systems. While similar in capability to hydraulic forming, pneumatic systems are typically faster and more suitable for medium to high volume production where speed is critical. They are commonly used for smaller, less complex parts such as brackets and hooks.

CNC Wire Bending

CNC wire bending is one of the most precise and flexible wire forming methods available. Computer-controlled machines can produce wire forms with high accuracy and repeatability, making it ideal for both large and small production runs.

CNC wire bending can handle a variety of wire diameters and types, and its programming flexibility allows for quick setup and changeover, which is perfect for producing a wide range of parts, from simple hooks to complex automotive seat frames.

Types of Wire Forms

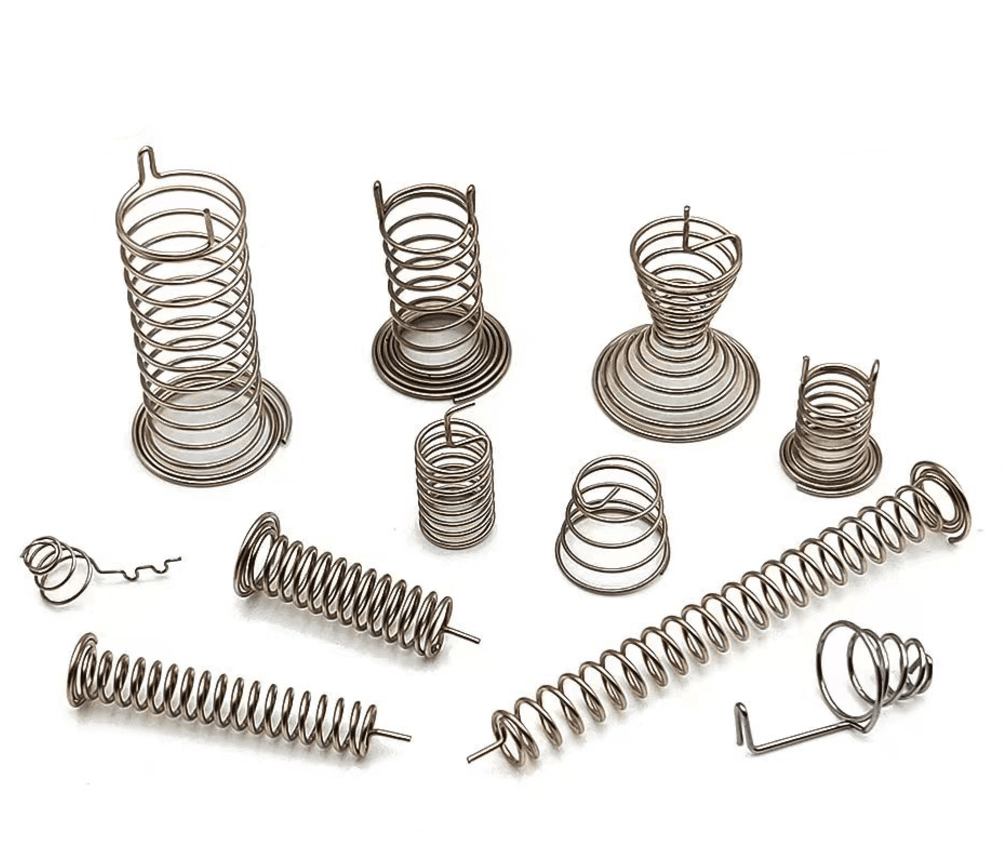

Springs

One of the most well-known wire forms, springs are integral to countless mechanical and electronic systems. They can be further categorized into:

• Compression Springs: Designed to operate with a compression load, such as in valve operations or as shock absorbers.
• Extension Springs: These are used where resistance is required against pulling forces, common in automotive interiors and farm machinery.
• Torsion Springs: Employed in applications where there is a need for rotational force, such as clothespins and garage door mechanisms.

Clips and Fasteners

These wire forms are ubiquitous in every industry, providing simple yet effective fastening solutions. They include:

• R-clips: Used to secure the ends of round shafts such as axle and hinge pins.
• Spring Clips: Often used in automotive and appliance industries to hold components in place temporarily or permanently.

Hooks

Hooks are crafted to hold components together or to hang items securely. They are frequently seen in:

• S-Hooks: Used in retail for hanging merchandise or in homes for decorative purposes.
• Pegboard Hooks: Common in retail and workshops for hanging tools or products on pegboards.

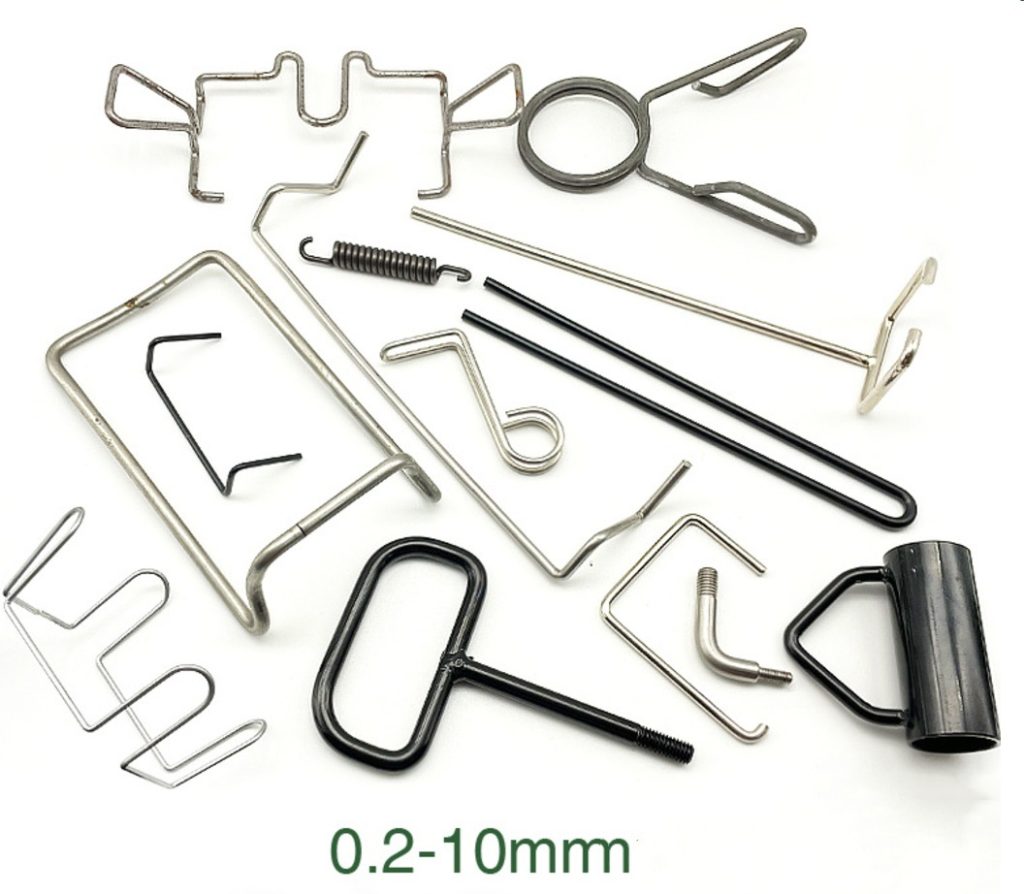

Custom Wire Forms

Beyond standard forms, custom wire forms are designed to meet unique application needs. These might include:

• Wire Baskets: Tailored for specific dimensions and capacities, used in medical, culinary, and industrial applications.
• Wire Racks: These provide organization solutions in various settings, including kitchens, laboratories, and warehouses.

Hose Clamps

Hose clamps are a specialized type of wire form designed to secure hoses over fittings, preventing fluid leaks by applying consistent pressure around the hose. They are crucial components in various systems where hoses are used, such as automotive cooling systems, home plumbing, and industrial machinery.

Types of Hose Clamps:

• Screw/Band (Worm Gear) Clamps: These are the most common type of hose clamps. They feature a galvanized or stainless steel band with a screw thread pattern cut into it, which tightens as a screw is turned. They are versatile and can be adjusted to a wide range of sizes, making them suitable for many applications.
• Spring Clamps: These are made from a strip of spring steel, which tightens the clamp’s grip as it is squeezed. Spring clamps are typically used in automotive engine bays, as they are resistant to the vibrations of the engine which might loosen other types of clamps.
• Wire Clamps: Constructed using a heavy-duty wire, these clamps often provide a more targeted and strong grip and are used in applications requiring higher pressure or where a robust seal is necessary.
• Ear Clamps: These feature a small, circular clamp with a closing mechanism that looks like an ear. They are often used in permanent, high-pressure applications as they create a very tight seal.

Wire Forming Materials

Applications of Wire Forming

Wire forming is a versatile manufacturing process used across various industries to create diverse parts and components. Here’s a list highlighting some specific parts that are commonly produced using wire forming techniques:

• Springs: Compression springs, extension springs, torsion springs
• Fasteners: Clips, pins, hooks, snap rings
• Automotive Components: Seat frames, exhaust hangers, brake clips
• Electrical Connectors: Terminals, contact pins, grounding clips
• Medical Devices: Orthodontic brackets, surgical staples, cage implants
• Home Appliances: Shelving racks, dishwasher racks, refrigerator shelving
• Retail Displays: Product hooks, display racks, shelf brackets
• Aerospace Hardware: Safety wire, locking mechanisms, fasteners
• Construction: Rebar ties, scaffold ties, wire mesh
• Furniture: Chair frames, table stands, mattress springs

Conclusion

Wire forming is integral to numerous industries, offering precision, efficiency, and versatility. If you need high-quality wire forms tailored to your specific requirements, don’t hesitate to reach out. Our expertise ensures top-notch results that perfectly meet your needs.

FAQ

What is wire forming?
Wire forming is the process of shaping metal wires into specified forms using various techniques, suitable for a wide range of applications.

What materials can be used for wire forming?
Common materials include stainless steel, aluminum, brass, copper, and various types of steel, each offering distinct properties for specific applications.

How accurate is wire forming?
Modern wire forming methods, especially CNC wire bending, provide high precision and repeatability, suitable for complex and detailed component production.

Can I order custom wire forms?
Absolutely! We specialize in both standard and custom wire forms, providing solutions that meet your exact specifications and quality standards.
