Comparing 1018 and 4140 Steel: Which is Right for Your Project?

Have you ever stood in front of two metal alloys, 1018 and 4140 steel, scratching your head, wondering which to choose for your project? Well, I certainly have, and I know it’s not just about picking the shinier option! Choosing the right steel impacts not only the quality of your project but also its cost-effectiveness and durability. Let’s demystify these two popular types of steel to help you make an informed decision.

When it comes to selecting the appropriate steel for any project, understanding the specific attributes and applications of 1018 and 4140 steel is crucial. Simply put, 1018 steel is your go-to for applications that demand good weldability and machinability without the necessity for high strength. On the other hand, 4140 steel offers an excellent balance of strength, toughness, and wear resistance, making it ideal for applications that require higher stress or impact resistance.

Choosing between 1018 and 4140 steel doesn’t have to be a complex decision. In the upcoming sections, I’ll break down their composition, properties, and uses, guiding you through the intricacies of each to help you decide confidently. Stay tuned!

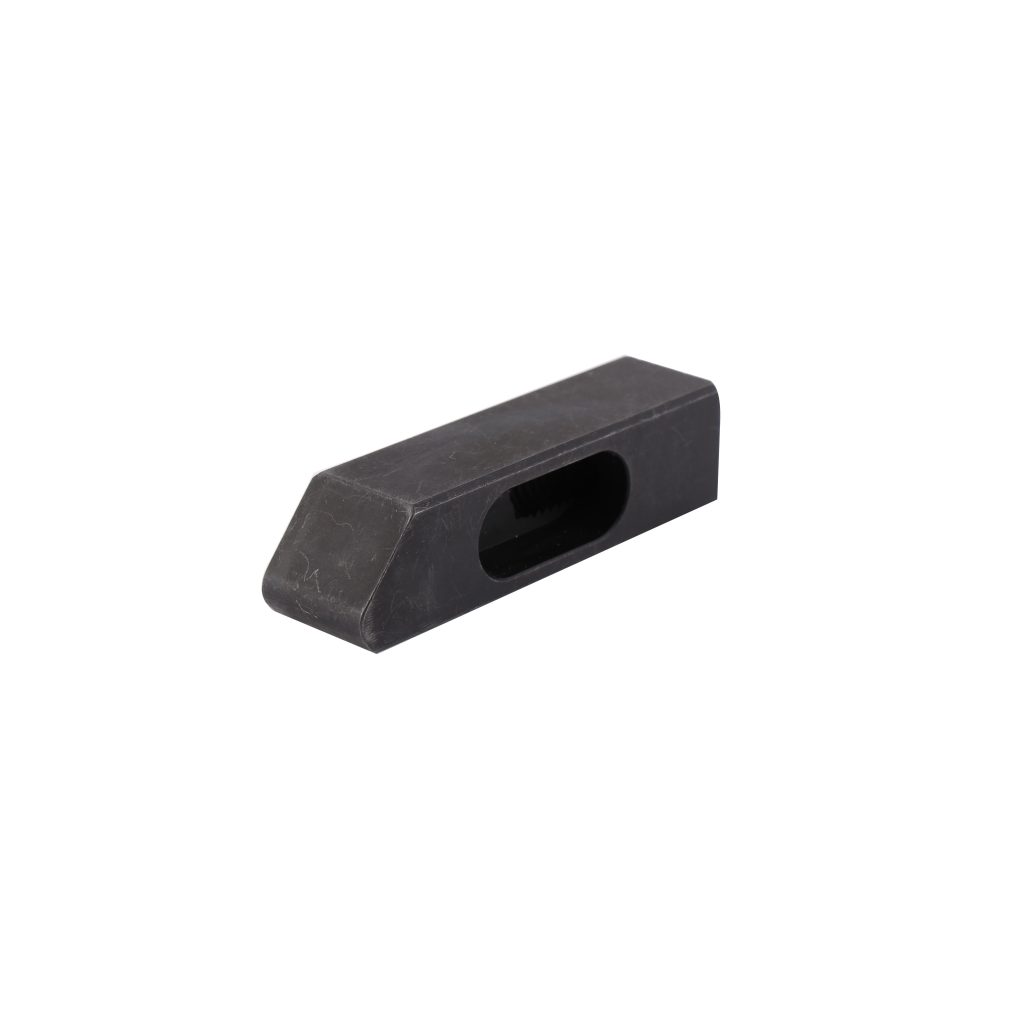

Understanding 1018 Steel

Composition and Properties

Applications

• Automotive parts: Often used for parts that require good formability and moderate strength, such as some pins, spindles, or rods.

• Fixtures and Mounts: Ideal for producing jigs, fixtures, and mounts due to its easy machining and strength.

• Structural applications: Utilized in the construction of frames and other structural components that benefit from its weldability.

• Consumer goods: Employed in the manufacture of furniture and appliances, where its aesthetic finish after painting or coating is valued.

• Fabrication: Commonly used in the fabrication of small to medium-sized parts and components due to its easy handling and forming capabilities.


Advantages and Disadvantages

Advantages:

• Machinability: One of the most significant advantages of 1018 steel is its excellent machinability, allowing for high-speed machining with good surface finish.

• Weldability: Its low carbon content enhances its weldability, reducing the risk of cracking or other weld defects.

• Cost-Effective: Compared to higher carbon and alloy steels, 1018 is more affordable and readily available, making it an economical choice for many applications.

• Ductility: High ductility makes it easier to form and shape, which is advantageous in manufacturing processes that involve bending or forming.


Disadvantages:

• Strength: While sufficient for many applications, 1018 steel does not offer the high strength that other steels like 4140 can provide. This limits its use in applications that require high strength-to-weight ratios.

• Corrosion Resistance: Without protective coatings or treatments, 1018 steel is prone to rust and corrosion, which can be a drawback in environments exposed to moisture or chemicals.

• Heat Treatment: It does not respond well to heat treatments intended to significantly increase hardness or strength, such as quenching and tempering, which limits its performance in high-stress applications.

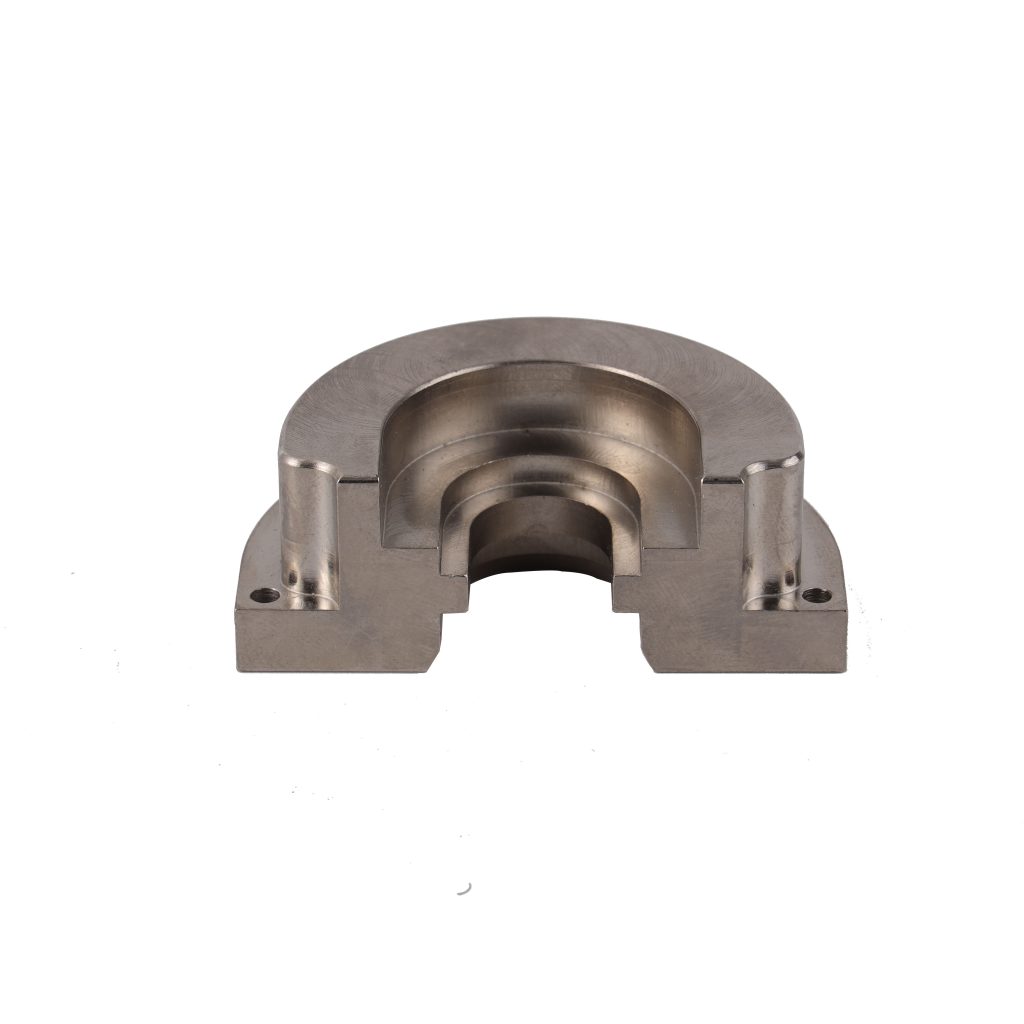

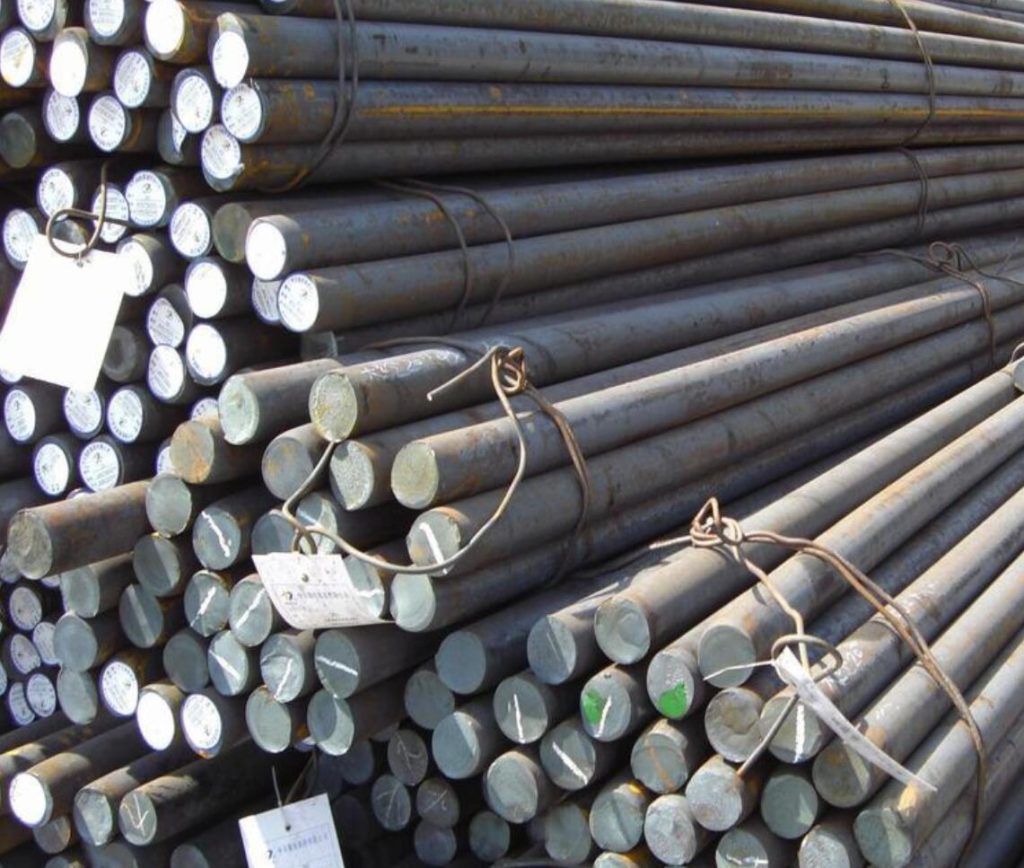

Understanding 4140 Steel

Composition and Properties

4140 steel, also known as chromium-molybdenum steel, is a high-strength alloy that stands out due to its impressive toughness and strength. This steel is distinguished by its considerable versatility and is often used where high tensile strength and toughness are paramount.

Composition: 4140 steel is an alloy steel that contains:

• Chromium (Cr): Approximately 0.80% to 1.10%

• Molybdenum (Mo): Around 0.15% to 0.25%

• Carbon (C): About 0.38% to 0.43%

• Manganese (Mn): 0.75% to 1.00%

• Silicon (Si): 0.15% to 0.30%

• Phosphorus (P): Up to 0.035%

• Sulfur (S): Up to 0.040%


Properties:

• Strength and Hardness: 4140 steel has a high tensile strength of 655 MPa and can achieve a hardness of up to 197 Brinell, making it one of the harder steels available without being difficult to machine.

• Toughness: It offers excellent toughness, which it retains even when tempered at low temperatures.

• Heat Treatability: This steel is known for its exceptional heat treatability, thanks to the presence of chromium and molybdenum which offer great stability and maintain strength during high heat treatments.

• Weldability: Although 4140 steel is weldable, it requires preheating and post-weld heat treatments to avoid stresses and potential weaknesses in the welded areas.

Applications

4140 steel’s blend of toughness, strength, and ductility makes it a prime choice for demanding applications across various industries:

• Aerospace: Utilized for high-stress components such as bolts, nuts, and other critical fasteners.

• Automotive: Common in making axles, shafts, gears, and sprockets where high stress and torsion resistance are required.

• Oil and Gas: Employed in drilling and wellhead equipment due to its ability to withstand high pressures and corrosive environments.

• Tool Making: Ideal for the production of dies, molds, and tool holders which require high impact and abrasion resistance.

• Military: Used in the manufacture of firearms components and armored vehicles, benefiting from its high strength and durability.

Advantages and Disadvantages

Advantages:

• High Strength and Toughness: 4140 steel provides a superb balance of strength and toughness, which can be further enhanced through heat treatment.

• Good Ductility: Despite its strength, 4140 maintains good ductility, allowing it to be formed into complex shapes without compromising its structural integrity.

• Heat Treatability: Excellent response to heat treatment including hardening and tempering, which enhances its mechanical properties for even tougher applications.

• Wear Resistance: The high chromium and molybdenum content provide excellent wear resistance, making it suitable for high-friction environments.


Disadvantages:

• Weldability: While it is weldable, 4140 steel requires careful preheating and post-weld heat treatment to prevent cracking and ensure the integrity of the weld area, which can complicate the welding process.

• Cost: Compared to more common carbon steels like 1018, 4140 is more expensive due to its alloying elements and processing requirements.

• Machinability: Although it can be machined, it is harder to machine than lower carbon steels like 1018, requiring more robust tools and slower machining speeds to achieve desired finishes.

• Corrosion Resistance: Like many steels, unless protected or treated, 4140 is susceptible to corrosion when exposed to the elements.

Comparing 1018 and 4140 Steel

When choosing between 1018 and 4140 steel, it’s essential to understand their differences in chemical composition, mechanical properties, and how they behave during machining and welding. These factors will significantly impact their suitability for specific applications.

Chemical Makeup (Alloy Composition)

1018 Steel:

• Carbon Content: Approximately 0.18%

• Primary Alloying Elements: Manganese, with minor amounts of phosphorus and sulfur.


4140 Steel:

• Carbon Content: About 0.38% to 0.43%

• Primary Alloying Elements: Higher levels of chromium (0.80% to 1.10%) and molybdenum (0.15% to 0.25%), along with manganese and silicon.


Mechanical Properties

1018 Steel:

• Tensile Strength: 400 – 500 MPa

• Yield Strength: 250 MPa

• Hardness: Approximately 95 Brinell

• Ductility: High, with good elongation


4140 Steel:

• Tensile Strength: 655 MPa
• Yield Strength: Higher than 1018, varies with heat treatment

• Hardness: Can reach up to 197 Brinell after heat treatment

• Ductility: Good, but generally less than 1018 when not heat treated


Machinability and Weldability

1018 Steel:

• Machinability: Excellent due to its low carbon content, making it easy to cut and shape.

• Weldability: Excellent; can be welded without any special precautions due to its low carbon content, reducing the risk of weld cracking.


4140 Steel:

• Machinability: Good, but requires more robust tools and considerations due to its higher hardness, especially if heat treated.

• Weldability: Moderate; requires preheating and post-weld heat treatment to avoid potential cracking and to ensure the integrity of the weld.

Cost Considerations

1018 Steel:

• Material Cost: Generally lower than 4140 due to its simpler chemical composition and more abundant availability. Its low alloying content makes it less expensive to produce.

• Machining Costs: Lower machining costs due to its excellent machinability. Tools last longer and operations are faster, which can significantly reduce manufacturing time and cost.

• Welding Costs: Lower costs associated with welding as it does not require special treatments like preheating or post-weld stress relieving.


4140 Steel:

• Material Cost: Higher than 1018 due to the presence of alloying elements like chromium and molybdenum, which are more expensive and add to the production costs.

• Machining Costs: Higher due to the material’s hardness, especially if it has been heat treated. This requires more robust machining tools and slower speeds, increasing wear on tools and the time taken per machining operation.

• Welding Costs: Higher, as it often requires preheating and post-weld heat treatments to avoid cracking, adding additional steps and costs to the welding process.

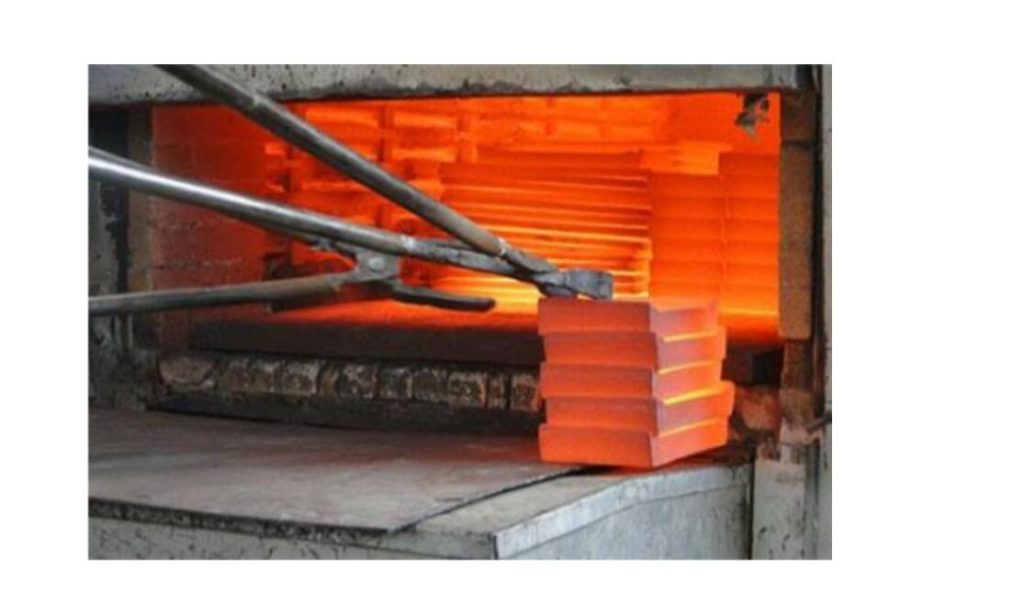

Heat Treatment

1018 Steel:

• Heat Treatability: Limited in terms of increasing hardness and strength. The primary method used is case hardening, which involves adding a hard layer on the surface while maintaining a softer, ductile interior.

• Processes Used: Carburizing is commonly used for 1018 steel to improve surface hardness.


4140 Steel:

• Heat Treatability: Excellent, with a wide range of heat treatment options available that can tailor the steel’s properties to specific needs.

• Processes Used: Can be hardened and tempered to achieve a much higher hardness and strength than 1018. Annealing, quenching, and tempering are commonly applied to 4140 steel to optimize its mechanical properties for specific applications.


Choosing the Right Steel for Your Project

Understand Your Project Requirements

• Strength and Durability: If your project requires high strength and durability, particularly where the material must withstand significant stress or wear, 4140 steel is typically the better choice due to its higher tensile strength and hardness.

• Machinability and Weldability: For projects where extensive machining or welding is required, 1018 steel might be preferable. It offers excellent machinability and weldability, which can simplify manufacturing processes and reduce costs.

• Budget Constraints: If cost is a significant concern, 1018 steel generally offers a more economical solution due to its lower material and processing costs.


Consider the Working Environment

• Exposure to Elements: For projects that involve exposure to harsh environments, the enhanced durability and potential for protective heat treatments make 4140 a more suitable option.

• Operational Stress: Evaluate the levels of operational stress the component will face. High-stress applications, such as those found in the aerospace or automotive industries, may necessitate the use of 4140 steel.


Factor in Long-Term Performance

• Longevity and Maintenance: Choosing a steel that matches the longevity and maintenance requirements of your project is crucial. While 4140 steel might initially be more expensive, its durability could reduce long-term maintenance costs and extend the lifespan of the component.

• Heat Treatment Needs: If the project requires specific mechanical properties that can only be achieved through heat treatment, 4140’s superior heat treatability could be a deciding factor.


Consult with Experts

• Technical Advice: Don’t hesitate to consult with materials engineers or industry experts who can provide insights specific to your project’s needs. Their expertise can help you weigh the pros and cons of each material in the context of your specific application.

• Testing and Prototyping: Whenever possible, conducting tests or creating prototypes can be an invaluable step in ensuring that you choose the best steel for your application. This can prevent costly mistakes and ensure that the material will perform as expected under operational conditions.


Conclusion

Choosing the right steel for your project is crucial for its success. If you’re unsure whether 1018 or 4140 steel is the best fit for your needs, don’t hesitate to reach out. Contact us today for expert advice and support tailored to your specific requirements, ensuring the optimal material choice for your application.

FAQ

What is the main difference between 1018 and 4140 steel?

The primary difference lies in their composition and strength. 1018 is a low-carbon steel known for its excellent machinability and weldability, making it ideal for parts requiring good forming and welding capabilities. 4140 steel, on the other hand, is an alloy steel that includes chromium and molybdenum, giving it superior strength and toughness suitable for high-stress applications.

What types of heat treatment are suitable for 4140 steel?

4140 steel can undergo various heat treatments, including annealing, normalizing, and quenching and tempering, to enhance its mechanical properties such as strength, ductility, and toughness.
