In the ever-evolving world of manufacturing, CNC machining stands out as a critical technology that continues to push the boundaries of precision, complexity, and efficiency. With an array of options such as 3-axis CNC machining, 4-axis CNC machining, and 5-axis CNC machining, it’s vital to understand the distinctions and benefits of these diverse methods. Discover more about CNC Machining.
Choosing the right approach for a specific application can be a daunting task, especially when the nuances between different axis CNC machines are considered. In this comprehensive guide, we’ll explore the characteristics, uses, and comparisons between 3-axis, 4-axis, and 5-axis CNC machining, helping you to make an informed decision tailored to your unique needs. Learn about different CNC machine types.
What is Axes?
In CNC machining, the term “axes” refers to the directions in which a cutting tool or milling machine can move. Understanding these axes is fundamental to grasping the capabilities of different CNC machines, including 3-axis, 4-axis, and 5-axis CNC machining.
The Basic Axes: X, Y, Z
- X-Axis: Horizontal left-right movement.
- Y-Axis: Horizontal front-back movement.
- Z-Axis: Vertical up-down movement.
These three primary axes are found in all types of CNC machines, from the simplest 3-axis machine to more complex configurations. They define the essential geometric space where the tool operates, allowing for fundamental cutting and shaping operations.
Advanced Axes: A, B, C
- A-Axis: Rotation around the X-axis.
- B-Axis: Rotation around the Y-axis.
- C-Axis: Rotation around the Z-axis.
These additional axes are incorporated into more advanced CNC machines, such as 4-axis and 5-axis CNC machines. They enable complex and intricate machining tasks, allowing the tool to approach the workpiece from multiple angles and perform specialized operations. Explore more about 5-axis CNC machining.

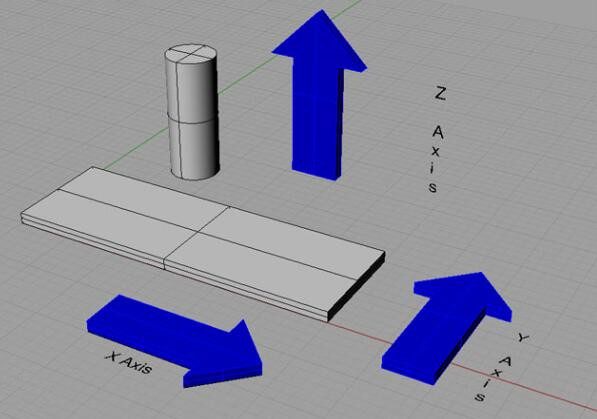

What is 3-Axis CNC Machining?
3-Axis CNC machining represents the most widely used form of CNC machining. It operates on the three primary axes (X, Y, Z), which allow for movement in three dimensions. But what exactly makes 3-axis CNC machining stand out, and what are its strengths and weaknesses?
Advantages of 3-Axis CNC Machining
- Simplicity: 3-axis CNC machines are easier to operate and program, making them an excellent choice for simple tasks.
- Cost-Effectiveness: Compared to 4-axis and 5-axis CNC machines, 3-axis machines are usually more affordable.
- Wide Applications: Suitable for a variety of basic milling and drilling operations.
- Accessibility: Easily available and understood by many manufacturers.
Limitations of 3-Axis CNC Machining
- Limited Complexity: 3-axis CNC machining cannot perform the complex cuts or angles achievable with 4-axis or 5-axis CNC machining.
- Multiple Setups Required: Complex parts might require the piece to be manually repositioned, leading to increased labor and potential inaccuracies.
- Restrictions on Geometries: Some intricate shapes and undercuts are impossible to create with 3-axis machining.

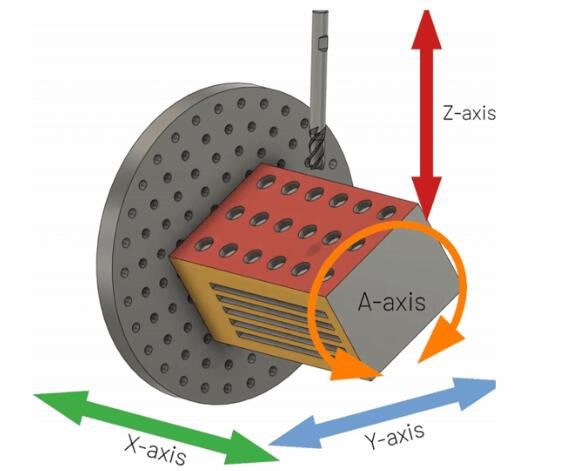

What is 4-Axis CNC Machining?
When it comes to expanding the capabilities of CNC machining, 4-axis CNC machining stands out as a significant advancement over 3-axis CNC machining.
The 4th Axis – A New Dimension
The 4th axis refers to the A-axis, which enables rotation around the X-axis. This rotation adds a new degree of freedom, allowing for more complex cuts and designs. It effectively bridges the gap between 3-axis and 5-axis CNC machines.
Discover various CNC machine types including 4-axis.
Advantages of 4-Axis CNC Machining
- Increased Complexity: Enables the creation of more intricate geometries compared to 3-axis CNC machining.
- Reduced Setup Times: The workpiece doesn’t have to be manually repositioned as often, leading to increased efficiency.
- Enhanced Versatility: Suitable for producing complex shapes and angles that 3-axis machines cannot handle.
- Optimized Workflow: Allows continuous machining without the need for stopping and repositioning.
Limitations of 4-Axis CNC Machining
- Increased Cost: More expensive than 3-axis CNC machines, making it a significant investment.
- Higher Learning Curve: Requires more training and expertise to program and operate.
- Not as Versatile as 5-Axis: Though capable, 4-axis CNC machining still cannot achieve the full range of motions and angles that 5-axis CNC machines can.
Taking CNC machining to its most advanced level, 5-axis CNC machining offers unparalleled flexibility and precision. Let’s explore what 5-axis CNC machines are and understand their advantages and limitations.

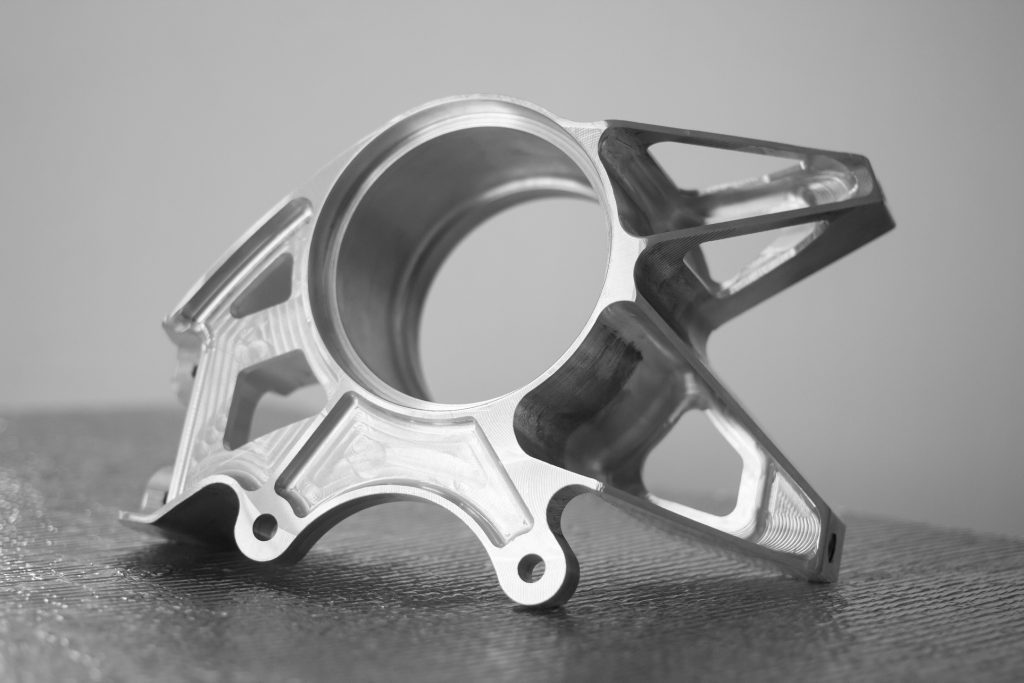

What is 5-Axis CNC Machining?
5-Axis CNC machining provides an advanced solution to complex manufacturing requirements. This technology operates on five different axes, including the standard X, Y, Z axes, along with two additional rotational axes.
3+2 Machines
Often referred to as 5-sided machining, 3+2 machines operate using three linear axes and two rotational axes.
Advantages of 3+2 Machines
- Less Complex Operation: Simpler to program and operate compared to fully continuous 5-axis CNC machines.
- Cost-Effective: Generally more affordable while still providing enhanced capabilities compared to 3-axis and 4-axis CNC machines.
- Enhanced Flexibility: Allows for machining complex parts without repositioning the workpiece.
Limitations of 3+2 Machines
- Limited Continuous Capability: Cannot perform continuous 5-axis cuts, which restricts its applicability in some highly intricate operations.
- Less Precision in Complex Tasks: Lacks the full potential of continuous 5-axis CNC machining in certain complex geometries.
Fully Continuous 5-Axis Machines
Fully continuous 5-axis CNC machines provide uninterrupted machining operation on all five axes simultaneously.
Advantages of Fully Continuous 5-Axis Machines
- High Precision: Offers extreme accuracy in complex and intricate tasks.
- Complete Flexibility: Enables continuous 5-sided machining, providing limitless possibilities in part design.
- Time Efficiency: Reduces the need for multiple setups and alignments.
Limitations of Fully Continuous 5-Axis Machines
- High Costs: More expensive in terms of acquisition, operation, and maintenance.
- Specialized Skill Requirements: Demands experienced operators for optimal performance.
Differences of 3-axis, 4-axis, and 5-axis CNC machining
Understanding the distinctions between 3-axis, 4-axis, and 5-axis CNC machining is vital to selecting the right approach for a specific project. Each axis adds capabilities, complexity, and potential applications. Let’s delve into these differences, including their respective costs.
3-Axis CNC Machining
- Axes: X, Y, Z
- Capabilities: Standard milling, drilling, and cutting
- Advantages: Simplicity, affordability
- Limitations: Limited to three planes; cannot handle complex geometries
- Cost: Most affordable option
- Common Uses: Basic parts and prototypes
4-Axis CNC Machining
- Axes: X, Y, Z, plus a rotational A axis
- Capabilities: 3D machining, enhanced flexibility in part handling
- Advantages: Ability to machine complex parts, reduced setup times
- Limitations: Less capable than 5-axis in handling highly intricate designs
- Cost: Moderate, higher than 3-axis but lower than 5-axis
- Common Uses: Sculptures, rotational parts, and complex geometries
5-Axis CNC Machining
- Axes: X, Y, Z, plus rotational A and B (or C) axes
- Capabilities: Highly complex geometries, continuous 5-sided machining
- Advantages: Extreme precision, flexibility, time efficiency
- Limitations: Higher costs, specialized skill requirements
- Cost: Most expensive option
- Types: 3+2 Machines and Fully Continuous 5-Axis Machines
3, 4, and 5-axis Machining – Which One is Suitable for You?
Selecting the right type of CNC machining – whether 3-axis, 4-axis, or 5-axis – requires a careful evaluation of your project’s unique needs. Let’s break down the considerations to help you determine which is the best option for you.
Complexity of the Design
- 3-axis CNC machining: Best for simple parts that don’t require intricate designs or undercuts.
- 4-axis CNC machining: Ideal for parts requiring some complex geometries and rotational features.
- 5-axis CNC machining: Perfect for highly complex and intricate designs with full 5-sided access to the workpiece.
Precision and Quality
- 3-axis CNC machining: Provides standard precision, suitable for most general applications.
- 4-axis CNC machining: Enhances precision with a rotational axis, allowing for more complex and detailed work.
- 5-axis CNC machining: Offers the highest level of precision and quality, suitable for aerospace, medical, and high-tech industries.
Conclusion
Choosing the right CNC machining approach, whether it’s 3-axis, 4-axis, or 5-axis CNC machining, is essential for the success of your project. Consider the complexity, precision, volume, and budget to find the solution that meets your specific needs. With a variety of options from 3-axis machines for simple parts to advanced 5-axis CNC machines for complex applications, the opportunities are endless. Understanding your unique requirements and aligning them with the appropriate technology is the key to efficient production.
Are you ready to take your project to the next level with customized CNC solutions? Visit Worthy Hardware to explore our wide range of CNC machining services. Our expertise in 3-axis, 4-axis, and 5-axis CNC machining can help you achieve the highest quality and efficiency in your manufacturing process. Get in touch with us today, and let’s make your vision a reality!
Frequently Asked Questions
What is the difference between 3 4 and 5-axis CNC machining?
3-axis CNC machining involves movement in three planes (X, Y, Z), while 4-axis CNC machining includes an additional rotational axis, and 5-axis CNC machining adds two rotational axes.
What is the advantage of a 5-axis CNC machine?
5-axis CNC machines provide higher precision and complexity in designs, allowing for more intricate and multidimensional parts. You can find more about it here.
What is a 6-axis CNC machine?
A 6-axis CNC machine adds another rotational axis to 5-axis CNC machining, providing even more control and precision.
