Aluminum Alloy Types: Details About the Different Grades
The choices can be overwhelming when selecting the suitable aluminum alloy for your manufacturing or engineering projects. As a seasoned expert in CNC machining and metal fabrication, I understand the crucial role that material selection plays in the success of a product. Selecting the wrong aluminum grade can lead to compromised efficiency and product failure, which is why it’s essential to understand the properties and applications of each aluminum alloy grade.
Aluminum alloys are categorized into several series, each offering unique characteristics suitable for different industrial applications. From enhanced strength to corrosion resistance, the diversity of aluminum alloys means there’s almost always a perfect match for any technical requirement.
Stay tuned as I dive deep into the fascinating world of aluminum alloys, where I’ll unravel the complexities of each type and help you make informed decisions for your projects.
Overview of Aluminum Alloys
Aluminum alloys are a cornerstone of modern engineering and manufacturing, offering a remarkable mix of lightness and strength. These alloys are made by combining aluminum with one or more metals and sometimes non-metals, enhancing their properties to meet specific industrial demands. Aluminum is renowned for its corrosion resistance, conductivity, and lightweight, but its range of applications expands exponentially when alloyed.
Aluminum alloys are classified into two broad categories: wrought and cast alloys. Wrought aluminum is mechanically processed into products like sheets, plates, rods, and tubes used in various applications.
On the other hand, cast aluminum is melted and poured into molds, ideal for complex shapes and sizes. Within these categories, aluminum alloys are further organized into a series system based on their principal alloying elements, significantly affecting their usability and performance.
The adaptability of aluminum alloys makes them invaluable across many industries, including aerospace, automotive, construction, and electronics. Their capacity to be customized for specific applications through alterations in their chemical composition or heat treatments allows engineers and designers to solve various challenges. As we continue, we’ll delve into the specifics of each series and its typical uses, providing a clearer understanding of how to select the suitable alloy for your project.

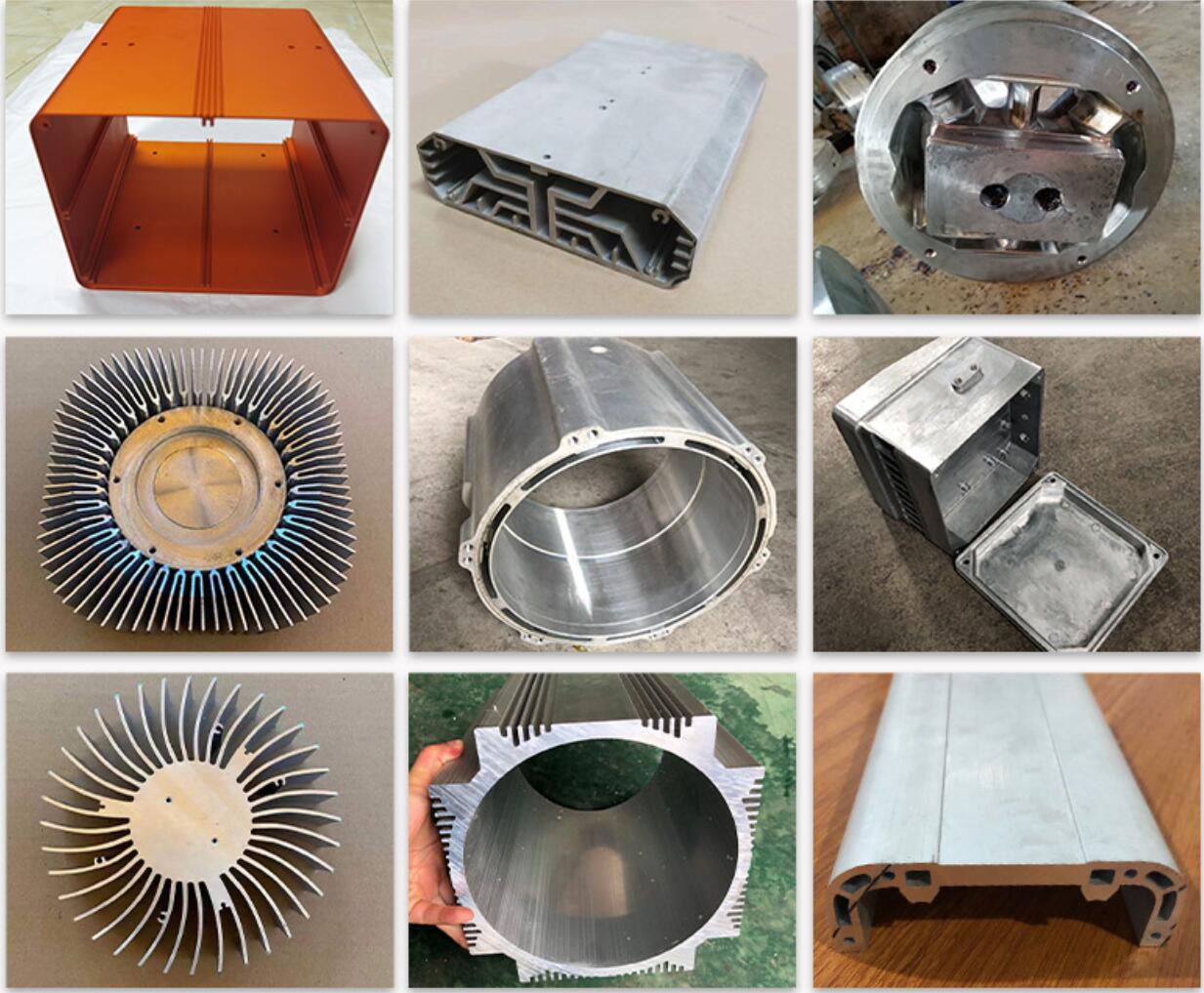

Aluminum Alloys Properties
Aluminum alloys are favored in many industries due to their unique combination of properties, which can be finely tuned to meet specific needs. Here’s a breakdown of some fundamental properties that make these alloys so versatile and invaluable:
Strength
Aluminum alloys vary widely in strength. Some heat-treated grades can compete with steel, while others maintain the lightweight properties of aluminum with added durability.
Corrosion Resistance
When air is exposed, aluminum naturally forms a thin, protective oxide layer that helps prevent further oxidation. Alloying elements like manganese, silicon, and zinc can enhance this property, making them ideal for marine and chemical processing environments.
Conductivity
Aluminum is an excellent conductor of electricity and heat, making it an ideal choice for power transmission lines and heat exchangers. Aluminum alloys can be designed to retain most of the conductivity of pure aluminum while improving other mechanical properties.
Ductility
Aluminum alloys are generally very ductile and can be hammered thin or stretched into wire without breaking. This property is beneficial for forming processes like rolling, extrusion, and forging.
Machinability
The machinability of aluminum alloys stands out, especially compared to other metals. They can be efficiently machined at high speeds, significantly lowering manufacturing costs. This is crucial in their widespread use in CNC machining and other manufacturing processes.
Recyclability
Aluminum is highly recyclable, and its properties do not degrade during recycling. This makes aluminum alloys a sustainable choice for environmentally conscious businesses, as they can be reused and recycled multiple times without losing quality.

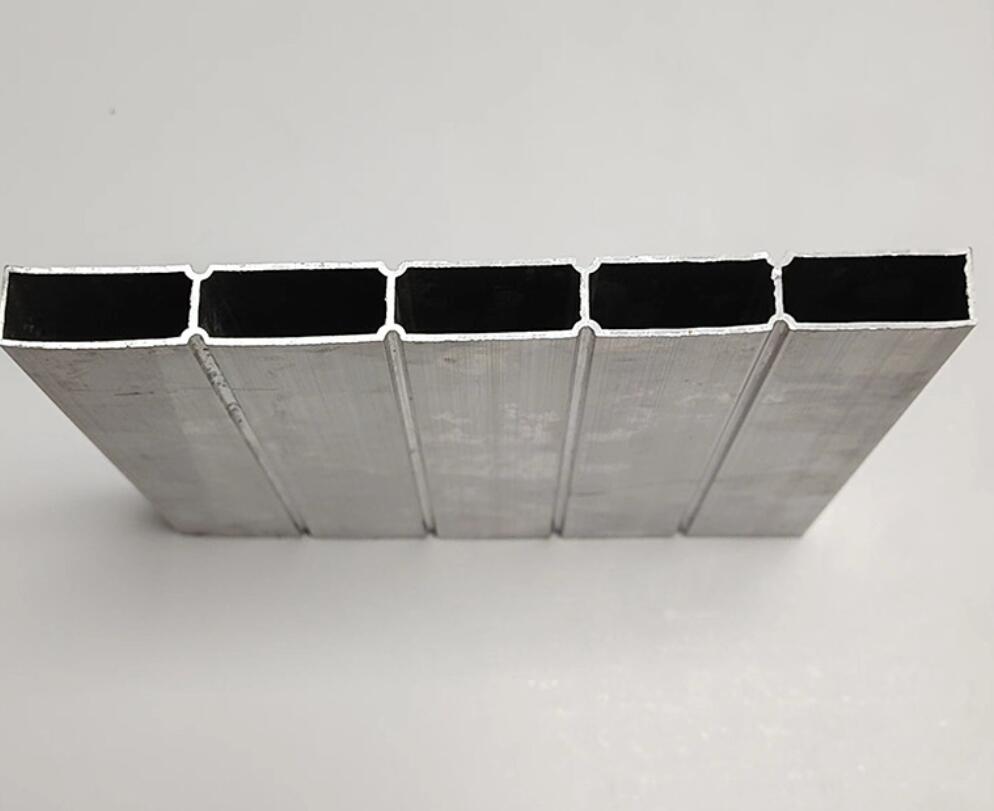

The Aluminum Alloy Numbering System
Series 1000: Pure Aluminum
The 1000 series aluminum is as close to pure aluminum as is typically used for industrial applications, with a minimum of 99% aluminum by weight. This series is renowned for its excellent corrosion resistance, high thermal and electrical conductivity, and superb workability. It’s especially favored when these properties are critical, such as in manufacturing electrical conductors and chemical equipment.
Due to its purity, the 1000 series aluminum is highly malleable. It can be easily welded and is used extensively in products requiring deep drawing, like spinning complex forming operations or anodizing processes. However, it needs more strength than the more alloyed metals, making it less suitable for structural applications.
Despite its softness, the 1000 series is often used in applications where high electrical conductivity is necessary. Nearly 50% of all aluminum conductors used in the power industry are made from this series, which can effectively carry electricity with only a fraction of the weight of comparable copper conductors.
Series 2000: Aluminum-Copper Alloys
Aluminum alloys in the 2000 series are primarily copper alloyed and often referred to as duralumin alloys, famous for their strength and hardness. These are among the highest-strength alloys available and are used extensively in aerospace and military applications, where they are valued for their toughness and resistance to fatigue.
The addition of copper significantly enhances the strength of these alloys through heat treatment processes such as quenching and aging. However, this also makes them more susceptible to corrosion, particularly when exposed to specific environments. As a result, these alloys often require protective surface treatments like anodizing or cladding to mitigate corrosion risks.
Despite their propensity for corrosion, 2000 series alloys are highly sought after for high-performance applications. Components like aircraft fuselage and wing skins, structural components of rockets, and other critical high-stress parts are typically made from these alloys due to their ability to withstand considerable mechanical stresses over prolonged periods.
Series 3000: Aluminum-Manganese Alloys
The 3000 series aluminum alloys are primarily alloyed with manganese, which increases their strength over the 1000 series while maintaining good formability, corrosion resistance, and weldability. These characteristics make the 3000 series highly versatile and suitable for various applications. Typical uses include cooking utensils, radiators, and air conditioning units where good workability and moderate strength are required.
Manganese in the 3000 series typically ranges from 1% to 1.5%, which does not allow heat treatment to strengthen the alloys. Instead, these alloys are work-hardened to improve their mechanical properties. This series strikes a perfect balance between strength, formability, and corrosion resistance, making it ideal for commercial applications that require sheet metal work, like roofing and siding.
The corrosion resistance of 3000 series alloys also makes them suitable for outdoor applications where exposure to moisture is a constant concern. Additionally, these alloys are often used in automotive manufacturing for parts like fuel tanks that benefit from the alloy’s formability and corrosion resistance.
Series 4000: Aluminum-Silicon Alloys
Aluminum alloys in the 4000 series are primarily alloyed with silicon, which significantly improves their fluidity and casting properties, making them ideal for use in casting applications. The presence of silicon not only lowers the alloy’s melting point but also enhances its resistance to wear and abrasion, which is crucial in applications involving moving parts.
These alloys are typically not heat-treatable and are often used in welding wire and brazing alloys due to their excellent flow characteristics and minimal shrinkage during cooling. This makes the 4000 series preferred in the welding industry, particularly for intricate or detailed joinery work.
In the automotive industry, the 4000 series is frequently used for manufacturing parts like pistons and cylinder heads, which benefit from the alloys’ good castability and resistance to thermal fatigue. Their ability to withstand high temperatures makes them suitable for high-performance engine components.
Series 5000: Aluminum-Magnesium Alloys
The 5000 series aluminum alloys are primarily alloyed with magnesium, significantly enhancing their strength and making them resistant to corrosion, particularly in marine environments. This strength and corrosion resistance combination makes these alloys highly valuable for applications exposed to harsh elements, such as marine hardware, tanker trucks, and pressure vessels.
These alloys are not heat-treatable but can be hardened through cold working methods. The presence of magnesium also improves the alloys’ weldability, making them a preferred choice for structures that require robust, weldable materials that will not compromise on strength or integrity in demanding environments.
The 5000 series is particularly noted for its excellent fatigue resistance, an essential characteristic for the construction of ships and other structures where repetitive stress is a regular occurrence. It’s also popular in the automotive industry for producing automobile body panels and other components that benefit from lightweight and durable aluminum with good formability.
Series 6000: Aluminum-Magnesium-Silicon Alloys
The 6000 series aluminum alloys blend aluminum, magnesium, and silicon, forming magnesium silicide within the alloy. This composition allows these alloys to be heat-treatable, offering a good balance of strength, formability, and corrosion resistance. They are among the most popular aluminum alloys for extrusions and structural applications that require an excellent strength-to-weight ratio.
Commonly used to construct frames and structures, the 6000 series is highly versatile. It’s well-suited for applications in the automotive and aerospace industries, where it’s used for complex parts like chassis and fuselage components. These alloys are particularly appreciated for their ability to be anodized, adding a layer of protection and providing aesthetic enhancement.
The 6000 series’ ability to be easily machined and its compatibility with welding offers tremendous flexibility in design and manufacturing. It’s often the go-to choice for engineered products, including tubes, rods, profiles, and precision plates designed for durable and lightweight applications.
Series 7000: Aluminum-Zinc Alloys
The 7000 series aluminum alloys are primarily alloyed with zinc, representing some of the highest-strength aluminum alloys available. Often complemented by the addition of magnesium and copper, these alloys are heat-treatable and known for their impressive strength-to-weight ratio. This makes the 7000 series particularly valued in the aerospace and automotive industries, where high-stress components require materials that can withstand extreme conditions without adding excessive weight.
These alloys exhibit excellent mechanical properties, including durability and resistance to fatigue, which are essential for applications that undergo frequent and intense stress cycles. Their ability to endure harsh environmental conditions makes them suitable for aircraft structural components, military applications, and competitive sporting equipment like bicycle frames and climbing equipment, where material failure could lead to catastrophic results.
However, despite their strengths, 7000 series alloys are more susceptible to corrosion compared to other aluminum alloy series, especially in the presence of water. Therefore, they often require protective coatings or treatments to enhance their durability and resistance to environmental degradation. This aspect must be carefully considered when selecting this alloy for projects involving corrosive ecological exposure.

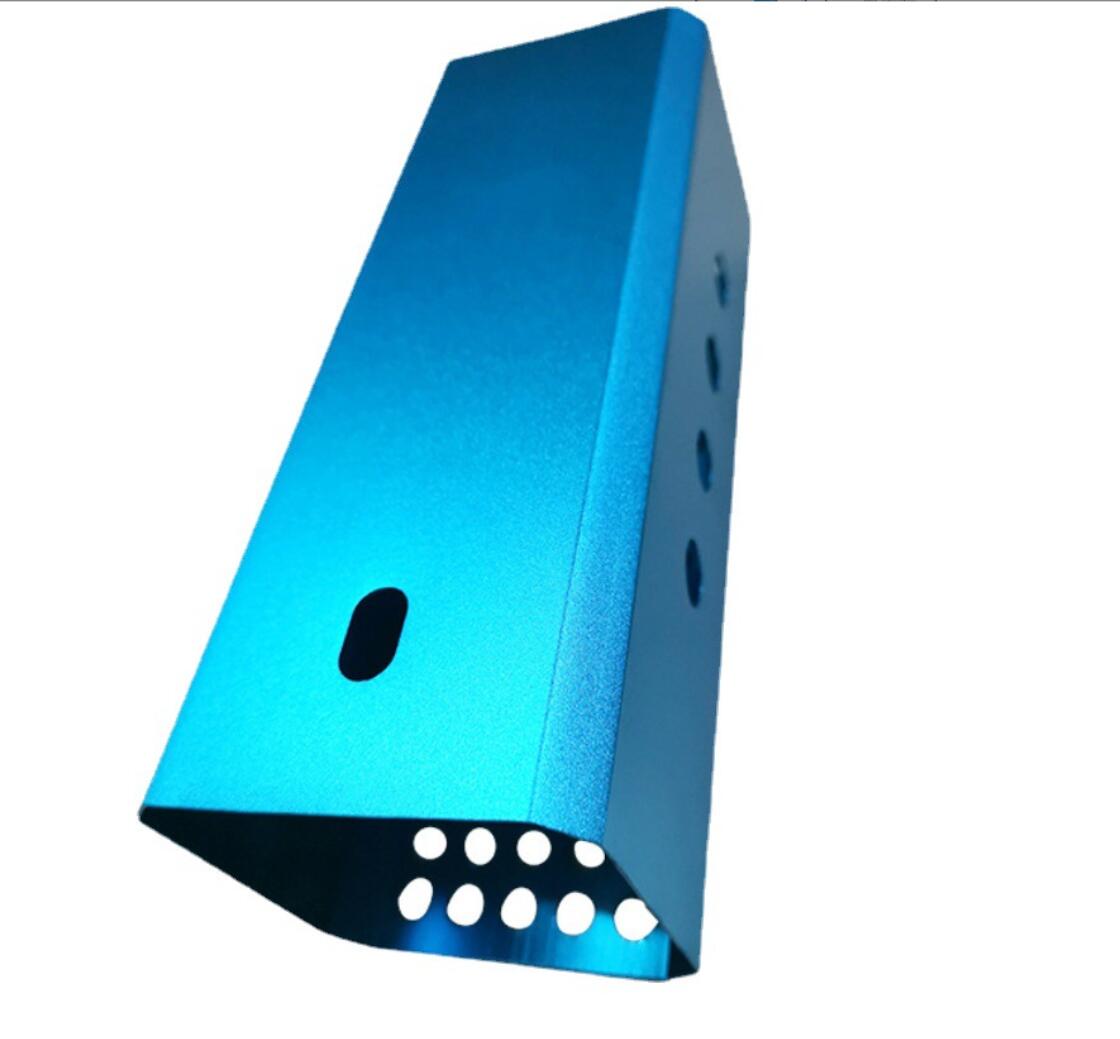

Comparison of Wrought and Cast Aluminum
Wrought Aluminum
Wrought aluminum refers to mechanically working aluminum by rolling, extruding, forging, or similar processes. This mechanical work increases the strength of the aluminum by breaking up the grain structure, enhancing its properties. Wrought aluminum is known for its flexibility, which allows it to be formed into various shapes and sizes, making it ideal for applications requiring intricate designs and high formability.
Wrought alloys are typically stronger than cast alloys and are used in applications where strength is critical, such as in the frames and panels of vehicles, aircraft, and ships. They also generally have better fatigue resistance, which is crucial for components undergoing repeated stress. Furthermore, wrought aluminum has a finer surface finish, which is beneficial for aesthetic purposes and when surface quality is a priority.
Cast Aluminum
On the other hand, cast aluminum is made by pouring molten aluminum into molds, allowing it to cool and solidify into the desired shape. This process is less costly and more suited to producing complex shapes that would be challenging or economically unfeasible to achieve with wrought aluminum. Cast aluminum can incorporate intricate designs and cavities, often utilized in components like automotive engine parts, where complex geometries are standard.
However, cast aluminum generally has a lower tensile strength and is less malleable than wrought aluminum. It is also more susceptible to internal defects such as porosity, which can weaken the structure. Despite these drawbacks, cast aluminum is excellent for applications where the complexity of the shape is more critical than the material strength, such as in decorative fixtures or certain types of machinery housings.
Choosing Between Wrought and Cast
The choice between wrought and cast aluminum ultimately depends on the application’s requirements. Wrought aluminum is often the preferred choice for projects that demand high strength, durability, and fatigue resistance.
Cast aluminum offers a cost-effective and versatile solution for those that require complex shapes and are less demanding in terms of mechanical strength. Each form provides distinct advantages and limitations, and selecting the appropriate one can lead to better performance, efficiency, and cost-effectiveness in product design and manufacturing.

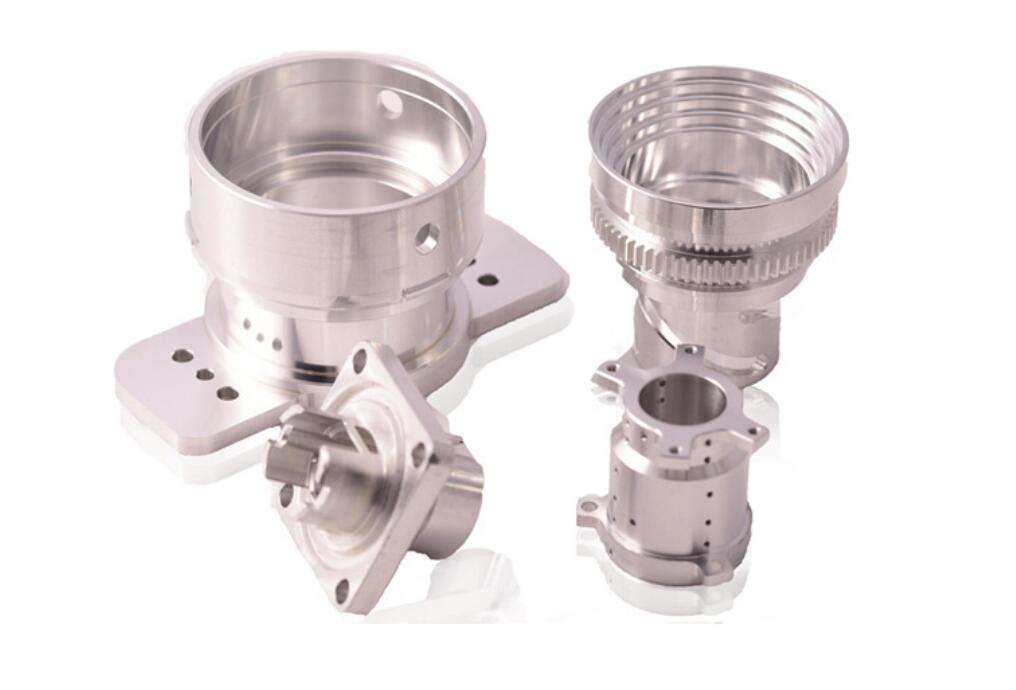

Popular Types of Aluminum for CNC Machining
6061 Aluminum
6061 aluminum is the most widely used alloy for CNC machining. It strikes an excellent balance between strength, weight, and machinability. Composed of aluminum, magnesium, and silicon, this alloy is known for its good mechanical properties and excellent corrosion resistance. It’s particularly suitable for applications requiring a good strength-to-weight ratio, such as aerospace components, bicycle frames, and construction materials.
7075 Aluminum
For applications that demand superior strength and durability, 7075 aluminum is often the preferred choice. This alloy includes zinc as the primary alloying element, enhancing its strength significantly compared to other aluminum alloys. It’s beneficial in the aerospace industry, where high-stress components require materials to withstand extreme conditions. Despite its strength, 7075 maintains decent machinability and anodizing properties.
5083 Aluminum
5083 aluminum is known for its exceptional strength and corrosion resistance, making it ideal for marine applications. This alloy is highly resistant to seawater corrosion, making it suitable for shipbuilding, rail cars, and other applications exposed to harsh environments. Its excellent welding properties make it a common choice for structures requiring robust welded joints.
2024 Aluminum
2024 aluminum, primarily alloyed with copper, is known for its high strength and excellent fatigue resistance but less corrosion resistance. It is commonly used in aircraft structures and other aerospace components, where its strength is critical to the safety and integrity of the machinery. This alloy is also famous for its good machinability and surface finish.
6063 Aluminum
6063 aluminum, often an architectural alloy, is favored for its smooth surface finish and high corrosion resistance. It is easier to form and anodize, making it suitable for complex profiles and applications. Typical uses include frames, containers, and intricate architectural structures.
Tips for Choosing an Aluminum Grade
Selecting the suitable aluminum grade for a project is crucial to ensuring optimal performance, durability, and cost-effectiveness. Here are some practical tips to help guide the decision-making process when choosing an aluminum grade for various applications:
Understand the Application Requirements
Before selecting an aluminum grade, clearly define the application requirements. Consider factors such as the mechanical stresses the product will endure, the environment it will operate in, and any necessary manufacturing processes like welding, machining, or anodizing. These factors will significantly influence the choice of aluminum alloy, as different grades offer varying degrees of strength, corrosion resistance, workability, and heat tolerance.
Consider the Strength-to-Weight Ratio
Aluminum is renowned for its excellent strength-to-weight ratio. For applications where weight is a critical factor, such as in aerospace or automotive industries, consider using high-strength alloys like 7075 or 2024. These grades offer superior strength while keeping the overall weight low, essential for fuel efficiency and performance.
Evaluate Corrosion Resistance
The environment in which the aluminum will be used should heavily influence the grade selection. For harsh chemicals or saltwater environments, choose aluminum grades with excellent corrosion resistance, such as 5052 or 3003. These grades are less likely to degrade or fail over time, which is crucial for marine hardware or chemical storage tank applications.
Assess Machinability
For projects involving CNC machining, select aluminum grades known for their machinability. Grades like 6061 and 6063 offer good machinability, allowing for high precision and efficient production. This is particularly important when producing complex designs or when tight tolerances are required.
Check for Heat Treatment Options
Some aluminum grades can be heat-treated to enhance their strength and mechanical properties. If your application requires additional hardness or strength, consider grades that respond well to heat treatment, such as 2024, 6061, or 7075. These grades can be used to achieve the higher performance characteristics required for demanding applications.
Prioritize Weldability
If the project requires welding, opt for aluminum grades known for their weldability. Grades like 3003 and 5052 are excellent choices for extensive welding projects as they maintain their integrity and properties after being welded.
Cost Considerations
Finally, consider the cost of different aluminum grades, which can vary significantly. Balancing cost with performance needs is crucial, especially in large-scale production or for applications where budget constraints are tight.
Conclusion
Selecting the suitable aluminum alloy is critical for ensuring the success of your project. By understanding the unique properties of each series and assessing your specific application needs, you can make an informed choice that maximizes performance and cost-effectiveness. Don’t hesitate to consult us to optimize your material selection for future projects.
FAQ
Which aluminum alloy is best for marine applications?
The 5000 series, particularly 5083 and 5052, are highly recommended for marine applications due to their excellent corrosion resistance and strength in wet environments.
Can aluminum alloys be welded?
Yes, most aluminum alloys can be welded, but some are easier to work with than others. The 3000 and 5000 series are known for their excellent weldability, while the 2000 and 7000 series are generally more challenging due to their high strength and sensitivity to heat.
How do I choose the suitable aluminum alloy for CNC machining?
For CNC machining, 6061 is often the go-to choice because of its good machinability, strength, and weldability. However, the specific requirements of your project, such as the need for higher strength or corrosion resistance, might lead you to choose another alloy like 7075 or 5052.
How does the cost of aluminum alloys vary?
The cost of aluminum alloys varies depending on the alloying elements and the complexities involved in their production. Generally, alloys with higher strength and more specialized properties, like the 2000 and 7000 series, tend to be more expensive than those with more straightforward compositions, like the 1000 series.
What are the key considerations when selecting an aluminum alloy for anodizing?
When selecting an aluminum alloy for anodizing, consider choosing a grade that forms a consistent oxide layer. The 5000 and 6000 series are typically preferred for anodizing due to their ability to effectively achieve a decorative and protective finish.
