What is Bronze Machining?

Bronze machining refers to the process of shaping, cutting, and finishing bronze alloy using CNC machines or traditional tools. The goal is to create precise components with specific dimensions, typically for industrial or artistic applications. Due to its durability and versatility, bronze is ideal for parts requiring high wear resistance and corrosion protection.

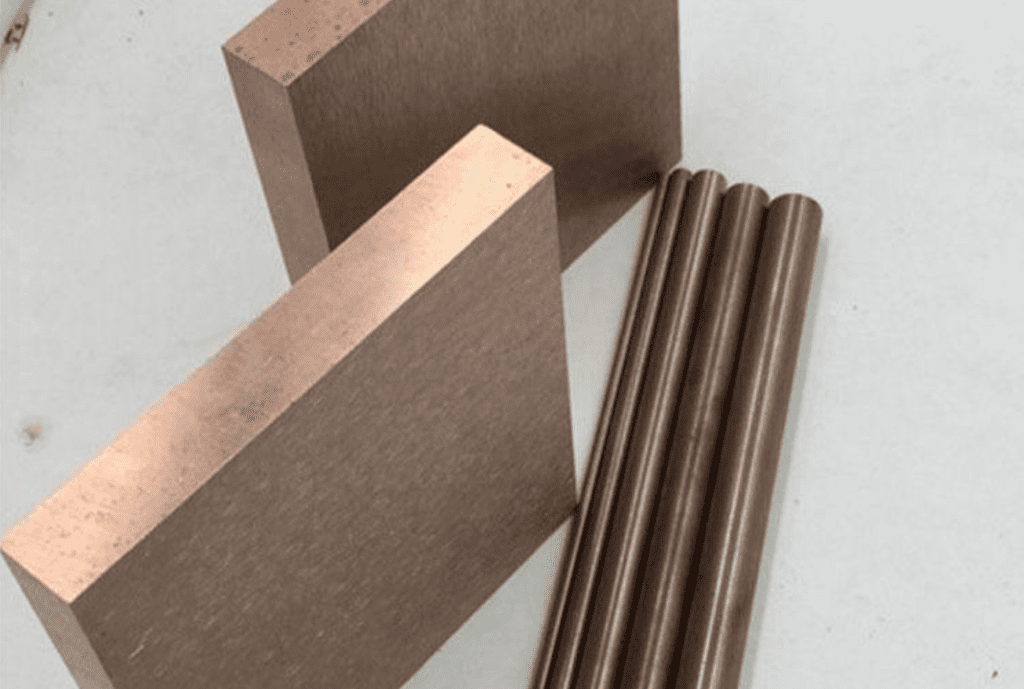

What are the Types of Bronze Available for CNC Machining?

Bronze, as a copper-based alloy, is not limited to a single composition. The different types available for CNC machining vary in properties due to their distinct elemental mixtures, which are tailored to meet specific performance requirements. Here are some of the primary types of bronze used in CNC machining:

Phosphor Bronze: Known for its excellent fatigue resistance and durability, phosphor bronze contains around 0.01% to 0.35% phosphorus, which improves wear resistance and stiffness. This type is particularly useful in electrical and aerospace applications due to its low friction and fine grain.
Silicon Bronze: This type contains a significant amount of silicon, usually between 2% and 3%. Silicon bronze is known for its good corrosion resistance, making it suitable for marine environments. It also possesses good strength and is easy to pour, making it ideal for casting intricate parts.
Aluminum Bronze: Containing up to 12% aluminum, this bronze variant is highly valued for its strength and resistance to corrosion, especially in sea water. It’s used extensively in the marine industry and for manufacturing bearings, gears, and valves that require high strength and resistance to wear.
Manganese Bronze: Although referred to as bronze, manganese bronze includes a significant amount of zinc, which can range from 20% to 40%. It’s known for its high strength and resistance to impact, which makes it ideal for heavy-duty applications such as construction and automotive parts.
Tin Bronze: This is one of the oldest and most common forms of bronze used today. With tin content typically between 2% and 8%, tin bronze is highly wear resistant and has very good mechanical properties, which makes it suitable for gears, bearings, and similar components.

Properties of Bronze Beneficial for CNC Machining

Unique Attributes of Bronze That Facilitate Machining

Machinability: Bronze alloys generally offer excellent machinability. They allow for smooth cutting and are less prone to catching on the cutting tool, which reduces the risk of galling or snagging during the machining process. This ensures cleaner cuts and a better surface finish.
Wear Resistance: Bronze is notably durable against wear and friction. This property is crucial in producing parts like gears and bearings, which are subjected to continuous mechanical contact and need to maintain their integrity over long periods.
Corrosion Resistance: Most bronze alloys boast superior corrosion resistance, particularly against saltwater and corrosive environments, making them ideal for marine and chemical processing applications.
Ductility: The ductility of bronze is advantageous for machining because it allows the material to stretch and conform under stress without cracking. This property is particularly useful when creating intricate shapes or detailed features on parts.

Comparing Bronze to Other Metals Used in CNC Machining

Compared to Steel: Steel is tougher and has a higher tensile strength than most bronze alloys, but it is also more susceptible to corrosion without proper treatments and coatings. Bronze offers a naturally occurring resistance to corrosion and is generally easier to machine due to its softer nature.
Compared to Aluminum: Aluminum is lighter than bronze and easier to machine at high speeds, making it suitable for applications where weight is a critical factor. However, bronze outmatches aluminum in terms of wear resistance and load-bearing capacity.
Compared to Stainless Steel: Stainless steel offers exceptional corrosion resistance and strength, similar to bronze, but it is typically harder to machine and more expensive. Bronze provides a cost-effective alternative with adequate strength and corrosion resistance for many applications.
Compared to Plastics: While plastics can be machined much faster and with less wear on tools, they generally lack the mechanical strength, thermal stability, and wear resistance of bronze, limiting their use in more demanding applications.

CNC Machining Techniques for Bronze

Turning: This process involves rotating the bronze workpiece while a cutting tool moves in a linear motion. Turning is ideal for creating cylindrical parts such as shafts, pins, or bushings. It can achieve tight tolerances and a smooth finish, crucial for components requiring precise radial symmetry.

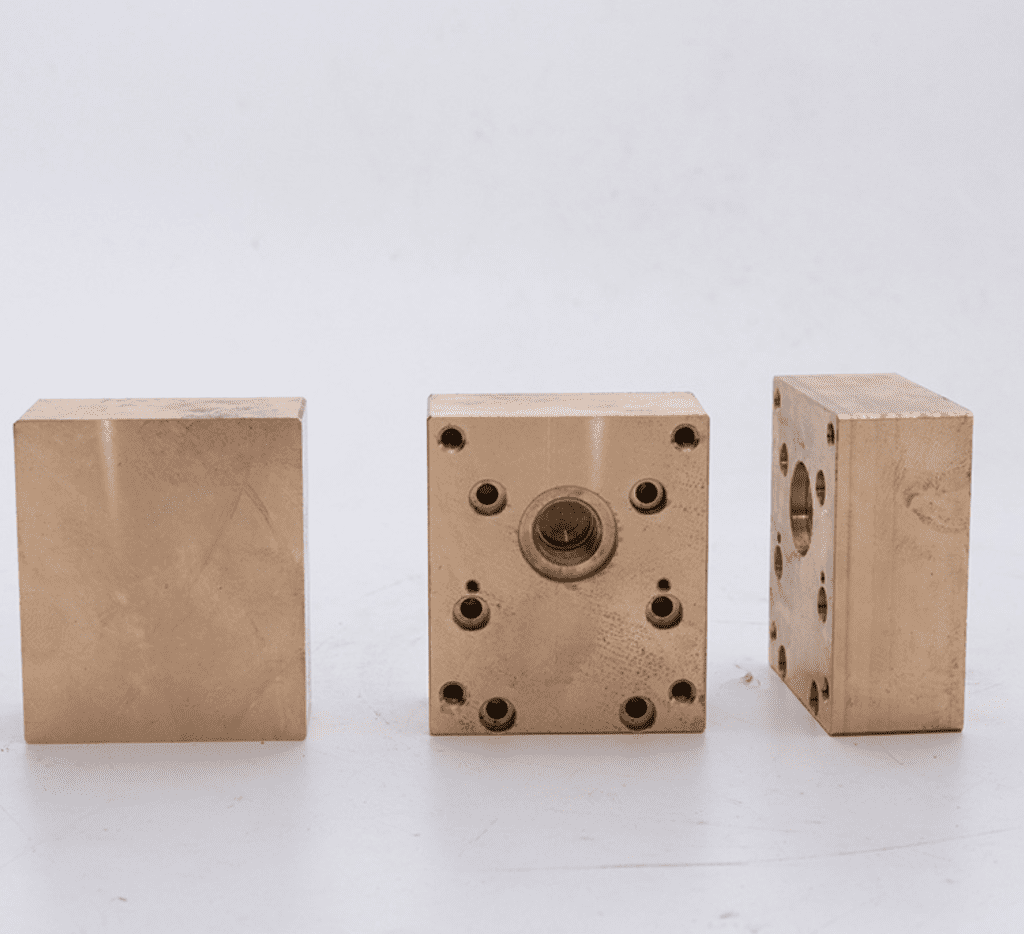

Milling: Milling uses rotary cutters to remove material from the workpiece. This method is versatile and can produce a variety of features including slots, threads, and complex contours. It’s particularly useful for parts that require intricate details or multiple cuts.

Drilling: Drilling is used to create round holes in bronze and is often combined with other machining processes. The softness of bronze allows for faster drilling speeds compared to harder metals, but care must be taken to prevent overheating and ensure clean hole walls.

Boring: Boring is a process to enlarge pre-drilled holes or correct their alignment. It is used to achieve precise hole sizes and smooth internal surfaces, which are crucial for parts that must house bearings or other fittings.

Broaching: This method is used to machine irregular shapes or keyways inside holes. Bronze’s ductility makes it suitable for broaching, as the material can accommodate the stress of the broach without cracking.

How to Choose the Right Technique for Your Project

Selecting the right machining technique for bronze parts involves considering several factors:

Complexity of the Part: The more complex the part design, the more precise the machining technique needed. Milling and turning are excellent for most complex shapes, but specific features like internal keyways may require broaching.
Tolerance and Finish Requirements: Higher precision parts typically require turning or boring, which can achieve tighter tolerances and smoother finishes. Milling is suitable for less stringent tolerance needs and can be used for parts with complex geometries.
Volume of Production: The production volume also influences the choice of technique. Turning and milling are highly scalable and suitable for both small and large batch sizes.
Cost Considerations: The cost-effectiveness of a machining technique is crucial. Generally, techniques like turning and drilling are less expensive compared to more specialized methods like broaching, which might require custom tools.
Material Properties: Finally, consider the specific bronze alloy being used. Some alloys may work better with certain techniques based on their hardness and grain structure.

Design Considerations for Bronze Machining

Material Selection

Alloy Type: Choose the appropriate bronze alloy based on the intended application of the part. Different bronze alloys offer varying properties like strength, corrosion resistance, and machinability. For example, phosphor bronze is excellent for fatigue resistance, while aluminum bronze is suited for parts requiring high strength and corrosion resistance.

Geometric Design

Complexity: Simplify the design where possible to reduce machining time and costs. Complex shapes can increase the risk of tool wear and breakage, especially in tougher bronze alloys.
Tolerances: Set realistic tolerances that align with bronze’s capabilities. Overly tight tolerances can significantly increase production costs without providing meaningful benefits in terms of part function.
Wall Thickness: Design parts with uniform wall thickness to minimize the risk of warping and ensure even cooling and material properties throughout the part. Avoid abrupt changes in cross-sectional areas.

Machining Strategy

Tool Access: Ensure that the design allows for easy tool access to all surfaces that require machining. This minimizes the need for special tooling or multi-axis machining operations, which can be more costly.
Undercuts and Internal Corners: Minimize undercuts and tight internal corners, which are challenging to machine and may require specialized tools. Rounded corners are generally easier to machine and can reduce stress concentrations in the part.

Assembly Integration

Joining Techniques: Consider how the bronze parts will be assembled into larger systems. Design features such as holes for screws or slots for tabs should be incorporated into the part design to facilitate easy assembly.
Interfaces with Other Materials: Consider how bronze parts will interact with other materials in an assembly. Ensure that differential thermal expansion and potential galvanic corrosion are accounted for in the design.

Aesthetic and Functional Finishes

Surface Finish: Specify the required surface finish in the design phase, as achieving finer finishes can require additional machining steps or finishing processes like polishing or plating.
Post-Machining Processes: If the part requires post-machining processes such as heat treatments, coatings, or anodizing, make sure the initial machining stages are compatible with these processes. For example, certain heat treatments may require leaving additional material on the part for final machining after the treatment.

How Material Properties Affect Design Choices

Material properties play a critical role in the design and manufacturing of CNC machined parts. For bronze, understanding its specific characteristics can significantly influence design decisions to ensure functionality, manufacturability, and cost-efficiency. Here are several ways in which the properties of bronze affect design choices:

Strength and Hardness

Load Bearing Capacity: The inherent strength and hardness of bronze affect how it can be used in structural applications. Designs for parts that must withstand significant mechanical loads, such as bushings or bearings, need to account for the material’s strength to prevent deformation or failure.
Wear Resistance: The excellent wear resistance of bronze makes it suitable for high-wear applications. Designers can capitalize on this property by specifying bronze for components that experience frequent or intense frictional contact, thereby extending the lifespan of these parts.

Thermal Conductivity

Heat Dissipation: Bronze’s thermal conductivity is an essential factor in applications involving heat transfer and dissipation. Parts like heat exchangers or cooling components can be designed taking advantage of bronze’s ability to conduct heat effectively, which can enhance the overall performance of a system.

Corrosion Resistance

Environmental Suitability: The corrosion resistance of bronze is a decisive factor in designing parts for corrosive environments, such as marine or chemical exposure. This property allows designers to use bronze in applications where other metals might fail, ensuring longevity and reliability.

Machinability

Machining Costs and Complexity: Bronze’s machinability impacts how complex a part can be designed without escalating the production costs. Because bronze is relatively easier to machine compared to harder metals like stainless steel, designers can incorporate more intricate features or tighter tolerances, which may be cost-prohibitive with less machinable materials.

Ductility

Formability and Deformation: The ductility of bronze is particularly advantageous when designing parts that require bending or forming as part of their manufacturing process. This property allows for more dynamic shapes and designs, which can be crucial for custom or specialized applications.

Elasticity

Vibration Dampening: The elastic properties of bronze are beneficial for parts that must endure vibrational forces. Designs can leverage bronze for applications that need to reduce vibration or noise, such as in machinery components or automotive assemblies.

Common Applications of Bronze CNC Parts

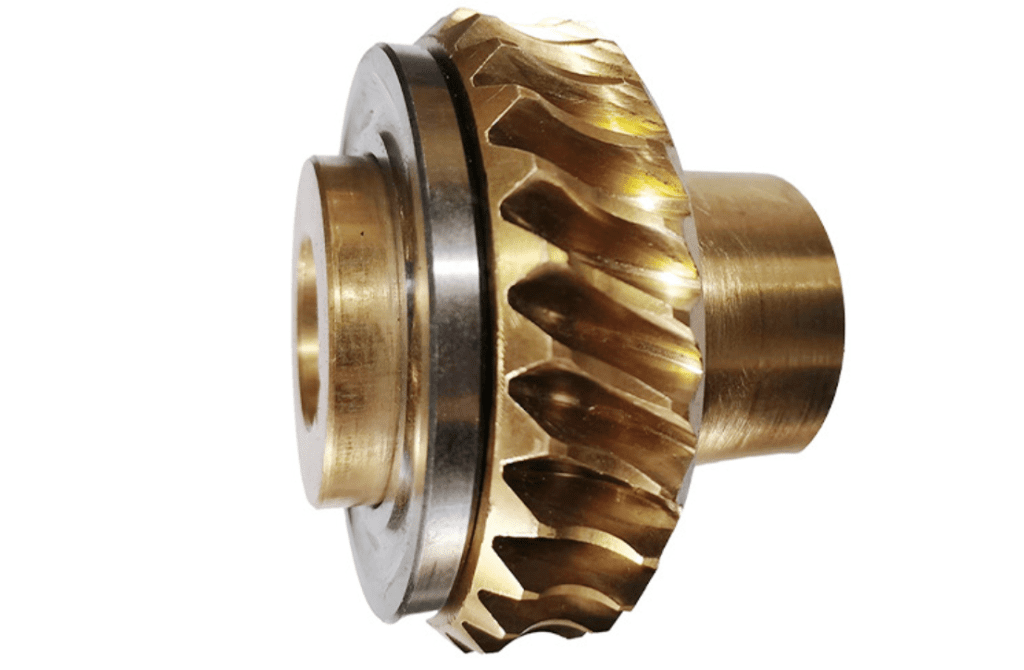

Gears: Particularly in clocks, watches, and industrial machinery where low wear and high precision are required.
Bushings and Bearings: Used in mechanical systems to reduce friction between moving parts.
Valve Components: Including valve bodies and seats, which benefit from bronze’s corrosion resistance.
Propellers and Impellers: For marine and pump applications where resistance to saltwater corrosion is crucial.
Pump Casings: Often used in the manufacturing of pumps for the chemical and water treatment industries.
Sculptures and Artistic Installations: Where the aesthetic appeal of bronze is as important as its structural integrity.
Electrical Connectors: Utilizing bronze’s excellent conductivity and resistance to corrosion.
Musical Instruments: Such as bells and cymbals, where bronze is favored for its acoustic properties.

Finishing Techniques for Bronze Machined Parts

Polishing

Purpose: Polishing is used to achieve a high gloss and mirror-like finish on bronze parts. It enhances the natural color and brightness of the material, making it ideal for decorative or consumer-facing applications.
Process: Polishing involves the use of abrasives and buffing compounds to smooth the surface to a very fine level, ultimately providing a shiny finish.

Patination

Purpose: Patination is a technique used to develop a protective layer on the surface of bronze, which also provides a distinctive color change. This is particularly popular in art and architectural elements.
Process: Chemical solutions are applied to the surface of bronze to induce a controlled oxidation process, resulting in a range of colors from greens to browns, depending on the chemicals used.

Lacquering

Purpose: Lacquering is applied to bronze parts to protect their finish from oxidation and tarnish, preserving both the color and shine over time.
Process: A clear lacquer is sprayed or brushed on the surface, forming a thin protective coating that shields the metal from air and moisture.

Sandblasting

Purpose: Sandblasting is used to create a uniform matte finish on bronze parts. It can also prepare the surface for other coatings by removing old finishes and impurities.
Process: Fine particles of abrasive material are blasted at high speed onto the surface of the bronze, which cleans and roughens it up slightly to enhance the adhesion of subsequent coatings.

Anodizing

Purpose: Although less common for bronze than for aluminum, anodizing can be applied to certain bronze alloys to increase surface hardness and wear resistance.
Process: The bronze part is made the anode in an electrolytic cell, where it forms a thick oxide layer that can be dyed to add color.

Antiquing

Purpose: Antiquing is a finishing process used to give new bronze parts a vintage or aged look, which is particularly sought after in restoration work and decorative arts.
Process: Various chemicals are applied to darken the bronze selectively, followed by mechanical or manual techniques to wear down the finish, simulating age.

Conclusion

For tailored advice or to discuss how our CNC machining solutions can meet your specific requirements with precision and efficiency, please don’t hesitate to contact us. Our experts are ready to assist you in leveraging the best of bronze machining for your projects.

FAQ

What are the Types of Bronze Available for CNC Machining?

Bronze is available in several types, including phosphor bronze, silicon bronze, aluminum bronze, manganese bronze, and tin bronze, each suited for different applications.

Is Phosphor Bronze Hard to Machine?

Phosphor bronze is not particularly hard to machine. It offers excellent machinability due to its fine grain structure, which allows for smooth cutting and a high-quality finish.

Can Bronze Be Used for High-Temperature Applications?

Yes, certain types of bronze, especially high-tin bronze and aluminum bronze, have excellent thermal properties making them suitable for high-temperature applications.
