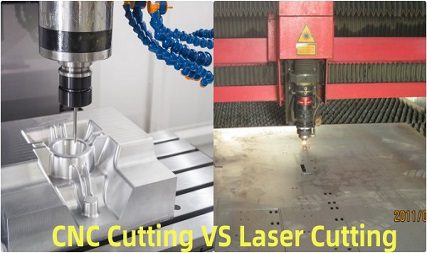

In the constantly evolving world of manufacturing, two prominent methods have made significant strides in accuracy and efficiency: CNC cutting and laser cutting. These processes, though they might appear similar at first glance, have distinct differences that make them suitable for diverse applications
In this comprehensive guide, we will walk you through the intricate details of both CNC cutters and laser cutters. We’ll cover how they operate, their advantages, the scenarios where each excels, the different types available, and finally, a detailed comparison between the two.
What is a CNC Cutter?
CNC cutting is a fabrication method that employs computer-controlled machines to produce intricate designs on various materials. The term CNC stands for Computer Numerical Control, signifying that the machine’s movements are directed by a computer using a numeric system.
A CNC cutter isn’t restricted to just one tool or purpose. It often involves various cutting tools, from drills to lathes, that work in tandem with a computer to achieve high-precision results. By inputting a computer-aided design (CAD) into the system, the CNC machine knows exactly where to cut, drill, or sculpt. This process assures that each piece produced is identical to the next, maintaining an impeccable standard of consistency.

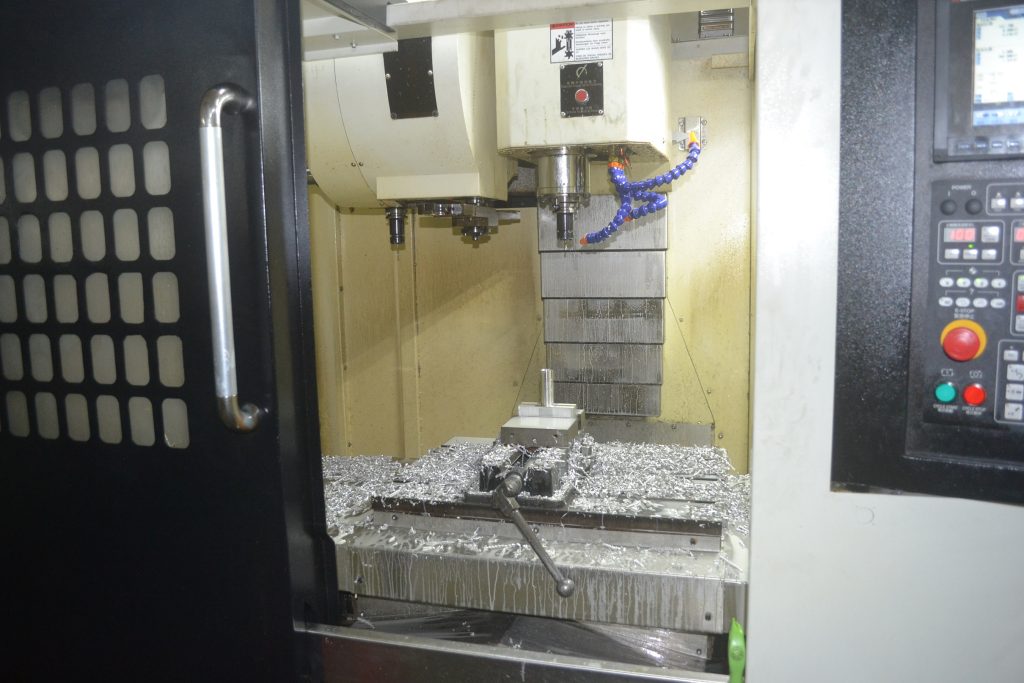

How does CNC Cutting work?
CNC cutting is a harmonious blend of software mastery and mechanical precision. The journey begins in the design phase, where everything originates from an idea. Engineers or designers sketch out their vision using CAD (Computer-Aided Design) software, crafting a detailed digital blueprint of the desired final product.
Once the design is locked in, this digital blueprint undergoes a transformation. It’s translated into a language that the CNC machine understands, typically known as G-code. This code doesn’t just represent the design; it dictates every move the machine will make, essentially becoming a set of precise instructions.
With the instructions ready, the stage is set for action. The chosen cutting tool is fitted onto the CNC machine, whether it’s a drill bit, lathe, or another implement. Concurrently, the material destined for transformation is securely positioned on the machine’s table.
The magic unfolds as the CNC program is introduced into the machine. Guided by the G-code’s directives, the CNC cutter embarks on its mission. It dances across the material, sometimes cutting, sometimes sculpting, and at times drilling, but always moving with purpose and precision. Every movement is a step closer to manifesting the initial design vision into tangible reality.
Advantages of CNC Cutting
CNC cutting has revolutionized the manufacturing landscape, bringing forth a multitude of advantages that set it apart from traditional methods. Here’s a closer look at the compelling benefits it offers:
- Precision and Consistency: One of the standout attributes of CNC cutting is its impeccable precision. When a design is fed into a CNC machine, it’s carved or sculpted to the minutest detail. And not just once, but every single time. This ensures that every piece produced is an exact replica of the previous, assuring unparalleled consistency.
- Efficiency: Gone are the days of manual adjustments and recalibrations. With CNC cutting, processes that once took hours can now be completed in mere minutes. The machine works tirelessly, maintaining a consistent pace and ensuring rapid production.
- Flexibility: Whether you’re working with wood, metal, or plastic, CNC cutting adapts seamlessly. The ability to switch between materials without extensive reconfigurations makes it an adaptable tool for diverse industries.
- Safety: Since operations are largely automated, there’s minimal human intervention required during the cutting process. This significantly reduces the risk of workplace accidents and ensures a safer environment for workers.
- Cost-Efficiency: While the initial investment in a CNC machine might seem steep, the long-term savings are substantial. Reduced waste, minimal errors, and faster production cycles mean that the machine pays for itself in no time.
- Complex Designs: Traditional methods often struggle with intricate designs. However, CNC cutting excels here, effortlessly bringing to life even the most complex patterns and structures.
- Less Waste: Precision invariably leads to less waste. As the CNC cutter operates with such accuracy, there’s a marked reduction in material wastage, contributing to cost savings and a greener manufacturing process.
- Minimal Manual Labor: The automation level means fewer hands on deck. Not only does this translate to reduced labor costs, but it also ensures that skilled workers can focus on more critical, value-added tasks.
CNC Cutter Types
CNC Milling Machines
These are arguably the most common CNC machines. They work by rotating a cutting tool against a stationary block of material. Milling machines can operate in multiple axes, allowing for a range of cuts and designs.
CNC Lathes
Unlike milling machines where the material is stationary, in lathes, the material rotates. A stationary cutting tool then shapes the material. Lathes are ideal for parts that have a symmetrical axis, like cylinders.
CNC Plasma Cutters
These cutters utilize a plasma torch to cut materials, mainly metals. They’re particularly effective for thicker materials where precision isn’t the utmost priority but speed is.
CNC Laser Cutters
Operating on the principle of focusing a high-powered laser beam onto material surfaces, these machines offer precision and are particularly effective for metals and plastics.
CNC Water Jet Cutters
As the name suggests, these utilize a jet of water at extremely high pressure, sometimes mixed with abrasives, to cut through materials. They’re versatile and can handle materials that might be sensitive to high temperatures, like certain metals or glass.
CNC Routers
These are similar in concept to the milling machines but are primarily used for materials like wood, foam, and plastics. They’re commonly found in cabinetry and some signage applications.
CNC EDM (Electrical Discharge Machines)
These work on the principle of eroding material with electrical sparks. There are two main types: Wire EDM and Die Sinking EDM. They’re used for hard metals that are tough to machine with traditional methods.
CNC Drilling Machines
Specifically designed for drilling operations, these machines employ multi-point drill bits and are used to create holes in metal parts with high precision.
What is a Laser Cutter?
The term “laser” stands for “Light Amplification by Stimulated Emission of Radiation.” In a laser cutter, this amplified light is channeled through a lens, concentrating the beam to a tiny, potent pinpoint. When this focused laser beam contacts the surface of the target material, it produces intense heat, allowing it to slice through or engrave the material.
Components of a Laser Cutter
Laser Tube: The heart of the machine, it’s where the laser is generated. Depending on the type and application, various gases or mediums like CO2 or neodymium can be used to produce the laser.
Mirrors and Lens: These guide the laser beam, focusing it onto the material’s surface. The quality and calibration of these components are pivotal to the precision and quality of the cut.
Cutting Bed: The platform where the material is placed. Some advanced beds move synchronously with the laser head, allowing for more intricate patterns.
Control Interface: This allows operators to manage the machine, set parameters, and input designs, often interfacing with computer software for detailed designs.
How does Laser Cutting Work?
The laser cutter starts by producing the laser beam, which is typically generated in a glass tube filled with a mixture of gases, most commonly CO2.
Once generated, the laser beam is directed towards the material using a series of specially calibrated mirrors.
The beam, after being directed by mirrors, passes through a focusing lens. This lens narrows down the beam to an incredibly fine point, concentrating its energy. The narrower the beam, the more precision and cutting power it possesses.
As the concentrated laser beam makes contact with the material’s surface, its intense heat vaporizes or melts the material, creating a cut. The speed, power, and focus of the laser can be adjusted depending on the material and the desired outcome.
In many laser cutting operations, an assist gas like nitrogen or carbon dioxide is used. This gas is blown at the cutting site to remove any debris or molten material, ensuring a cleaner cut.

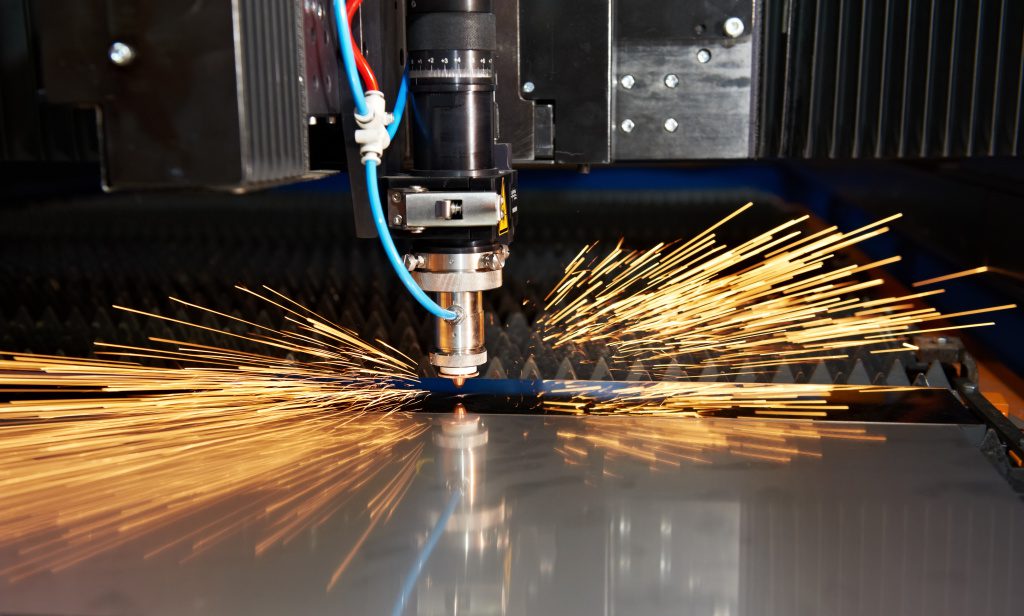

Advantages of Laser Cutting
Laser cutting is not just a cutting-edge technology; it offers a plethora of advantages that make it indispensable in various industries:
- Precision and Accuracy: One of the most notable benefits is the ability to achieve highly detailed cuts and engravings. This level of detail is almost impossible with other cutting methods.
- Consistency: Once set, laser cutters can produce identical pieces time and again, ensuring uniformity in mass production.
- Speed: Compared to traditional methods, laser cutting is often faster, especially for intricate designs.
- Flexibility: From metals to non-metals, thick to thin materials, laser cutting can handle a diverse range of materials and thicknesses.
- Reduced Waste: Since the laser beam is so finely focused, there’s less material wasted around the cut.
- Low Maintenance and Contactless: Laser cutters have fewer moving parts that come into direct contact with the material, reducing wear and tear. This also means there’s less chance of material contamination.
- Cost-Effective: Over time, due to its speed, efficiency, and reduced waste, laser cutting can prove to be more cost-effective than traditional methods.
When to use Laser Cutting
1. Assessing the Design
When presented with a blueprint or a drawing, keenly observe the intricacy of the patterns. Laser cutting excels in executing designs with:
- Fine details: If the design includes delicate and intricate patterns, laser cutting offers the precision required.
- Complex shapes: Unlike other methods, lasers can navigate complex and tight curves without causing damage or inaccuracies.
- Small holes: Laser can make very small diameter holes more effectively than other cutting methods.
2. Thickness of the Material
- Thin to medium thickness: Laser cutting is the preferred choice for materials that aren’t too thick, especially if they require detailed work. It ensures clean cuts and minimal waste.
- Minimal Tolerance: For projects that demand minimal material deformation and a close tolerance, laser cutters are ideal.
3. Speed and Efficiency
If quick turnaround times are a priority, laser cutting might be your best bet. The lack of physical tools means there’s no tool changeover, making the process faster for designs with varying depths or details.
4. Material Type
While laser cutters are versatile, they truly shine with certain materials:
- Acrylics: They come out looking polished and need little to no post-processing.
- Thin metals: For metals like stainless steel or aluminum with medium thickness, lasers provide a clean and burr-free cut.
- Wood: Especially for designs requiring a darkened edge or detailed engraving.
Laser Cutter Types
There are several types of laser cutters, each catering to different needs and materials. Here’s a breakdown:
CO2 Laser Cutters
The most common type, they’re ideal for cutting, boring, and engraving a variety of materials, including wood, plastics, and some metals.
Fiber Laser Cutters
These are primarily used for metals and are known for their speed, precision, and efficiency.
Crystal Laser Cutters
Utilizing crystals like neodymium-doped yttrium aluminum garnet (Nd:YAG) and neodymium-doped yttrium ortho-vanadate (Nd:YVO4), they can cut both non-metals and metals. However, they have a more limited service life compared to CO2 and fiber lasers.
Diode Laser Cutters
Primarily used for engraving, they are less powerful but more compact, often found in desktop engraving units.
Green Laser Cutters:
These are specialized cutters ideal for materials that are heat-sensitive, as they generate less heat compared to other lasers.
Conclusion
CNC cutting is a testament to how far traditional machining has come, offering versatility and adaptability for a range of materials and designs. On the other hand, laser cutting represents the peak of technological advancement, providing unparalleled accuracy, especially for intricate designs and thinner materials.
While both methods have their unique advantages, it’s essential to evaluate each project’s requirements to select the most suitable cutting technique.
If you have the troule in sourcing the CNC cutting or Laser cutting project, just contact with us for help.
FAQ
Is CNC cheaper than laser cutting?
CNC might be more cost-effective for bulk and simpler designs, while laser cutting can be cost-effective for detailed and smaller batch projects.
How much does a laser cutter cost?
Laser cutters can range from a few hundred dollars for hobbyist versions to over $100,000 for industrial models.
What are the disadvantages of laser cutting?
Laser cutting might cause material warping due to heat, is limited in the thickness of material it can cut, and can have higher energy consumption compared to other methods.
How thick can a CNC laser cut?
Typically, CNC lasers can cut metals up to 20-25mm thick.
