CNC Engraving: The Complete Guide
Whether you’re looking to add intricate details to a custom piece or enhance the functionality of an industrial part, CNC engraving is your go-to solution. But, like many, you might be daunted by the complexity it appears to hold. Fear not! I’m here to demystify CNC engraving, breaking down its intricacies into digestible, actionable insights.
CNC engraving offers a world of possibilities for customization and precision in manufacturing. Using computer-controlled machines, engravers can carve intricate patterns and text on almost any material with unmatched accuracy.
Now that you know a bit about the ‘what’ and ‘why’ of CNC engraving, let’s keep the momentum going.
What is CNC Engraving?
CNC engraving is a fascinating and precise machining process involving computer numerical control (CNC) machines to inscribe or carve intricate patterns and designs onto a surface. Unlike traditional manual engraving, which relies heavily on the skill and steadiness of human hands, CNC engraving uses advanced technology to ensure high precision and repeatability.
At its core, the process utilizes a rotating cutting tool known as an engraver, controlled by software that translates a digital design into commands for the machine’s movement. This allows for highly detailed and consistent results, making it ideal for artistic and industrial applications.
Types of CNC Engraving
CNC engraving techniques vary significantly based on the tools and desired final effects.
V-bit Engraving

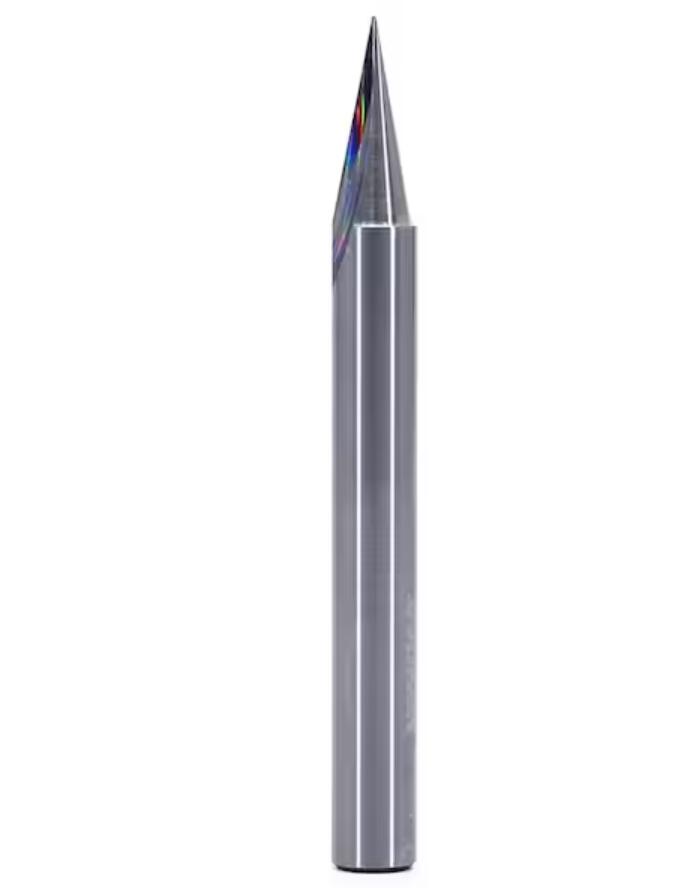

V-bit engraving involves a specialized cutting tool called a V-bit or V-carve bit. This tool has a conical shape and an angled tip, allowing it to create deep or shallow cuts with varying widths.
The unique geometry of the V-bit enables it to produce fine details and crisp, clean lines, which are essential for intricate designs and lettering.
It’s viral for decorative projects where contrast and depth are crucial, such as sign-making and woodworking.
Flat Engraving
On the other hand, flat engraving uses a flat-ended cutter to produce a uniform cutting depth across the material’s surface. This method is ideal for projects that require a consistent and smooth finish.
Flat engraving tools are commonly used for marking industrial parts, creating molds, or any application where precision is critical, but the aesthetic aspect of variable depth is unnecessary.
This technique is valued for its simplicity and effectiveness, especially in producing legible, durable, and functional engravings on metallic and non-metallic surfaces.
3D Engraving
3D engraving is a sophisticated CNC process that creates complex, three-dimensional surfaces on a workpiece. This technique utilizes CNC machines capable of multi-axis movement to carve detailed and intricate designs with varying depths and dimensions.
3D engraving goes beyond the surface, adding texture, shapes, and contours that transform flat materials into lifelike forms.
It is widely used in the production of molds, stamps, and artistic reliefs where detail and dimensionality are paramount.
Rotary Engraving
Rotary engraving is another versatile technique that uses a rotating cutting tool to remove the material’s surface to create a physical engraving. This method can be applied to various materials, including metals, plastics, glass, and wood.
Rotary engraving is particularly effective for detailed and precise cuts, making it ideal for creating durable markings such as serial numbers, logos, and intricate artwork.
Using a rotating tool allows for deep cuts that are both clean and precise, ensuring the durability and visibility of the engraving, even under harsh conditions.
Laser Engraving
Laser engraving stands out for its precision and versatility. In this method, a high-powered laser beam is used to vaporize material from the surface of an object, creating a crisp, permanent mark without physical contact with the material.
This non-contact nature minimizes wear and tear on the tools and allows for incredibly detailed engravings on almost any material, including metals, plastics, glass, and wood. Laser engraving is highly controllable, allowing adjustments in power and speed to achieve different depths and effects.
It’s particularly favored for applications requiring fine detail, such as personalizing gifts, labeling electronic components, and creating detailed artwork.
Diamond Drag Engraving
Diamond drag engraving, also known as scratch engraving, utilizes a diamond-tipped tool dragged across the material’s surface to create a shallow cut or mark. Unlike rotary engraving, the diamond tip does not rotate; unlike laser engraving, it physically contacts the material. This method produces a highly durable and elegant finish for metallic items such as trophies, plaques, and jewelry.
Diamond drag engraving is particularly valued for its ability to create clear, permanent markings without needing inks or additional materials, ensuring the engravings remain visible and undistorted over time, even under heavy wear conditions.
Materials Used in CNC Engraving
Metals
Metals are popular for CNC engraving due to their durability and strength. Typical metals include aluminum, brass, stainless steel, and copper. Aluminum is lightweight and easy to machine, making it ideal for industrial and artistic applications.

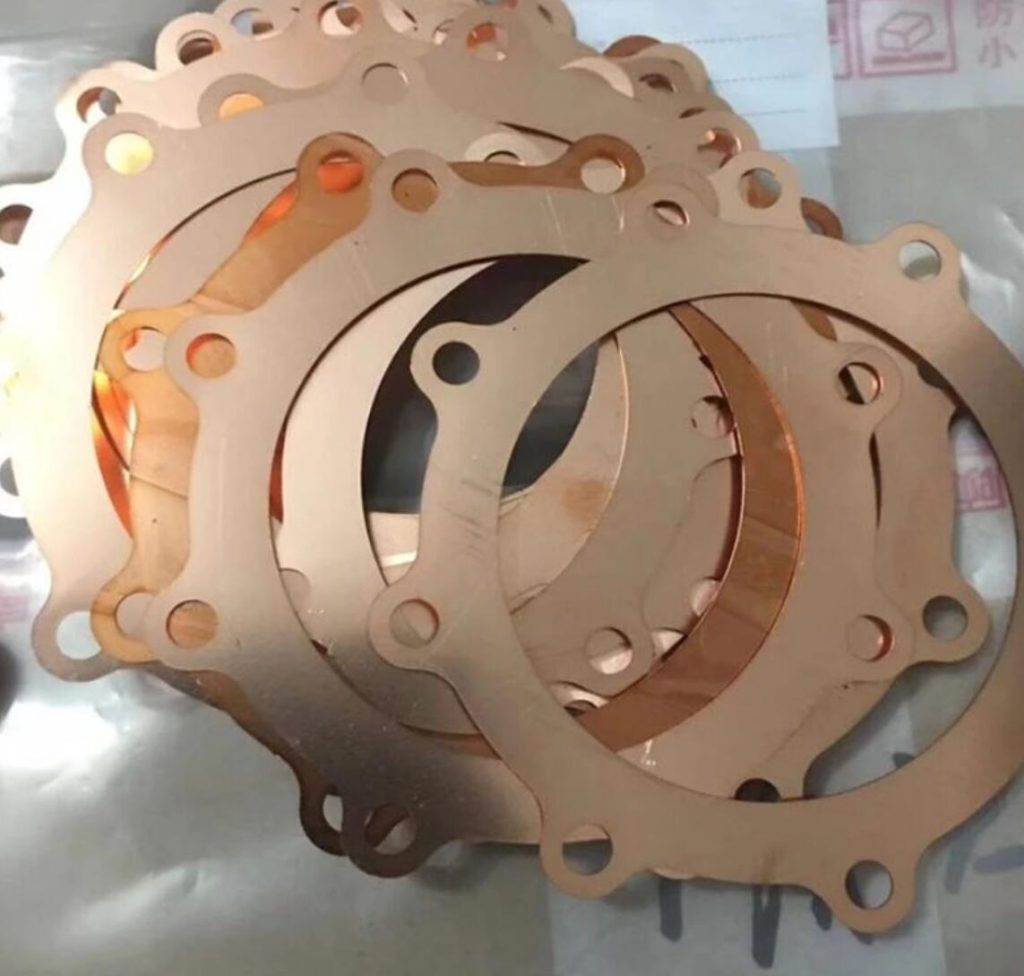

Brass and copper offer a classic look for decorative items, while stainless steel is favored for its resistance to corrosion and wear, making it suitable for outdoor and industrial markings.
Plastic
Plastics are favored for their versatility and ease of machining. Acrylic, ABS, and polypropylene plastics are commonly used in CNC engraving. These materials are available in various colors and finishes, allowing for colorful and bright engravings. Plastics are typically used for signs, prototypes, and custom parts where weight and cost are considerations.
Wood

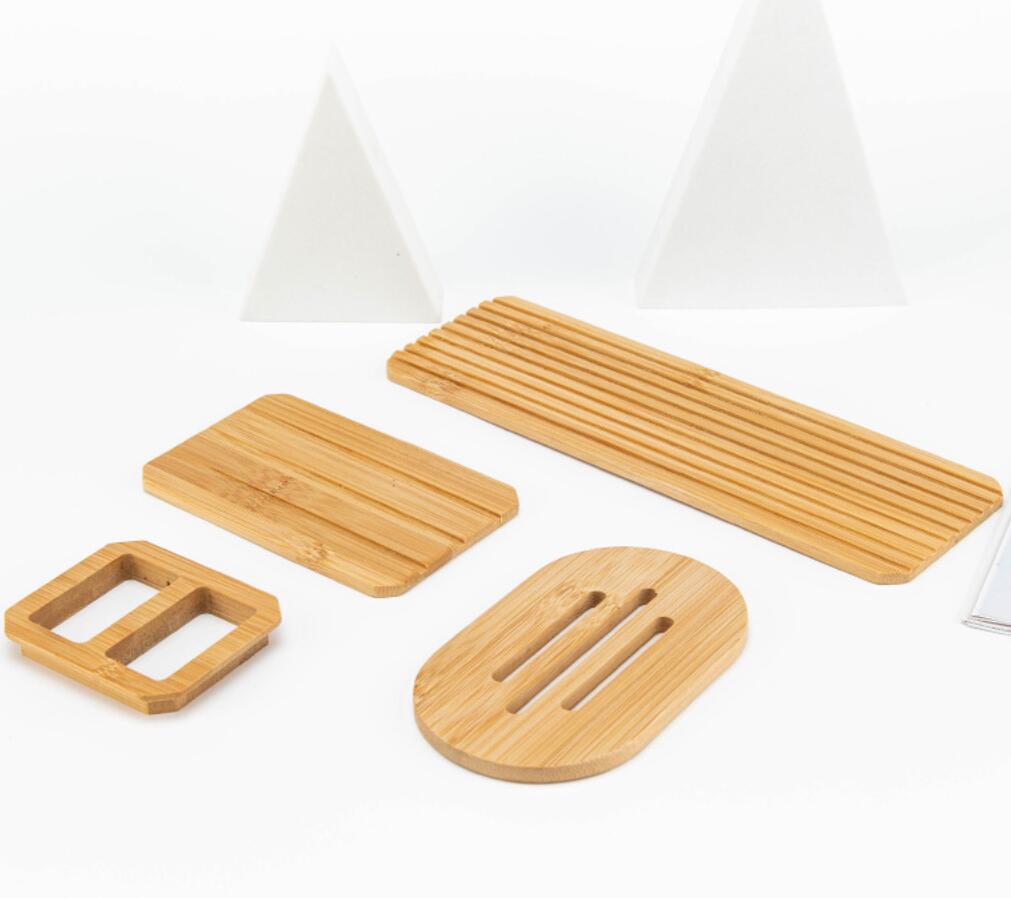

Wood is a traditional engraving material that offers warmth and a natural aesthetic. Different types of wood, such as maple, cherry, and walnut, provide varying hardness, grain patterns, and colors, each adding a unique character to the engraved item. Wood is often used for artistic pieces, custom furniture, and decorative panels.
Composites

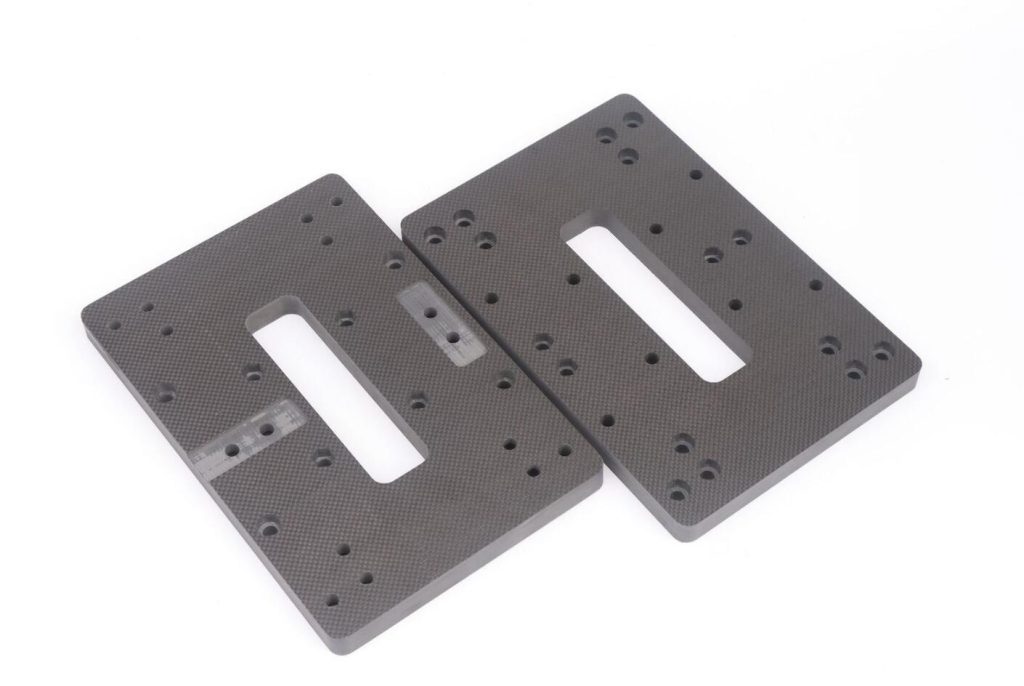

Composite materials, such as carbon fiber and fiberglass, are used in CNC engraving for their advanced properties, including strength, weight, and durability. These materials are commonly used in the automotive and aerospace industries, where precision and performance are critical.
How Does CNC Engraving Work?
https://www.youtube.com/watch?v=DXmOWvPHvnw
CNC engraving is a precise and automated process combining computer-aided design (CAD) and computer-aided manufacturing (CAM) elements to create detailed inscriptions and designs on various materials. Here’s a step-by-step breakdown of how CNC engraving works:
Step 1: Design Creation
The first step in the CNC engraving process is the creation of a design. This is typically done using CAD software, where the desired text, images, or patterns are digitally designed. The designer can manipulate all aspects of the design, including size, shape, depth, and placement, to suit the project’s specific requirements.
Step 2: Converting Design to Machine Code
Once the design is finalized, it needs to be converted into a format the CNC machine can understand. This is done using CAM software, which translates the CAD drawings into G-code, a programming language that controls the CNC machine. This code provides instructions for the machine’s movement, speed, and depth of the engraving tool.
Step 3: Setup
Before starting the engraving process, the CNC machine needs to be set up. This involves loading the material to be engraved onto the machine and securing it to ensure no movement during the engraving process. The appropriate engraving tool is then installed in the machine. Tool selection depends on the material and the detail required in the engraving.
Step 4: Engraving
With the design loaded and the material secured, the CNC machine can start engraving. The engraving tool moves across the material, following the G-code’s path. As the tool contacts the material, it removes layers per the design’s specifications. The machine’s movements are precise and can be repeated consistently and accurately.
Step 5: Post-Processing
After the engraving is complete, some post-processing might be required depending on the material and the type of engraving. This can include cleaning up any debris or burrs left on the material, adding any necessary finishes, and inspecting the final product to ensure it meets all specifications.
Advantages of CNC Engraving
Precision and Accuracy
One of the most significant advantages of CNC engraving is its precision. CNC machines can produce highly accurate and consistent results, crucial for applications requiring intricate details and strict tolerances.
The computer-controlled setup ensures that each piece is engraved precisely the same way, eliminating the variability that comes with manual craftsmanship.
High Efficiency and Speed
CNC engraving machines can operate at high speeds, significantly reducing production times compared to manual methods. Once the design is finalized and loaded into the machine, the engraving process is swift, allowing for the rapid production of large quantities of engraved items. This efficiency benefits businesses that need to scale their production up or down based on demand.
Versatility
Coveted for its versatility, CNC engraving can be performed on various materials, including metals, plastics, wood, and composites. This flexibility allows manufacturers to use CNC engraving in numerous applications, from creating detailed artistic designs on wooden panels to marking industrial parts made from metal.
Reduced Labor Costs
As CNC engraving is mainly automated, it requires less manual labor than traditional engraving techniques. This reduction in labor not only lowers production costs but also minimizes human error, ensuring higher quality and consistency across all products.
Safety
Since CNC engraving is automated, it minimizes the need for physical interaction with the cutting tools, significantly reducing the risk of accidents and injuries in the workplace. Operators can manage the process from a safe distance and only need to set up and monitor the machines.
Enhanced Design Capabilities
With advanced CAD software, designers can create and modify designs with a high degree of complexity that would be difficult or impossible to achieve manually. This capability allows creating custom and unique items that meet specific customer requirements, adding value to the products.
Durability of Engravings
CNC engravings are known for their durability. The engraving depth and the techniques used ensure that designs are not only visible but also long-lasting. This is particularly important for items that are frequently handled or exposed to harsh environments.
Tips for Successful CNC Engraving
Choose the Right Tool for the Material
Selecting the appropriate engraving tool is crucial for achieving the desired outcome. Different materials require different types of tools. For example, hard metals may need a more rigid, diamond-tipped tool, while softer materials like wood can be engraved with a high-speed steel cutter.
Ensure the tool is sharp and in good condition to prevent any inaccuracies or damage to the material.
Maintain Proper Tool Depth
The depth at which the tool cuts into the material significantly affects the quality of the engraving. Setting the correct depth ensures clear, precise engravings and helps avoid unnecessary wear on the tool and machine.
Use trial runs on scrap material to determine the optimal depth settings before engraving the final piece.
Secure the Workpiece Properly
A common cause of poor engraving quality is the movement of the workpiece during the engraving process. Ensure the material is securely fastened to the machine bed using clamps or a vacuum hold-down system. This stability is essential for precision and preventing errors.
Use High-Quality CAD Software
Quality design software can significantly affect the precision and ease of translating designs into engravable paths. Invest in reliable CAD software that can accurately convert your designs into the appropriate file type for your CNC machine, reducing the likelihood of errors during the engraving process.
Optimize Speed and Feed Rates
The speed at which the tool moves over the material (feed rate) and the speed of the tool’s rotation (spindle speed) must be carefully adjusted based on the material and engraving tool. Optimizing these rates can prevent damage to the material, extend tool life, and achieve a higher-quality finish. Each material has a different optimal speed and feed rate, so refer to guidelines or conduct tests to find the best settings.
Regularly Calibrate Your Machine
Regular maintenance and calibration of your CNC machine are essential to ensure it operates at peak performance. Check alignment, tighten loose components, and replace worn parts as needed. Regular calibration helps maintain accuracy and extends the machine’s and the tool’s lifespan.
Monitor the Engraving Process
While CNC machines operate automatically, monitoring the engraving process can help you catch any issues early before they become costly mistakes. Look for signs of tool wear, material movement, or unusual noises, which can indicate problems.
Post-Processing
After the engraving is complete, inspect the final product for imperfections. Depending on the material and type of engraving, you may need to perform post-processing tasks such as cleaning, polishing, or sealing the engraved area to enhance the appearance and protect the surface.
Conclusion
For more information, to view samples of our work, or to consult with our specialists about
your specific needs, please do not hesitate to contact us. Let’s craft the exceptional together.
FAQ
Is CNC engraving expensive?
No, it is cheaper! While setup costs may be higher than other methods for small runs, CNC engraving can be cost-effective at larger scales due to its speed and precision.
How long does CNC engraving take?
Simple engravings can be completed quickly, while more intricate designs may take longer.
Can I engrave a custom design?
Absolutely! CNC engraving excels at producing custom designs. You can provide your design or work with our designers to create something unique. We can accommodate nearly any design request, ensuring your final product is as envisioned.
