What Types of CNC Machines You Could Find in A Machine Shop

As the CEO of a leading CNC Machining Service, I’ve navigated the complexities of modern manufacturing. I know the pulse of machine shops like the back of my hand, and today, I’m here to unveil the diverse world of CNC machines that form the backbone of these facilities.

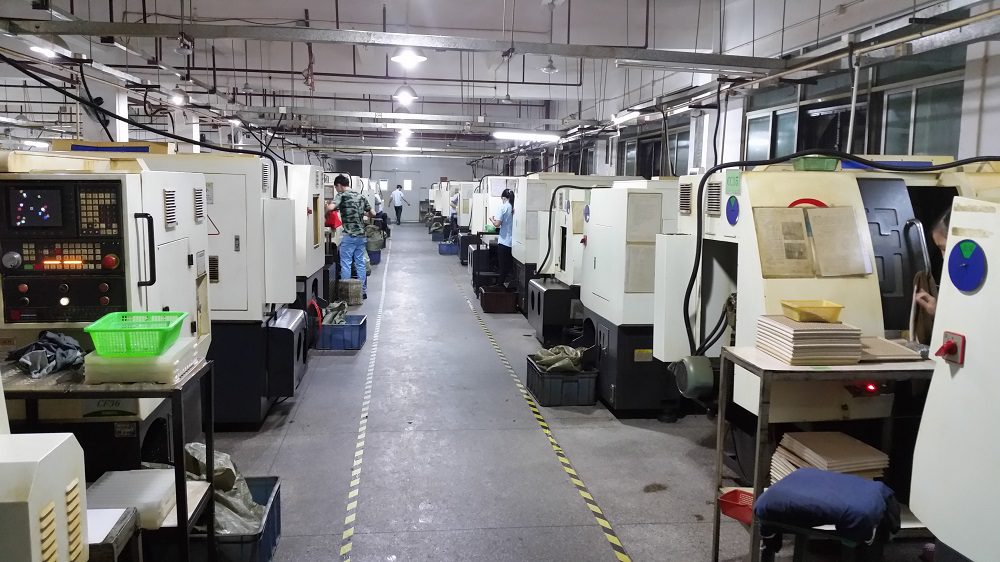

In our bustling machine shops, you’ll discover an array of CNC machines, each serving a unique purpose in manufacturing. From the intricate dance of the 3-axis CNC mills to the advanced capabilities of 5-axis machines, these technological marvels are the backbone of modern manufacturing. They offer unparalleled precision, consistency, and efficiency, turning raw materials into electronics and aerospace components.

Walking into one of our shops feels like stepping into the future

What is CNC Machining?

CNC machining is not just a process; it’s the language of modern manufacturing. It translates digital blueprints into physical parts with precision that manual methods can’t match.

Every day, we see the magic of CNC machining unfold. It starts with a digital design created by engineers. This design is then converted into a computer program, which acts as the instructions for the CNC machines. Once the program is loaded, our CNC machines spring to life, cutting and shaping materials with astonishing precision.

CNC machining isn’t limited to metal; it works wonders with plastic, wood, and various composite materials. This versatility makes it indispensable in aerospace, automotive, and medical industries, where the demand for precision and reliability is non-negotiable.

Breaking Down the Components: What Makes Up a CNC Machine?

At the heart of every CNC machine is the controller, the brain of the operation. This sophisticated hardware runs the software that interprets the CNC code (G-code), translating digital instructions into physical movements.

We have the machine’s bed, the foundation for all actions. It’s like the stage for our manufacturing performance, sturdy and unyielding. The axes (X, Y, and Z) are attached to the bed, which moves the tools or workpiece in various directions. This movement is the essence of CNC machining, allowing for the creating of complex shapes and designs.

The spindle, a critical component, holds and rotates the cutting tools. Think of it as the artist’s hand in our machining process, guided with precision and control.

Additionally, CNC machines are equipped with various tools and attachments, each designed for specific tasks. These tools are interchangeable parts of our creative arsenal, from drills to lathes. They’re like the brushes in a painter’s kit, each leaving a unique mark on the canvas.

The coolant system and the chip conveyor play vital roles. The coolant system keeps everything running smoothly, preventing overheating, while the chip conveyor efficiently removes the byproducts of the machining process. They’re the unsung heroes, maintaining the harmony and cleanliness of the work environment.

Exploring the Variety: What Are the Different Types of CNC Machines?

CNC Milling Machines

CNC Milling Machines are the workhorses of the CNC world. These versatile machines use rotary cutting tools to remove material from a workpiece. They can perform various operations like drilling, tapping, and dulling, making them indispensable in a machine shop.

The beauty of CNC milling machines lies in their precision and ability to create complex parts with intricate details. They come in various configurations, including vertical and horizontal layouts, catering to different manufacturing needs.

The adaptability of CNC milling machines makes them a go-to choice for creating parts for industries like automotive and aerospace.

CNC Turning Machines

Next up are CNC Turning Machines, also known as lathes. These machines rotate a workpiece on its axis to perform various operations like cutting, sanding, knurling, and drilling.

Unlike milling machines, where the tool moves, in turning machines, it’s the workpiece that rotates. This method is ideal for creating symmetrical cylindrical or spherical parts. CNC turning machines bring unmatched efficiency and precision to tasks that would be highly labor-intensive if done manually.

They are commonly used for manufacturing components in the medical and electronics sectors due to their ability to produce finely detailed work.

CNC Plasma Cutters

CNC Plasma Cutters are a showstopper in the CNC machine family. These machines harness the power of plasma torches to cut through metal. They are ideal for cutting large metal sheets with high speed and precision. The process involves blowing a gas out of a nozzle at high speed while an electrical arc forms through the gas, turning some of it into plasma.

The plasma is hot enough to melt the metal being cut and moves sufficiently fast to blow molten metal away from the cut. CNC plasma cutters are particularly valuable in industries requiring large-scale metal fabrication, such as shipbuilding and automotive.

CNC Electric Discharge Machines (EDM)

CNC Electric Discharge Machines, commonly known as EDMs, are fascinating for using electrical sparks to mold materials. This process involves creating an electrical discharge between the workpiece and an electrode, eroding the material into a desired shape.

There are two main types of EDMs: Wire EDM, which uses a thin wire as an electrode to cut intricate patterns and shapes, and Die Sink EDM, where a custom-shaped electrode is used to create complex cavities or conditions.

EDMs are highly valued in mold-making, tool, and die industries for their ability to work with hard materials and produce intricate details that other machines might struggle with.

CNC Routers

CNC Routers are akin to CNC milling machines but are primarily used for cutting softer materials like wood, plastic, and foam. These machines feature a spindle that moves along three axes (X, Y, and Z) and can sometimes include additional axes for more complex motions.

CNC Routers are known for their speed and precision, making them ideal for woodworking, sign making, and creating detailed patterns or designs in softer materials.

They are a favorite in industries where fine, artistic detail is necessary, such as furniture making or interior design.

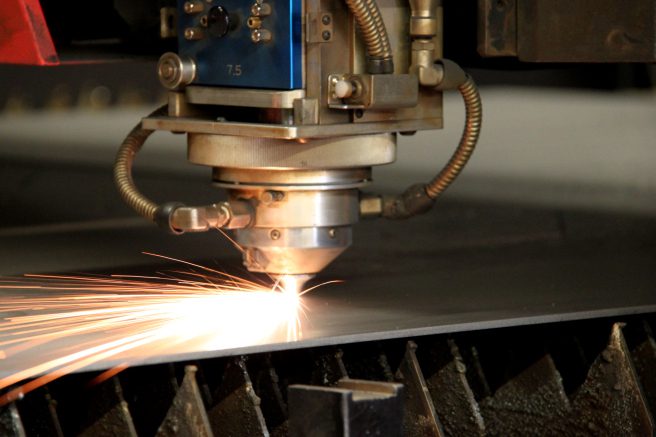

CNC Laser Cutters

CNC Laser Cutters stand out for their use of high-powered lasers to cut and engrave materials. These machines focus a laser beam, typically through optics, onto a material that melts, burns, vaporizes, or is blown away by a jet of gas, leaving an edge with a high-quality surface finish.

Laser cutters are exact and can produce intricate patterns and details. They are versatile tools used in various applications, from industrial manufacturing to small-scale custom artwork.

CNC Laser Cutters are particularly popular in the electronics industry for cutting circuit boards and in the medical sector for creating intricate components.

CNC Grinders

CNC Grinders are specialized machines used for grinding, shaping, and finishing materials, typically metal. They use a rotating grinding wheel to remove material and achieve a fine finish or a specific surface quality.

Precision and accuracy are the hallmarks of CNC grinders, making them essential in industries where exact tolerances and smooth finishes are paramount.

They are commonly used in the tool and die-making industry, the automotive sector for creating parts like gears and shafts, and in aerospace for components requiring high precision.

Water Jet Cutters

Water Jet Cutters are another fascinating type of CNC machine. These machines use high-pressure water, sometimes mixed with an abrasive substance, to cut through materials.

Water jet cutters are known for their versatility and ability to cut through a wide range of materials, including metal, stone, glass, and composites, without generating heat, thus avoiding material distortion or warping.

They are beneficial for cutting intricate shapes in materials sensitive to high temperatures. Industries like mining, aerospace, and architecture frequently use water jet cutters for their unique cutting capabilities.

Swiss-style CNC Machines

Swiss-style CNC Machines, or Swiss Turning Machines, are distinct for their ability to produce small, precision parts. They are designed with a sliding headstock that moves material through a guide bushing, allowing for tight tolerances and excellent surface finishes.

These machines are incredibly efficient at producing large volumes of small, complex parts, making them ideal for the medical device industry, where precision and consistency in small components are crucial. Swiss-style machines are also widely used in the electronics and aerospace sectors for similar reasons.

Multi-Tasking CNC Machines

Multi-tasking CNC Machines are the epitome of efficiency and versatility in the CNC world. These machines combine functions like turning, milling, drilling, and sometimes even grinding into one device. This multifunctionality allows complete part machining in a single setup, significantly reducing lead times and improving accuracy by eliminating multiple designs.

They are ideal for complex parts that require multiple machining processes. Industries such as aerospace and automotive, where complex components are commonplace, greatly benefit from these machines.

5-Axis Machining Centers

5-Axis Machining Centers represent the pinnacle of CNC machining capabilities. Unlike traditional 3-axis machines, these advanced machines can operate on five different axes simultaneously.

This capability allows for machining incredibly complex geometries that would be impossible or time-consuming on a 3-axis machine. The additional axes also provide greater flexibility and access to more of the part’s surface, often reducing the need to reposition the workpiece.

These machines are essential in high-precision industries like aerospace, where complex components with intricate geometries are the norm.

CNC Lathes

CNC Lathes, distinct from turning machines, are specialized in executing precise circular cuts, creating symmetrical shapes like cones, cylinders, and spheres.

They are equipped with advanced software that allows for precise control over the cutting process, making them perfect for creating detailed and intricate designs on cylindrical parts.

Industries such as automotive, aerospace, and manufacturing rely on CNC lathes for creating high-precision components, from engine parts to intricate aerospace components.

Different Types of CNC Machines Based on the Number of Axes

3-Axis CNC Machines

The most basic and common type is the 3-axis CNC machine. They operate on the X, Y, and Z axes, allowing movement and cutting in three dimensions. These machines are perfect for more straightforward projects and are widely used due to their ease of operation and affordability.

They are ideal for jobs requiring simple operations like drilling holes, cutting edges, and primary milling.

4-Axis CNC Machines

A step up in complexity, 4-axis CNC machines include the standard X, Y, and Z axes, with an additional A axis allows the machine to rotate around the X-axis. This fourth axis opens up new possibilities for machining, including creating more complex shapes and working on several sides of a part without repositioning it.

These machines are often used in more complex milling, requiring intricate cuts and curves.

5-Axis CNC Machines

At the higher end of CNC machining capabilities are 5-axis machines. These sophisticated machines operate on the X, Y, and Z axes, with two additional rotational axes, often labeled as A and B. This allows the cutting tool to approach the workpiece from virtually any direction.

5-Axis CNC machines can produce highly complex geometries with high precision and are essential in industries that require intricate designs and extreme precision, such as aerospace and automotive sectors.

6-Axis and More

While less common, CNC machines with six or more axes offer even greater flexibility and complexity in machining. These machines can perform incredibly intricate operations, producing complex geometries and high-precision parts.

They are used in highly specialized applications in advanced manufacturing sectors.

Different Types of CNC Machines Based on the Control System

Open-Loop CNC Machines

Open-loop CNC machines are the more basic form of CNC machines in control systems. They operate using a single command pathway. In these machines, the controller sends a signal to the motor, but there is no feedback loop to confirm the execution of commands.

Open-loop systems are generally more straightforward and more cost-effective, suitable for jobs where extreme precision is not critical. They are commonly used in less demanding applications like basic cutting and drilling tasks.

Closed-Loop CNC Machines

Closed-loop CNC machines, in contrast, have a more sophisticated control system. These machines send signals to the motors and receive feedback from them. This feedback loop allows for real-time monitoring and adjustments, ensuring higher accuracy and precision in operations.

Closed-loop systems are essential in applications where even the slightest deviation, like aerospace or medical device manufacturing, can have significant consequences.

Semi-Closed Loop CNC Machines

Semi-Closed Loop CNC systems represent a middle ground, combining elements of both open and closed-loop systems. In these systems, feedback is used, but only sometimes.

They balance the simplicity of open-loop systems and the precision of closed-loop systems, making them suitable for a wide range of applications that require moderate accuracy and reliability.

Computerized Control

Finally, the most advanced CNC machines are controlled by sophisticated computerized systems, allowing for complex programming and high precision. These systems can control multiple axes simultaneously, execute intricate programs, and provide real-time feedback and adjustments.

They are typically used in high-end manufacturing applications where precision, flexibility, and efficiency are paramount.

Different Types of CNC Machines Based on the Configuration

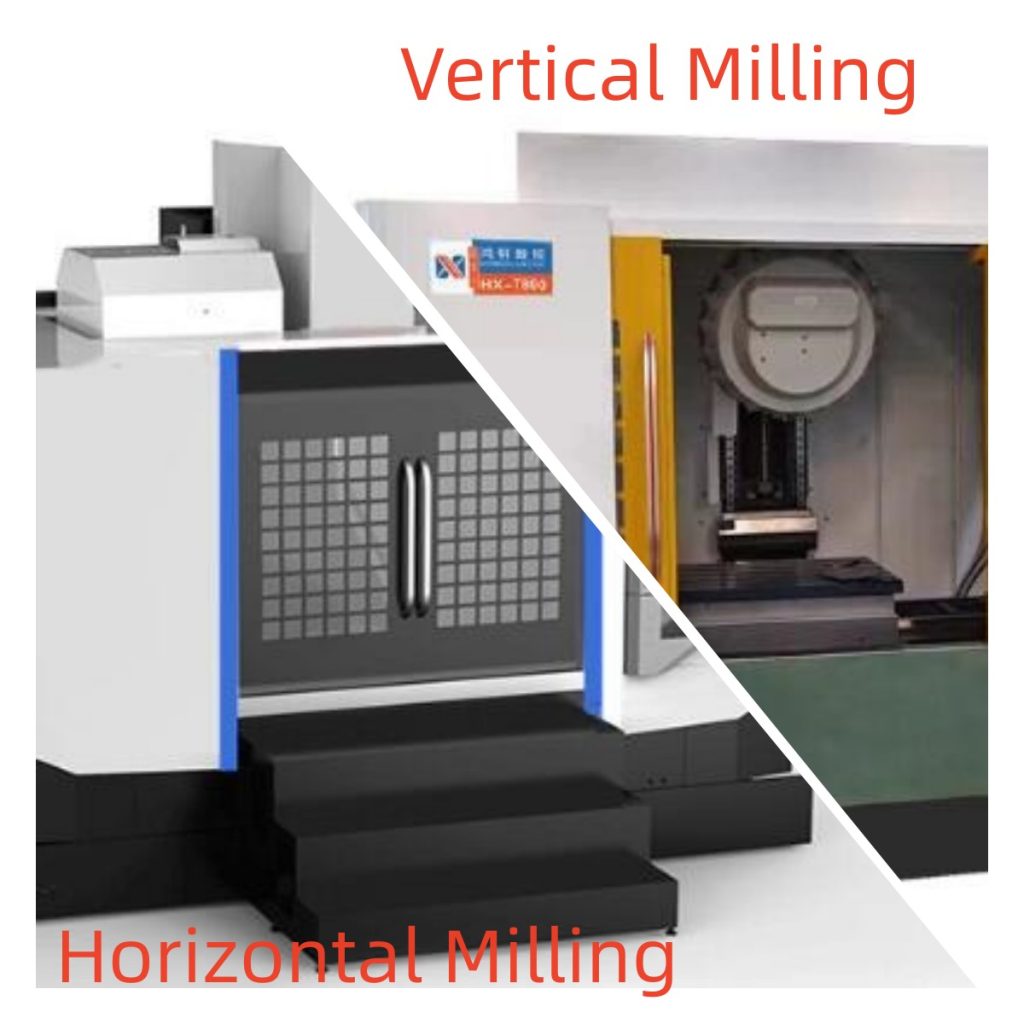

Vertical CNC Machines

Vertical CNC machines have their spindle axis oriented vertically. This configuration is one of the most common in CNC milling. The vertical orientation provides easy access to the workpiece and allows gravity to help remove waste material.

They are particularly well-suited for applications like die sinking, and removing material from a stationary workpiece.

Horizontal CNC Machines

In contrast, horizontal CNC machines have their spindle oriented horizontally. This configuration allows for mounting multiple cutters and facilitates the machining of several planes of a workpiece simultaneously.

Horizontal machines are often preferred for jobs requiring a high level of precision and for mass production tasks due to their efficiency in chip evacuation and the ability to perform multi-sided machining.

Gantry (Bridge) CNC Machines

Gantry, or bridge-style CNC machines, feature a bridge-like structure over the workpiece, with the cutting tool suspended between two rails.

These machines are capable of large-scale machining tasks and are commonly used in industries like aerospace and shipbuilding. Their structure makes them particularly suitable for machining large and heavy workpieces.

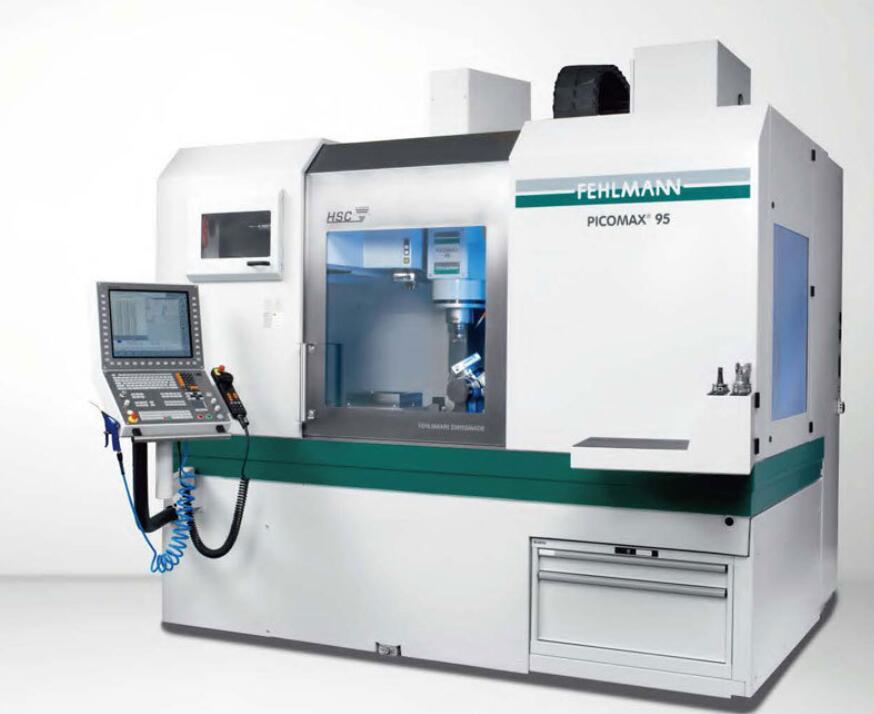

Swiss-style CNC Machines

As previously mentioned, Swiss-style CNC machines, also known as sliding headstock machines, are unique in their configuration. They are designed for high precision and efficiency in producing small, complex parts.

In Swiss-style machines, the workpiece advances through a guide bushing, allowing for close tool-workpiece contact, minimizing deflection and vibration, and resulting in high-accuracy parts.

Turret CNC Machines

Turret CNC machines, commonly used for CNC lathes, feature a turret that can hold multiple tools simultaneously. This configuration allows for rapid tool changes and various operations without resetting the machine.

Turret CNC machines are versatile and efficient, making them ideal for applications requiring a sequence of operations, such as turning, drilling, and threading.

Different Types of CNC Machines According To Moving Trail

Linear Motion CNC Machines

Linear motion CNC machines move in straight lines along the X, Y, and Z axes. This type of movement is fundamental to most CNC machines, allowing for precise straight cuts and moves. Linear motion machines are versatile and can handle various tasks, from basic cutting to complex milling operations.

Rotary Motion CNC Machines

Rotary motion CNC machines incorporate rotational movements, which can be around either the primary axes (X, Y, or Z) or additional axes (A, B, or C). This rotational movement allows for more complex machining operations, such as creating helical patterns or intricate 3D shapes. Rotary motion machines are essential in industries that require complex geometries, such as aerospace and automotive.

3D Motion (Three-Dimensional) CNC Machines

3D motion CNC machines combine linear and rotary movements, enabling the cutting tool to move across three dimensions and create complex 3D shapes. These machines are highly sophisticated and used for applications requiring intricate detailing and complex geometries, such as mold making and prototype development.

5D Motion (Five-Dimensional) CNC Machines

5D motion CNC machines take the capabilities of 3D machines further by adding two additional axes of movement. These different axes allow for even more complex movements and angles, creating extremely intricate and precise shapes.

5D machines are used in high-precision industries like aerospace and medical device manufacturing, where the complexity and precision of parts are paramount.

How to Select the Right Type of CNC Machines?

Assess Your Manufacturing Needs

First and foremost, identify the specific needs of your manufacturing process. Consider the types of materials you will be working with, the complexity of the parts you need to produce, and the production volume.

Different CNC machines are optimized for various tasks – for example, a 5-axis machine for complex geometries or a CNC lathe for cylindrical parts.

Consider the Number of Axes Required

The complexity of the parts you produce will dictate the number of axes you need in a CNC machine. More axes allow for more complex movements and shapes, but they also come at a higher cost. Balance the need for precision and complexity with your budget.

Evaluate the Machine’s Size and Footprint

The physical size of the CNC machine and the space available in your facility are practical considerations. Ensure that the machine you choose can be accommodated in your workspace without disrupting the flow of other operations.

Check Compatibility with Existing Systems

Ensuring that the CNC machine is compatible with your existing software and hardware systems is essential. This compatibility will affect the ease of integration and workflow efficiency.

Analyze the Machine’s Precision and Speed

The precision and speed of the CNC machine are crucial for maintaining quality and meeting production deadlines. Review the specifications of different machines to find one that meets your precision requirements and production speed.

Durability and Maintenance Requirements

Consider the durability of the machine and the frequency of maintenance required. A more robust machine with lower maintenance needs might be more cost-effective in the long run, even if the initial investment is higher.

Cost and Return on Investment

Finally, consider the cost of the machine and its potential return on investment. While staying within budget is important, investing in a more capable machine can lead to higher efficiency, better product quality, and increased customer satisfaction.

Conclusion

If you’re in the process of selecting a CNC machine for your manufacturing needs or looking to enhance your production capabilities, remember to consider your specific requirements, budget, and long-term goals. Choosing the suitable CNC machine can be a game-changer for your business, unlocking new levels of precision and productivity.
