CNC machining has revolutionized the manufacturing industry, with two of its essential processes being CNC turning and CNC milling. These processes play a critical role in shaping various materials such as metal, wood, and plastic into intricate and precise components.
The purpose of this article is to clarify the differences between these two vital processes. Whether you are a professional in the field or someone interested in learning about milling and turning, this guide will serve as a comprehensive resource to understand the distinctive characteristics and applications of turning and milling machines.

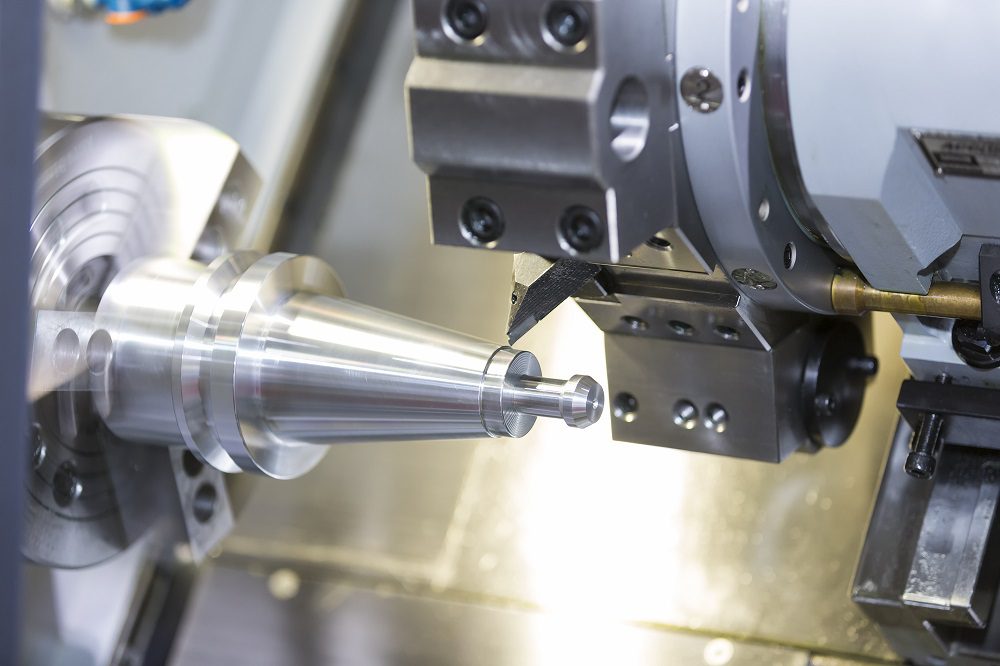

What is CNC Turning?
CNC Turning is a manufacturing process where a workpiece is rotated at high speed while a non-rotating cutting tool removes material to shape the desired part. This process is particularly suitable for producing parts with axial symmetry, like cylinders or spheres.
In CNC turning, the essential machinery includes turning machines such as lathes that hold and rotate the workpiece. There are also specialized milling and turning machines designed to handle both processes.
The cutting tool remains stationary during the turning process, shaping the rotating workpiece by precisely controlling the depth of cut. This is in contrast to CNC milling, where the workpiece remains fixed, and the cutting tool moves.
Historically, turning was done manually with a lathe. However, with the advancement of technology, CNC turning machines have taken over, offering more precision and automation. You can learn more about CNC turning from this comprehensive guide.
CNC turning is widely used in various industries, including aerospace, electronics, and medical. It’s ideal for creating parts like shafts, bushings, and hubs, which require symmetrical features around an axis.
The process can handle various materials, including metals, plastics, and even wood. The material choice will depend on the application and specific requirements of the finished product.
Advantages and Disadvantages of CNC Turning
Some advantages of CNC turning include:
- High precision
- Quick material removal
- Suitable for complex geometries
However, there are disadvantages, such as:
- Limitation in producing non-symmetrical shapes
- Setup time can be extensive for complex parts

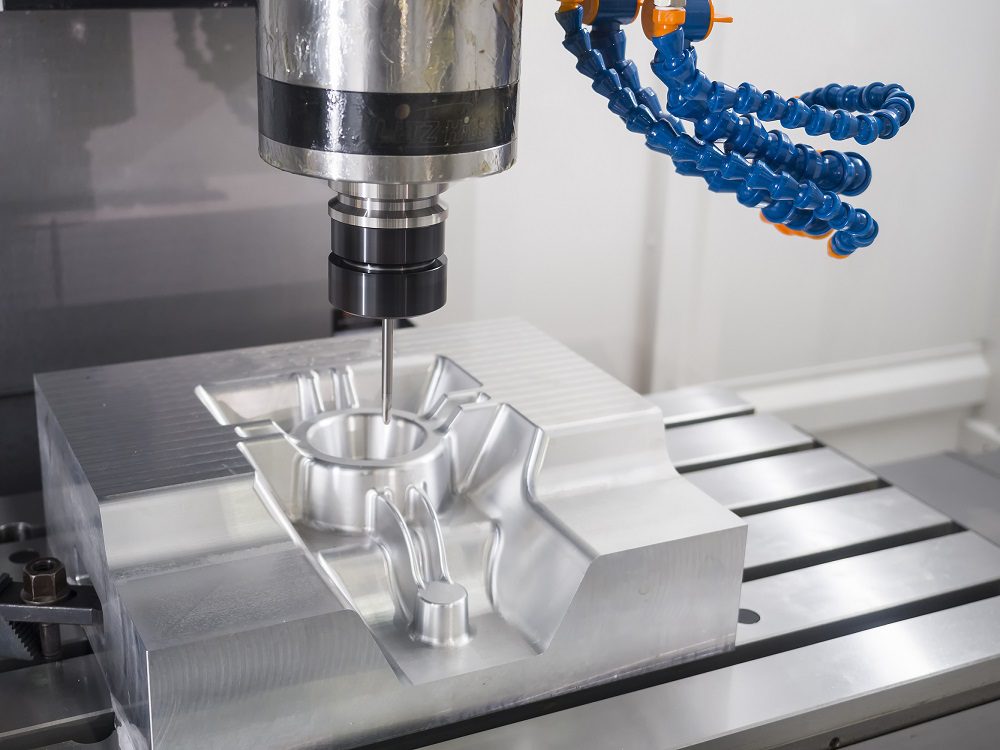

CNC milling is a subtractive manufacturing process where a workpiece remains stationary while a rotating cutting tool moves along various axes to remove material and shape the desired part. Unlike CNC turning, where the workpiece rotates, CNC milling offers more versatility in creating complex geometries.
The main machinery in CNC milling includes milling and turning machines known as mills. These mills come in several forms, including vertical and horizontal configurations. Some specialized milling and turning machines can perform both tasks.
In CNC milling, the cutting tool moves and rotates, while the workpiece remains fixed. This allows for a more versatile range of cuts, and unlike turning, can handle non-symmetrical shapes.
Similar to turning, milling has also transitioned from manual to automated CNC processes, enhancing precision and efficiency. You can learn more about the CNC milling process here.
CNC milling allows the cutting tool to move along multiple axes, enabling intricate and complex designs. Whether it’s 3-axis, 4-axis, or 5-axis milling, the possibilities are expansive.
CNC milling is versatile in handling various materials, including metals, plastics, composites, and wood. This adaptability makes it suitable for numerous applications across different industries.
Advantages and Disadvantages of CNC Milling
Advantages of CNC milling include:
- Versatility in creating complex geometries
- Ability to handle non-symmetrical parts
- High precision and repeatability
Some disadvantages might be:
- Slower than CNC turning for certain shapes
- Potential for higher costs in complex setups

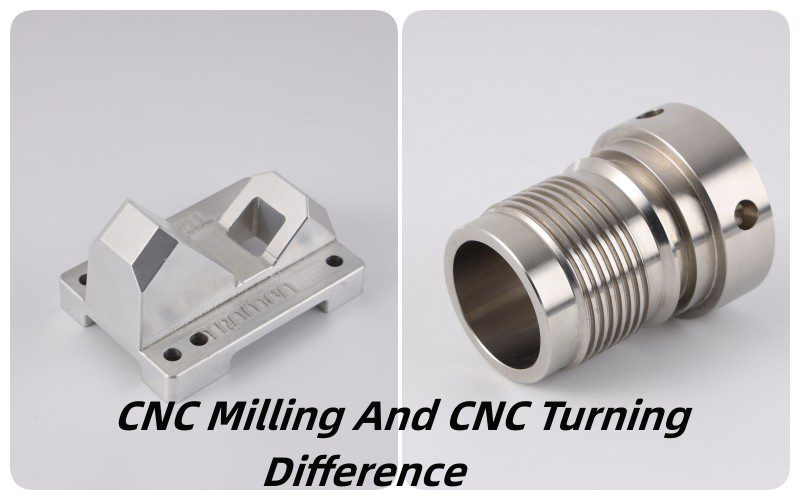

Differences Between CNC Turning and Milling
The fundamental difference between CNC turning and CNC milling lies in the movement of the workpiece and the cutting tool. In turning, the workpiece rotates, while the cutting tool is stationary. Conversely, in milling, the cutting tool moves and rotates, while the workpiece remains fixed.
In CNC turning, turning and milling machines are used to rotate the workpiece at high speeds. The cutting tool, in a fixed position, interacts with the workpiece to create the desired shape.
With CNC milling, the complexity comes from the movement of the cutting tool across multiple axes, providing more design flexibility. It offers a different approach compared to milling and turning machines, and you can read more about the CNC milling process here.
Choosing Between Turning and Milling
Choosing between CNC milling and turning involves analyzing the project’s unique needs:
- Axially Symmetric Projects: Suitable for CNC turning
- Precision and Dimensional Tolerances: Achievable in both turning and milling
- Complex Geometry Projects: May benefit from CNC milling
CNC milling offers greater versatility in shape variety, compared to turning. However, turning might be more efficient for axially symmetric parts.
Conclusion
The process of CNC turning and milling serves distinct purposes in the manufacturing world. While turning offers efficiency in creating axially symmetric parts, milling provides flexibility in producing complex geometries. The decision between CNC milling and turning will depend on the project’s specifics, such as material, design complexity, and tolerances. In any scenario, understanding these two processes is vital to selecting the best approach for manufacturing.
FAQ
What is the Difference Between Milling and Turning?
Milling involves the cutting tool moving and rotating while the workpiece is stationary. In turning, the workpiece rotates, and the cutting tool is stationary.
What is the Difference Between Turning Center and Milling Center?
A turning center is specialized for turning operations and often involves a CNC lathe, while a milling center is tailored for milling operations, involving milling and turning machine combinations for more intricate designs.
What is the Difference Between CNC Machining and Milling?
CNC machining is a broader term that includes various computer-controlled operations, including CNC milling, which is a specific type of machining process.
