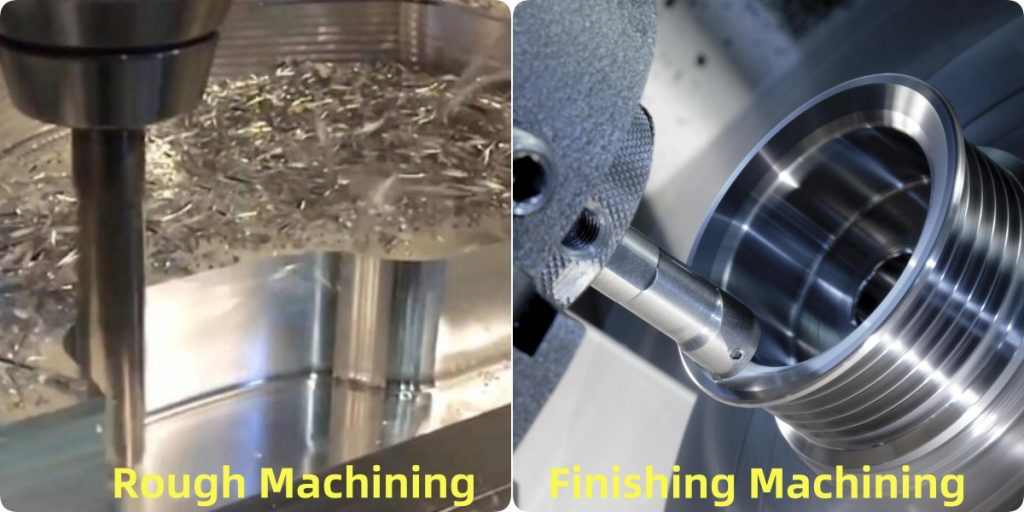

Detailed Compare of Roughing Vs Finishing In Machining

In CNC machining, every process is a story of transformation, turning a raw material into a precise component. This journey typically begins with roughing and concludes with finishing. But what are they exactly?

When it comes to machining, understanding the difference between roughing and finishing is crucial. Roughing is about quickly removing large amounts of material but with little finesse. Finishing, on the other hand, is like the artist’s final touch, refining the surface to achieve the desired precision and smoothness.

Now, you might be wondering why this matters to you. Whether you’re a seasoned machinist or a curious onlooker, understanding these processes can transform how you view and approach CNC machining.

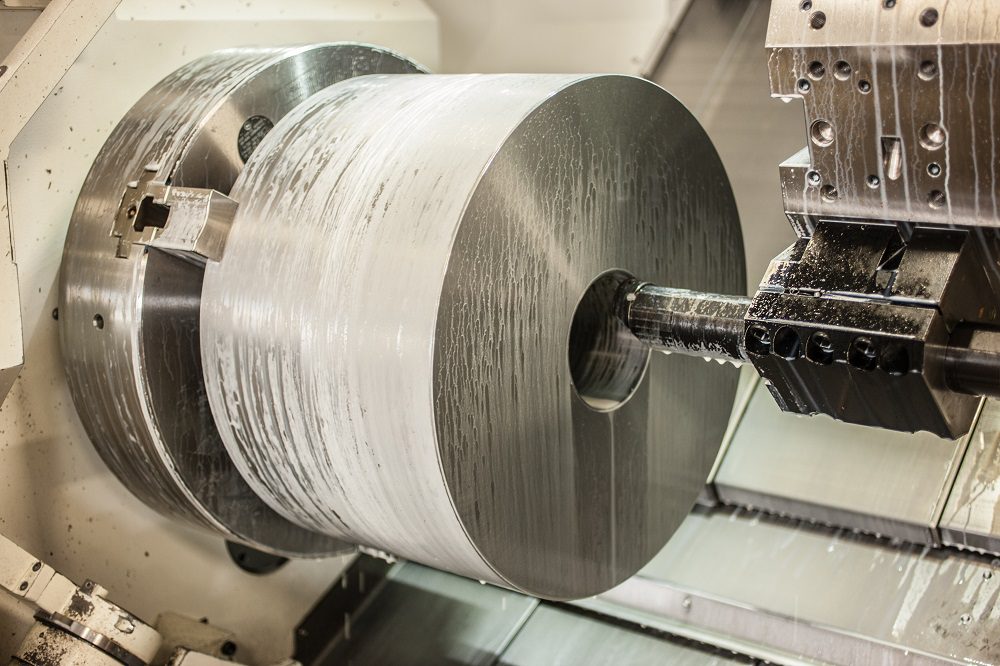

Understanding Roughing in CNC Machining

Roughing in CNC machining is like setting the stage for a grand performance. It’s the first act where we mold the raw material into something closer to the final form. This stage is characterized by high-speed, high-feed rate operations designed to remove material quickly and efficiently.

In roughing, we use tools like end mills, drill bits, and roughing cutters, which are robust and designed to handle the stress of high material removal rates. These tools are the workhorses of the CNC world – not particularly elegant, but incredibly effective at what they do. The cutting parameters in this phase are chosen to optimize the speed of material removal, often leading to a rough surface finish, which is perfectly acceptable at this stage.

During roughing, we’re not aiming for precision. Instead, we focus on quickly shaping the workpiece to a form that’s close to the final product but with some material left for the finishing process. This approach minimizes wear and tear on the more delicate finishing tools. It ensures enough material is left to achieve the precise dimensions and surface quality required in the final product.

One key aspect of roughing is understanding the material we’re working with. Different materials behave differently under the stress of machining. For example, machining aluminum is an entirely different ball game than steel or titanium. Each material has its quirks – like how it responds to heat, how it chips, and what kind of tooling is best suited for it.

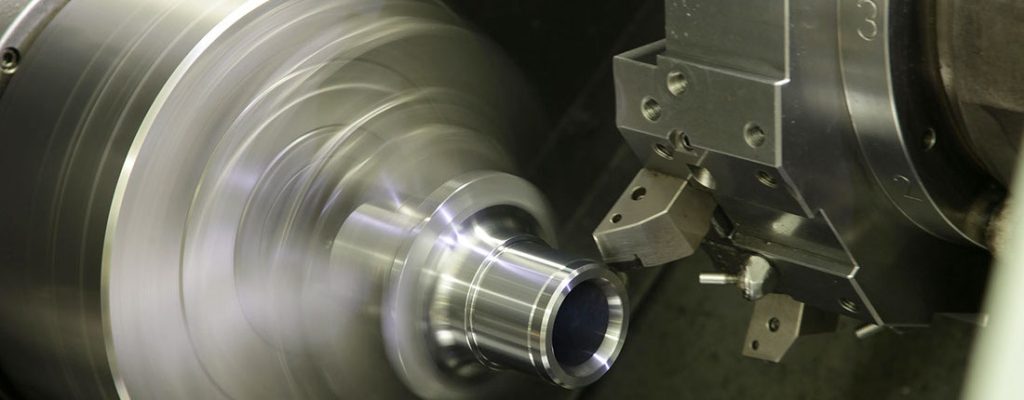

Transitioning to Finishing in CNC Machining

In finishing, we swap the roughing tools for finer, more precise cutting tools. These tools are designed for detail work – they’re the sculptors’ chisels of the machining world. The cutting speeds and feeds are adjusted to be slower and more controlled, focusing on gently shaving off the excess material to achieve the final shape and surface quality.

This phase requires a delicate touch and a deep understanding of machining dynamics. Factors like tool deflection, vibration, and heat generation become critical considerations. Even the slightest miscalculation can lead to defects in the final product, such as poor surface finish or dimensional inaccuracies.

The finishing process often involves multiple passes with gradually finer tools or settings. This incremental approach ensures that each pass removes just enough material to get closer to the final dimensions without overdoing it. It’s a game of millimeters and microns, where precision is the name of the game.

One of the challenges in finishing is balancing the desire for a perfect surface finish with the need to maintain dimensional accuracy. Sometimes, achieving a mirror-like surface finish can lead to slight changes in the part’s dimensions.

Detailed Comparison Between Roughing and Finishing in CNC Machining

Roughing: The Heavy Lifter

Purpose: Rapid Material Removal

• In roughing, the primary goal is to remove the bulk of the material as quickly as possible. This step is about efficiency, transforming a raw block into a form that resembles the final part.

Tools: Built for Toughness

• The tools used in roughing are designed to withstand high cutting forces. They are generally larger and more robust, with features like coarse teeth facilitating faster material removal. These tools don’t shy away from a challenge like a seasoned boxer in the ring.

Parameters: The Need for Speed

• High cutting speeds and feed rates are the norms in roughing. We push the tools to their limits to maximize the material removal rate. It’s a race against time but with a strategic approach to avoid tool failure.

Surface Finish: Secondary Consideration

• In roughing, the surface finish is not a primary concern. The focus is removing material, even if it leaves a rough surface. It’s like sketching the outline of a drawing, not worrying about the details just yet.

Material Considerations: Balancing Act

• Aggressive cutting in roughing can lead to significant heat generation and tool wear. It’s essential to choose the suitable tool material and geometry for the job at hand. This phase tests the resilience of the tool and the machined material.

Skill Focus: Mastery of Efficiency

• Efficient material removal in roughing requires a deep understanding of machining dynamics. The machinist must be adept at selecting the right tools and parameters to maximize efficiency without compromising the integrity of the workpiece.

Finishing: The Fine Tuner

Purpose: Precision and Aesthetics

• The finishing phase is about achieving the exact dimensions and desired surface quality. It’s where the part gets its final look and feel, akin to a painter adding the final brushstrokes to a masterpiece.

Tools: Delicate and Precise

• Tools used in finishing are finer and more precision-focused. They often have a higher flute count and are made from materials with greater precision. These tools are like the fine pens of an artist, meant for detailed work.

Parameters: Controlled and Deliberate

• In finishing, cutting speeds and feeds are lower and more controlled. This approach allows for more precise material removal, ensuring the final dimensions and surface finish are achieved without overshooting.

Surface Finish: Top Priority

• Achieving a high-quality surface finish is a hallmark of finishing. It’s not just about looks; a good surface finish can enhance the part’s performance, especially in applications where friction and wear are concerns.

Material Considerations: Gentle and Calculated

• The finishing process requires a gentle approach to prevent surface damage or warping of the part. The tool, speed, and feed rate must be carefully calibrated to the material’s properties.

Skill Focus: The Art of Precision

• Finishing demands a high level of skill and attention to detail. The machinist must have a steady hand and an eye for detail, ensuring that each pass of the tool brings the part closer to its intended specifications.

Tips for Roughing in CNC Machining

Roughing in CNC machining can be likened to the first draft of a novel – it sets the stage for everything that follows. Here are some tips to ensure this critical phase is as effective and efficient as possible.

1. Choose the Right Tool Material and Geometry

• Selecting the appropriate tool material, such as high-speed steel or carbide, is crucial for roughing. Carbide tools, for example, can handle higher cutting speeds, which is beneficial for rapid material removal. The tool’s geometry, including flute count and helix angle, is vital in chip evacuation and cutting efficiency.

2. Optimize Cutting Parameters

• Roughing is all about balancing speed and efficiency. Setting the correct cutting speed (RPM) and feed rate is essential. A general rule of thumb is to push the tool to its maximum efficient feed rate without causing excessive wear or vibration.

3. Implement Effective Chip Evacuation Strategies

• Efficient chip evacuation prevents chip re-cutting and reduces heat build-up. Using proper flute count tools and techniques like peck drilling or programmed chip breaking can significantly improve chip evacuation.

4. Utilize High-Efficiency Machining Techniques

• Techniques like trochoidal milling and high-speed machining can significantly improve the efficiency of the roughing process. These methods reduce tool load, improve chip formation, and extend tool life.

5. Manage Heat and Tool Wear

• Heat management is critical in roughing. Using coolants effectively or choosing dry machining (if suitable for the material and application) can help manage heat. Monitoring tool wear and replacing tools before they become inefficient is also crucial.

6. Ensure Rigidity in the Setup

• A rigid setup is essential to handle the high cutting forces during roughing. This includes using a solid work holding system and ensuring that the machine and tooling are stable. Vibration or movement can lead to poor surface finish and accelerated tool wear.

7. Adapt to Material Specifics

• Different materials require different roughing strategies. Roughing aluminum might allow higher speeds and more aggressive cuts than steel or titanium. Understanding the material properties and how they react to cutting forces is critical.

8. Leverage Software and Simulation Tools

• Modern CNC software offers simulation tools that can help optimize roughing paths and parameters. These tools can save time and material by predicting potential issues before machining.

Tips for Finishing in CNC Machining

Finishing in CNC machining is the final touch that turns a roughly shaped piece into a precision component. This stage demands a high level of precision and attention to detail. Here are some tips to excel in the finishing process:

1. Precision Tool Selection

• Choose tools specifically designed for finishing. These tools typically have more flutes and are made from materials that offer superior precision and surface finish, like carbide or diamond-coated tools.

2. Fine-Tune Cutting Parameters

• Adjust cutting speeds (RPM) and feed rates for optimal surface finish and dimensional accuracy. Lower speeds and feeds can reduce tool deflection and vibration, resulting in a smoother finish.

3. Focus on Surface Finish Quality

• The quality of the surface finish is paramount in finishing. Utilize appropriate speeds, feeds, and tool paths to minimize tool marks and achieve the desired surface texture.

4. Minimize Tool Deflection

• Tool deflection can lead to inaccuracies and poor surface finish. Use shorter lengths, appropriate tool diameters, and proper tool holder systems to minimize deflection.

5. Employ Proper Coolant Techniques

• Coolants can help achieve a better surface finish and prolong tool life. Ensure the coolant is appropriately directed at the cutting area and consider coolant type based on the machined material.

6. Implement Light and Multiple Passes

• Instead of one heavy cut, use multiple light passes to achieve the final dimensions. This strategy reduces the load on the tool, resulting in better surface quality and dimensional accuracy.

7. Opt for Climb Milling

• Climb milling (where the cutter rotates in the same direction as the feed) can provide a better finish as it produces a shear-cutting action, resulting in smoother cuts and less tool wear.

8. Be Mindful of Material Characteristics

• Different materials respond differently to finishing operations. For example, softer materials may require sharper tools and other cutting parameters than more rigid materials

Conclusion:

I invite you to join me in this ever-evolving journey of CNC machining. Together, we can push the boundaries of what’s possible, turning raw materials into engineering marvels. Let’s continue to shape the future, one precise cut at a time.

Remember, in the dance of roughing and finishing, every step counts. Happy machining!
