In the vast world of machining, milling stands as a cornerstone technique, vital to the production of precise and high-quality parts. At the heart of the milling process are two prominent methods: Face Milling and Peripheral Milling. Whether you’re a seasoned machinist or a budding enthusiast, understanding the fundamental differences between these techniques can be pivotal to your projects.
Milling, by definition milling, refers to the machining process where the cutting tool rotates and moves to cut away excess material from a workpiece, shaping it as required. While both face and peripheral milling fall under this definition, their individual processes, applications, and outcomes differ vastly.
Face Milling: An Overview
Definition

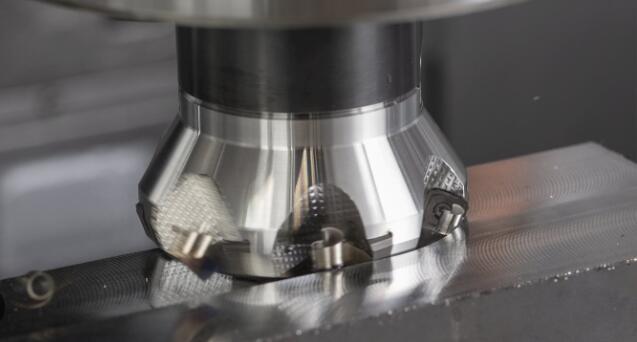

Face milling, often simply queried as “what is face milling”, is a machining process where the primary cutting is done using the face or end of a milling cutter. The cutter is typically mounted on a spindle, and as it rotates, the cutting edges on its face shear off material from the workpiece’s surface, creating a flat or contoured finish.
Working Process of Face Milling
Understanding the working dynamics of face milling is crucial for optimum results:
- Setup: Initiating face milling begins with selecting the appropriate face milling cutter. Depending on the material and desired finish, the choice can vary from a face mill to a face mill vs shell mill.
- Tool Engagement: The cutter’s face engages with the workpiece’s surface. It’s imperative to set the cutter at the right angle to ensure uniform cutting.
- Feed Direction: The cutter’s movement can either be perpendicular or at an angle to the workpiece, determining the final look of the milled surface.
- Chip Evacuation: Just as in other milling processes, effective chip flow and removal are vital to prevent damage to both the tool and the workpiece. This also significantly affects the surface finish quality.
- Finish Pass: This final pass ensures the desired surface finish and dimensional accuracy are achieved. The facing mill bit is often moved at a slower feed rate for this purpose.
Cutting Tools for Face Milling
A variety of tools can be employed for face milling, each designed for specific applications and results:
- Face Mills: Typically used for general purpose face milling, delivering a smooth finish.
- Shell Mills: Similar to face mills but often larger and used for wider surfaces.
- High Feed Mills: These tools focus on high material removal rates with a shallower cut, especially useful for milling facing tool applications.
- Insert Types: The kind of insert – be it rounded, square, or another shape – plays a role in determining the quality and type of cut.
Main Characteristics
Face milling’s primary focus is on achieving a flat or contoured surface. The orientation of the cutter ensures that a larger area of the tool engages with the workpiece, often resulting in a smoother finish. The facing machining process allows for intricate contours and shapes, given the right setup and tool selection.
Applications
- Flattening the top surface of a workpiece: This is particularly essential when working with uneven or roughed-up materials, ensuring that subsequent processes have a uniform surface to work upon.
- Achieving a smooth finish: A polished, smooth finish not only enhances the aesthetic appeal but can also be critical for parts used in industries where precision is paramount, such as aerospace and medical devices.
- Preparing a surface for further machining processes: A well-prepared surface can lead to better outcomes in subsequent operations, be it drilling, tapping, or any other process. By creating a flat and even foundation, face milling ensures that the next steps in the manufacturing chain face fewer obstacles, leading to a more refined end product.
Practical Tips and Recommendations for Face Milling
Face milling, while versatile, requires a meticulous approach to ensure optimal results. Here are some essential tips and best practices tailored to face milling:
- Select the Right Tool: Choose a face milling cutter that aligns with the material and the desired outcome. If working with tougher metals, opt for cutters with reinforced edges.
- Optimal Insert Positioning: Ensure the inserts are positioned correctly in the cutter body. Misaligned inserts can lead to uneven cutting and reduced tool life.
- Adjust Feed Rates and Speeds: A proper balance between feed rate and cutter speed is pivotal. Too high a speed or too aggressive a feed can lead to premature tool wear and poor surface finish.
- Consider Using Coolant: Some materials and operations might benefit from using coolant to reduce heat generation and improve tool life.
- Chip Evacuation: Regularly clear chips to avoid any re-cutting, which can adversely affect the surface finish and strain the tool.
- Depth and Width of Cut: Adjust these based on the material and desired finish. A shallow cut might provide a smoother finish but could require multiple passes.
- Avoid Excessive Overhang: Ensure that the tool is held as close to the holder as possible. This minimizes vibrations and increases stability during the milling process.
- Regularly Inspect and Replace Inserts: Over time, the inserts can wear out or become damaged. Regular inspection and timely replacement can maintain optimal performance and finish.
- Harmonize Tool Path Strategies: Employ consistent tool paths. Erratic or inconsistent paths can lead to uneven wear on the cutter and a subpar finish on the workpiece.
- Calibrate Machines Periodically: Ensure your CNC machines, such as those detailed on Worthy Hardware’s CNC Milling page, are periodically calibrated to maintain precision during the face milling process.
Peripheral Milling: An Overview
Definition

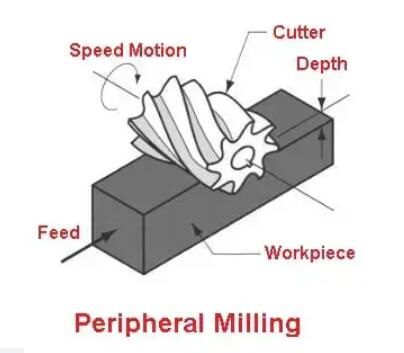

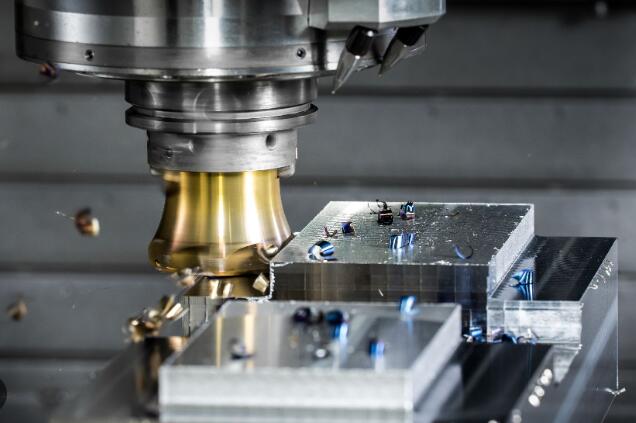

While face milling focuses on the cutter’s face or end, peripheral milling centers on the use of the cutter’s periphery or circumference to remove material from the workpiece. In simpler terms, in peripheral milling, the cutting action occurs primarily at the sides and the circumference of the milling cutter, making it particularly effective for producing deep vertical, horizontal, or diagonal grooves and for side-milling tasks.
Cutting Tools for Peripheral Milling
Choosing the right tool for peripheral milling is essential for achieving the desired outcome. The primary tools include:
- End Mills: A versatile tool used for a variety of peripheral milling tasks. The sharp helical teeth can produce clean and precise cuts, making them suitable for intricate machining tasks. This brings clarity to terms such as “end mill vs face mill” and “end milling vs face milling.”
- Slab Mills: As the name suggests, these are primarily designed for making broader surface cuts. Their large diameter and broad cutting surface make them especially effective for this purpose.
- Side and Face Mills: These tools are specifically crafted to create deep vertical or diagonal grooves. They combine the attributes of both face and peripheral milling, which can sometimes lead to confusion between “face mill vs end mill” and “face milling vs end milling.”
- Involute Gear Cutters: A specialized tool for the manufacturing of gears. The unique shape of the cutter allows it to precisely cut the intricate profiles of gear teeth.
Main Characteristics
In peripheral milling, the cutting edges are distributed along the circumference of the cutter. This means that at any given point, only a small part of the tool is in contact with the workpiece, leading to deeper cuts and grooves.
The nature of the cut is determined by the tool’s diameter, the number of teeth or flutes, and the feed rate. The outcome is generally a series of ridges or marks on the workpiece, which might require a finishing process if a smooth surface is desired.
Applications
Peripheral milling’s versatility makes it invaluable in various sectors. Some common applications include:
- Producing slots or grooves in workpieces.
- Side-milling tasks where material removal from the sides of a workpiece is required.
- Manufacturing gears, especially when using involute gear cutters.
- Creating intricate profiles and designs on the surface of a material, especially when using end mills.
Key Differences Between Face Milling and Peripheral Milling
Distinguishing between face milling and peripheral milling is crucial for selecting the optimal machining process:
- Orientation of Cutting: In face milling, the cutting action primarily comes from the face or end of the milling cutter. In contrast, peripheral milling uses the cutter’s sides or circumference for the main cutting action.
Choosing Between Face Milling and Peripheral Milling
The decision between face milling and peripheral milling boils down to the specific requirements of a project:
- Material Type: Some materials, especially lightweight metals mentioned on Worthy Hardware’s CNC Machining page, might be more suited to one process over the other.
- Desired Finish: If a smoother finish is a priority, face milling might be preferable. For deeper cuts or grooves, peripheral milling could be the better choice.
- Tool Availability: Depending on the available machinery and tools, one might be more feasible than the other.
- Production Volume and Speed: For quicker material removal and high-volume tasks, certain peripheral milling techniques might offer an edge.
- Cost: Sometimes, the budget can dictate the choice. One method might be more cost-effective based on tool wear, required finishing processes, and production speed.
Conclusion
For those prioritizing a smoother finish or flat surfaces, face milling emerges as the obvious choice. But for projects demanding deep cuts, grooves, or slots, peripheral milling can prove indispensable. In making this decision, factors such as material type, desired finish, tool availability, production volume, speed, and costs should always be taken into account.
As the world of machining continues to evolve, staying informed and leveraging practical tips, especially for techniques like face milling, can greatly enhance production outcomes. For businesses looking to dive deeper into these processes and find reliable equipment, companies like Worthy Hardware provide invaluable resources and products that resonate with the industry’s best standards.
Frequently Asked Questions
What is face milling?
Face milling is a machining process where the cutting action occurs primarily on the end or face of the cutter. It’s typically used to create flat surfaces or profiles on a workpiece.
What is face milling used for?
Face milling is employed for flattening the top surface of a workpiece, achieving a smooth finish, and preparing a surface for further machining processes.
What is the difference between face milling and profile milling?
While face milling focuses on producing flat or contoured surfaces, profile milling is used to machine the external contours of a workpiece.
What is the difference between end milling and face milling?
End milling uses the cutter’s teeth on the circumference and face for cutting, while face milling primarily uses the face of the cutter for machining.
