Manufacturing techniques are continually evolving, but some fundamental processes remain constant. Two of these are the concepts of fillet and chamfer in design and manufacturing. Both processes are used to modify edges of objects in manufacturing for various reasons such as aesthetics, safety, or function. But, understanding the differences between a fillet and a chamfer, or, in other words, fillet vs chamfer, is vital in deciding which one to use in a given circumstance.
At Worthy Hardware, we regularly employ these techniques in our manufacturing processes, including CNC machining, CNC milling, and CNC turning.
A. The Concept of a Fillet

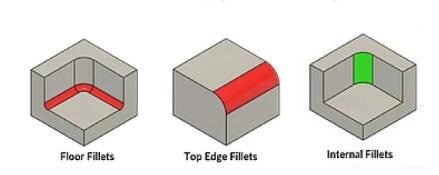

In manufacturing and engineering, a fillet is a concave easing of an interior or exterior corner of a part design. It creates a smooth curved transition between two surfaces, usually at a right angle. The size of a fillet is typically specified by the fillet radius - the radius of the arc that creates the fillet.
B. Why are Fillets used?
The application of fillets in manufacturing is driven by several reasons:
- Stress Concentration: Sharp corners can act as stress concentrators in an object or part. Fillets distribute stress over a broader area, reducing the concentration and likelihood of part failure.
- Ease of Manufacturing: Fillets allow for easier and more efficient machining, reducing wear and tear on cutting tools.
- Assembly: Fillets aid in parts assembly by allowing parts to fit together more smoothly.
- Safety and Comfort: In end-use parts, fillets can improve safety by eliminating sharp corners. They also provide a more ergonomic and comfortable feel to handheld objects.
- Aesthetics: Fillets can improve the visual appeal of a part by giving it a softer, more polished look.
C. Benefits and Challenges of using Fillets
Fillets offer a number of benefits in manufacturing. They reduce the stress concentration, facilitate assembly, improve the lifespan of cutting tools, enhance safety, and can enhance the aesthetic appeal of a product.
However, designing and implementing fillets also come with certain challenges. One key challenge in fillet design is maintaining the accuracy of the fillet radius, which can be particularly complex in intricate designs. Additionally, while fillets can ease the machining process, they also demand extra machining time, which can impact the overall manufacturing time and cost.
A. The Concept of a Chamfer
A chamfer is an angled or beveled edge that connects two surfaces. Unlike the rounded fillet, a chamfer is a linear transition between surfaces, typically at a 45-degree angle.
B. Why are Chamfers used?
Chamfers are commonly used for several reasons:
- Deburring: Chamfering is an excellent way to remove burrs from freshly cut material, making the part safer to handle and less likely to cause damage during assembly.
- Assembly: A chamfer can guide a fastener into a hole, making assembly easier and more efficient. This is especially helpful with threaded parts, where a chamfer can protect the threads.
- Stress Reduction: While not as effective as fillets, chamfers can still help distribute stress and reduce concentration at corners.
- Aesthetics: Chamfers can give parts a sharp, clean aesthetic, particularly in modern design where they are often preferred for their sleek look.
C. Benefits and Challenges of using Chamfers
While chamfers can offer many of the same benefits as fillets, including stress reduction and easier assembly, their main advantage lies in their ease of manufacture. Chamfers are generally simpler to machine than fillets, leading to faster production times and lower costs.
However, they also come with their own challenges. Chamfers may not distribute stress as effectively as fillets, making them a less suitable choice for parts exposed to high loads or repetitive stresses. Furthermore, the sharper edges of a chamfer may not be as comfortable or safe for the end user in certain applications.
Fillet vs Chamfer: A Comparative Analysis
A. Comparing their applications
Fillets, with their rounded nature, are typically preferred in applications where stress concentration is a concern, such as in automotive components and aircraft structures.
On the other hand, chamfers are often utilized in assembly processes, where their angled edges can guide components into position more efficiently. For example, chamfers are frequently found on threaded parts, bolts, and nuts, making assembly easier.
B. Aesthetics: Fillet vs Chamfer
Fillets lend a softer, more organic feel to parts, making them a popular choice in industries like toy manufacturing or furniture design where smooth edges are favored.
In contrast, chamfers lend a clean, modern aesthetic that works well in contemporary design.
C. Manufacturing: Fillet vs Chamfer
In terms of manufacturing, chamfers typically have an edge over fillets. Due to their linear nature, chamfers are simpler and more cost-effective to machine using standard tools in CNC machining processes.
Fillets, however, may require specialized tools or additional machining passes, particularly for tight or complex radii.
D. Safety
Fillets can remove sharp corners, making a part safer to handle. Likewise, chamfers can remove burrs and sharp edges from a part, but the resultant edge may still be quite sharp. As such, in applications where human contact with the part is frequent, fillets are often a safer choice.
When it comes to cutting tools used in manufacturing processes like CNC milling, the geometry of the tool often determines whether a fillet or chamfer is more suitable. While standard end mills can easily create chamfers, fillets might require the use of specialized ball-end or bull-nose end mills, which could affect manufacturing time and costs.
Choosing Between Fillet and Chamfer: Factors to Consider
A. Material Selection
Different materials respond differently to the stresses incurred during the machining process. For instance, some materials may be more prone to chipping or cracking if machined with a sharp chamfer. On the other hand, some might show better resistance to wear and tear with filleted edges.
B. Function of the Part
The intended function of the part also plays a significant role in this decision. If the component is part of an assembly and needs to fit snugly with other parts, a chamfer may be preferable to guide the parts together.
Conversely, if the part is expected to undergo significant stress, a fillet can help distribute the stress more evenly and improve the component's longevity.
C. Cost and Time Considerations
As mentioned earlier, chamfers are generally quicker and cheaper to machine. However, if a design necessitates a fillet for functional or aesthetic reasons, the added cost and time might be a worthwhile investment.
Conclusion
In conclusion, both fillets and chamfers play pivotal roles in design and manufacturing, each with their unique attributes. Fillets excel in reducing stress concentration, contributing to the longevity of parts, while chamfers aid in assembly, offering sharp aesthetics and edge protection.
Choosing between the two involves considering the part's functionality, material, manufacturing constraints, and cost implications. The choice, therefore, lies in the intricate balance between these factors to ensure optimal product performance.
Frequently Asked Questions (FAQ)
When should I use a Fillet instead of a Chamfer?
Fillet is typically used when the primary concern is reducing stress concentration, especially in areas of high stress. Conversely, a chamfer is chosen when ease of assembly or a specific aesthetic is desired.
Are Fillets and Chamfers expensive to incorporate in a design?
Both fillets and chamfers can potentially save costs in the long run by increasing part longevity or simplifying assembly.
Can both Fillets and Chamfers be used in a single design?
Absolutely! Many designs benefit from the combined use of fillets and chamfers, each addressing specific functional or aesthetic needs. The optimal application depends on the specific requirements of the design and manufacturing process.
