Hardcoat Anodizing of Aluminum 101: Everything You Need to Know

Why go for hardcoat anodizing（Type III）? The answer is simple: durability. Hardcoat anodized aluminum withstands severe environmental and mechanical conditions, making it a favorite in industries demanding high-performance parts. It’s not just a protective layer; it’s a shield.

At its core, anodizing is an electrochemical process that converts the metal surface into a decorative, durable, corrosion-resistant, anodic oxide finish. Aluminum is ideally suited for anodizing, though other nonferrous metals can be anodized too.

If you’re involved in industries like aerospace, military, or automotive, understanding hardcoat anodizing can be a game-changer for your products. Let’s dive in!

The Hardcoat Anodizing Process

Step-by-Step Process Description

Cleaning and Pre-Treatment

First, we start with a thorough cleaning. Aluminum parts are degreased and cleaned to remove contaminants. This step is crucial because even a dirt speck can affect the anodization quality.

Etching

After cleaning, the aluminum undergoes an etching process. This involves dipping the parts in an alkaline bath, which smooths the aluminum’s surface by removing a thin metal layer. The etching cleans and creates a surface more receptive to the anodizing process

Desmutting

Post-etching, there’s often a slight residue on the aluminum, known as smut. Desmutting is removing this residue, typically using an acid solution. This step ensures that the surface is impeccably clean and ready for anodization.

Anodizing

Here’s where the magic happens. The clean aluminum parts are placed in an acid electrolyte bath, and an electric current is passed through the medium. This process causes the aluminum surface to oxidize, forming a layer of aluminum oxide. But here’s the kicker: unlike regular anodizing, hardcoat anodizing involves cooler temperatures, a more powerful electric current, and a longer immersion time. This results in a much thicker and harder anodic layer.

Cooling

Due to the intense conditions during hard coat anodizing, the electrolyte bath tends to heat up. Keeping the temperature in check is essential, usually below 32°F (0°C). This is where cooling systems come into play, maintaining a consistent bath temperature to ensure the anodization quality.

Post-Anodizing Sealing

The final step is sealing. After anodizing, the pores in the aluminum oxide layer are open and need to be sealed to enhance corrosion resistance. This is done by immersing the parts in a hot sealing bath that hydrates the oxide layer, effectively sealing those microscopic pores.

Chemicals and Equipment Used in Hardcoat Anodizing

Chemicals Used

1. Alkaline Cleaning Solutions: These are used in the initial cleaning stage to remove grease, oil, and other contaminants. Typically, these solutions are a blend of surfactants and mild alkalis.
2. Etching Chemicals: Sodium hydroxide is commonly used for etching. It effectively removes the natural oxide layer on aluminum, preparing it for the anodizing process.
3. Desmutting Agents: Usually a mixture of nitric and sulfuric acids, these agents are crucial for removing surface impurities and preparing the aluminum for the anodizing bath.
4. Anodizing Bath: The heart of the process lies in the anodizing bath, typically consisting of sulfuric acid. This electrolyte facilitates the formation of the aluminum oxide layer.
5. Sealing Solutions: Post-anodization, sealing is done using hot water or steam, or sometimes nickel acetate or other sealing compounds, depending on the desired properties of the final product.

Equipment Used

1. Cleaning and Etching Tanks: These are specialized tanks made of materials that resist the corrosive nature of the chemicals used. They come equipped with heating elements and agitators for uniform processing.
2. Anodizing Tanks: Designed to handle the rigors of the anodizing process, these tanks are typically made of stainless steel or another inert material. They are also fitted with cooling systems to maintain the low temperatures necessary for hardcoat anodizing.
3. Rectifiers are critical for controlling the current and voltage during the anodizing process. The rectifiers in hardcoat anodizing are more robust than those used in standard anodizing, capable of delivering higher currents.
4. Racks or Jigs: Custom-designed to hold and conduct electricity to the aluminum parts, these racks ensure even current distribution during anodizing.
5. Temperature Control Systems: Maintaining the correct temperature during the anodizing process is crucial, particularly for hardcoat anodizing. These systems ensure that the bath stays within the desired temperature range.
6. Filtration and Circulation Systems: Proper filtration and circulation systems are essential to maintain the quality of the chemicals used, especially in the anodizing tank.

Critical Differences Between Hardcoat and Standard Anodizing

Standard anodizing, often called Type II anodizing, is a widely used electrochemical process that enhances the natural oxide layer on aluminum. This process improves the metal’s aesthetics and provides a moderate level of protection.

Comparison of Process Parameters

Thickness of Coating

• Hardcoat Anodizing: Typically produces a much thicker oxide layer, ranging from 0.002 to 0.004 inches. This thickness contributes to its enhanced wear and corrosion resistance.
• Standard Anodizing: The anodic layer usually ranges from 0.0002 to 0.0008 inches, providing a good balance of protection and aesthetic appeal.

Electrical Parameters

• Hardcoat Anodizing: Requires higher voltages, typically between 25 to 60 volts, and operates at lower temperatures, usually below 32°F (0°C). This leads to a denser and harder oxide layer.
• Standard Anodizing: Uses lower voltages, around 10 to 20 volts, and is conducted at room temperature or slightly above.

Bath Composition

• Hardcoat Anodizing: Utilizes a sulfuric acid bath similar to standard anodizing but with different concentrations and additives to achieve the desired hardcoat properties.
• Standard Anodizing: It also uses a sulfuric acid bath, but the concentration and additives are optimized for thinner oxide layers.

Outcome Differences in Coating

Durability and Wear Resistance

• Hardcoat Anodizing: Provides exceptional durability and wear resistance, making it suitable for industrial and high-stress applications.
• Standard Anodizing: Offers good protection and is more suitable for decorative purposes or applications where extreme durability is not a primary concern.

Color and Aesthetics

• Hardcoat Anodizing: The thicker oxide layer often produces a darker finish, usually from dark gray to black. It’s less receptive to dyeing due to its density.
• Standard Anodizing: Allows for a broader range of colors through dyeing. The thinner oxide layer absorbs dyes more effectively, providing vibrant and visually appealing finishes.

Electrical Insulation

• Hardcoat Anodizing: Offers better electrical insulation due to the thicker oxide layer, which can be crucial in specific applications.
• Standard Anodizing: Provides standard electrical insulation, suitable for most general applications.

Cost Considerations

• Hardcoat Anodizing: Generally more expensive due to the more intensive process and the specialized equipment required.
• Standard Anodizing: More cost-effective and widely used for a variety of applications.

Why Choosing Hardcoat Anodizing?

Enhanced Durability and Wear Resistance

• Tough as Nails: Hardcoat anodizing creates a significantly thicker and harder oxide layer on aluminum parts. This layer can withstand extreme wear and tear, making it ideal for components used in harsh environments.
• Longevity: Parts treated with hardcoat anodizing show remarkable longevity, even under strenuous use. This means less frequent replacements and lower long-term costs.

Superior Corrosion Resistance

• Battle Against the Elements: The thick oxide layer formed during hardcoat anodizing offers excellent protection against corrosion. This is particularly crucial for parts exposed to corrosive environments, such as marine applications or chemical processing

Improved Electrical Insulation

• Insulating Properties: Hardcoat anodizing provides excellent electrical insulation due to its thick oxide layer. This makes it a preferred choice for electrical and electronic applications where non-conductivity is essential.

High-Temperature Endurance

• Withstands the Heat: Unlike many other coatings, the hardcoat anodized layer maintains its integrity at high temperatures, making it suitable for components used in high-heat environments.

Aesthetic Versatility

• Beyond Looks: While standard anodizing is known for its aesthetic appeal, hardcoat anodizing, though limited in color options, offers a unique, robust look. The natural dark gray-to-black finish is often seen as sophisticated and professional.

Design Considerations for Hardcoat Anodizing

• Geometry and Complexity: The shape and complexity of the part can affect anodizing uniformity. Intricate designs or deep recesses may lead to uneven coating thickness.

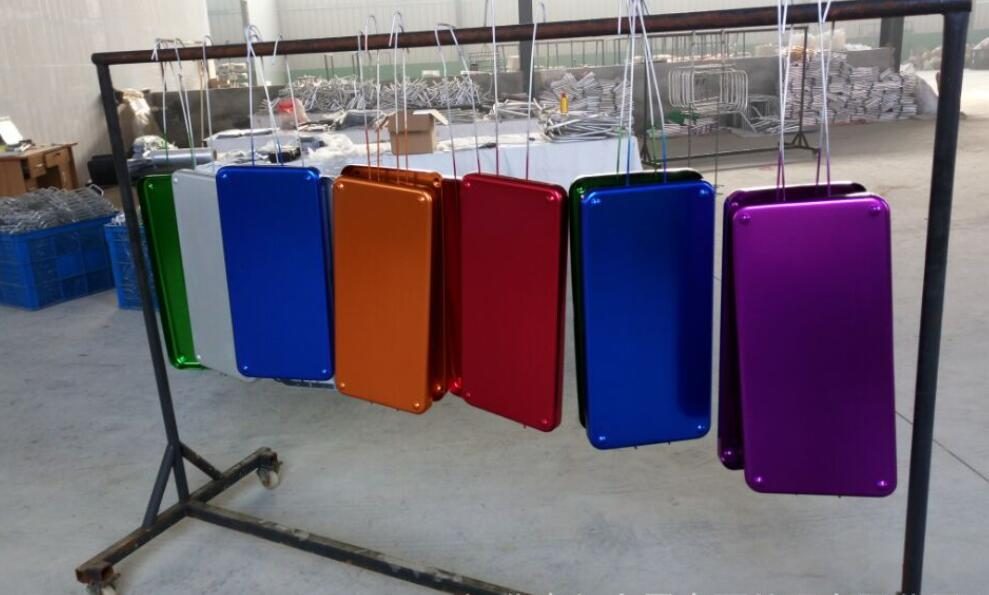

• Racking Considerations: Parts need to be securely racked for anodizing. The rack contact points should be strategically placed to minimize marks and ensure even current distribution.
• Thickness Tolerances: Since hardcoat anodizing can add significant thickness to a part, it’s essential to consider this in the design tolerances, especially for parts that need to fit together.
• Masking Requirements: Areas that require no anodizing must be effectively masked. The design should consider the feasibility of masking specific areas.

What Colors Are Popular for Hardcoat Anodizing?

The Natural Hue of Hardcoat Anodizing

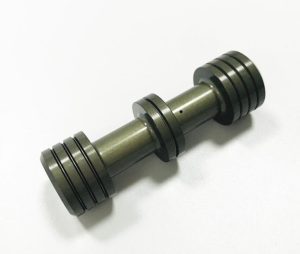

• Classic Dark Grey to Black: The most common and natural color of hardcoat anodizing ranges from charcoal grey to black. This coloration is a result of the process itself, where the thickness and density of the oxide layer determine the depth of the color.

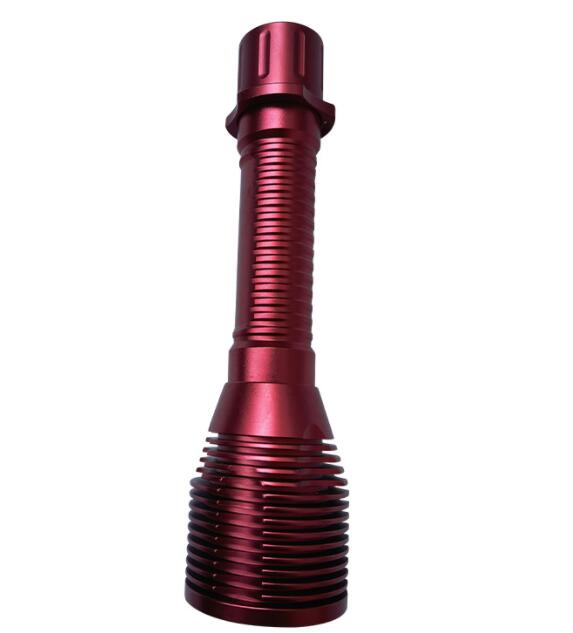

Limited Color Options

• Unlike standard anodizing, hard coat anodizing offers a more restricted color range. This limitation is due to the hard coat layer’s thickness and density, making it less receptive to dyes.

Standard Specifications Of Hard Coat Anodize

When it comes to hard coat anodizing, adhering to standard specifications is critical to achieving consistent, high-quality results.

MIL-A-8625

• Military Specification: Perhaps the most well-known and widely referenced standard is MIL-A-8625. This U.S. military specification covers the requirements for anodic coatings on aluminum and aluminum alloys.
• Type III Anodizing: Specifically, for hard coat anodizing, MIL-A-8625 Type III is relevant. This specification details the process controls, coating thickness, abrasion resistance, and other critical aspects of hard coat anodizing.


ISO 10074

• International Standards: ISO 10074 specifies the requirements for hard anodic oxidation coatings on aluminum and its alloys, both for general applications and for engineering hard anodic oxidation coatings.
• Quality and Consistency: This standard focuses on ensuring high quality and consistent performance of the anodized layer, particularly for engineering applications.

ASTM B580

• American Standards: ASTM B580 is another critical standard covering various types of aluminum anodic coatings, including hard coat anodizing.
• Coating Types and Characteristics: It classifies coatings by type, class, and grade, providing a comprehensive framework for specifying the desired characteristics of the anodized layer.

Coating Thickness

• Thickness Requirements: Hard coat anodizing typically requires a coating thickness of 0.002 to 0.004 inches. However, specific applications may dictate different thicknesses.
• Measurement and Tolerance: Precise measurement tools are used to ensure the coating thickness meets the specified requirements, with allowances for permissible variations.

Applications of Hardcoat Anodized Aluminum

• Aerospace: Used in aircraft components for their lightweight nature and resistance to harsh environmental conditions.
• Military: Ideal for military hardware due to its strength and corrosion resistance.
• Automotive: Utilized in vehicle parts where wear resistance and durability are crucial.
• Medical Devices: Chosen for surgical and medical equipment for its non-toxicity and easy sterilization.
• Electronics: Applied in electronic housings for its electrical insulation and heat resistance.

Conclusion

Do you need high-quality, durable, and reliable hardcoat anodized aluminum parts? Look no further than Worthy Hardware. Our expert team is ready to assist you in choosing the right anodizing solution for your project. Contact us today to learn more about our services and how we can help elevate the quality and performance of your products.

Based on Material

The material of the end mill directly influences its cutting performance, durability, and the types of materials it can effectively machine.

• High-Speed Steel (HSS) End Mills: These are popular for general machining in various materials. They are more flexible and less brittle than carbide end mills, making them more forgiving in less rigid setups or for manual milling machines.
• Cobalt Steel End Mills: These end mills are more wear-resistant than HSS and are used for machining tougher materials like stainless steel and titanium. They maintain their hardness at higher temperatures, allowing for increased cutting speeds.
• Carbide End Mills: Known for their hardness and high thermal resistance, carbide end mills can sustain higher cutting speeds than HSS. They are ideal for high-speed machining, especially in more complex materials like cast iron and steel alloys.
• Diamond-Coated End Mills: These are used for machining highly abrasive materials like graphite, composites, and green ceramics. The diamond coating provides a high degree of hardness and wear resistance.

Based on Coating:

Coatings on end mills enhance their performance, increase their durability, and extend their lifespan. Each type of coating offers distinct benefits and is suited for specific materials and applications.

• Uncoated End Mills: Ideal for general-purpose machining, particularly in non-ferrous materials like aluminum and plastic, where a coating isn’t necessary for increased performance.
• Titanium Nitride (TiN) Coated End Mills: Recognized by their gold color, these end mills offer increased hardness and heat resistance. They’re great for stainless steel, alloying, and other ferrous materials.
• Titanium Carbonitride (TiCN) Coated End Mills: Exhibiting a higher hardness than TiN coatings, TiCN is ideal for harder materials, providing better wear resistance. It’s effective in high-strength alloys and cast iron.
• Aluminum Titanium Nitride (AlTiN) Coated End Mills: Suitable for high-temperature cutting operations, these end mills excel in machining hard and abrasive materials. They’re excellent for high-speed machining in tool steels and other rigid materials.
• Diamond Coated End Mills: These are the best choice for highly abrasive materials, such as graphite and composite materials. The diamond coating provides extreme surface hardness and wear resistance.

Based on Cutting Geometry:

The cutting geometry of an end mill significantly influences its suitability for various machining operations, material types, and desired finishes. Different geometries are designed to cater to specific requirements.

• Flat End Mills (Square End): These end mills have a square nose and create a flat-bottomed groove in the material. They are ideal for general-purpose milling and are widely used in slotting, profiling, and plunge cutting.
• Ball Nose End Mills: Characterized by a rounded tip, ball nose end mills are used for 3D contouring, shaping, and milling in molds, dies, and complex surfaces. They are excellent for producing smooth, contoured finishes.
• Corner Radius End Mills: These end mills have a radius at the corner edge, combining the strength of a flat end mill with the wear resistance of a ball nose. They are suitable for milling high-hardness materials and have a longer tool life.
• Roughing End Mills (Rippers): Designed with a serrated cutting edge, these end mills quickly remove large amounts of material. They are used in initial roughing operations before finishing, reducing the load and heat on the tool.
• Chamfer End Mills: These are used for creating a beveled edge at the top edge of a wall or along a hole. They are essential for deburring edges and preparing parts for welding or other finishing processes.
• Tapered End Mills: Tapered end mills have a narrower cutting diameter towards the end. They are commonly used in mold-making and die-casting for machining angled walls.
• Drill Mills: These versatile tools can perform both drilling and end milling, making them suitable for multifunctional operations like drilling, chamfering, and side milling

Based on Helix Angle:

The helix angle of an end mill plays a crucial role in determining its cutting characteristics and is an essential factor in tool selection. The helix angle affects the cutting efficiency, chip formation, and heat dissipation during machining.

• Low Helix End Mills (around 30 degrees): These are ideal for machining harder, more brittle materials such as cast iron and stainless steel. The lower angle produces a more compressive cutting force, reducing the risk of tool deflection and chipping.
• Medium Helix End Mills (around 40 degrees): Offering a balance between cutting aggressiveness and finish quality, medium Helix End Mills are suitable for various materials, including metals and plastics.
• High Helix End Mills (over 45 degrees): These are excellent for machining soft and gummy materials like aluminum or soft plastics. The high helix angle provides excellent chip evacuation and smooth cutting action, reducing the risk of built-up edge and improving surface finish.

Specialty End Mills:

Specialty end mills are designed for specific applications, materials, or unique machining challenges. These specialized tools are engineered to optimize performance, extend tool life, and achieve precise results in particular operations.

• • Roughing End Mills (Roughers): Designed with serrated teeth to break up chips and reduce cutting forces, roughers are used for rapid removal of roughing applications, especially in rigid materials.
  • Variable Helix End Mills: These end mills have irregularly spaced flutes, reducing vibration and chatter during cutting. This results in a smoother finish and is particularly beneficial in long-reach and deep-pocket milling applications.
  • Micro-End Mills: Micro-end mills have small diameters and are used for precision milling in fine-detail applications, such as intricate molds, dies, and minor components.
  • Corner Rounding End Mills: Used to create a rounded edge at the corner of a workpiece, these end mills are essential in aesthetic finishing and in applications requiring smooth transitions between surfaces.
  • Long Reach End Mills: These have extended lengths to reach deep cavities with minimal deflection. They are ideal for machining complex parts with deep pockets or hard-to-reach areas.
  • Thread Mills: Thread mills are designed to produce threads in a workpiece, offering more flexibility and precision than traditional tapping methods.

Conclusion

We encourage our clients and fellow machinists to invest time in understanding the properties and capabilities of different end mills. This knowledge not only enhances the quality of your work but also leads to greater efficiency and cost savings in the long run.

Remember, the right end mill can differentiate between a job well done and an exceptional product. For further information or to discuss your CNC machining needs, please get in touch with us at Worthy Hardware. Let’s work together to turn your concepts into reality precisely and excellently.
