Everything You Need to Know About Heavy Gauge Stamping

Heavy gauge stamping involves the deformation of metal sheets into specific shapes using high-pressure machinery. This process is vital for creating large, thick parts that smaller presses can’t handle. At our facility, we specialize in transforming hefty sheets of metal into components that meet the stringent requirements of various industries. The process not only supports the creation of larger parts but also maintains high precision, which is crucial for safety-critical applications.

Maintaining your interest in this topic is crucial because understanding the intricacies of heavy gauge stamping can significantly impact the quality and cost-efficiency of your manufacturing projects. Let’s delve deeper into what makes this process stand out in the metal fabrication landscape.

What is Heavy Gauge Stamping?

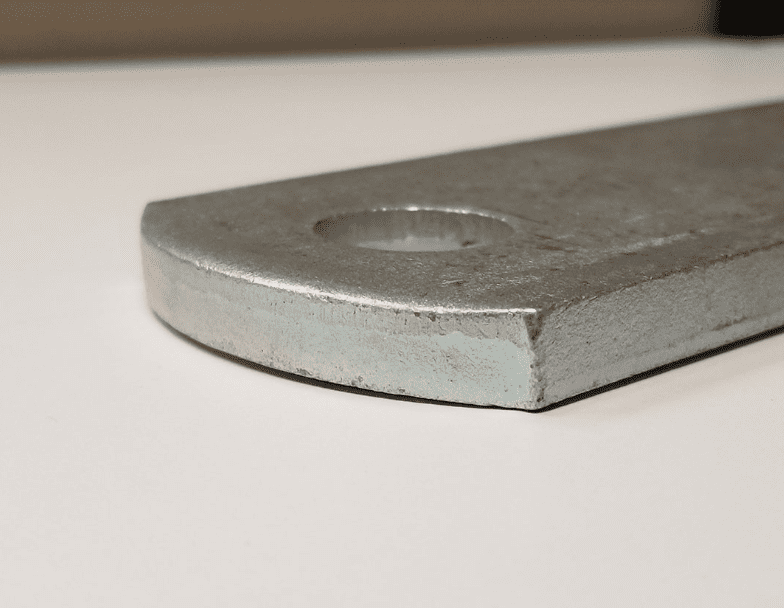

Heavy gauge stamping is a metal forming process that I use extensively in my factory to produce robust and high-dimensional accuracy parts. This technique involves the shaping of metal sheets that are thicker than what is typically handled by standard stamping processes. These metal sheets are often up to a quarter inch thick, and the process requires powerful presses with capacities that can exceed several hundred tons.

In heavy gauge stamping, large presses use dies—customized tool sets designed to cut, bend, and form metal into precise shapes under high pressure. The metal sheet, which can be made of steel, aluminum, or other alloys, is placed between the dies, and the press applies force to shape the metal into the desired form.

What is The Process of Heavy Gauge Stamping?

Material Selection: First, we select the appropriate metal sheet, typically ranging from 0.079 inches to 0.5 inches in thickness. Materials commonly used include stainless steel, aluminum, and other alloy steels, chosen based on the part requirements and intended application.

Die Design and Fabrication: Custom dies are essential for heavy gauge stamping. These are meticulously engineered and crafted to match the specific part design. The die design must consider the material properties and desired final characteristics of the part to ensure it can withstand the stamping process without defects.

Sheet Metal Preparation: Before stamping, the metal sheets may undergo pre-treatment depending on the material type and end-use. This can include cleaning, lubricating, or heating to improve malleability and reduce wear on the dies.

Stamping Operation: The prepared metal sheet is placed into the stamping press where the die is installed. The press then applies force, often hundreds of tons, to the die, which shapes the metal into the desired form. This might include punching, bending, embossing, or other shaping operations.

Trimming and Secondary Operations: After the main forming process, the parts often require trimming to remove excess material and might undergo secondary processes such as piercing, threading, or additional bending. These steps are crucial for achieving the precise specifications of the part.

Heavy Gauge Stamping VS Standard Metal Stamping

Thickness of Material:

The most notable difference lies in the thickness of the materials used. Heavy gauge stamping is used for materials that are typically 0.079 inches to 0.5 inches thick—sometimes even thicker.

In contrast, standard metal stamping generally handles materials that are less than 0.079 inches thick. This fundamental difference dictates the type of press required and the overall approach to the stamping process.

Type of Press Used:

Heavy gauge stamping requires larger, more robust presses capable of exerting higher tonnages due to the greater resistance of thicker materials. These presses often have features designed to handle the increased strain, such as more robust frames and deeper throats.

Standard metal stamping uses smaller presses, as the force required to shape thinner materials is significantly less.

Applications:

The applications of heavy gauge stamping are typically found in industries where structural integrity and the ability to withstand high stress are crucial. These include automotive, aerospace, construction, and industrial machinery.

Standard stamping is commonly used for electronics, consumer goods, and other applications where the parts are not subject to extreme loads.

Precision and Complexity:

While both types of stamping can achieve high precision, the complexity of parts produced can differ. Heavy gauge stamping is often used for simpler, yet larger and thicker parts.

Standard metal stamping, however, can produce highly intricate parts with fine details, which are often required in the electronics and detailed component industries.

Cost Implications:

Due to the heavier and more expensive equipment, along with the higher cost of raw materials (thicker metal sheets), heavy gauge stamping tends to be more costly upfront.

However, for the right applications—such as those requiring durable and heavy-duty parts—the investment in heavy gauge stamping can lead to better performance and longer part life, offsetting the initial higher costs.

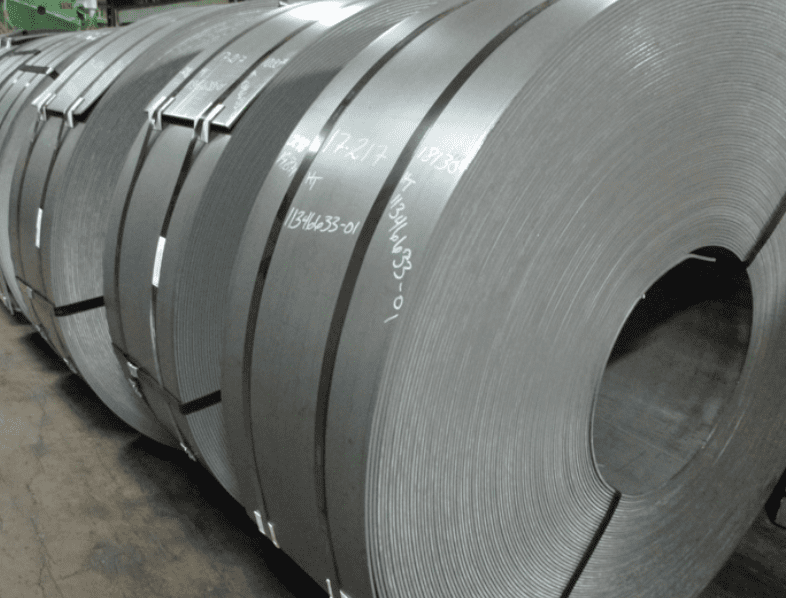

Types of Materials Typically Used in Heavy Gauge Stamping

Key Applications of Heavy Gauge Stamping

• Automotive

• Aerospace

• Construction

• Industrial Machinery

• Agricultural Equipment

• Energy (Oil and Gas)

• Shipbuilding

• Rail Transport

• Defense


Advantages of Heavy Gauge Stamping

Heavy gauge stamping offers a range of advantages that make it indispensable in various industries. Here are some key benefits:

Durability: Components made through heavy gauge stamping are incredibly durable, able to withstand harsh conditions and heavy use. This makes them ideal for industries like automotive and construction, where longevity and reliability are critical.

Cost-Effectiveness: Despite the initial higher cost of setup and materials, the long-term efficiency and durability of stamped parts can lead to lower overall lifecycle costs. This is because the parts typically require less maintenance and have longer service lives.

Precision: Modern heavy gauge stamping techniques are capable of achieving high precision, which is essential for components that must fit into complex assemblies, such as in aerospace and industrial machinery.

Strength: The ability to work with thicker and stronger materials means that the resulting parts can handle more stress and strain without deforming, making them suitable for structural applications.

Efficiency: Heavy gauge stamping processes are designed to produce large quantities of parts quickly once the dies are created, making it an efficient production method for large runs.

Versatility: The process can handle a variety of metals and alloys, allowing manufacturers to choose the best material for specific applications based on properties like strength, corrosion resistance, and weight.

Reduced Waste: Stamping typically produces less waste compared to other fabrication methods like machining, as most of the material is used in the final product. This efficiency is not only cost-effective but also better for the environment.

Machinery Involved in Heavy Gauge Stamping

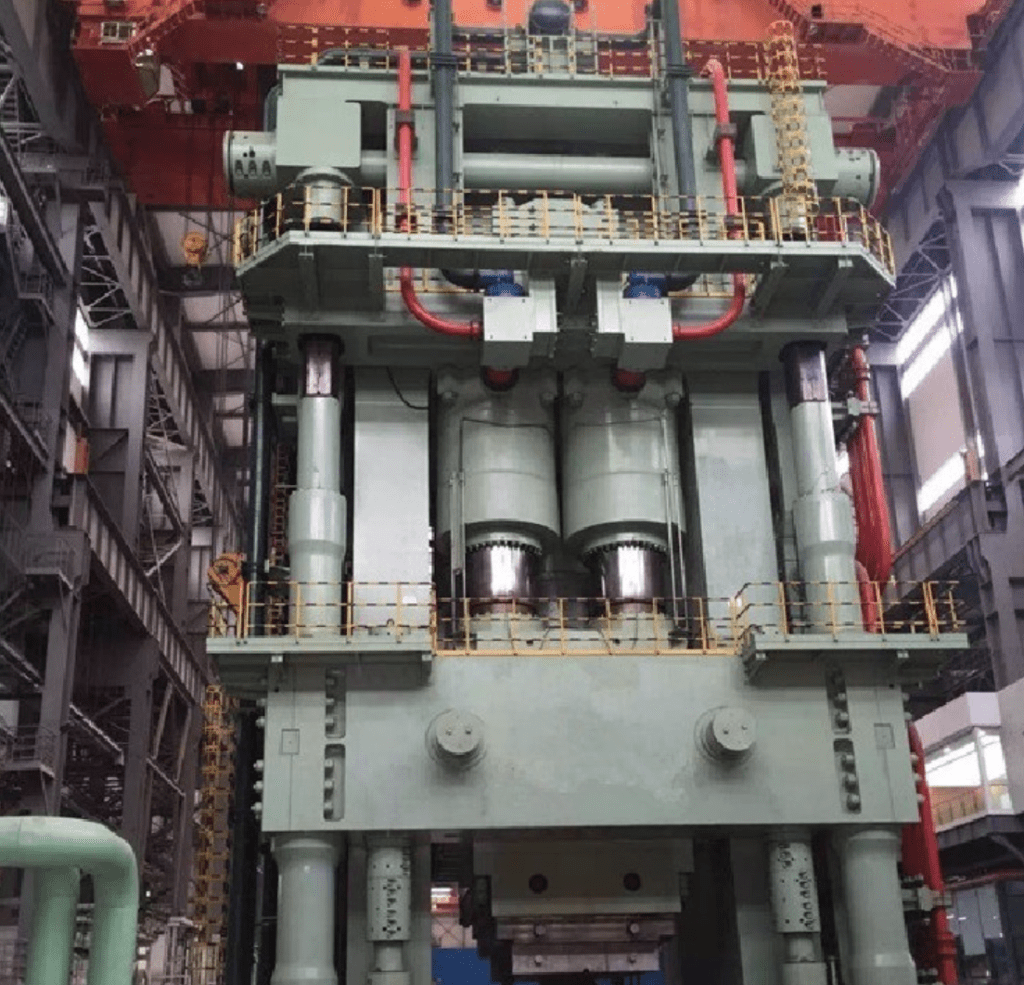

Hydraulic Presses

Hydraulic presses are crucial for heavy gauge stamping due to their ability to exert large forces, necessary for shaping thick materials. These presses can be custom-built to accommodate specific part sizes and shapes.

Mechanical Presses

For faster production cycles, mechanical presses are often used. They operate using a motor-driven flywheel which stores energy, converting it into force during the stamping process. This makes them more suitable for high-volume manufacturing.

Progressive Dies

Progressive dies are a series of stamping stations arranged within a single tool. As the metal sheet moves through the press, each station performs a different operation—such as punching, coining, bending, or cutting—resulting in a complex part in a series of efficient steps.

Transfer Presses

Transfer presses are used for more complex parts and larger production runs. They move the workpiece from one station to another within the press, allowing each station to perform a different operation. This method is ideal for larger or more complex shapes.

Conclusion

If you’re looking to enhance your manufacturing capabilities with heavy gauge stamping, don’t hesitate to reach out. Our expertise and advanced equipment are at your service to deliver top-quality, durable parts tailored to your needs. Contact us today to discuss how we can support your projects.
