How to Choose the Right Material and Method for Aluminium Rapid Prototyping?

In the fast-paced world of product development, the ability to quickly create and test prototypes is invaluable. Aluminum’s exceptional blend of strength, lightweight, and workability is a prime candidate for rapid prototyping. However, navigating the vast landscape of aluminum materials and prototyping methods can be daunting. Missteps can lead to wasted time, resources, and missed opportunities.

The key to success lies in selecting the suitable aluminum alloy and prototyping technique that aligns with your project’s requirements. Factors such as mechanical properties, surface finish, and manufacturing timeframes play critical roles. By understanding these elements, we can make informed decisions that streamline the prototyping process, ensuring high-quality and cost-effective prototypes.

Now that you’re intrigued, stay with me. We’re about to dive deep into the world of aluminum rapid prototyping, exploring how to navigate its complexities expertly. Let’s unlock the secrets together.

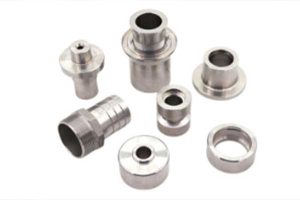

What Is Aluminum Rapid Prototyping?

Aluminum rapid prototyping is a game-changing process that allows inventors, engineers, and designers to quickly turn their ideas into tangible, functional prototypes using various aluminum materials. This process is crucial in the product development cycle. It enables teams to test concepts, improve designs, and showcase their projects to stakeholders or potential customers in days or weeks rather than months.

At its core, aluminum rapid prototyping leverages the unique properties of aluminum—its lightweight, high strength, and excellent machinability—to create prototypes that closely mimic the functionality and aesthetics of the intended final product.

The beauty of aluminum rapid prototyping lies in its versatility. It can be achieved through various manufacturing techniques, including CNC machining, 3D Printing (additive manufacturing), and casting.

In rapid prototyping, aluminum stands out not just for its physical properties but also for its ability to undergo various finishing processes. These include anodizing, painting, and powder coating, which can enhance the prototype’s appearance, durability, and resistance to corrosion. This flexibility makes aluminum ideal for prototypes that must function like the end product and look the part.

Common Aluminum Alloys Suitable For Prototyping

1.6061 Aluminum

6061 aluminum is the most versatile and widely used alloy for rapid prototyping. Known for its excellent combination of strength, toughness, corrosion resistance, and machinability, it’s an ideal choice for various applications.

Its weldability and ability to undergo post-machining treatments, such as anodizing, also make it highly sought after for prototypes that require a high-quality finish or additional durability.

2.7075 Aluminum

For prototypes demanding superior strength and hardness, 7075 aluminum is the go-to alloy. It offers some of the highest strength-to-weight ratios among aluminum alloys, making it perfect for high-stress applications such as aerospace and military parts.

However, its increased strength comes at the cost of reduced weldability and less corrosion resistance compared to 6061, making it more suitable for applications where these factors are less critical.

3. 2024 Aluminum

2024 aluminum is renowned for its high strength and excellent fatigue resistance, making it ideal for prototypes undergoing repeated stress or strain. It’s commonly used in the aerospace industry for aircraft structures and components.

Like 7075, it has limited corrosion resistance and weldability, so it’s best used in environments where these aspects are not a significant concern.

4. 5052 Aluminum

If your prototype requires superior corrosion resistance and weldability, 5052 aluminum might be the perfect fit. This alloy boasts good strength, making it suitable for various applications, especially those exposed to marine environments.

 Its excellent workability makes it a great choice for prototypes requiring complex shapes or forms.

5. AlSi10Mg (For 3D Printing)

AlSi10Mg is a specialized aluminum alloy designed for additive manufacturing or 3D Printing. It combines good strength, high hardness, and thermal properties with the benefit of being lightweight.

This alloy is ideal for prototypes that require detailed features and complex geometries that would be difficult or impossible to achieve with traditional manufacturing methods.

Prototyping Methods for Aluminum

CNC Machining

CNC (Computer Numerical Control) machining stands as a pillar in aluminum prototyping, renowned for its precision, versatility, and efficiency. This subtractive manufacturing process involves removing material from a solid block of aluminum (or billet) using various cutting tools to achieve the desired shape and dimensions.

Advantages:

• Precision and Accuracy: CNC machining can produce parts with tight tolerances, ensuring your prototype matches your design specifications.
• Material Properties: Since this method does not involve melting the material, the mechanical properties of the aluminum are fully retained, providing a strong and durable prototype.
• Surface Finish: CNC machined parts can achieve smooth finishes, allowing various surface treatments and coatings to enhance appearance and functionality further.
• Flexibility: It’s suitable for producing everything from simple to highly complex geometries, making it ideal for a wide range of prototyping applications.

Disadvantages:

While CNC machining is highly valued for its precision and versatility, it comes with its own set of limitations:

• Material Waste: As a subtractive manufacturing process, CNC machining involves removing material to shape the part, which can result in significant material waste, especially for complex geometries.
• Cost and Time for Complex Parts: For highly complex parts, the setup, programming, and machining time can be considerable, leading to higher costs and longer production times compared to simpler parts or potentially some additive manufacturing processes.
• Design Limitations:Although capable of producing complex designs, there are limits to the undercuts, internal features, and deep cavities CNC machining can achieve without special tooling or multi-axis machines.

3D Printing (Additive Manufacturing)

3D printing, or additive manufacturing, is a process that builds objects layer by layer from a digital file. When it comes to aluminum, specific techniques such as Direct Metal Laser Sintering (DMLS) or Selective Laser Melting (SLM) are used to fuse aluminum powder particles using a high-power laser.

Advantages:

• Complex Geometries: This method excels at creating parts with complex internal features and geometries that would be difficult or impossible to achieve through subtractive methods like CNC machining.
• Speed: 3D Printing can rapidly produce prototypes, significantly reducing the time from design to physical part, especially for complex or intricate designs.
• Reduced Waste: Since the material is added rather than removed, 3D Printing can be more material-efficient for specific designs, reducing waste and potentially lowering costs for small batches.
• Innovative Design Opportunities: The ability to quickly produce complex designs opens up new possibilities for innovation in prototyping, allowing for testing features and concepts that would be challenging to manufacture by other means.

Disadvantages:

3D Printing offers remarkable design flexibility and speed but also has its drawbacks:

• Material Properties: The mechanical properties of 3D-printed aluminum parts can vary from those of their conventionally manufactured counterparts. Layer-based construction can lead to anisotropy, where the material strength differs in different directions, which might not be ideal for all applications.
• Surface Finish: Parts produced by 3D Printing often require post-processing to achieve a smooth surface finish. The raw finish of a 3D printed part typically exhibits layer lines or a grainy texture, which might only be suitable for some prototypes with additional work.
• Size Limitations: The build size of 3D printers can restrict the maximum length of prototypes produced in a single piece. Although this continuously improves, it remains a consideration for more significant components.
• Cost-Effectiveness for Large Volumes: While 3D Printing is cost-effective for small runs and complex prototypes, the cost per unit can be higher than CNC machining or other traditional manufacturing methods when scaling up to larger volumes.

Sheet Metal Fabrication

Sheet metal fabrication involves cutting, bending, and assembling aluminum sheets into desired shapes and structures. It’s a versatile process used for creating parts that are typically flat or have simple bends. Still, it can also accommodate more complex, three-dimensional shapes through advanced techniques like stamping, punching, and laser cutting.

Advantages:

• Material Efficiency: This method is highly material-efficient for flat or moderately complex parts, with minimal waste compared to subtractive manufacturing methods.
• Strength and Durability: Parts made through sheet metal fabrication can exhibit good strength and durability, significantly when folded or curved, as these shapes can increase rigidity.
• Rapid Prototyping to Production: It’s well-suited for transitioning from prototype to production, as the same techniques and tools can often be used for both, ensuring consistency and reducing development time.

Disadvantages:

• Limited Complexity: While capable of producing a range of shapes, sheet metal fabrication may not be suitable for prototypes requiring intricate details or complex geometries easily achieved with additive manufacturing or CNC machining..
• Tooling Costs for High Complexity: Specialized tooling may be necessary for highly complex parts, increasing upfront costs and lead times.
• Material Thickness Limitations:The process is constrained by the thickness of the sheet metal, which can limit the application for parts requiring thicker, more robust sections.

Investment Casting

Investment casting, also known as lost wax casting, is a process that involves creating a wax model of the part, which is then encased in a ceramic shell. The wax is melted, and molten aluminum is poured into the cavity, creating a part with complex geometries and fine details.

Advantages:

• Complex Geometries and Fine Details: Investment casting is excellent for producing parts with intricate designs and tight tolerances that might be challenging to achieve through machining or fabrication.
• Smooth Surface Finish: Parts produced through this method typically have a very smooth surface finish, reducing the need for extensive post-processing.
• Versatility: It can be used with a wide range of materials, making it a flexible option for prototypes that may eventually be produced in materials other than aluminum.

Disadvantages:

• Cost and Time: The investment casting process can be more time-consuming and costly, especially for small quantities, due to the need to create wax models and ceramic molds for each part.
• Size Limitations:  While capable of producing detailed parts, the size of components that can be cast is limited by the casting equipment and the ability to manage heat dissipation and material properties evenly.
• Post-Processing: While the surface finish is generally good, some post-processing may still be required to achieve the exact specifications or to remove the small gates and vents where molten metal was introduced

Extrusion

Extrusion is another vital technique in aluminum prototyping and manufacturing, offering unique advantages for producing long, straight, or complex cross-sectional profiles. This process involves pushing heated aluminum billets through a die of the desired shape, resulting in continuous profile lengths that can be cut to size. Let’s delve into the specifics of extrusion as a method for aluminum prototyping:

Advantages:

• Complex Cross-Sections:Extrusion allows for the creation complex cross-sectional shapes that might be difficult or impossible to achieve with other manufacturing methods. This capability is particularly beneficial for structural components, frames, and enclosures.
• Efficiency for Long Parts:For long prototypes with uniform cross-sections, extrusion can be highly efficient, potentially offering material and time savings compared to methods like CNC machining.
• High Strength-to-Weight Ratio: The extrusion process can enhance the strength-to-weight ratio of aluminum parts, making it ideal for applications where weight is a critical factor, such as in the aerospace and automotive industries.
• Scalability: Once the die is created, the extrusion process can be easily scaled up for production runs, making it an excellent option for transitioning from prototype to full-scale production.

Disadvantages:

• Upfront Costs for Custom Dies: The need for custom dies can introduce significant upfront costs, especially for prototypes or small production runs. However, the efficiencies and savings in larger-scale production may offset these costs.
• Limitations on Complexity: While extrusion is excellent for complex profiles, it is limited to shapes that can be achieved through a continuous cross-section. Designs requiring varying cross-sections along their length may need additional processing or alternative manufacturing methods.
• Surface Finish and Tolerances: The surface finish of extruded parts may not be as smooth as those achieved through machining or casting, and tolerances might be less tight. Post-processing, such as machining or anodizing, can improve these aspects if needed.
• Length Limitations:The extrusion equipment and handling considerations typically limit the maximum length of extruded parts. Very long parts may require special arrangements or modifications to standard processes.

Choosing the Right Prototyping Method

1. Design Complexity and Details

• CNC Machining iis ideal for parts with complex geometries and tight tolerances, providing precision and versatility.
• 3D Printing excels at producing prototypes with intricate details and complex internal structures that would be challenging or impossible with subtractive methods.
• Investment Casting is beneficial for parts requiring fine details and a smooth surface finish, especially for designs that are difficult to machine.

2. Material Properties and Strength

• CNC Machining and Extrusion maintain the inherent strength of aluminum, making them suitable for prototypes requiring high mechanical strength and durability.
• 3D Printing, particularly with metal powders, may result in parts with different mechanical properties, requiring consideration of the prototype’s end-use application.

3. Surface Finish and Aesthetics

• CNC Machining generally provides the best surface finish, with the ability to achieve a variety of textures and high-quality appearances through post-processing.
• Investment Casting offers smooth surfaces that only require minor finishing touches.
• 3D Printing often requires additional post-processing to smooth out layer lines for a more polished finish.

4. Prototype Quantity and Scaling to Production

• Sheet Metal Fabrication and Extrusion are cost-effective for producing many prototypes and can seamlessly transition into production phases.
• CNC Machining and 3D Printing are more suited for low-volume runs, with costs and time increasing significantly with quantity.

5. Cost and Time Constraints

• 3D Printing offers rapid prototyping with relatively low initial costs, making it an excellent choice for quick iterations.
• CNC Machining, while more costly and time-consuming for complex parts, provides unmatched precision and quality.
• Sheet Metal Fabrication, Extrusion, and Investment Casting may involve higher upfront costs due to tooling and setup but can be economical at higher volumes.

6. Prototype Functionality

• If the prototype must withstand specific environmental conditions, mechanical stresses, or thermal loads, CNC Machining or Extrusion might be the preferred methods due to the resulting mechanical strength and material characteristics.
• For aesthetic prototypes or those requiring specific surface finishes, Investment Casting or CNC Machining with post-processing might be more appropriate.

Here’s a table summarizing the considerations for choosing the right aluminum prototyping method based on various project requirements:

Conclusion

Choosing the right aluminum prototyping method is crucial for transforming your innovative ideas into tangible successes. Assess your project’s specific needs against the strengths and limitations of each method—CNC machining, 3D printing, sheet metal fabrication, investment casting, and extrusion—to make an informed decision. Ready to bring your prototype to life? Let’s start this journey together and turn your vision into reality.
