The Ultimate Guide to Machining 4130 Steel

Published by Worthy Hardware at January 3, 2025

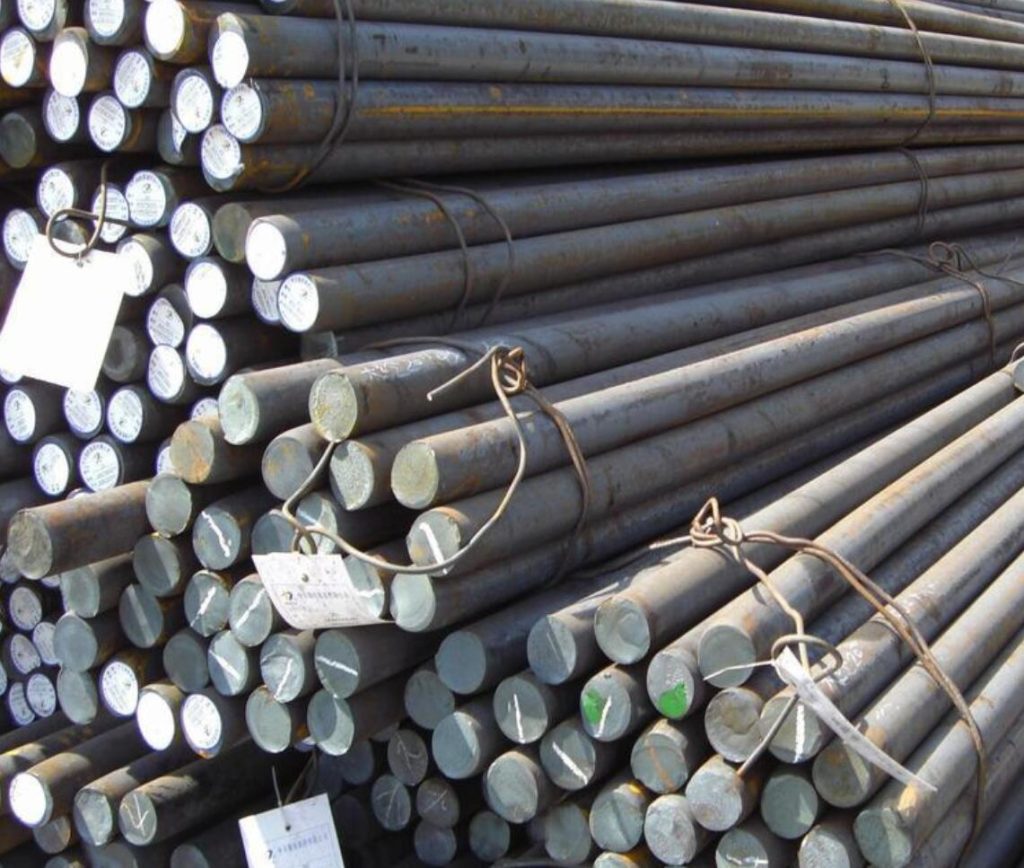

What is 4130 Steel and Why is it Used in Machining?

4130 steel is a low-alloy, chromium-molybdenum steel that’s known for its excellent combination of strength, toughness, and fatigue resistance. It’s often referred to as “chromoly” steel, and its precise balance of these properties makes it an ideal material for demanding applications in industries like aerospace, automotive, and military. Thanks to its relatively low cost and high performance, it’s frequently used for manufacturing parts such as gears, shafts, and structural components.

What makes 4130 stand out in machining is its ability to maintain strength at higher temperatures and its resistance to wear and tear. These qualities, coupled with its ability to be heat-treated to increase hardness, make it a go-to material for components that need to endure stress and maintain integrity over time. Whether you’re machining parts for racing cars or aircraft, 4130 steel’s versatility and performance in machining processes are second to none.

How Does 4130 Steel Compare to Other Steels in Machining?

When it comes to machining, 4130 steel is often compared to other popular materials like 1018 or 4140 steel. Compared to 1018, which is a mild steel, 4130 has much higher strength and wear resistance, making it better suited for high-stress applications. It’s also more difficult to machine than 1018 due to its increased hardness, but this can be managed with the right tools and settings.

On the other hand, 4130 steel is generally easier to machine than 4140 steel, which is another high-strength alloy steel but with higher carbon content. The extra carbon in 4140 gives it increased hardness and wear resistance, but it also makes it tougher to machine, especially when compared to 4130. 4130 strikes a nice balance—it’s tougher than mild steels but not as difficult as higher-carbon alloys like 4140, making it a favorite in many machining shops.

What Are the Key Benefits of Machining 4130 Steel?

High strength-to-weight ratio
Excellent fatigue and impact resistance
Good weldability
Enhanced toughness at elevated temperatures
Superior wear resistance
Ideal for high-stress applications
Easily heat-treated to improve hardness and strength
Good machinability with proper tool selection and settings
Cost-effective compared to other high-strength alloys like 4140
Versatile for a wide range of industries, including aerospace and automotive

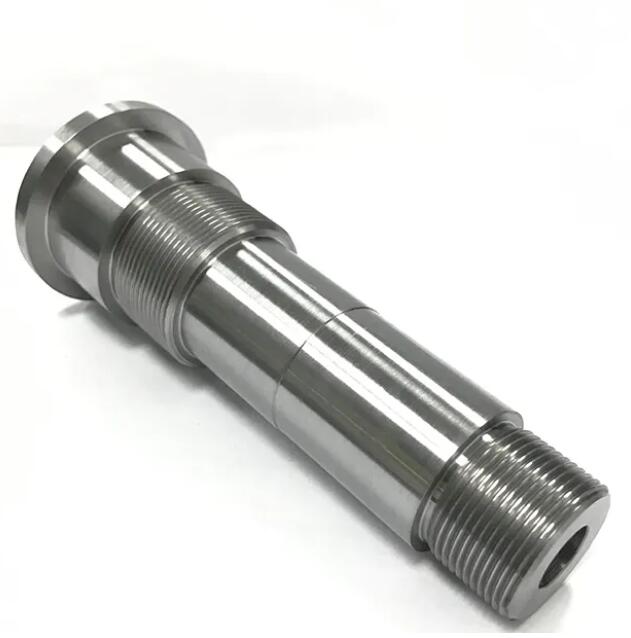

What Are the Common Applications for Machined 4130 Steel Parts?

Aerospace components (landing gear, brackets, structural parts)
Automotive parts (chassis, roll cages, suspension components)
Military equipment (firearm parts, vehicle components)
Racing car parts (frames, drive shafts, suspension arms)
Oil and gas equipment (drill rigs, valves, pipe fittings)
Bicycle frames and parts
Hydraulic systems (pistons, rods, cylinders)

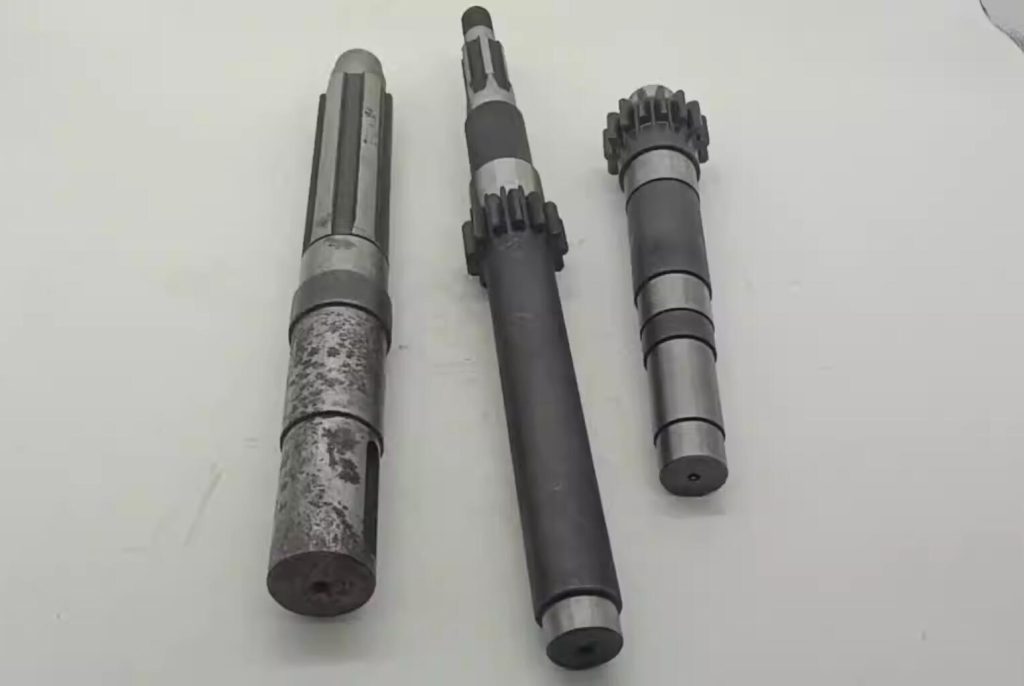

Industrial machinery components (gears, shafts, couplings)
Aircraft landing gear and structural supports
Engine components (crankshafts, connecting rods)

What Are the Challenges in Machining 4130 Steel?

Tool wear: Due to its hardness, 4130 can cause rapid tool wear, requiring frequent tool changes or advanced coatings to extend tool life.
Heat generation: The material tends to generate significant heat during machining, leading to overheating of both the workpiece and cutting tools.
Work hardening: 4130 steel can work-harden during machining, which may result in increased difficulty in cutting, especially if the process isn’t optimized.
Dimensional accuracy: Achieving precise tolerances can be challenging due to the material’s toughness and tendency to deform under heat.
Surface finish quality: Maintaining a smooth surface finish can be tricky due to the alloy’s tendency to create burrs and rough edges.
Chip control: The material can form long, stringy chips, making chip management and removal more difficult.
Machining speed: 4130 requires slower cutting speeds compared to softer materials, which can reduce productivity if not properly managed.

How Do You Choose the Right CNC Machine for Machining 4130 Steel?

When selecting a CNC machine for machining 4130 steel, several factors come into play to ensure efficiency and precision.

3-axis vs. 5-axis CNC Machining

3-axis CNC machines are typically sufficient for basic machining tasks like turning, milling, and drilling, especially for simpler parts with straightforward geometry.
5-axis CNC machines, on the other hand, are ideal for more complex geometries, providing greater flexibility in cutting angles and reducing the need for part reorientation. These machines are particularly valuable when working with intricate parts, like those used in aerospace or automotive applications.

Key Considerations When Selecting Machinery

Machine rigidity: The CNC machine should be sturdy enough to handle the high cutting forces involved with 4130 steel, ensuring minimal vibration for better precision.
Tool capacity: Ensure the machine can handle the necessary cutting tools for 4130 steel, especially high-speed steel or carbide tools.
Spindle speed: Choose a machine with a high-speed spindle to match the cutting speeds required for efficient machining of 4130 steel.

Coolant delivery system: A good coolant system is crucial to prevent overheating and maintain tool life while machining 4130 steel. Make sure the CNC machine has an efficient coolant and lubrication system.

What Cutting Tools Are Best for Machining 4130 Steel?

Tool Material Recommendations:

Carbide Tools: Carbide is the go-to choice for machining 4130 steel due to its hardness and wear resistance. It holds up well under the high temperatures and stresses generated during cutting, making it ideal for heavy-duty machining.
High-Speed Steel (HSS): For less demanding applications, HSS tools can still provide satisfactory performance, though they may wear more quickly than carbide. They’re generally more cost-effective for lighter machining tasks.
Cobalt Steel Tools: Cobalt tools offer better heat resistance than standard HSS and can be a good middle ground between carbide and HSS for tougher cuts.

Coating Options for Extended Tool Life:

TiN (Titanium Nitride): TiN coatings improve wear resistance and reduce friction, extending the life of carbide tools when machining 4130 steel.
TiAlN (Titanium Aluminum Nitride): Ideal for high-speed machining, TiAlN coatings provide excellent thermal stability and help in reducing tool wear under the heat generated during machining.

Diamond Coatings: For extremely demanding applications, diamond-coated tools can provide unmatched hardness and wear resistance, especially when finishing tough materials like 4130.

What Are the Best Machining Techniques for 4130 Steel?

To achieve the best results when machining 4130 steel, employing the right techniques is crucial. Here’s a breakdown of the most effective methods:

1. Turning

Use sharp tools: To minimize cutting forces and avoid work hardening, always use sharp, high-quality carbide inserts.
Low speeds, high feeds: Since 4130 steel can generate heat quickly, turn at lower speeds with higher feed rates to maintain control over heat generation and avoid tool wear.

2. Milling

Climb milling over conventional milling: Climb milling (down milling) is the preferred method for 4130 because it reduces cutting forces and improves surface finish by forcing the cutter into the material.
Keep coolant flowing: Milling generates significant heat, so a consistent supply of coolant is essential to prevent overheating and maintain tool life.

3. Drilling

High-quality drill bits: Use carbide or cobalt drill bits for better durability and heat resistance. Also, keep the drill bit sharp to reduce friction and tool wear.
Peck drilling: For deeper holes, use the peck drilling method to break up the cutting action, preventing excessive heat buildup and chip removal issues.

4. Grinding

Use diamond grinding wheels: When finishing 4130 steel, diamond or CBN (cubic boron nitride) grinding wheels are best suited due to their ability to handle the material’s hardness.
Avoid overheating: Grinding generates a lot of heat, so ensure you use proper coolant and avoid long contact times to maintain the material’s integrity.

5. Heat Treatment Considerations

Pre-heat before machining: If you’re machining parts after heat treatment, make sure the material is pre-heated to avoid cracking or warping due to temperature differences.
Cool slowly: For parts that require heat treatment post-machining, allow parts to cool slowly to prevent distortion and maintain dimensional accuracy.

6. Minimizing Heat Build-up

Use of coolant: Constant coolant flow is vital to control temperature during machining and prevent the material from work hardening.
Optimize toolpath strategies: Minimize heat buildup by adjusting cutting speeds and feeds based on the tool material and geometry.

How Can You Prevent Overheating When Machining 4130 Steel?

To prevent overheating when machining 4130 steel, use a high-quality coolant with a consistent flow to dissipate heat effectively. Opt for lower cutting speeds, higher feed rates, and ensure tools are sharp. Additionally, consider intermittent cutting or pecking to reduce thermal buildup and prevent thermal damage to the workpiece

How Can You Improve Surface Finish When Machining 4130 Steel?

To improve surface finish when machining 4130 steel, use fine-toothed cutting tools, apply consistent coolant flow to reduce heat, and optimize feed rates. Ensure tools are sharp to prevent burr formation, and consider using a light finishing pass. Post-machining processes like polishing or coating can further enhance surface quality.

How Does Heat Treatment Affect 4130 Steel Machining?

Heat treatment significantly impacts the machinability of 4130 steel. When annealed, 4130 becomes softer, making it easier to machine with less tool wear. However, after quenching and tempering, the steel becomes harder, improving its strength but making it more challenging to machine. Harder 4130 requires slower cutting speeds and specialized tools, such as carbide or cobalt, to prevent tool wear and maintain dimensional accuracy. Heat treatment can also affect surface finish, so post-treatment machining may be necessary for precise results.

Conclusion

Machining 4130 steel requires the right tools, techniques, and precautions to ensure high-quality results. If you’re looking for expert guidance or high-performance CNC machining services, feel free to contact us. Our team can help you tackle the challenges of machining 4130 and deliver precise, durable parts tailored to your needs.

FAQ

What is 4130 steel commonly used for?
4130 steel is used in aerospace, automotive, military, and high-performance racing applications.

How do I prevent tool wear when machining 4130?
Use carbide tools, apply proper coolant, and optimize cutting speeds to reduce wear.

Can 4130 steel be heat treated?
Yes, 4130 can be heat treated to improve hardness, strength, and wear resistance, but it becomes harder to machine after treatment.
