Metal Forming 101: Everything You Need to Know About This Essential Manufacturing Process

Published by Worthy Hardware at August 22, 2024

Table of Content

Metal forming involves manipulating metal into desired shapes through mechanical deformation. This process can be performed in various ways, including stamping, bending, forging, extrusion, and rolling. Each technique has its specific applications and benefits, tailored to different needs in the manufacturing sector. Companies can significantly enhance their production capabilities and adapt to market demands by understanding these methods.

Keeping you engaged is my goal as we delve deeper into the intricacies of metal forming. Prepare to uncover the secrets behind transforming a flat metal sheet into a complex part with the proper technique!

What is Metal Forming?

Metal forming reshapes metal into a desired form without removing material or adding substance. It leverages various forces, including compression, tension, and shear, to induce plastic deformation over metal parts. At its core, metal forming is about altering the shape of a metal workpiece through different techniques such as rolling, forging, extrusion, and more.

Historically, metal forming dates back thousands of years, evolving from simple manual hammering of metals to sophisticated processes that utilize high-tech machinery. This evolution was driven by the demands of various industries, from ancient blacksmiths creating tools and weapons to modern manufacturers developing complex automotive and aerospace components.

Over the centuries, as our understanding of materials and technologies has grown, so too has the sophistication of metal-forming techniques, enabling more precise and efficient manufacturing processes.

This historical journey underscores the importance of metal forming in human development and highlights the continuous innovation in this field that has propelled industries forward.

Common Metal Forming Techniques

Forging

Forging involves shaping metal through localized compressive forces. This age-old technique is performed using a hammer or die, either manually or mechanically. Forging is prevalent in industries requiring robust and durable components, such as automotive, aerospace, and construction.

Applications: Forging is primarily used to produce items that withstand extreme pressures and stress. Typical applications include manufacturing crankshafts, gears, and structural components for buildings and machinery.

Advantages:

Strength: Forged parts are more vital than other forming methods because the metal’s internal grain deforms to conform to the part’s shape.
Reliability: Produces parts generally consistent with high structural integrity and ideal for critical applications in the automotive and aerospace industries.

Disadvantages:

Cost: Forging can be more expensive than other forming processes due to the intense labor and time required, especially for intricate designs.
Material Limitation: Not all metals are forgeable, and some, notably harder metals, may require very high forging temperatures.

Rolling

Rolling is a metal forming process in which metal stock is passed through one or more pairs of rolls to reduce thickness and make the thickness uniform. This technique is highly efficient and capable of quickly producing large quantities of material.

Applications: Rolling is extensively used in sheet metal production and is ideal for creating components like beams, automotive panels, and metal sheets for various industrial uses.

Advantages:

Efficiency: Allows continuous processing, making it possible to produce large volumes of products quickly.
Versatility: It can be used with a wide range of metals and alloys and is adaptable to different thicknesses and sizes.

Disadvantages:

Initial Cost: The equipment for rolling is expensive, making it a significant upfront investment.
Limitations in Shape: Primarily produces flat or uniformly shaped products, limiting its use for more complex forms without additional processing.

Extrusion

Extrusion is a process used to create objects of a fixed cross-sectional profile. A material is pushed or drawn through a die of the desired cross-section. This technique can be performed on various metals, including aluminum, copper, steel, and alloys. It is particularly notable for its ability to produce complex cross-sectional profiles that would be challenging to form using other methods.

Applications: Extrusion is used to produce structural components such as pipes, tubes, and profiled beams. It’s also prevalent in manufacturing aluminum frames for windows, doors, and components in the automotive and aerospace sectors.

Advantages:

Complex Shapes: Can create complex cross-sectional shapes that most other metal forming processes cannot achieve.
Efficiency: High production rates as materials are continuously processed.
Material Conservation: Minimizes material waste since the process can form complex shapes without removing excess material.

Disadvantages:

Tooling Costs: High initial costs for creating dies can be expensive and time-consuming, especially for complex profiles.
Material Limitations: Only some materials are suitable for extrusion, as some may need more flexibility to flow through the die without cracking.

Stamping

Stamping (also known as pressing) involves placing flat sheet metal in either blank or coil form into a stamping press where a tool and die surface form the metal into a net shape. This method is highly favored for high-volume production and can produce precise, complex parts quickly and cost-effectively.

Applications: Used extensively in the automotive industry to create detailed parts like panels, brackets, and housings. It also produces consumer electronics, home appliances, and metal furniture.

Advantages:

High Speed: Suitable for high-volume production runs, as parts can be produced quickly once the tooling is set up.
Precision: Produces high-precision parts with consistent quality suitable for complex designs.
Cost-Effective: Economical for large production runs due to the low operational costs after the initial investment in tooling.

Disadvantages:

Tooling Costs: The initial cost of developing the dies and setup can be high, making it less economical for small production runs.
Maintenance: The tools and dies require regular maintenance and replacement due to wear and tear, adding to operational costs.

Bending

Bending is a metal-forming process involving a material’s deformation using a force to form an angle or a curve. This process can be executed through various techniques such as press brake bending, roll bending, and folding. It’s beneficial for shaping sheet metal and plate material.

Applications: Bending is fundamental in fabricating structural pieces such as tubes and pipes used in construction, automotive, aerospace, and furniture manufacturing. It also creates enclosures, frames, and brackets across various industries.

Advantages:

Versatility: Can produce a wide range of shapes and angles, allowing for flexibility in design.
Efficiency: Generally requires less energy and time than other forming processes, making it ideal for short and long production runs.
Minimal Waste: Since the material is deformed rather than cut, there is minimal material waste.

Disadvantages:

Limitations on Thickness: There are limits to the thickness and hardness of the material that can be effectively bent without causing damage or failure.
Springback Effect: The material tends to return partially to its original shape after bending, which can affect dimensional accuracy and require compensation in tool design.

Drawing

Drawing is a metal forming technique that stretches the material into a desired shape and depth by controlled material flow. This process primarily creates hollow or deep parts, such as pots, cups, and casings, from sheet metal.

Applications: Metal drawing is commonly used to manufacture kitchen sinks, automotive components (like panels and hoods), and containers. It is particularly vital in industries that require precise, deep, or complex hollow shapes.

Advantages:

Complex Geometries: Can form complex and deep shapes that are difficult to achieve through other methods.
Surface Finish: The drawing process can produce parts with excellent surface finish and dimensional accuracy.
Efficient Material Usage: Efficient use of material, especially when forming hollow or deep parts, minimizes waste.

Disadvantages:

Tooling Cost: High initial die and tooling development costs, especially for complex shapes.
Material Strain: The process can cause considerable strain on the material, potentially leading to issues like tearing if not correctly managed.
Limited Material Choice: Not all materials are suitable for deep drawing, as they must possess good flexibility to withstand the stretching without breaking.

Punching

Punching is a metal-forming process involving a punch and a die to create holes or cut-outs in a piece of metal. This technique is efficient and suitable for both high-volume production and smaller runs.

Applications: Punching is used across various industries to create features in sheet metals, such as holes, slots, and other complex shapes needed in automotive parts, electronics enclosures, and decorative metalwork.

Advantages:

Speed: Punching is high-speed, making it ideal for high-volume production runs where consistent hole features are needed.
Cost-Effective: Low operational costs for large batches, as the time and cost per part are minimal after initial setup.
Precision: Provides high accuracy for hole placement and dimensions, which is crucial for assembly and system integration.

Disadvantages:

Tool Wear: The punch and die can wear out, especially when working with harder metals, requiring regular maintenance and replacement.
Material Limitations: There is a limit to the thickness and type of material that can be effectively punched, which may necessitate alternative processes for more rigid materials.

Laser Cutting

Laser cutting uses a high-powered laser beam to cut precise patterns and shapes from metals. This process is controlled by computer numerical control (CNC) systems, providing high precision and flexibility.

Applications: Laser cutting is widely used to fabricate intricate designs for automotive, aerospace, and electronics industries. It’s precious for cutting complex contours in sheet metal, including stainless steel, aluminum, and alloy components.

Advantages:

Flexibility: Capable of cutting complex shapes and refined details with high precision.
High-Quality Edges: Produces clean and smooth edges that often require no further finishing.
Versatility: Effective on various materials and thicknesses, adapting quickly to varied specifications.

Disadvantages:

Energy Consumption: High energy requirements can lead to higher operational costs.
Initial Investment: The cost of laser cutting equipment and its maintenance can be significant.
Safety Considerations: Strict safety measures are required due to the intense laser beam, which can be hazardous without proper safeguards.

Sharing

Shearing is a cutting operation used to remove a strip of material from a larger sheet or to cut sheet metal into smaller pieces. This process uses a blade to apply a high-pressure force that slices the material, typically without forming chips or using heat.

Applications: Shearing is extensively used in metal fabrication to cut flat sheet metal into sizes suitable for further processing. It’s ideal for preparing materials for stamping, welding, and forming operations in automotive, construction, and appliance manufacturing.

Advantages:

Efficiency: Fast and efficient for cutting straight lines across sheet metal.
Cost-Effective: Requires relatively low operational costs and is economical for high-volume cutting operations.
Clean Cuts: Produces clean, straight edges with minimal distortion.

Disadvantages:

Limitations on Cut Shapes: Primarily suitable for straight cuts, complex or curved shapes require different processing methods.
Material Thickness Restrictions: Effectiveness decreases with increased material thickness, leading to potential quality issues like burring or warping in thicker sheets.

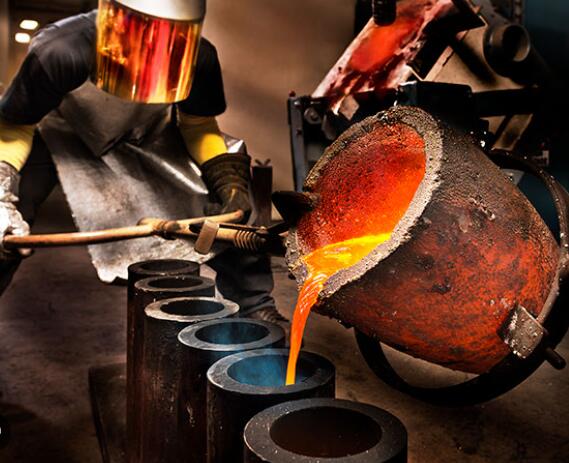

Casting

Casting involves pouring molten metal into a mold that solidifies into a specific shape. This process is fundamental in creating complex and intricate shapes that would be difficult or uneconomical to achieve through other forming processes.

Applications: Casting is a versatile method used across various sectors, including automotive, aerospace, art, and machinery manufacturing. It is particularly effective for making engine blocks, machinery parts, and decorative items.

Advantages:

Complex Geometries: Capable of producing very complex shapes with internal structures.
Material Versatility: This can be used with a wide range of metals and alloys, offering flexibility in material selection.
Economical for Large Components: Particularly cost-effective for large or heavy components that would be expensive to machine from solid material.

Disadvantages:

Porosity Issues: Cast parts can have porosity, which might affect their mechanical properties.
Surface Finish and Tolerances: Cast parts generally have a rougher surface finish and less precise tolerances than machined parts.
High Setup Costs: The cost of creating molds and the initial setup can be high, particularly for intricate designs.

Welding

Welding is a fabrication process that involves joining two pieces of metal together by melting the pieces and adding a filler material to form a strong joint. This process is used extensively in construction, manufacturing, and repair work.

Applications: Welding is crucial in construction (for building structures and pipelines), automotive (assembly and repair), and shipbuilding. It’s also used in creating metal sculptures and in custom metalwork.

Advantages:

Strong Joints: Provides durable and strong joints capable of withstanding high stresses.
Versatility: Suitable for various metals and alloys and can be performed in different environments, including underwater and in space.
Cost-Effective: Efficient for joining parts permanently without needing additional fasteners.

Disadvantages:

Skill Requirement: Requires skilled operators to achieve quality results, with a significant training investment.
Health and Safety Risks: Produces fumes and intense light, requiring appropriate safety measures to protect the welder.
Heat Distortion: The high heat input can cause distortion and change the metals’ properties.

What are the Advantages and Disadvantages of Metal Forming

Advantages of Metal Forming

Material Efficiency: Metal forming processes typically do not remove material but instead deform it into the desired shape, which minimizes waste. This efficiency is crucial for cost control and environmental sustainability.
Strength and Integrity: Through work hardening, metal forming can increase the strength and fatigue life of the formed parts. The continuous nature of the metal structure means that there are no seams or joints, which can be potential points of weakness.
Versatility: Metal forming includes a variety of techniques, such as stamping, bending, forging, and extrusion, each capable of creating complex shapes and designs. This versatility allows for the application of metal forming across different industries, including automotive, aerospace, and consumer goods.
Cost-Effectiveness for Large Volumes: Many metal forming processes are highly automated and can produce parts quickly once the tooling is set up, making them economically viable, especially for large production runs.
Consistency and Reproducibility: Metal forming processes are highly controllable, which ensures consistent quality and repeatability in mass production settings.

Disadvantages of Metal Forming

High Initial Costs: The tooling and setup required for many metal forming processes, such as stamping and extrusion, can be costly. These initial expenses can be prohibitive for small-scale productions or companies without the necessary capital investment.
Material Limitations: Not all materials are suitable for specific metal-forming processes. Factors such as flexibility, brittleness, and strength can limit the types of metals that can be effectively formed, requiring adjustments or alternative methods.
Skilled Labor: Many metal forming techniques require trained operators and technicians to manage and maintain the equipment, design molds and dies, and ensure quality control, adding to operational costs.
Limited Design Flexibility: Some metal forming methods, such as rolling and bending, are restricted in the complexity of shapes they can produce. More intricate designs might need additional processing or finishing operations.
Wear and Maintenance: The tools and dies used in metal forming can wear out, especially under high-volume production conditions. Regular maintenance and replacement are necessary, interrupting production and adding to overall costs.

Metal Forming in Action: Industry Applications

Automotive: Driving Innovation with Advanced Metal Forming

Metal forming is crucial in the automotive industry, providing essential components like body panels, frames, and engine parts. Advanced techniques like stamping, hydroforming, and roll forming are employed to meet high strength and precision requirements, enhancing vehicle safety and efficiency.

Aerospace: Achieving Precision and Strength

In aerospace, metal forming is vital for fabricating structural components such as fuselage panels, wing skins, and support brackets. Techniques like superplastic forming and precision forging are used to achieve the high strength-to-weight ratios necessary for aircraft performance and durability.

Consumer Electronics: Small Parts, Big Impact

The consumer electronics industry relies on metal forming to create small, precise components for devices like smartphones, laptops, and tablets. Stamping and drawing are commonly used to produce metal casings, brackets, and connectors integral to these devices’ compact and durable design.

How to Choose the Right Metal Forming Technique

Choosing the suitable metal forming technique involves considering several factors to ensure optimal results for specific applications. Here’s a list of considerations to guide the selection process:

Material Properties: Assess the material’s flexibility, strength, and thickness to determine the most suitable forming process.
Part Geometry: Consider the complexity of the part’s shape and the required precision. Different techniques offer varying levels of detail and complexity.
Production Volume: Determine if the production is a high-volume run, which might favor processes like stamping and rolling, or low-volume, which could lean towards methods like forging or extrusion for cost efficiency.
Cost Efficiency: Evaluate the overall costs, including setup, tooling, and operation costs. Lower per-part costs in high-volume runs might justify high initial tooling costs.
Tolerance and Surface Finish: Consider the desired tolerances and surface finish quality. Some methods, like precision forging or laser cutting, provide better surface finishes and tighter tolerances.
Scalability and Flexibility: Consider whether the production process needs to be scalable and if the technique allows for easy changes and adaptations.
Waste Management: Choose a method that aligns with environmental considerations and material waste management. Techniques that deform rather than remove material might be preferable for waste reduction.
Available Equipment and Expertise: Assess the availability of suitable equipment and skilled personnel. Some techniques may require specialized machinery and trained operators.

Tips and Best Practices in Metal Forming

Material Selection: Choose the appropriate material based on the specific requirements of the end product, such as strength, flexibility, and corrosion resistance. Proper material selection can significantly impact the forming process’s success and the final product’s quality.
Proper Tooling Design: Invest in high-quality dies and molds. Ensure that tools are designed to minimize stress concentrations and are robust enough to withstand production demands without frequent replacements.
Preventive Maintenance: Regularly maintain equipment and tooling to prevent breakdowns and ensure consistent product quality. Scheduled maintenance can reduce downtime and extend the life of machinery.
Process Optimization: Continuously analyze and optimize the forming process to improve efficiency and reduce waste. Utilize techniques such as finite element analysis (FEA) to predict how the materials deform and identify potential issues before they occur.
Temperature Control: Manage the temperature conditions during forming processes, especially in operations like forging or extrusion, where material behavior can significantly change with temperature variations.
Quality Control: Implement stringent quality control measures at every stage of the forming process. Use precise measurement tools and statistical process control (SPC) techniques to ensure parts meet specifications and reduce variability.
Operator Training: Ensure that operators are well-trained and understand the nuances of the metal forming processes they oversee. Skilled operators can make critical adjustments and spot potential issues before they lead to defects.
Safety Protocols: Adhere to all safety standards and protocols to protect workers from the hazards of metal forming, such as hot metals, high forces, and moving machinery.
Lean Manufacturing Practices: Apply lean principles to minimize waste and optimize productivity. Streamline workflows, reduce material handling, and eliminate unnecessary steps in the production process.
Innovative Technologies: Stay updated with the latest advancements in metal forming technologies. Consider integrating automation, robotics, and advanced monitoring systems to enhance capabilities and reduce human error.

Conclusion

We invite you to discover the precision and efficiency of our metal-forming solutions. Contact us today to learn how we can enhance your manufacturing processes with our expertise. Let’s shape the future of the industry together!

FAQ

Which metal forming technique is best for high-volume production?

Stamping and rolling are typically best suited for high-volume production because they can quickly produce large quantities of parts with consistent quality.

What materials can be used in metal forming?

Most metals, including aluminum, steel, stainless steel, copper, and brass, can be formed. The choice of metal depends on the desired properties of the final product, such as strength, durability, and corrosion resistance.
