Comprehending Plasma Cutting: Operational Principles and Benefits

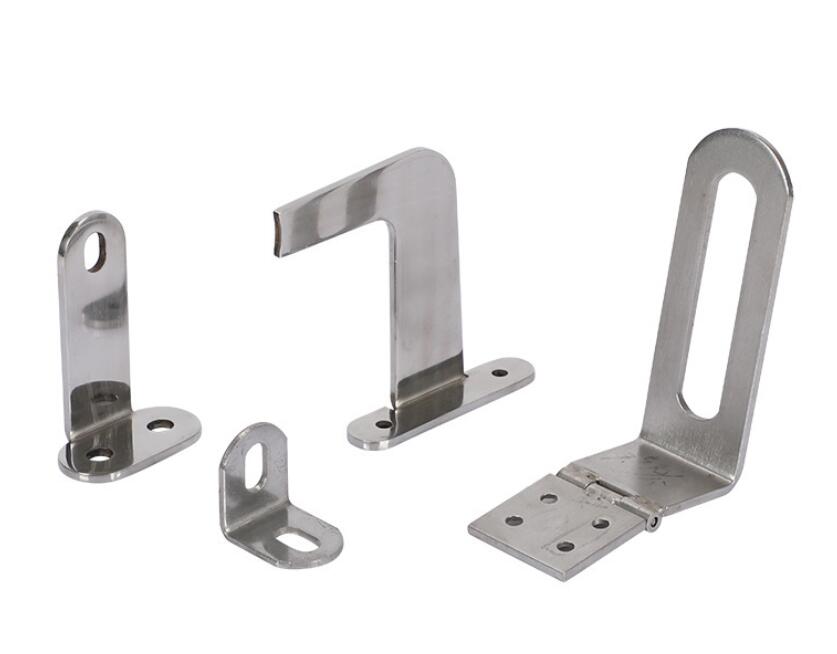

1. Introduction to Plasma Cutting

Plasma cutting is a process used to cut through electrically conductive materials by accelerating hot plasma through a nozzle. The use of plasma cutting technology has provided enormous versatility in the manufacturing industry, especially in metal fabrication and CNC machining.

This process, which is widely adopted at Worthy Hardware, involves the creation of a high-speed jet of ionized gas that conducts electricity from the torch of the plasma cutter to the workpiece. The plasma heats the workpiece, melting the material. The high-speed gas flow then blows the molten material away, effectively cutting through the workpiece.

Plasma cutting is suitable for cutting a wide variety of electrically conductive materials. These materials include but are not limited to:

• Steel materials: Stainless steel, Steel
• Non-ferrous metals: Aluminum, Brass, Copper, Titanium

Using plasma cutting, these materials can be cut at high speeds with precision, making it a key technique in many industrial manufacturing processes.

2. Evolution of Plasma Cutting Techniques

Since its inception, plasma cutting technology has seen remarkable advancements, spurred on by the relentless pursuit of improved precision and efficiency. Initially, plasma cutters were a novelty, used primarily for specialized applications. However, over time, they have become a fundamental tool in many industrial machining operations.

Historical Development and Advancements in Plasma Cutting

Plasma cutting as a technique traces its roots back to the 1960s, an era defined by the rapid technological advancements of the post-war period. During this time, engineers were seeking methods to increase the temperature and thus the cutting ability of existing metal-cutting techniques, such as GTAW or Gas Tungsten Arc Welding.

The initial development of plasma cutting focused on a type of system known as “non-transferred arc,” which incorporated the use of a plasma torch. In this system, the electrode and the nozzle bore (the point where the arc exits the torch) remained separate entities, which unfortunately limited the precision and power of the cutting process. This limitation steered the development of plasma cutting towards what we now know as the “transferred arc” method, wherein the workpiece itself acts as the electrode, resulting in a more concentrated and powerful arc.

As technological advancement progressed, engineers in the 1970s developed the water-injected plasma cutting method, which significantly reduced the heat and noise produced during cutting. However, it had limitations in terms of the quality of the cut and the amount of steam it generated.

The 1980s saw the introduction of the dual-flow torch design that utilized two sets of nozzles, leading to significant improvements in cut quality. This decade also marked the arrival of computer numerical control (CNC) technology in plasma cutting, allowing for high levels of automation and precision.

The turn of the 21st century brought with it the use of high-definition plasma cutters, taking advantage of refined power options and controls. These advancements reduced the heat-affected zone (HAZ) and minimized kerf (the width of material removed during cutting), providing an unprecedented level of precision in plasma cutting.

Today, the evolution of plasma cutting techniques continues, with further enhancements in precision, automation, and portability. With the inclusion of modern software, we now see CNC plasma cutters that can cut complex shapes and designs, driving the technology towards a future where any design is possible.

At every stage of this development, plasma cutting has proven its value in the metal fabrication industry, consistently offering more speed, precision, and versatility than previous cutting techniques. The story of plasma cutting is far from over, and Worthy Hardware is excited to be part of the ongoing innovation in this field.

Technological Improvements Enhancing Precision

In the contemporary era, the technology of plasma cutting has undergone significant modifications to enhance precision. Introduction of high-frequency starting circuits, improvements in torch design, and precise control of gas pressure have all contributed to the enhanced performance of these tools.

Furthermore, the incorporation of CNC technology in plasma cutting has revolutionized the industry. It enables automated control of the torch, leading to increased precision and repeatability of cuts. With CNC plasma cutting, complex shapes and designs can be cut accurately and consistently, providing immense benefits for industries such as automotive, construction, and manufacturing.

3. Mechanism of Plasma Cutting

To understand how a plasma cutter works, it’s important to first define what we mean by “plasma”. In the context of plasma cutting, plasma is a state of matter that consists of electrically charged particles. These ionized gases conduct electricity and generate the heat necessary for cutting.

What is a Plasma Cutter and How Does it Work?

A plasma cutter is a tool used to cut through various types of electrically conductive materials using a high-speed jet of hot plasma. The cutter consists of a plasma torch that uses electrical current and a certain type of gas (argon, nitrogen, air, oxygen, or hydrogen) to create the plasma.

To get a better idea of how plasma cutter works, imagine a simple setup where a negatively charged electrode is inside a nozzle which is positively charged. The plasma cutter gas between the two is subjected to a spark, which ionizes the gas molecules and produces plasma. The temperature in this state can reach up to 30,000 degrees Fahrenheit, hot enough to melt through the work material.

When the operator applies the plasma cutter to the metal, the electrical conductivity of the plasma causes the arc to transfer to the workpiece. The narrow opening (nozzle) in the cutting torch concentrates this hot plasma and directs it at high speed towards the metal, resulting in a clean, precise cut.

What is Plasma Cutting Used For?

Plasma cutting is used for cutting various types of electrically conductive materials. It has a wide range of applications in several industries such as automotive repair and restoration, industrial construction, fabrication shops, and salvage operations. It’s ideal for cutting steel and other metals like stainless steel, brass, copper, and aluminum. Its precision makes it a preferred choice for cutting intricate patterns in metal sheets.

One might wonder, what does a plasma cutter do that differentiates it from other metal cutting methods? The answer lies in the unique combination of high speed, precision, and versatility of a plasma cutter. Whether you’re using a 3D plasma cutter, CNC plasma cutter, or handheld unit, the principle remains the same.

Types of Plasma Cutting Processes

There are three types of cutting processes associated with plasma cutters – conventional plasma cutting, dual-flow torch method, and high precision method.

1. Conventional Plasma Cutting: This is the original plasma cutting process. It uses shop air as the plasma gas, and the shape of the plasma arc is defined by the orifice of the nozzle.
2. Dual-Flow Torch Method: This method improves upon the conventional method by using an additional gas, shield gas, to envelop the plasma. It helps achieve a more stable and focused arc.
3. High Precision Method: The high precision plasma cutting processes use state-of-the-art technology to increase precision and cut quality. They often use a combination of different gases to create the optimal cutting conditions.

Despite the technological sophistication of the tool, how to use a plasma cutter is not overly complex. With the right safety measures in place, it can be a powerful tool in the hands of professionals and hobbyists alike.

4. Materials Applicable for Plasma Cutting

In plasma cutting, the selection of suitable gases and materials is pivotal in ensuring a successful, clean cut.

Selection of Gases for Plasma Cutting

The choice of gas in a plasma cutting process is influenced by the type of material being cut, the desired cut quality, and the specific requirements of the cutting application. There are five main types of gases or combinations of gases that are typically used in plasma cutting: Argon, Nitrogen, Air, Oxygen, and Hydrogen.

1. Argon: This gas is often used in combination with other gases. For instance, an argon-hydrogen mix is common for cutting thicker stainless steel and aluminum. Argon’s role is to provide a hotter and more concentrated arc.
2. Nitrogen: Used as a plasma gas for stainless steel, aluminum, and other non-ferrous metals, nitrogen helps to reduce oxidation.
3. Air: For cost-effectiveness, many plasma cutting operations use compressed air. It provides an excellent cut on carbon steel and offers the added benefit of removing the need for gas cylinders.
4. Oxygen: This gas is often used when cutting mild steel. Oxygen helps to produce a cleaner cut and increases the cutting speed.
5. Hydrogen: Generally mixed with argon, hydrogen is used for cutting thicker sections of stainless steel and aluminum. The addition of hydrogen results in higher heat and a faster cutting speed.

Specific Metals Compatible with Plasma Cutting

Plasma cutters can be used to cut any metal that conducts electricity. However, they are commonly used on certain types of metal due to their efficiency and quality of cut. The common metals compatible with plasma cutting include Stainless Steel, Brass, Copper, and Cast Iron.

1. Stainless Steel: Plasma cutting is often used for stainless steel due to the clean, high-quality cuts it produces. The process doesn’t affect the material’s properties, thus making it an excellent choice for this metal.
2. Brass and Copper: These non-ferrous metals are well-suited to plasma cutting. However, due to their high thermal conductivity and oxidation potential, the proper selection of process parameters and gases is critical.
3. Cast Iron: Although more challenging due to its carbon content, plasma cutting can also be used on cast iron, particularly for rough or less precise cuts.

4. Aluminum is another commonly cut material because of its extensive use in various industries. Plasma cutters are able to slice through it efficiently, despite its high thermal conductivity and low melting point.
5. Mild steel, another popular material in construction and automotive industries, can also be precisely cut using a plasma cutter. Plasma cutting provides the benefit of fast, clean cuts with minimal distortion, even on thicker sections of mild steel.
6. Carbon steel and alloy steels are also frequently subjected to plasma cutting. The speed, precision, and quality of the cut that a plasma cutter delivers make it an ideal choice for these metals, irrespective of their thickness.

Other metals like titanium, nickel, magnesium, and their alloys can also be cut using plasma cutters, making this tool incredibly versatile across a range of industries. The key consideration is the metal’s ability to conduct electricity, which is the fundamental requirement for plasma cutting.

5. Advantages Offered by Plasma Cutting

There are numerous reasons why many industries and craftsmen turn to plasma cutting for their needs. Let’s delve into some of the benefits this technology provides:

1. Cost-effectiveness: Plasma cutting is a cost-effective solution compared to other cutting methods. It requires less energy, making it a more affordable option in terms of electricity consumption. Also, the fast cutting speeds significantly reduce labor costs.
2. Versatility in cutting various metals: Plasma cutters are extremely versatile tools that can be used to cut any type of electrically conductive material, including steel, aluminum, brass, copper, and more. This makes them an invaluable tool for a wide range of industries and applications.
3. Achieving high precision and repeatability: With advancements in technology, modern plasma cutters are capable of making high precision cuts with excellent repeatability. This accuracy can be crucial in industries where precision is a priority, such as automotive and aerospace manufacturing.
4. Flexibility and adaptability: Plasma cutters offer a level of flexibility that other cutting methods cannot. They can cut through any thickness of metal, and are capable of performing bevel cuts, and other complex shapes and angles. Moreover, with CNC (Computer Numerical Control) technology, these cuts can be automated, increasing efficiency and adaptability in various applications.

The benefits of plasma cutting are significant and contribute to its widespread use across many industries. By offering cost-effectiveness, versatility, high precision, and flexibility, it’s no wonder why so many professionals choose plasma cutting for their metal cutting needs.

6. Limitations of Plasma Cutting

While plasma cutting offers a host of benefits, it also has certain limitations and challenges. Understanding these can help individuals and businesses make informed decisions when considering plasma cutting for their needs.

1. 1. Constraints related to conductive materials: Plasma cutting is an excellent choice for cutting electrically conductive materials. However, it cannot be used for cutting non-conductive materials, such as wood, plastic, or glass.
   2. Thickness limitations: Although plasma cutters can handle most materials of varying thicknesses, there are limits to how thick the material can be. The maximum thickness depends on the power of the specific plasma cutter being used.
   3. Safety considerations and fumes: Like any other cutting process, plasma cutting has safety considerations. The use of high-temperature plasma can result in harmful fumes. Therefore, adequate ventilation and personal protective equipment (PPE) are essential.
   4. Noise levels and consumable costs: Plasma cutting is a relatively noisy process which could be a drawback in certain environments. Additionally, the consumables used in the plasma torch, such as the electrodes and nozzles, wear out over time and need to be replaced, adding to the operational cost.

7. Conclusion

To summarize, plasma cutting is an efficient, versatile, and precise technique for cutting electrically conductive materials. From its inception to the technologically advanced methods we have today, plasma cutting has continued to evolve, offering improved precision and cost-effectiveness.

Despite certain limitations, like the requirement of conductive materials, thickness limitations, safety considerations, and consumable costs, plasma cutting provides distinct advantages. Its high degree of precision, flexibility, and versatility make it an invaluable asset in various applications, particularly in the realm of metal fabrication.

For businesses seeking to leverage the benefits of plasma cutting without the need for substantial upfront investment, partnering with a professional service provider like Worthy Hardware can be a smart choice. With their expertise and high-quality equipment, you can ensure your project receives the precision and care it deserves.

Remember, the right tool for the right job can make all the difference. Whether you need to cut stainless steel, brass, copper, or cast iron, a plasma cutter in the hands of skilled professionals can deliver unparalleled results.

8. FAQ

In this section, we address some frequently asked questions about plasma cutting to further clarify its role and benefits in metal fabrication.

Q: What is a plasma cutter and how does it work?

A: A plasma cutter is a device that is used to cut electrically conductive materials by utilizing a high-speed jet of hot plasma. The process involves ionizing gas by applying energy from a power supply, which then forms a high-speed stream of plasma that melts and cuts through the metal.

Q: What is plasma cutting used for?

A: Plasma cutting is widely used for cutting different types of electrically conductive materials. It’s commonly used in automotive repair, industrial construction, and salvage operations due to its accuracy, speed, and ease of use.

Q: What materials can a plasma cutter cut?

A: Plasma cutters can cut a variety of electrically conductive metals including stainless steel, brass, copper, and cast iron.

Q: What gas does a plasma cutter use?

A: Depending on the material being cut, different gases may be used. Commonly used gases include argon, nitrogen, air, oxygen, and hydrogen.

Q: What are the limitations of plasma cutting?

A: While plasma cutting is versatile and efficient, it has its limitations. For instance, it can only be used on electrically conductive materials and its performance may vary based on the thickness of the material. There are also safety considerations, such as bright flashes and fumes, and it can be more cost-intensive than other methods due to consumable costs.
