Plastic welding is a versatile and cost-effective process used to combine plastic pieces. Plastic welding is responsible for various products, from disposable cutlery to medical equipment, pool toys, and vinyl siding. Without this joining method, our daily routines would be vastly different.

With numerous applications in different industries, choosing the suitable method and equipment can only be challenging with proper guidance. In this guide, we’ll cover everything you need to know about plastic welding, from its benefits to the tools required for the process.

What is plastic welding?

Plastic welding is a process of joining two plastic parts fabrication together by melting and fusing them. The process involves heating the plastic parts to a melting point and pressing them together, allowing them to cool and bond. This results in a robust and seamless joint, often as strong as the original material.

Benefits of Plastic Welding

Plastic welding is a cost-effective and eco-friendly alternative to traditional methods like mechanical fastening and adhesive bonding.

• Can create strong, permanent bonds between plastic parts
• Does not require additional materials such as adhesives or fasteners
• Can be used to weld a variety of plastic materials, including those with different melting points and chemical properties
• Allows for precise control over the welding process, resulting in consistent and repeatable welds
• Can be automated for high-volume production
• Can often be completed quickly and efficiently, reducing production time and costs
• Welded joints are typically aesthetically pleasing and do not require additional finishing processes

6 steps for plastic welding work

Plastic welding involves joining two pieces of plastic using heat and pressure to create a strong, permanent bond. The steps involved in plastic welding may vary depending on the specific welding technique being used, but generally include the following:

Preparation: This involves cleaning and preparing the surfaces of the plastic pieces to be welded. Any dirt, debris, or contaminants must be removed to ensure a clean, smooth surface for welding.

Clamping: The plastic pieces are clamped together securely to hold them in place during the welding process.

Heating: Heat is applied to the plastic pieces using a welding tool such as a hot air gun, heated tool, or laser. The heat softens the plastic, allowing it to be fused together.

Welding: The softened plastic pieces are pressed together to create a weld. The welding tool is moved along the joint, melting the plastic as it goes and creating a strong, permanent bond.

Cooling: After the weld is complete, the plastic is allowed to cool and solidify. This helps to ensure that the weld is strong and durable.

Finishing: Any excess plastic or rough edges are trimmed and smoothed to create a finished, professional-looking weld.

10 methods of plastic welding

There are several methods of plastic welding, each with its unique features, advantages, and disadvantages. The choice of method depends on the type of plastic, its thickness, and its intended use. Here are the most common forms of plastic welding:

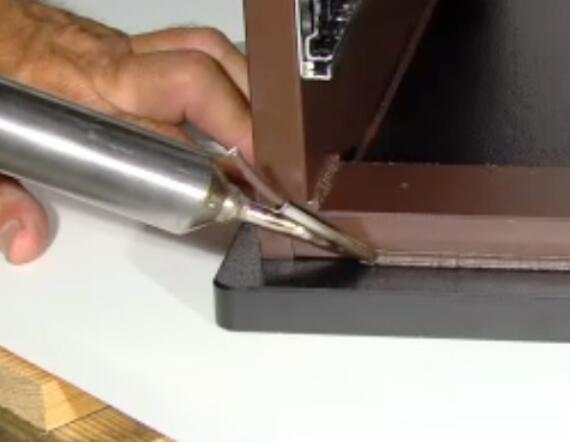

(1). Hot Gas Welding

Hot gas welding, also known as hot air or hot gas welding, is one of the most commonly used plastic welding methods. This process uses a specially designed tool, called a hot air gun or hot gas welder, to melt and fuse the edges of the plastic parts.

Advantages:

• Suitable for welding large areas of plastic
• Can join a wide range of plastic materials
• Welded joints are strong and have good dimensional stability
• Welding equipment is portable and can be used on-site
• The process is relatively simple and easy to learn

Disadvantages:

• The process is slower compared to other welding methods
• Requires a skilled operator to achieve consistent results
• May produce fumes that can be hazardous to health
• Can cause discoloration or burning of the plastic surface if not properly controlled
• Welded joints may be susceptible to stress cracking in some plastics

(2).Extrusion Welding

Extrusion welding is another common plastic welding method widely used for joining thermoplastics. This technique involves heating a plastic rod or tube and melting it into a joint to create a solid bond.

Advantages:

• Solid and durable welds can be created, making it suitable for heavy-duty applications
• Large parts can be welded together quickly and efficiently
• Minimal preparation is required before welding
• Can be used on a wide range of thermoplastics
• Can be automated for high-volume production

Disadvantages:

• Not suitable for welding certain plastics, such as fluoropolymers and some high-temperature plastics
• Requires specialized equipment, which can be expensive
• Weld quality can be affected by variations in material properties and processing conditions
• Control over the welding process can result in consistent welds if properly monitored and adjusted

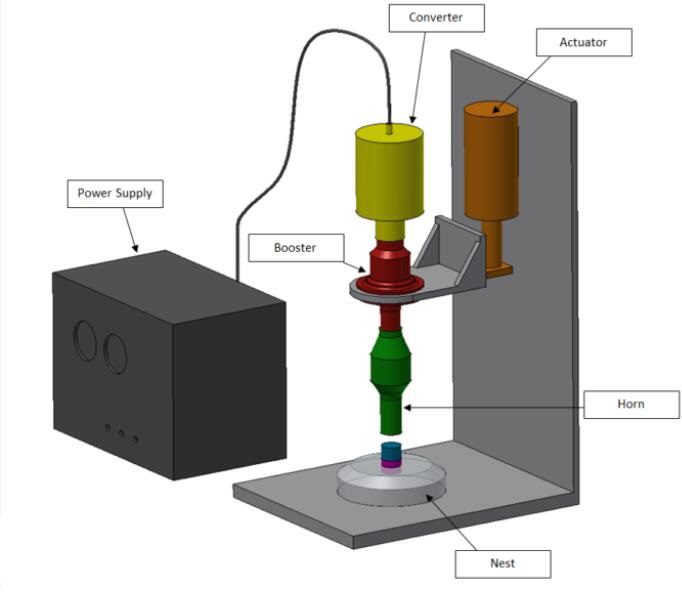

(3). Ultrasonic Welding

Ultrasonic welding uses high-frequency sound waves to create frictional heat that melts and fuses plastic materials together. The two pieces of plastic are placed together with a vibrating tool, which applies pressure and ultrasonic energy to the joint.

Advantages:

• Fast process with high productivity
• Precise and consistent welds are achieved, with minimal material distortion
• Suitable for a wide range of plastic materials
• Does not require additional materials such as adhesives or fasteners
• Environmentally friendly process with no emissions or waste
• Can be automated for efficient and consistent production

Disadvantages:

• Limited to smaller parts and thin sections due to its low penetration depth
• Requires a flat mating surface for effective welding
• Not suitable for materials with high melting points or those that are chemically reactive
• Initial equipment cost can be high
• Operator training and skill are required for optimal results

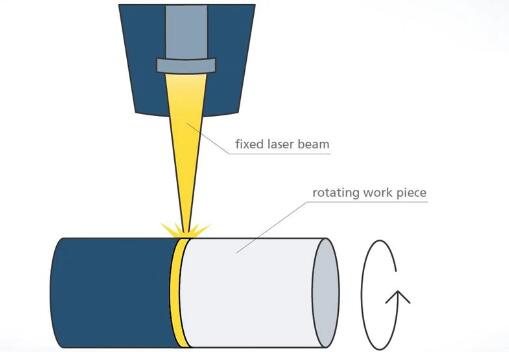

(4). Laser Welding

Laser welding is a plastic welding technique that uses a high-energy beam of light to melt and fuse plastic. The laser beam creates a localized heat source that melts the plastic and forms a strong bond.

Advantages:

• Precise and clean welding with minimal heat-affected zones
• High welding speeds and efficiency, allowing for faster production
• Can weld complex shapes and difficult-to-reach areas
• Suitable for a wide range of materials, including metals and plastics

Disadvantages:

• High equipment and maintenance costs
• Requires specialized training to operate
• Limited thickness of materials that can be welded
• Can be affected by surface contaminants, such as oil or dirt

(5). Solvent Welding

Solvent welding is a bonding technique that involves using a solvent to dissolve the surface of the plastic and fuse it with another plastic surface. It applies a solvent to the plastic surface, softening and melting the plastic. The two plastic surfaces are then brought together, and the solvent evaporates, leaving a strong bond between the two materials.

Advantages:

• Solvent welding is a simple and cost-effective method of joining plastic parts
• It creates a strong bond between the plastic parts, often resulting in a joint that is as strong as the original material
• It can be used to join different types of plastics, including those that are difficult to bond using other methods
• Solvent welding produces no visible seam or line, making it ideal for applications that require an aesthetically pleasing finish

Disadvantages:

• The fumes from the solvent used in the process can be harmful if inhaled, so adequate ventilation is necessary
• The process requires careful handling and precise application of the solvent to achieve a strong and secure bond
• The joint’s strength depends on the surface area of the plastic parts being bonded and the solvent quality used

(6). Spin Welding

Spin welding is a method of plastic welding that uses friction to join two plastic parts together. This technique involves rotating one part at high speed while pressing it against a stationary part until the plastic melts and bonds together.

Advantages:

• Spin welding is a fast process and can join large parts in seconds
• It is a clean process that requires no additional materials or adhesives
• It is a precise method and can join parts with high accuracy and consistency
• Spin welding is a cost-effective process as it eliminates the need for fasteners and adhesives

Disadvantages:

• Spin welding requires a specific shape of the parts to be joined, which may limit its application to certain designs
• It may not be suitable for joining parts made of different materials or different grades of the same material
• Spin welding requires specialized equipment, which can be expensive and require maintenance

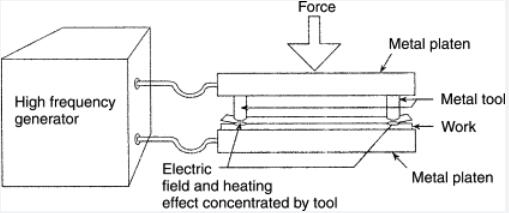

(7). High-Frequency Welding

High-frequency welding is a plastic welding technique that uses an electromagnetic field to create heat and weld the plastic pieces together. It is a fast and efficient method commonly used for welding PVC and other thermoplastic materials.

Advantages:

• High-Frequency Welding can create strong and durable welds quickly and efficiently, making it ideal for mass production
• This method produces less waste, not requiring additional materials like adhesives or fillers
• High-Frequency Welding is suitable for a variety of materials, including PVC, PET, and other thermoplastics

Disadvantages:

• The equipment required for High-Frequency Welding can be expensive, which may not be feasible for small-scale operations
• This method may only be suitable for some types of plastic, as some materials may respond poorly to high-frequency vibrations
• The precision of the welds may be affected by factors such as temperature and humidity, requiring careful calibration and control

(8). Injection Welding

Injection welding is a process that involves melting a thermoplastic material and injecting it into a mold or cavity to create a part or component. The process is similar to injection molding, but instead of creating a solid part, it creates a weld between two pieces of plastic.

Advantages:

• Stronger welds compared to other methods
• Allows for the welding of complex shapes and parts
• High production rate due to automated process
• Minimal material waste

Disadvantages:

• Expensive equipment and tooling costs
• High initial investment
• Limited to certain types of plastics
• Requires skilled operators to ensure proper settings and parameters.

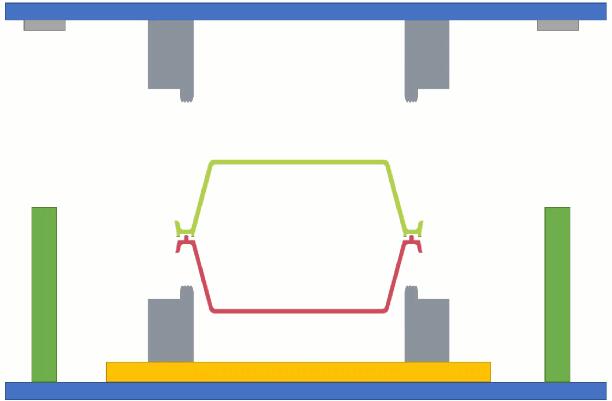

(9). Vibration Welding

Vibration welding is a plastic welding technique that uses high-frequency vibration and pressure to create frictional heat between two plastic parts, causing them to melt and bond together.

Advantages:

• High strength welds due to molecular bonding
• No consumables such as adhesives or fasteners needed
• Minimal material waste compared to other methods
• Can weld large, complex parts

Disadvantages:

• Limited to certain types of plastics that respond well to vibration
• Equipment can be expensive and require maintenance
• Weld quality can be affected by temperature and humidity changes in the environment
• Can create cosmetic defects or blemishes on the surface of the part

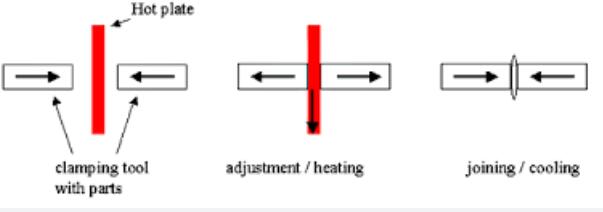

(10). Hot Plate Welding

Hot plate welding is a plastic welding technique using a heated platen to melt and fuse the parts.

Advantages:

• Provides consistent and strong welds
• Well-suited for large or irregularly shaped parts
• Suitable for joining a variety of thermoplastics, including those with differing melting points
• Welds can be visually inspected and are often leak-free
• Requires minimal operator skill once the machine is set up

Disadvantages:

• Can be a slower process compared to other methods, particularly for thicker materials
• Initial equipment and tooling costs can be high
• May require preheating of the plastic parts to avoid thermal shock and warping
• Potential for damage to the plastic if the temperature is too high or if the parts are held too long on the hot plate

Application for plastic welding

Plastic welding has numerous applications in various industries, from automotive to medical to construction. It is used to combine plastic components, repair damaged parts, and create custom plastic pieces.

Automotive industry-plastic welding is used to repair and modify bumpers, dashboards, and other plastic parts.

Medical industry-plastic welding is used to create medical devices and equipment.

Construction industry-plastic welding is used to create water tanks, pipes, and roofing materials.

Plastic welding also produces toys, household items, and packaging materials.

Choosing the Right Plastic for Welding

When selecting the plastic for welding, there are several factors that need to be taken into consideration.

Type of plastic: Different types of plastics have different melting points and properties, so it’s important to select the right type of plastic for the welding process. Some common thermoplastics used for welding include polyethylene, polypropylene, PVC, polycarbonate, and acrylic.

Thickness of the material: The plastic material’s thickness can affect the weld’s strength and quality. Thicker materials may require more heat or pressure to create a strong bond.

Surface condition: The surface condition of the plastic material is also important. A clean, smooth surface is necessary for a successful weld.

Welding method: Different welding methods may work better with certain types of plastics. For example, extrusion welding is more suitable for thicker materials, while ultrasonic welding may work better for thinner materials.

Application: The intended use of the welded product should also be considered when selecting the plastic. Different plastics may have varying resistance to heat, chemicals, and other factors.

Cost: The cost of the plastic material should also be considered, as some types of plastics may be more expensive than others.

Conclusion

In conclusion, plastic welding is a versatile and practical method for joining plastics. It offers numerous advantages over other joining methods and is used in a wide range of applications. Understanding the different types of plastic welding and the factors to consider when selecting plastics for welding is crucial to ensure successful and durable welds.

Contact Worthy for your plastic welding parts.

Worthy is a reliable manufacturer and supplier of plastic welding parts with years of experience in the industry. We have a team of highly skilled professionals and use the latest technology and equipment to ensure high-quality products.

We offer a wide range of plastic welding parts, including extrusion welding nozzles, hot air guns, ultrasonic horns, and more. Contact us today to learn more about our products and services.

FAQ

What types of plastic can be welded?

Various types of plastics can be welded, including polyethylene, polypropylene, PVC, ABS, polycarbonate, and more. The choice of plastic to be welded depends on the application and the welding process used.

Can I do plastic welding myself, or do I need to hire a professional?

While some plastic welding processes can be done with DIY kits or equipment, hiring a professional for complex or critical applications is recommended. A skilled plastic welding company has the experience, expertise, and equipment to provide a high-quality and reliable welding service. You could try with Worth Hardware.
