Progressive Die Stamping 101: The Complete Guide

In manufacturing, the challenge is always to produce high-quality parts efficiently and cost-effectively. Progressive die stamping addresses this challenge head-on, offering a solution that combines speed, precision, and affordability. It’s a method that transforms the traditional approach to metal forming, but it’s often shrouded in complexity and technical jargon.

Progressive die stamping is a metalworking process that creates intricate parts by sequentially stamping a metal strip with a series of dies. Each station in the progressive die performs a different operation until the final part is formed. This method is ideal for producing large volumes of high-precision parts, making it a staple in the automotive, electronics, and aerospace industries.

Stay tuned as we’re about to dive deeper into this fascinating world. Discover how progressive die stamping can revolutionize your production line and elevate your manufacturing capabilities.

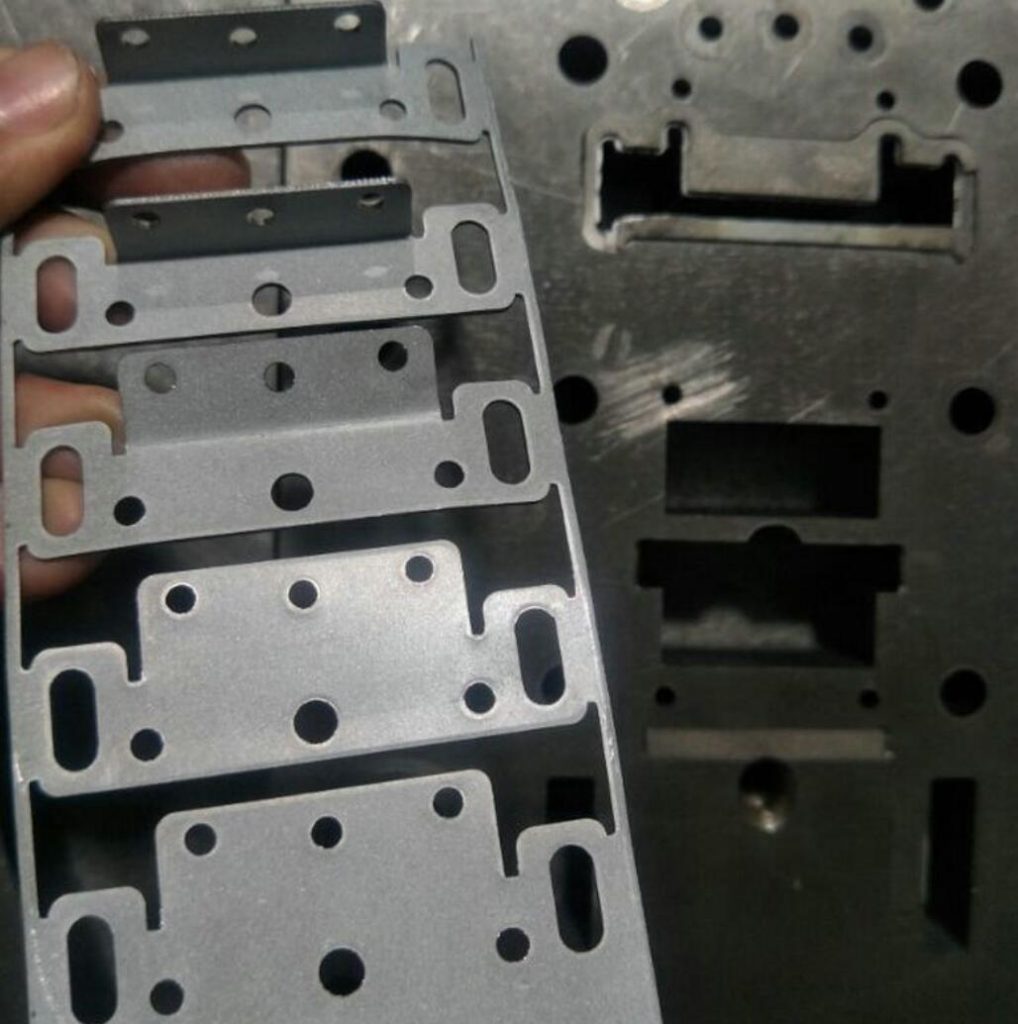

What is Progressive Die Stamping?

Progressive die stamping is a cutting-edge method in metal forming, a process where raw metal is transformed into intricate parts through a series of work stations. Each station, or die, in the progressive stamping machine performs a different operation – such as punching, coining, or bending – on the metal strip. The strip moves through the progressive die in a carefully controlled sequence, ensuring each part is precisely shaped.

This method stands out for its ability to produce complex parts at high speeds, which is crucial in high-volume manufacturing. Unlike traditional stamping methods, where each part might pass through a single operation, progressive die stamping combines multiple steps into one efficient, continuous operation. The beauty of this process lies in its synchronicity – each die interacts with the strip at precisely the right moment, ensuring consistency and quality in every part.

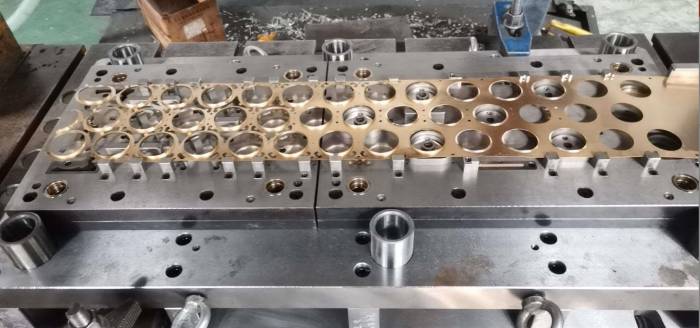

How Does Progressive Die Stamping Work?

The magic of progressive die stamping lies in its detailed and systematic approach to part manufacturing. Let’s break down how this intricate ballet of metal and machine unfolds.

First, a metal strip is unrolled from a coil and fed into the progressive stamping press. As it moves through the press, it passes through a series of stations, each performing a distinct operation. These operations could include cutting, punching, bending, or embossing, tailored to the specific requirements of the part being produced.

A different die section comes into play at each station, performing its specific task on the metal strip. The precision of the machinery ensures that each operation is carried out at precisely the right location and sequence on the strip. This is crucial, as even a slight deviation could result in a defective part.

After each operation is completed, the strip is mechanically advanced into the next station. This movement is carefully calibrated – too little or too much advancement could lead to misalignment and result in production errors. The coordination between the feeding mechanism and the die stations is a testament to the marvels of modern engineering.

Each operation builds upon the previous ones as the strip progresses through the press. It’s akin to an artist painting a masterpiece, with each brushstroke adding depth and detail to the canvas. When the strip reaches the final station, the initially unformed metal has been meticulously crafted into a finished part.

Once the final operation is executed, the completed part is cut or separated from the strip, ready for the next steps in its journey – assembly, finishing, or packaging. The remaining metal strip, often called the web, is either discarded or recycled, contributing to the efficiency and sustainability of the process.

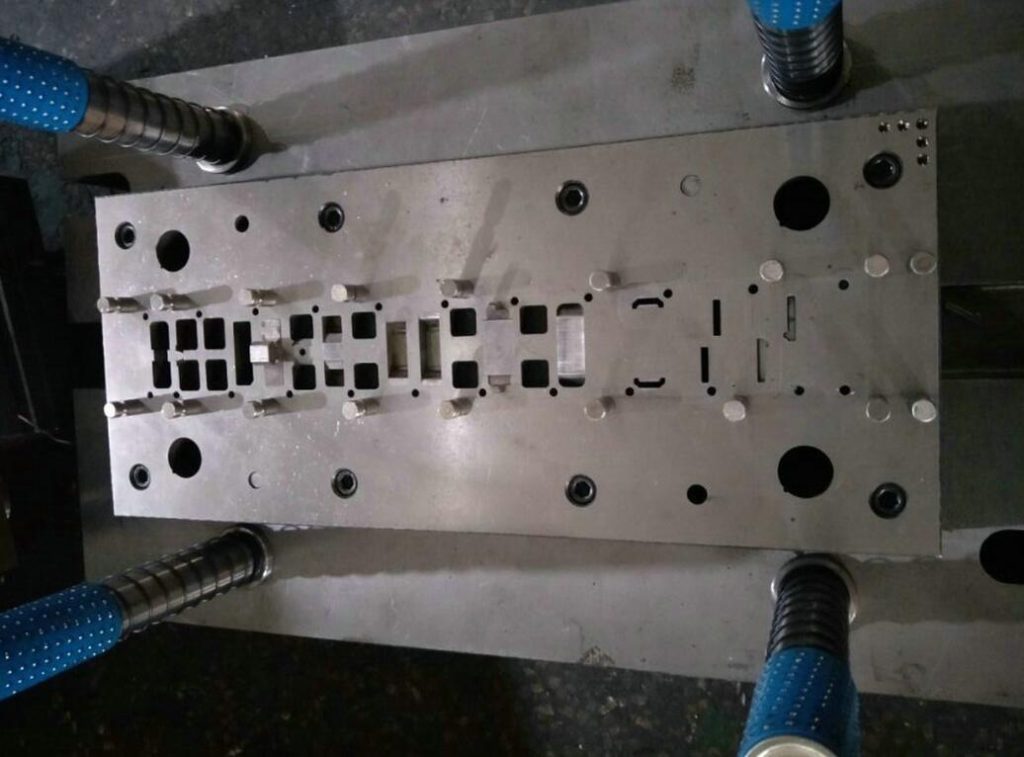

What are the Key Components of a Progressive Die?

Die Stations: Each progressive die contains multiple stations, each responsible for a specific operation such as punching, bending, or cutting. The design and arrangement of these stations are tailored to the particular part being manufactured, ensuring each operation is executed with precision.

Punches and Dies: These are the heart of the stamping process. Punches are tools that press the metal into the die to create the desired shape. The dies are custom-made, hardened steel blocks that give the metal its shape. The precision with which these punches and dies are made directly influences the quality of the finished part.

Stripper Plates: These plates hold the metal strip in place during stamping and then strip the metal off the punches after each operation. This action is crucial for preventing the metal from lifting with the punch, which could cause damage or result in a defective part.

Pilots: Pilots are critical for ensuring the precise alignment of the metal strip as it moves through the die. They fit into pre-punched holes in the strip, guiding it accurately from one station to the next. This alignment is crucial for maintaining the consistency and quality of the stamped parts.

Feed Mechanism: This component controls how the metal strip moves through the progressive die. It ensures the strip advances the correct distance between each operation. The feed mechanism must be exact, as even a minor error in movement can lead to misalignment and defective parts.

Guide Pins and Bushings: These components help maintain the alignment of the upper and lower parts of the die. They ensure that the punches and dies align perfectly during stamping, which is vital for achieving high-quality results.

Cam Units: In some complex dies, cam units are used for movements not directly downward, like those needed for undercuts or specific angled cuts. These units expand the capabilities of the die beyond simple up-and-down movements.

What are the Advantages of Progressive Die Stamping?

Progressive die stamping offers many advantages, making it a preferred method in various manufacturing sectors. Here are some of the key benefits:

High Efficiency and Productivity: One of the most significant advantages is its high-speed production capability. Since multiple operations are performed simultaneously at different stations within the same die, progressive die stamping can produce parts exceptionally fast. This efficiency is invaluable in high-volume manufacturing.

Effective for Large Volumes: Although the initial setup and tooling costs can be high, the price per part is significantly reduced for large production runs. This makes progressive die stamping a cost-effective solution for mass production, as the low per-unit cost over time offsets the increased initial investment.

Consistent Quality and Precision: Progressive die stamping is renowned for producing parts with tight tolerances and consistent quality. The precision of the dies and the controlled stamping process ensure that each part is a replica of the last, which is crucial in industries where consistency is paramount.

Reduced Labor Costs: Automating the progressive die stamping process reduces the need for manual labor. This cuts down on labor costs and minimizes the risk of human error, further enhancing the quality and consistency of the parts produced.

Minimal Material Waste: The design of progressive dies allows for the efficient use of material with minimal waste. This efficient material usage reduces costs and aligns with sustainable manufacturing practices.

Versatility in Design and Material: Progressive die stamping is adaptable to various materials and can produce parts with complex geometries that might be challenging or impossible to achieve with other manufacturing methods. This versatility opens up a broad range of product design and innovation possibilities.

Integrated Secondary Operations: Features such as tapping, threading, and assembly can be integrated into the progressive stamping process. This integration reduces the need for secondary operations, further streamlining the manufacturing process and reducing overall production time.

Comparison of Progressive Die Stamping and Other Stamping Methods

Progressive Die Stamping vs. Single-Stage Stamping:

Progressive Die Stamping: As we’ve explored, this method involves multiple stages, allowing the completion of several operations within one machine cycle. It’s ideal for high-volume production and is known for its efficiency and consistency in producing complex parts.

Single-Stage Stamping: This method uses one die for each operation, requiring the workpiece to be moved between different presses for each task. It’s more straightforward and more cost-effective for low-volume production or parts that don’t need multiple operations.

Progressive Die Stamping vs. Transfer Die Stamping:

Progressive Die Stamping: The metal strip is fed through a series of stations within a single die. This method is highly efficient for creating smaller parts and is excellent for long production runs.

Transfer Die Stamping: In this method, individual parts are transferred from one station to another within the press. It’s more suitable for larger, heavier components and offers more flexibility for complex geometries. However, it’s generally slower and less efficient for high-volume production than progressive die stamping.

Progressive Die Stamping vs. Fine Blanking:

Progressive Die Stamping: Known for its ability to produce parts with various features and forms in one pass, it’s highly efficient but might have limitations in achieving the ultra-smooth edges and flatness some applications require.

Fine Blanking: This method is specialized for producing parts with very smooth edges and precise flatness. It’s ideal for parts that require a high degree of accuracy and a clean finish, but it could be more efficient for complex geometries or high-volume production.

Progressive Die Stamping vs. Four-Slide Stamping (or Multi-Slide):

Progressive Die Stamping: Ideal for producing parts with a flat base and various features through a single pass in a series of stages.

Four-Slide Stamping: This method uses four slides (tools) to shape the workpiece, offering greater flexibility for complex, three-dimensional parts. It’s excellent for intricate designs but may not match the speed and efficiency of progressive die stamping for simpler, flatter parts.

What Industries Benefit from Progressive Die Stamping?

• Automotive
• Electronics
• Aerospace
• Medical
• Military
• Consumer Goods
• Telecommunications
• Industrial Machinery
• Energy
• Construction
