What Methods to Manufacture Robotics Prototyping and Parts?

When I think about the future, I imagine a world where robots are as commonplace as smartphones. As the CEO of a leading CNC Machining Service, I’ve seen the robotic revolution unfold from the front lines. We’re not just building parts; we’re crafting the future—one prototype at a time.

The manufacturing of robotics prototyping and parts is an intricate dance of precision, innovation, and efficiency. In this domain, CNC machining stands out, offering the talent to turn a digital blueprint into a tangible masterpiece. But it’s not just about cutting metal; it’s about breathing life into designs that could one day change the world.

Stay with me, and I’ll walk you through the thrilling world of robotics manufacturing—a realm where every micron matters and every decision could launch the next technological marvel.

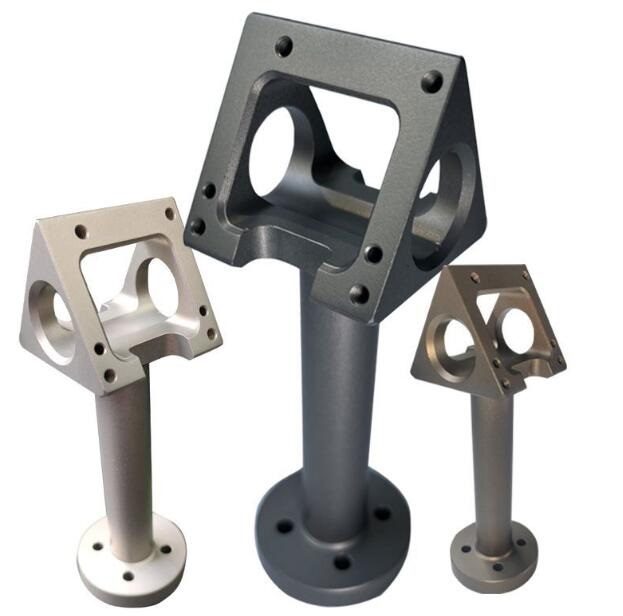

What Is Robotics Prototyping and Why Is It Important?

In my years at the helm of Worthy Hardware, I’ve often been asked, “What exactly is robotics prototyping?” Simply put, it’s the initial stage in the lifecycle of a robot, where ideas are translated into tangible models. It’s the sandbox where creativity meets reality, allowing designers and engineers to experiment, iterate, and refine their robotic concepts.

Prototyping in robotics serves as the bridge between theoretical design and practical function. By creating a prototype, we test assumptions, uncover anomalies, and preemptively troubleshoot errors. It’s a crucial step that informs us about the viability of the robot, its design strengths, and potential weaknesses.

Why is it important? The field of robotics is fraught with complexity and nuance. Without a prototype, you’re essentially navigating blind. It’s like trying to direct a play without rehearsals—the chances of a flawless performance are slim. Robotics prototyping allows us to perform these “rehearsals,” ensuring the final product functions as intended, is safe, and is prepared for mass production.

What Are the Primary Considerations When Choosing a Manufacturing Method for Robotics?

As an industry insider, I’m often at the crossroads of decision-making, especially regarding the proper manufacturing method for robotics. The choice is pivotal; it can dictate the project’s success or signal its premature demise. Here are the keystones of that decision process:

Material Selection: The anatomy of your robot dictates its material. Metal offers durability, plastics afford flexibility, and composites can provide both. The decision influences not only the method but also the costs and the final product’s performance.

Complexity and Precision: Robotics often involve complex components with tight tolerances. The chosen manufacturing method must align with the intricacies of the design and the exactness required. For high complexity and precision, few processes compare to CNC machining.

Volume: Are we crafting a unique prototype or gearing up for full-scale production? For the former, methods like 3D printing are invaluable, while the latter might benefit from the efficiency of injection molding once the design is finalized.

Speed to Market: The fast-paced world of robotics waits for no one. Rapid prototyping can accelerate development cycles, propelling a product from concept to market with haste.

Cost-Effectiveness: Budget constraints are an omnipresent concern. Balancing quality with cost is a tightrope walk, and the chosen method must be economically viable both in the short and long term.

Design Evolution: Robotics is a field of constant evolution. The manufacturing method must allow for adaptability, catering to the inevitable iterations a robot will undergo during its prototyping phase.

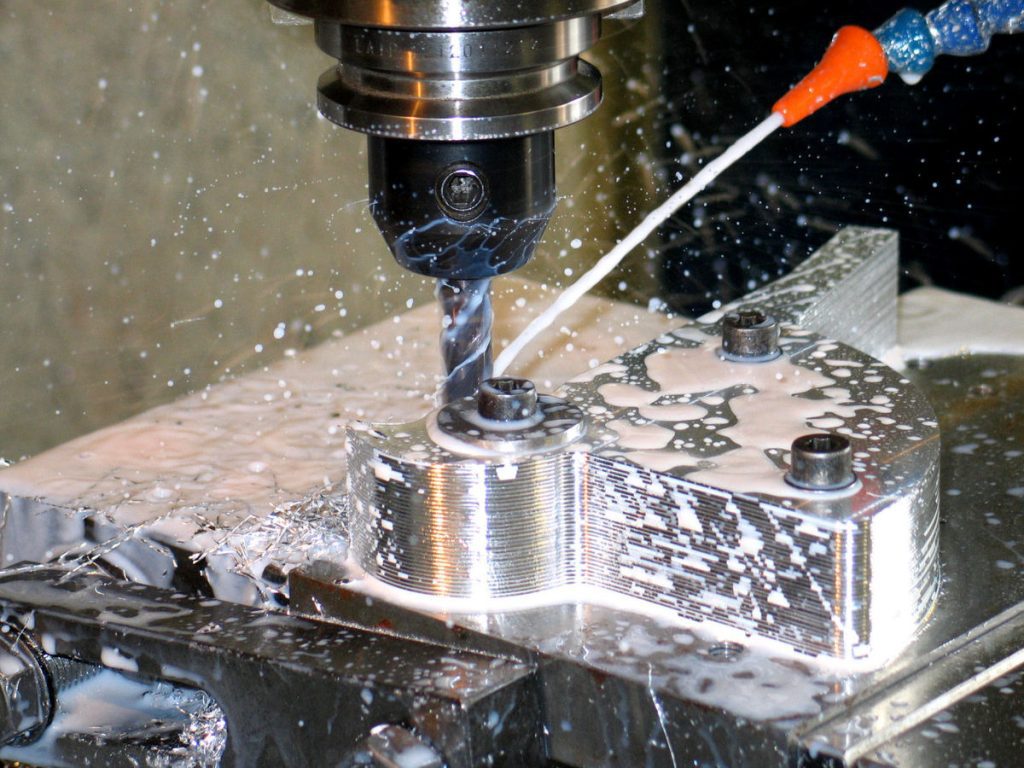

How Does CNC Machining Fit into the Robotics Prototyping Process?

In the grand theater of robotics prototyping, CNC machining is not just a player; it’s a star performer. It’s a process where computers control machine tools with such precision that it feels like watching a maestro at work. At Worthy Hardware, we’ve leveraged this technology to transform raw materials into robotic masterpieces.

CNC machining creates precise and repeatable parts, making it indispensable for prototyping robotic components that must adhere to strict tolerances. Whether it’s a single bespoke piece or a short run for testing, CNC is the go-to method.

The beauty of CNC machining lies in its versatility. Metals, plastics, composites — the list of materials it can handle is as varied as the applications in robotics. It’s a process that asks, “What do you need?” and then diligently delivers.

CNC machining fits snugly into the prototyping process for several reasons:

• Precision and Complexity: With CNC, we can achieve complex geometries that other methods might struggle with. For robotics, where every micron counts, this capability is not a luxury; it’s a necessity.
• Material Options: A robot’s environment dictates its construction. CNC machining provides the freedom to select materials that meet specific requirements, like temperature resilience or strength-to-weight ratios.
• Speed and Flexibility: Rapid prototyping needs to be just that—rapid. CNC machining can swiftly produce parts, allowing for iterative design without lengthy lead times.
• Scalability: While CNC is perfect for prototyping, it’s also scalable for production runs, providing a seamless transition from the prototype phase to production without switching manufacturing techniques.

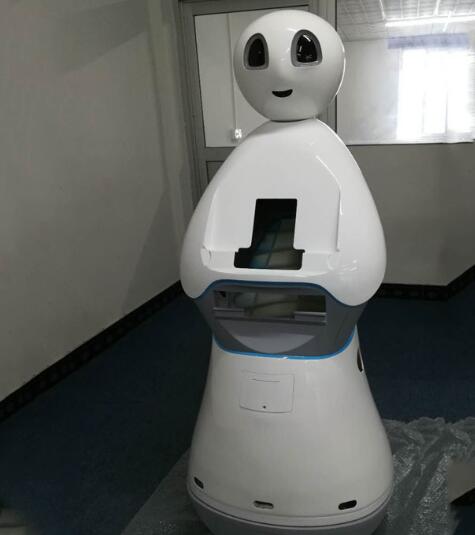

What Role Do 3D Printing Technologies Play in Robotics Manufacturing?

3D printing, or additive manufacturing, is akin to the modern alchemist’s stone in robotics manufacturing, turning digital files into three-dimensional objects by adding material layer by layer. This technology has not just entered the prototyping arena; it has changed the game entirely.

In robotics, 3D printing is the precursor of innovation, enabling us to rapidly prototype complex designs that would be unfeasible or prohibitively expensive with traditional methods.

The Role of 3D printing in robotics is multifaceted:

• Complexity for Free: 3D printing allows the creation of parts with complexities that do not typically add to the cost. Internal channels, intricate support structures, and complex geometries are all within reach.
• Speed: In robotics, the ability to iterate quickly is invaluable. 3D printing empowers engineers to go from design to physical parts in hours, not days or weeks.
• Customization: Robots often require highly specialized components. 3D printing excels at bespoke production, offering customization without expensive tooling or setup.
• Material Diversity: With advancements in materials science, 3D printing now supports a range of materials, from durable thermoplastics to metals, allowing for functional prototyping and end-use parts.
• Cost-Effectiveness for Prototyping: For low-volume production and prototyping, 3D printing is often the most cost-effective method, reducing the need for expensive molds and tooling.

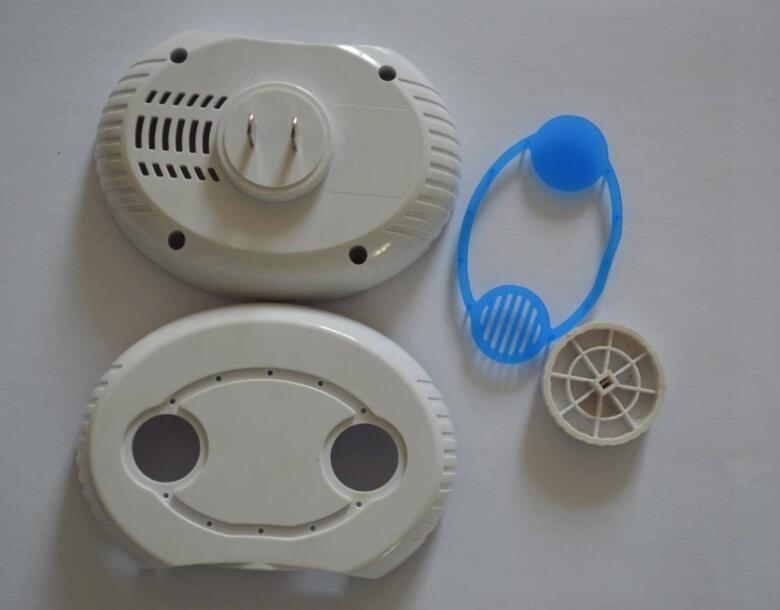

Can Injection Molding be Used for Robotic Prototyping and Parts Manufacturing?

When people ask me about the scalability of our production for robotics components, I often bring up injection molding. It’s a stalwart of mass production, known for churning out parts with consistent quality at high volumes. But what about its Role in prototyping? Here’s where it gets interesting.

While not traditionally associated with the early stages of design, injection molding has carved out a niche in rapid prototyping for robotics, mainly when the end goal is mass production.

Injection molding in prototyping makes sense when:

• Design Validation for Mass Production: If a robot’s design is near-final and we’re anticipating high-volume production, creating an injection mold can be a strategic investment, allowing us to test the design with the actual production process.
• Material Properties: Certain materials are best processed through injection molding, offering the desired characteristics such as strength, rigidity, and thermal stability often required in robotic applications.
• Cost-Per-Part Efficiency: For medium to large volumes, injection molding becomes more cost-effective. If multiple prototypes or a series of design iterations are required, the initial mold investment can pay off.

However, the upfront cost and time to create molds can be significant, so it’s a balancing act. As someone who’s steered a company through these decisions, I advise considering injection molding for prototyping when the project timeline and budget allow for a direct path from prototyping to production.

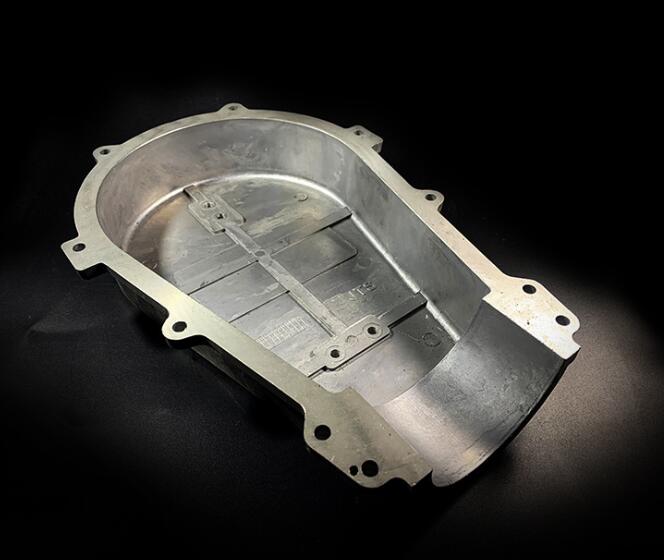

How Vacuum Casting is Used to Make Robotics Prototyping?

Vacuum casting, a process I liken to the middle ground between artisanal craftsmanship and industrial efficiency, offers a unique approach in the prototyping stage of robotics. It involves creating a silicone mold from a master model and then using that mold to cast parts under a vacuum.

This technique is particularly well-suited for robotics prototyping when you require a series of small-batch runs with excellent surface finish and material properties akin to injection molded parts.

Here’s why vacuum casting fits nicely into the robotics prototyping toolkit:

• Quality and Finish: The silicone molds used in vacuum casting can capture fine details and textures, which results in high-quality prototypes that closely mimic the surface finish of the final product.
• Material Versatility: Vacuum casting allows us to use a variety of polyurethane resins that can simulate the properties of plastics, rubbers, and metals. This flexibility is invaluable in robotics, where different parts may require additional material characteristics.
• Speed and Efficiency: While less fast than 3D printing, vacuum casting is quicker than creating the tooling required for injection molding. It’s an excellent option for producing a limited number of high-fidelity prototypes without the associated costs and lead times of traditional manufacturing.
• Cost-Effective for Small Batches: For small series production or iterative prototyping, vacuum casting is economically viable, providing the benefits of molded parts without the expense of hard tooling.

Is Sheet Metal Fabrication Considered for Producing Robotics Prototyping?

Sheet metal fabrication is often associated with large-scale construction, heavy machinery, and industrial applications. However, it’s also a quiet workhorse in robotics prototyping, especially when we’re talking about creating sturdy, durable parts that need to withstand significant stress or heat.

In my professional journey, I’ve seen sheet metal fabrication bring robustness and functionality to prototypes that require metal components with specific mechanical properties or thermal conductance.

Here’s the role sheet metal fabrication plays in robotics prototyping:

• Durability: Robots often operate in demanding environments. Sheet metal parts can withstand high-stress levels, making them ideal for structural components of robots.
• Heat Dissipation: For robotic parts that generate or are exposed to high temperatures, the thermal properties of sheet metal are essential. It dissipates heat effectively, which can be critical for maintaining operational integrity.
• Prototyping to Production: Sheet metal fabrication is not just for creating prototypes but is also scalable to production. The same tools and processes can be used for both, ensuring a seamless transition from prototype to market.
• Precision: With advancements in laser cutting and CNC technology, the accuracy of sheet metal parts has dramatically improved, allowing for tight tolerances often required in robotics.

Using sheet metal in robotic prototyping may not be as widespread as other methods like CNC machining or 3D printing. Still, it fills a specific niche, providing structural integrity and thermal management where needed.

How Does Rapid Prototyping Accelerate Development in Robotics?

In the dynamic field of robotics, rapid prototyping is the turbocharger in the development engine. It’s the process by which ideas are quickly translated into tangible parts or systems that can be tested and refined without the lengthy timelines that traditional manufacturing methods impose.

As someone at the helm of a CNC machining service, I’ve observed firsthand the revolutionary impact that rapid prototyping has on the development cycle of robotics.

The acceleration comes from several key advantages:

• Speed to Market: Rapid prototyping significantly cuts the time from concept to creation, allowing for faster iterations and, ultimately, a quicker path to market for new robotic technologies.
• Iterative Development: It provides the ability to test and refine prototypes rapidly, which is crucial in a field that’s constantly pushing the boundaries of innovation.
• Cost Reduction: By identifying and rectifying issues early in the development process, rapid prototyping helps avoid the costly redesigns that might occur if problems were only discovered during mass production.
• Enhanced Creativity: With the ability to prototype swiftly, engineers are encouraged to explore more creative solutions, secure in the knowledge that they can quickly build and test their ideas.

What Are the Solutions for Surface Finishing in the Manufacturing of Robotic Parts?

Let’s delve into the array of solutions for surface finishing that are pivotal for robotic parts:

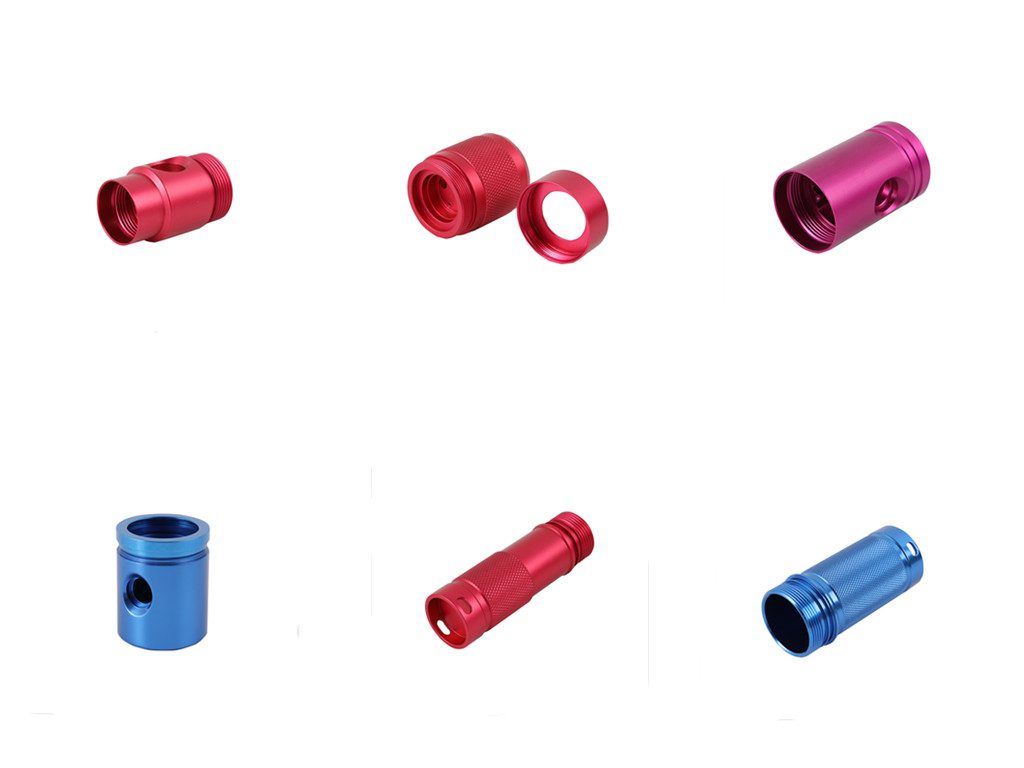

• Anodizing: This electrochemical process enhances corrosion resistance and wear resistance, which is vital for robotic components exposed to harsh environments.
• Powder Coating: For parts that require a durable and protective layer, powder coating is an excellent option. It provides a uniform, attractive finish that is tougher than conventional paint.
• Bead Blasting: This process gives a uniform matte finish, removing surface imperfections. It’s beneficial for cosmetic surfaces on robots on public display.
• Electroplating: By adding a thin layer of metal to the part’s surface, electroplating can improve a part’s wear resistance, reduce friction, and provide better electrical conductivity.
• Passivation: Stainless steel parts can benefit from passivation, which removes contaminants and enhances corrosion resistance, ensuring longevity and reliability.
• Laser Etching and Engraving: For parts that require labeling or branding, laser etching provides a permanent marking solution that won’t compromise the part’s integrity.

Conclusion

The journey from concept to a fully functional robot is intricate and exhilarating. Each manufacturing method we’ve explored—from CNC machining to injection molding, from vacuum casting to sheet metal fabrication—plays a critical role in bringing robotic prototypes to life.

For those ready to breathe life into your robotic concepts, we offer a partnership grounded in expertise, speed, and precision. Our doors are open to collaborations that will shape the future of robotics. Let’s embark on this transformative journey together.

Connect with us, and let Worthy Hardware be the catalyst for your next breakthrough in robotics.
