Everything You Need to Know About Sheet Metal Box Fabrication

As a seasoned expert in the world of sheet metal box fabrication, I’ve navigated countless projects that turn flat sheets of metal into robust, functional, and aesthetic components. Imagine facing a challenge where every detail counts, from material selection to precision cutting—this is where I thrive. Whether you’re a professional in the industry or a curious learner, understanding the process can elevate your projects from standard to spectacular.

Sheet metal box fabrication involves cutting, bending, and assembling metal to create boxes and enclosures used in various applications. My team and I specialize in transforming metal sheets into finely crafted boxes tailored to meet specific requirements, ensuring durability and functionality. This process not only focuses on manufacturing but also on ensuring that each piece meets the highest standards of quality and precision.

In the upcoming sections, I’ll share insights and expert tips that will keep you hooked and eager to learn more about how sheet metal box fabrication can be a game-changer for your projects or business.

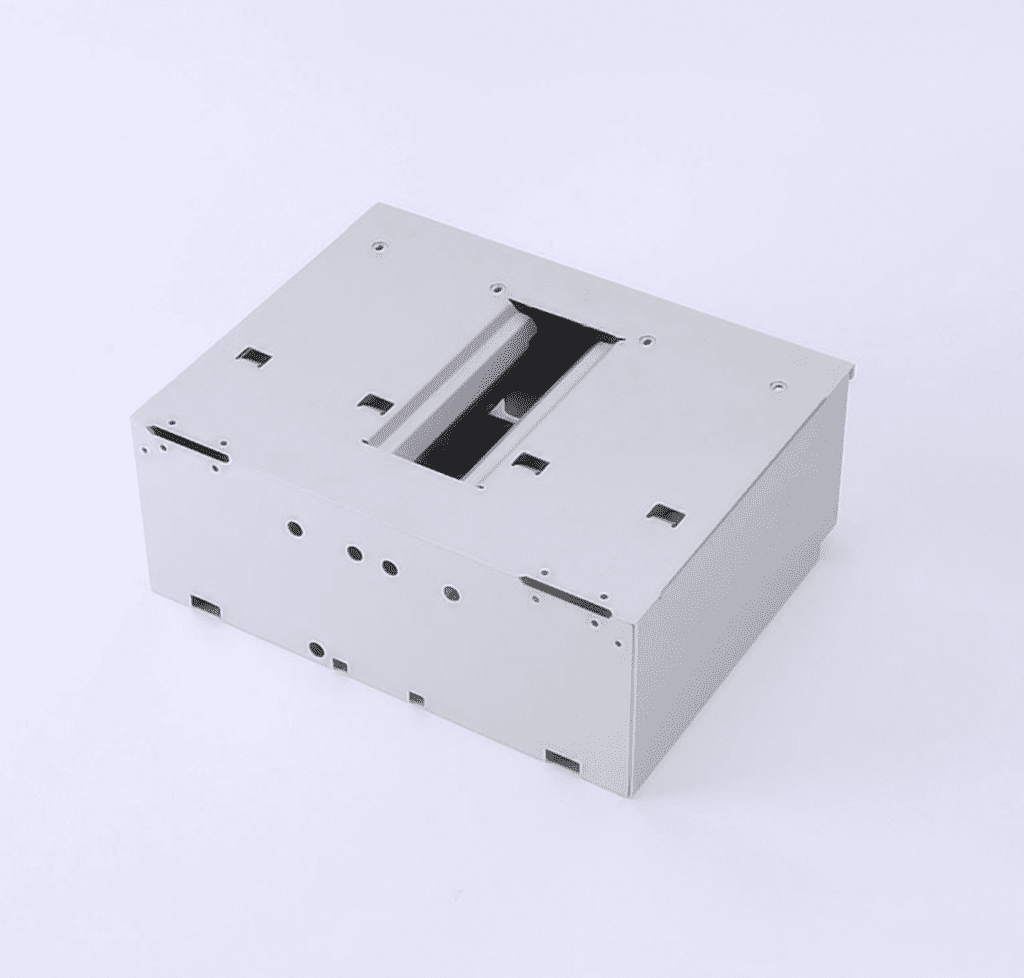

What Is Sheet Metal Fabrication Box?

Sheet metal box fabrication is a specialized process where flat sheets of metal, such as steel, aluminum, or brass, are transformed into box-shaped structures through various methods like cutting, bending, and assembling.

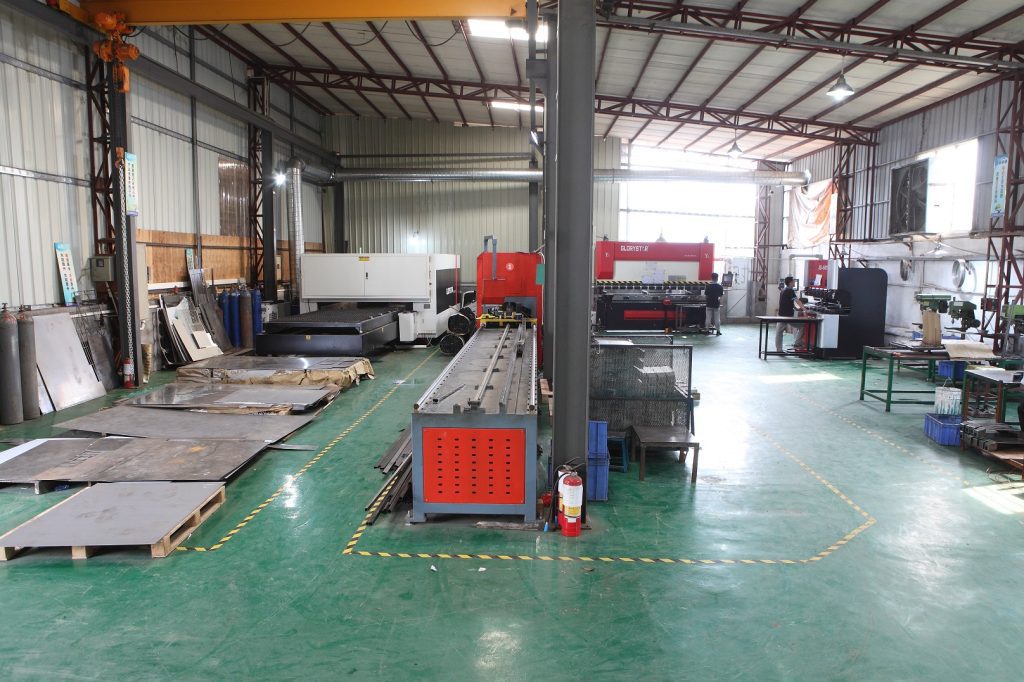

In my workshop, we often start with CAD designs to ensure precision and then move to cutting and shaping the metal using high-tech machinery. The final step is assembly, where the pieces are joined using techniques such as welding, riveting, or screwing to form a cohesive unit.

These boxes are commonly used in industries ranging from electronics to automotive, where durable and protective enclosures are crucial.

Benefits of Using Sheet Metal Fabrication Box

Using sheet metal boxes in your projects offers several key advantages:

1. Protection: Sheet metal boxes provide superior protection for internal components, safeguarding them from environmental hazards such as dust, moisture, and mechanical impact. This makes them ideal for sensitive applications in industries like aerospace, electronics, and automotive.
2. Customization: One of the most significant benefits of sheet metal boxes is their high customizability. They can be crafted to specific dimensions and shapes to suit unique requirements, allowing for perfect integration into various systems and setups.
3. Durability: Constructed from robust materials like steel, aluminum, or stainless steel, these boxes are designed to endure harsh environments and resist corrosion, ensuring long-lasting performance even under tough conditions.
4. Cost-Effectiveness: Despite the upfront costs associated with custom fabrication, sheet metal boxes are a cost-effective solution over the long term due to their durability and low maintenance needs.
5. Sustainability: Metal is a sustainable material choice as it is recyclable without degradation in quality. Choosing sheet metal boxes can help align your projects with green manufacturing practices and reduce environmental impact.

Aesthetic Flexibility: With various finishing options available, including painting, powder coating, and plating, sheet metal boxes can be designed to enhance aesthetic appeal while meeting technical specifications.

Materials Used for Sheet Metal Fabrication Box

Steel: Known for its strength and durability, steel is a popular choice for sheet metal boxes that require high structural integrity. It is especially useful in industrial settings where robustness is crucial.

Stainless Steel: Ideal for applications demanding corrosion resistance, such as in the medical or food industries. Stainless steel also offers a clean aesthetic and is known for its ability to maintain strength across a wide range of temperatures.

Aluminum: Aluminum is lighter than steel and stainless steel, making it a favorable option for applications where weight is a critical factor. It’s also corrosion-resistant and has good thermal and electrical conductivity, making it suitable for electronics enclosures.

Brass: Often chosen for its aesthetic appeal, brass is used in applications where the visual presentation is important. It also offers good corrosion resistance and is relatively easy to machine.

Copper: Excellent for electrical conductivity, copper is frequently used in electrical enclosures and other components where such properties are required.

Galvanized Steel: Steel that has been coated with a layer of zinc to prevent rusting. It combines the strength and durability of steel with enhanced corrosion resistance, making it suitable for outdoor applications.

Surface Finish for Sheet Metal Fabrication Box

Powder Coating

Powder coating is a popular finishing process for sheet metal boxes due to its ability to provide a durable and protective layer. This finish is applied as a free-flowing, dry powder that is electrostatically charged and cured under heat to form a skin-like coating.

The result is a tough, uniform film that resists scratches, chipping, and fading. Powder coating is available in a wide range of colors, allowing for complete customization to match any branding or aesthetic requirements.

Anodizing

Anodizing is used primarily for aluminum sheet metal boxes and enhances corrosion resistance, surface hardness, and wear resistance. This electrochemical process thickens the metal’s natural oxide layer, creating a finish that is integrated with the underlying substrate for increased durability. Anodizing also provides better adhesion for paint primers and glues than bare metal does.

Galvanizing

Galvanizing involves coating the sheet metal with a protective layer of zinc to guard against rust. This is particularly useful for steel boxes used in outdoor environments or in conditions where they are exposed to moisture.

The galvanizing process can extend the life of a metal box significantly by providing a sacrificial layer, which corrodes over time instead of the base metal.

Brushed Finish

The brushed finish is often used for its decorative appeal, providing a distinctive look with a pattern of fine lines parallel to the brushing direction. This finish can hide fingerprints and minor imperfections, making it suitable for high-touch areas.

Brushed finishes are commonly applied to stainless steel and aluminum, offering a sophisticated matte look that can enhance the visual quality of the product.

Sheet Metal Fabrication Box Applications

Electronics Enclosures

Sheet metal boxes are extensively used in the electronics industry to house and protect electronic components and assemblies. They provide electromagnetic interference (EMI) shielding and physical protection for sensitive electronic devices, ranging from small consumer gadgets to large industrial control systems.

Industrial Equipment

In the industrial sector, these boxes are used to encase machinery controls, switches, and automation components. They protect the equipment from dust, debris, and other environmental conditions that could damage the internal components.

Automotive Components

The automotive industry utilizes sheet metal boxes for various applications, including battery housings, electronic enclosures, and protective covers for mechanical parts. These boxes are designed to withstand the rigorous conditions of automotive environments, such as vibration, heat, and exposure to chemicals.

Medical Equipment

Sheet metal boxes are crucial in the medical field for housing high-tech devices such as X-ray machines, MRI machines, and other diagnostic and therapeutic equipment. They ensure that the equipment remains sterile and protected from external contaminants.

Telecommunications

Telecommunication infrastructure often requires durable enclosures to protect sensitive electronic equipment from the elements, especially in outdoor installations. Sheet metal boxes are used to safeguard components like circuit boards, cables, and connectors.

Food and Beverage Processing

In the food and beverage industry, stainless steel boxes are used due to their resistance to corrosion and ease of cleaning. They help maintain the hygienic standards required in food processing and storage.

Aerospace and Defense

Sheet metal boxes in aerospace and defense are critical for housing control systems, electronic units, and other equipment that must operate reliably under extreme conditions, including high pressures and temperatures.

Custom Projects and Consumer Goods

Beyond these industries, sheet metal boxes are also tailored for various custom projects, including artistic installations, bespoke consumer goods, and specialized storage solutions. Their adaptability allows designers and engineers to specify dimensions, features, and finishes that precisely fit their needs.

Fabrication Techniques Used for Sheet Metal Fabrication Box

Fabricating sheet metal boxes involves several techniques, each critical for achieving the desired strength, precision, and aesthetic. Here’s an overview of the key processes:

Laser Cutting: Ensures Precise Cuts and Intricate Designs

Laser cutting is a highly precise method used to cut detailed designs into metal sheets. It utilizes a high-powered laser beam focused on a small area of the metal, which melts, burns, or vaporizes the material.

This method is renowned for its accuracy, speed, and flexibility in cutting complex shapes with clean edges, making it ideal for custom sheet metal boxes.

Bending: Shapes the Metal Sheet to the Desired Angles

Bending is a fundamental technique in sheet metal fabrication used to form metal sheets into desired shapes or angles without altering the material’s thickness. Common bending techniques include V-bending, edge bending, and rotary bending.

This process is crucial for creating the walls and flaps of a sheet metal box, allowing for the assembly of parts into three-dimensional forms.

Welding: Joins the Pieces Securely for a Seamless Look

Welding is employed to join different metal pieces together to form a sturdy and seamless box. Techniques such as MIG welding, TIG welding, and spot welding are commonly used, depending on the type of metal and the requirements of the project.

Welding ensures that the joints are strong and durable, capable of withstanding various stresses.

Stamping: Ideal for High-Volume Production with Uniformity

Stamping involves placing flat sheet metal in either blank or coil form into a stamping press where tools and dies form the metal into a net shape. This method is highly efficient for producing large quantities of metal boxes quickly and cost-effectively. Stamping is particularly suitable for projects requiring high repeatability and uniformity.

Finishing

The finishing process is vital in enhancing the appearance, durability, and resistance of the metal boxes to corrosion and wear. Finishing techniques include powder coating, anodizing, galvanizing, and applying a brushed finish, each providing additional protective and visual benefits to the final product.

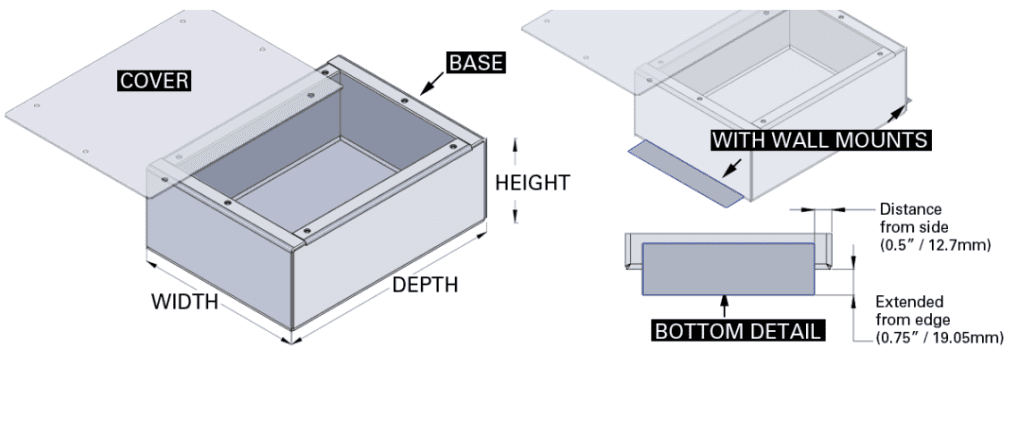

Design Considerations of the Sheet Metal Box

Material Selection

Choosing the right material is critical and depends on the box’s intended use. Factors like strength, durability, corrosion resistance, and weight play a significant role. Materials such as aluminum, stainless steel, and galvanized steel each have unique properties that make them suitable for different environments and applications.

Thickness of the Metal

The thickness of the metal, also known as gauge, impacts the box’s strength and weight. Thicker metals offer greater durability but increase the overall weight, which may not be desirable for all applications. The choice of thickness should balance the box’s structural integrity with its practical application and handling requirements.

Structural Integrity

The design must ensure that the box can withstand the loads and stresses it will encounter during its lifecycle, including the weight of internal components and external forces. This involves calculating the expected loads and ensuring the design can accommodate them with an appropriate safety factor.

Size and Shape

The dimensions and shape of the box should be designed to accommodate the components it will house, while also considering the space available in its intended location. Customization in size and shape can be achieved with precise cutting and bending techniques.

Ease of Assembly

Designing for manufacturability includes considering how easily the box can be assembled. Features like bends, tabs, and slots can simplify alignment and assembly, reducing manufacturing time and costs.

Access and Security

Considerations for access (such as doors or lids) and security features (like locks or tamper-proof screws) are important, especially if the box will contain valuable or sensitive equipment. These features should be integrated into the design while maintaining the overall integrity and functionality of the box.

Thermal Management

For electronic enclosures, managing heat build-up is crucial. Design features such as ventilation holes, fans, or heat sinks might be necessary to dissipate heat effectively and maintain the optimal operating temperature of the components inside.

Aesthetic Considerations

The appearance of the box may be important, especially if it will be visible in its application. Finishing processes like powder coating, anodizing, or plating can be used to improve aesthetics and corrosion resistance, providing a pleasing and durable exterior.

Compliance and Standards

Finally, the design must comply with relevant industry standards and regulations, which may dictate certain dimensions, materials, or performance criteria. Compliance ensures that the box is safe and suitable for its intended use, particularly in regulated industries like medical, aerospace, or automotive.

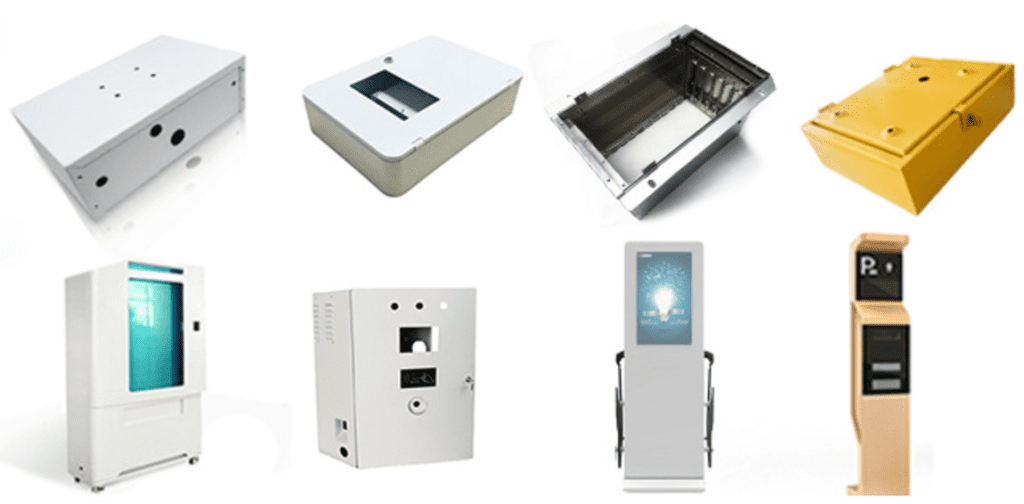

Which Factors Should You Consider While Looking For A Sheet Metal Box Fabricator?

Experience and Expertise

Look for a fabricator with a proven track record in your industry or in projects similar to yours. Experience can greatly influence the quality of the fabrication, as seasoned fabricators are more likely to understand the nuances and challenges specific to different types of projects.

Quality Assurance

Check if the fabricator follows strict quality control processes. Certifications like ISO 9001 can be indicators of a commitment to quality. It’s important that the fabricator has robust inspection and testing protocols to ensure that every product meets the required standards.

Capability and Technology

Assess the fabricator’s capability to handle your project’s specific requirements. This includes having the right machinery and technology, such as laser cutting, CNC machining, and various welding capabilities, to achieve precision and efficiency in production.

Material Availability

Ensure that the fabricator has access to, or routinely works with, the types of materials you require for your project. The quality of materials used can significantly affect the performance and longevity of the final product.

Customization Abilities

If your project requires custom designs or specific modifications, the fabricator should be able to accommodate these needs. Look for flexibility in services and a willingness to collaborate closely with you to meet your design specifications.

Turnaround Time

Consider the fabricator’s ability to meet your timeline. Reliable and prompt delivery is crucial, especially if the project is time-sensitive. Understand their production capacity and scheduling to ensure they can deliver on time without compromising quality.

Cost-Effectiveness

While cost should not be the sole deciding factor, it is important to get value for your money. Compare quotes from different fabricators, but also consider what is included in those costs, such as additional services like finishing and assembly.

Communication and Service

Good communication is key to any successful project. Choose a fabricator who is responsive and communicative. They should be easy to contact, willing to answer questions, and capable of providing updates throughout the fabrication process.

Location

The location of the fabricator can impact lead times and shipping costs. A local fabricator might offer faster delivery and lower shipping costs, but also consider international fabricators if they offer significant cost savings or specialized services.

Customer Feedback and References

Finally, look at reviews or ask for references to gauge the fabricator’s reliability and customer service. Feedback from past clients can provide insights into their strengths and weaknesses, helping you make a more informed decision.

Conclusion

If you’re seeking expert guidance and high-quality sheet metal box fabrication, don’t hesitate to reach out. Our experienced team is ready to turn your specifications into top-notch products tailored to your needs. Contact us today to discuss your project and see how we can assist you!

FAQ

What materials can be used for sheet metal boxes?

Steel, stainless steel, aluminum, brass, and copper are commonly used, each offering unique benefits like durability and corrosion resistance.

How long does it take to fabricate a sheet metal box?

The timeline can vary based on complexity, material availability, and production capacity, but we strive to meet all client timelines efficiently.
