Sheet Metal Forming 101

Sheet metal forming is a cornerstone of modern manufacturing, transforming flat metal sheets into intricate parts and components. It’s an art as much as a science, blending technique, precision, and innovation to meet a broad spectrum of industrial needs.

If you’re wondering why this should matter to you, consider the ubiquity of sheet metal parts in everything from household appliances to aerospace components. Let’s dive deeper into this fascinating world and unravel the mysteries of sheet metal forming together.

What is Sheet Metal Forming?

Sheet metal forming, also called sheet metal fabrication, is a transformative manufacturing process that involves shaping and bending flat sheets of metal into desired geometries and structures. This technique leverages various mechanical forces to alter the metal’s shape without removing material. Its applications span numerous industries, demonstrating its fundamental role in modern manufacturing.

The beauty of sheet metal forming lies in its simplicity and versatility. Manufacturers can produce components with high precision and efficiency by employing methods such as bending, stretching, and pressing. This adaptability makes sheet metal forming invaluable for creating parts ranging from simple brackets to complex automotive bodies, showcasing its broad applicability and importance.

Advantages and Disadvantages of Sheet Metal Forming

Sheet metal forming is a pivotal manufacturing process with a myriad of applications across industries. It offers unique benefits and faces certain limitations, as outlined in the table below:

How Does Sheet Metal Forming Work?

Sheet metal forming is a dynamic process that manipulates metal into specific shapes through mechanical deformation without altering the material’s mass or cohesion. At its core, this process involves various techniques to bend, stretch, and compress metal sheets. The choice of method depends on the desired outcome, whether a simple bend or a complex geometric shape. Utilizing tools and machines, such as presses and dies, the metal is coerced into new forms, adhering to precise specifications and tolerances outlined in design plans.

This systematic approach enables the production of a wide array of parts and components essential across industries. By leveraging computer-aided design (CAD) and computer-aided manufacturing (CAM) technologies, the process achieves high levels of accuracy and repeatability. The integration of these technologies facilitates the seamless translation of digital designs into physical parts, ensuring each piece meets the rigorous standards required by today’s diverse applications.

Types of Sheet Metal Materials

Selecting the suitable material is crucial in sheet metal forming, as it directly impacts the final product’s manufacturability, durability, and application.

Aluminum stands out for its excellent strength-to-weight ratio, making it ideal for aerospace, automotive, and consumer electronics applications. It’s lightweight yet strong, and its natural corrosion resistance adds to its appeal for outdoor or harsh environment uses.

Mild Steel (Low Carbon Steel): Contains approximately 0.05% to 0.25% carbon, making it malleable and easy to form. It’s commonly used for automotive body panels, construction materials, and everyday objects due to its excellent weldability and formability.

High Strength Low Alloy (HSLA) Steel: Engineered to provide better mechanical properties or more excellent resistance to corrosion than carbon steel. HSLA steels are not defined by their alloying elements or composition but by their mechanical properties. They are used in cars, trucks, cranes, bridges, and structures where weight reduction or durability is essential.

Galvanized Steel: Steel coated in a layer of zinc to prevent rusting. While the zinc coating offers corrosion resistance, the underlying steel retains its strength and formability. Galvanized steel is widely used in outdoor applications, automotive parts, and construction materials.

Pre-coated or Pre-painted Steel: Steel sheets coated with protective and decorative finishes before forming. These materials are used in applications where the strength of steel and specific aesthetic or environmental resistance qualities are required, such as in appliances, automotive exteriors, and building panels.

Stainless Steel: Known for its corrosion resistance, stainless steel is ideal for use in environments exposed to moisture or chemicals. It contains chromium, nickel, and other alloying elements. The most common grades for sheet metal forming include 304 and 316, with 316 having more excellent corrosion resistance due to adding molybdenum.

Copper’s thermal conductivity and natural antimicrobial properties also make it suitable for heat exchangers and medical equipment.

Brass, an alloy of copper and zinc, is easy to machine and offers a visually appealing, gold-like finish.

Fundamental Processes in Sheet Metal Forming

Bending

Bending involves applying force to a sheet metal piece to bend it at a specific angle and radius, creating V, U, or channel shapes. Bending is crucial for manufacturing components with geometric precision and is widely applied in creating brackets, enclosures, and frames.

The process requires careful consideration of the material’s properties, such as thickness and type, to avoid defects like cracking or springback, where the material attempts to return to its original shape.

The bending operation can be performed using various tools and machines, including press brakes, folding machines, and even automated robotic systems. The choice of equipment depends on the bend’s complexity, the production volume, and the precision required.

Press brakes, for instance, are highly versatile and can produce a wide range of bend angles and lengths with high accuracy. The tooling setup, including the punch and die selection, is tailored to the specific bending operation and material characteristics.

Tool wear and the bending force required are critical considerations in the bending process. High-strength materials or complex bending operations may increase tool wear and necessitate more frequent maintenance or replacement of tools. Manufacturers must balance the tooling material and design with the sheet metal’s properties to ensure efficient and accurate bending operations.

Deep Drawing

Deep drawing is a specialized sheet metal forming process used to create parts with a depth greater than their diameter. This technique pulls a sheet metal blank into a forming die by a mechanical punch, creating a cylindrical or box-shaped part. Deep drawing is commonly used to manufacture components like pots, pans, sinks, and automotive parts, requiring a seamless base and sides.

The success of deep drawing depends on several factors, including the material’s flexibility, the die design, and the lubrication used during the process. Materials with high flexibility, such as aluminum and soft steel grades, are ideal for deep drawing because they can stretch without breaking. The design of the die and the clearance between the punch and die are critical for controlling the flow of the material and preventing defects such as wrinkling or tearing.

Lubrication is crucial in deep drawing by reducing friction between the workpiece and the tooling. Proper lubrication helps prevent tears and scratches on the drawn part’s surface and extends the tooling’s life. The choice of lubricant varies based on the material being formed and the specifics of the deep drawing process.

Punching

Punching is a process in sheet metal forming where a punch and die are used to create holes or cutouts in a piece of sheet metal. This action is similar to a paper puncher but on a much larger scale and for metal. The punch press forces the punch, a stiff metal rod with a specific shape, through the sheet metal into a die, a cavity that matches the punch’s shape. This shearing action removes a portion of the material, creating a hole that corresponds precisely to the shape of the punch.

This method is highly efficient for rapidly creating holes of various shapes and sizes, making it ideal for high-volume production. Punching is commonly used in applications ranging from simple washer creation to complex electrical and automotive components requiring precise hole patterns. The process’s efficiency comes from its speed and ability to produce clean, consistent holes with smooth edges, assuming the tooling is maintained correctly.

Stamping

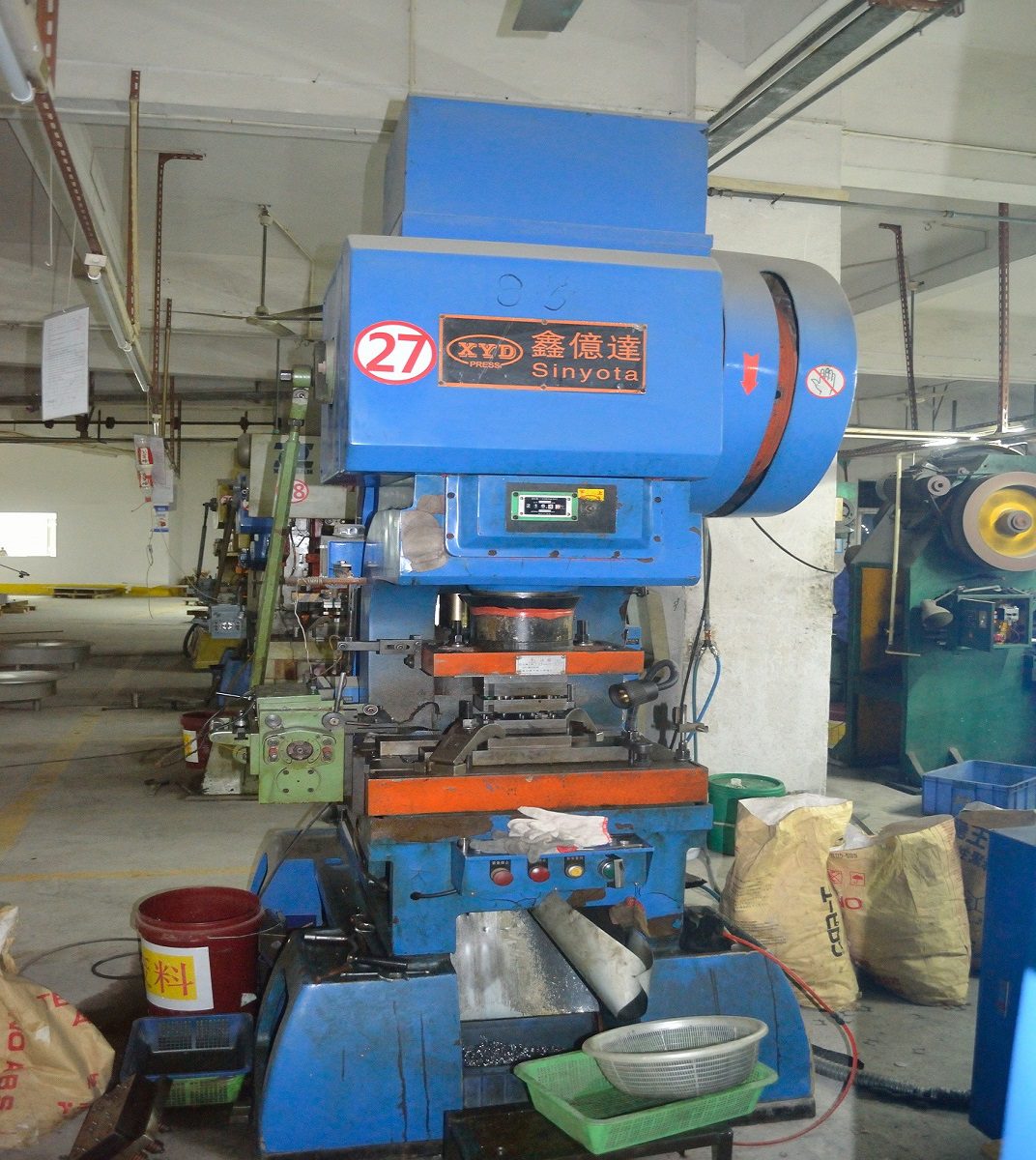

Stamping, also known as pressing, involves placing flat sheet metal in either blank or coil form into a stamping press where a tool and die surface form the metal into a net shape. Stamping includes various sheet-metal forming manufacturing processes, such as punching, blanking, embossing, bending, flanging, and coining. This could be a single-stage operation where every stroke of the press produces the desired form on the sheet metal part, or it could occur through a series of stages.

Sharing

Shearing is a cutting process that cuts straight lines on flat sheet metal. It involves two blades—one fixed and one moving—coming together like scissors to cut the material. The shearing process is characterized by its ability to produce clean, straight-line cuts with high precision and minimal waste. It’s a fundamental process in the sheet metal industry, commonly used to cut large sheets into smaller pieces before they undergo further processing.

The primary advantage of shearing is its simplicity and efficiency. It’s particularly effective for preparing materials for other manufacturing processes, such as stamping or welding. Shearing machines, or shears, come in various sizes and capacities, tailored to different thicknesses and types of metal. Despite its straightforward operation, shearing requires careful blade gap and alignment control to ensure clean cuts and prolong tool life.

However, shearing is limited to straight cuts and cannot produce the intricate shapes or curves that other cutting processes, like laser cutting, can achieve. Additionally, the shearing action may introduce minor deformations along the cut edge, such as burrs, which might require additional finishing processes to remove.

Laser Cutting

Laser cutting uses a high-powered laser beam focused onto the material’s surface to melt, burn, vaporize, or blow away the molten material with a gas jet, leaving a high-quality finish on the cut edge. The laser beam is directed at the material through optics and computer numerical control (CNC) to produce intricate cuts and complex shapes that would be difficult or impossible to achieve with traditional mechanical cutting methods.

Laser cutting is highly versatile, capable of cutting various materials, including metals, plastics, and composites, with incredible accuracy and detail. The process is clean, contactless, and has a tiny heat-affected zone, reducing the possibility of material deformation or alteration. This precision allows for tight nesting of parts on the sheet, maximizing material utilization and reducing waste.

Despite its many advantages, laser cutting has limitations, including higher operational costs than traditional methods, especially for thicker materials. The initial investment in laser cutting equipment can be significant, though the benefits of increased efficiency, speed, and precision often justify the cost for many manufacturers. Laser cutting technology continues to evolve, with advancements in laser power, control, and efficiency opening up new possibilities for fabrication and design in sheet metal forming.

Roll Forming

Roll forming is a continuous bending operation in which a long strip of sheet metal (typically coiled steel) is passed through sets of rolls mounted on consecutive stands, each performing only an incremental part of the bend until the desired cross-section profile is obtained. Roll forming is ideal for producing consistent, precise, and complex profiles that are long and in large quantities. The process is highly efficient for mass production, as the setup time is relatively long, but the running time per part is very short.

This method is widely used for manufacturing components used in construction (like roofing and wall panels), automotive industries (such as door frames and bumpers), and metal furniture (like shelving and desks). The advantages of roll forming include excellent surface finish, uniform cross-section, and high production rates. Since the process is continuous, there is minimal material waste, making it a cost-effective choice for high-volume production.

One of the primary considerations in roll forming is the design of the rolls, which must be precisely engineered and manufactured to ensure the metal is formed accurately without defects. Though the initial setup and tooling costs can be high, the efficiency and speed of production can offset these expenses over large production runs.

Spinning

Spinning, also known as metal spinning or spin forming, is a metalworking process where a disc or tube of metal is rotated at high speed and formed into an axially symmetric part using a CNC or manually controlled lathe. The spinning process can be performed on materials such as aluminum, stainless steel, and copper and is commonly used to produce items like kitchen funnels, gas cylinders, and decorative parts.

In spinning, the preformed metal blank is mounted on a spinning lathe. A forming tool, often made of hardened steel or wood, is pressed against the blank. As the lathe spins, the tool applies pressure to the workpiece, causing it to deform and take the tool’s shape. Spinning can be done in either a hot or cold state, depending on the material’s properties and the intricacy of the desired shape.

Spinning is praised for its ability to produce seamless parts with high strength and without the need for welding or joining. The process is also highly versatile, allowing for creating complex shapes with minimal tooling costs compared to other forming methods. However, spinning is generally more suited for low to medium-volume production due to the manual labor involved, though automation in the form of CNC technology has made it more competitive for higher-volume runs.

Water Jet Cutting

Water jet cutting is a versatile and precise method of cutting a wide range of materials using a high-pressure jet of water or a mixture of water and abrasive substances, such as garnet. This process can slice through materials such as metals, stones, ceramics, and composites with precision and minimal heat generation, making it ideal for materials that are sensitive to high temperatures.

One of the key advantages of water jet cutting is its ability to cut materials without altering their intrinsic properties, as the process does not generate significant heat that could warp or change the material. It’s also renowned for its precision, making cuts with tight tolerances and smooth finishes, which might eliminate the need for secondary finishing processes.

Water jet cutting can create intricate designs and cutouts in materials of varying thicknesses, offering flexibility unmatched by many traditional cutting methods.

The technology behind water jet cutting involves generating a high-pressure stream of water, which can exceed pressures of 50,000 pounds per square inch (PSI). An abrasive material is added to the water stream to enhance its cutting capability when cutting more rigid materials. The primary considerations in water jet cutting include the cost of operation, especially when using abrasive additives, and the slower cutting speed compared to methods like laser cutting, mainly when working with thicker materials.

Curling

Curling is a sheet metal forming process that smooths out sharp edges and creates a safe edge for handling. This technique involves bending the edge of a sheet metal part towards itself to form a cylinder or rolled edge. Curling enhances the structural rigidity of the part, prevents cuts from sharp edges, and can improve aesthetics. It is commonly applied to parts that will be handled frequently or require a finished appearance, such as handles, enclosures, and various consumer products.

The curling process can be performed using specialized tools and dies in a stamping press or with a roll-forming machine for longer, continuous edges. The key to successful curling is controlling the material flow during bending to avoid wrinkles or splits in the curled edge, ensuring a uniform and smooth finish.

Curling not only improves safety and aesthetics but also contributes to the part’s structural integrity by adding stiffness and reducing material flex. This can be particularly beneficial in applications where the part’s mechanical strength is considered. As with other forming processes, the specific characteristics of the sheet metal, such as thickness and material type, must be taken into account to achieve optimal results in curling.

Design Considerations for Sheet Metal Parts

Designing sheet metal parts requires careful consideration of both the capabilities and limitations of the sheet metal forming processes, as well as the specific requirements of the final product. Understanding these considerations can significantly impact sheet metal components’ manufacturability, functionality, and cost-effectiveness. Here are key design considerations for sheet metal parts:

Material Selection

• Choose the appropriate material based on the part’s application, considering factors like strength, flexibility, corrosion resistance, weight, and cost. Different materials also react differently to bending, cutting, and forming processes.

Thickness

• Account for the metal’s thickness in your design. Thickness affects bending radii, the force required for forming, and the part’s overall strength and rigidity. It’s essential to select a thickness that the forming equipment can handle and that meets the part’s functional requirements. Usually, the material thickness is 0.5-10mm.

Bend Radii

• Incorporate suitable bend radii to avoid material cracking or excessive thinning. The minimum bend radius should be equal to the material thickness, though this can vary depending on the material and the specific process used.

Holes and Cutouts

• Position holes and cutouts away from bends to maintain structural integrity. A general rule is to place holes at least two times the material thickness plus the bend radius away from bends. This spacing helps prevent deformation or tearing near holes during the bending process.

Flanges and Tabs

• Design flanges and tabs with proper dimensions. Flanges should be at least four times the material thickness in height to ensure accurate forming without interference. Tabs used for features like screw holes or assembly alignment should also adhere to minimum size guidelines to prevent distortion.

Joining Methods

• Consider the assembly and joining methods early in the design process. Welding, riveting, screwing, and other fastening methods have specific requirements that should influence the part design, such as adding flanges for welding or tabs for screws.

Tolerances

• Specify tolerances carefully. Tight tolerances increase manufacturing complexity and costs. Understand the standard tolerances achievable with sheet metal forming and design within those limits whenever possible.

Cost Considerations

• Design for manufacturability (DFM) to minimize costs. Simplifying part geometries, reducing the number of bends or operations, and optimizing nesting on the sheet can all contribute to cost savings. Consider the trade-offs between part complexity and tooling or processing costs.

Finishing Processes

• Account for finishing processes like painting, powder coating, or plating in your design. These processes can add thickness to the part and may require additional considerations for dimensions and tolerances.

Applications of Sheet Metal Forming

It’s used for body panels, frames, and engine parts in the automotive sector, ensuring durability and performance.

Aerospace applications include airframe structures and detailed components, where precision and strength are paramount.

Electronics benefit from precision enclosures and chassis, while construction relies on sheet metal for roofing, siding, and HVAC components.

Medical devices also utilize sheet metal for surgical instruments and equipment, showcasing the process’s broad applicability and critical role in manufacturing.

Conclusion

Sheet metal forming is a cornerstone of manufacturing, blending innovation with tradition to meet the diverse needs of today’s industries. Whether your project demands precision, flexibility, or sheer strength, we have the expertise and technology to bring your vision to life. Make sure to keep your ideas intact; contact us today to discuss your needs and get a quote. Your next project’s success begins with the right partnership.

FAQ

Is Sheet Metal Forming Expensive?

No. For high-volume production runs, sheet metal forming is often cost-effective due to economies of scale, as the initial costs of tooling and setup are spread over more significant parts.

However, the costs can be higher for low-volume or highly complex parts due to the specialized tooling and additional labor required. Advances in technology, such as CAD and CNC machinery, have helped to reduce costs by improving efficiency and reducing waste.

Which Materials Are Not Suitable for Sheet Metal Forming?

Cast iron and tool steels may not be practical for conventional sheet metal forming techniques.
