Sheet Metal Notching 101: Definition, Types, Working Process

Imagine this: You’re working on a critical sheet metal project, and everything is going smoothly until you realize you need a precise cut in a tight corner. Stress hits, deadlines loom, and you start scrambling for a solution. Don’t worry! Notching is here to save the day.

Sheet metal notching is a fabrication process where cuts are made into the edge of a sheet to create precise shapes, angles, or designs. This technique improves efficiency, minimizes waste, and ensures accuracy in parts production.

Sounds interesting, right? Let’s dive deeper into the world of sheet metal notching and explore its essentials.

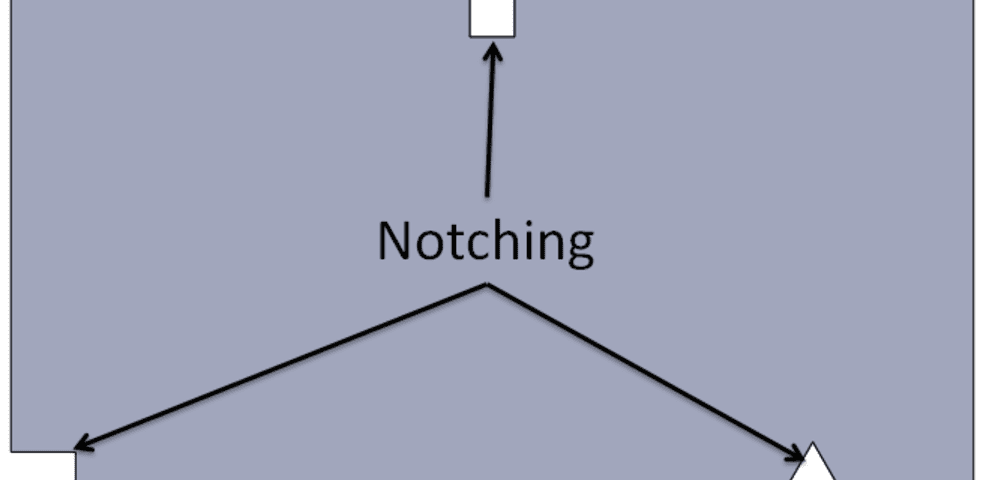

What is Sheet Metal Notching?

Sheet metal notching is the art of cutting or removing specific sections from the edges of a sheet. It’s a process often used in industries like automotive, aerospace, and construction to create detailed and functional designs.

The beauty of notching lies in its versatility. It can create anything from complex joints to decorative finishes, all while maintaining high precision. Whether you’re crafting brackets or assembling chassis components, notching gets the job done.

Advantages and Disadvantages of Sheet Metal Notching

Like every process, sheet metal notching comes with its own set of perks and challenges. Let’s take a closer look at both sides of the coin.

Advantages

1. Precision and Accuracy
   Notching provides clean and precise cuts, essential for creating intricate designs and tight joints. It’s perfect for projects demanding high accuracy.
2. Flexibility
   The process can handle various materials, thicknesses, and designs, making it adaptable for numerous industries. Whether it’s mild steel, aluminum, or stainless steel, notching has you covered.
3. Cost-Efficient
   By reducing material waste, notching saves on costs. It also minimizes the need for secondary operations, speeding up production timelines.
4. Enhanced Design Options
   Notching allows for more creative freedom, enabling the creation of complex shapes and designs that would be challenging with other methods.

Disadvantages

1. Material Limitations
   Thicker or harder materials might strain tools and require more effort, potentially increasing costs for such projects.
2. Tool Wear and Maintenance
   Notching tools undergo significant wear and tear, necessitating regular maintenance and replacement. This can impact operational budgets.
3. Skill Requirement
   Achieving optimal results requires skilled operators and advanced machinery, which might not always be readily available.
4. Restricted Applications
   Notching is primarily limited to edge operations. For internal cuts or features, other methods like laser cutting or punching are often more suitable.

Types of Sheet Metal Notching

Sheet metal notching isn’t a one-size-fits-all process. Depending on your design needs and material specifications, different types of notching come into play. Let’s explore the most common ones.

1. V-Notching

• What it is: A notch shaped like the letter “V” is cut into the sheet metal.
• Best for: Creating sharp corners or precise angles, often used in box-making or chassis assembly.
• Advantages: High precision, suitable for forming corners.

2. Straight-Line Notching

• What it is: Cuts made in a straight line along the edge of the metal sheet.
• Best for: Simplistic designs, adjusting sheet dimensions, or preparing parts for welding.
• Advantages: Quick and easy, ideal for straightforward applications.

3. Corner Notching

• What it is: Removing material at the corner of a sheet.
• Best for: Creating square or rectangular notches, perfect for assembling frames or joints.
• Advantages: Ideal for preparing sheets for assembly, reduces stress in joint areas.

4. Compound Notching

• What it is: A combination of multiple notches, often involving V- and corner notches together.
• Best for: Complex designs requiring intricate cuts and multiple angles.
• Advantages: Versatility for sophisticated assemblies.

5. Turret Notching

• What it is: Performed using a turret punch machine, offering quick and repeatable notches.
• Best for: High-volume production where speed is critical.
• Advantages: Automation reduces errors, improves efficiency for repetitive tasks.

6. Angular Notching

• What it is: Angled cuts made into the sheet, often for decorative purposes or specialized fits.
• Best for: Creating design elements or ensuring custom fits in assemblies.
• Advantages: Adds flexibility for unique designs.

7. Offset Notching

• What it is: Cutting sections in a way that offsets one layer from another, often in multi-layered sheets.
• Best for: Creating layered components or ensuring interlocking fits.
• Advantages: Enhanced structural integrity for complex assemblies.

How Sheet Metal Notching Process Works

Once the metal sheet is in place and the machine settings are correctly adjusted, the actual notching process begins. Here’s an in-depth look at how the process unfolds:

Step 1: Initiating the Cut

The machine activates, and the selected tool (punch, blade, or other cutting implement) approaches the sheet metal. This tool is typically tailored to the type of notch required—whether it’s a V-shape, straight line, or any other form.

Step 2: Applying Force

With precision, force is applied through the tool onto the sheet metal. The amount of force depends on the material thickness and the hardness. For tougher materials, more force is needed to ensure a clean cut without burrs or deformation.

Step 3: Cutting the Notch

As the tool makes contact with the metal, it begins to cut into the material, following the pre-set path defined in the machine’s programming. This path ensures that the notch is made at the exact location and in the exact shape required.

Step 4: Completing the Operation

Once the cut is made, the tool retracts, and the metal sheet is released from its clamps or holding mechanism. The result is a neatly notched piece of sheet metal, ready for further processing or assembly.

Step 5: Inspection and Finishing

The notched metal is then inspected for quality. Any necessary deburring or finishing processes are applied to ensure the notch edges are smooth and meet the project’s specifications. This step is crucial for maintaining quality and ensuring the component fits perfectly in its designated assembly.

Efficiency and Precision

This notching process is highly efficient, allowing for rapid production of multiple pieces with consistent quality. Precision engineering and advanced machinery collaborate to minimize waste and maximize productivity, ensuring that each notch contributes to the overall functionality and aesthetic of the final product.

Sheet Metal Punching and Notching Operation Comparison

Below is a table that compares the key aspects of sheet metal punching and notching operations to help understand their differences and applications:

This comparison helps clarify when to choose punching or notching for specific tasks in sheet metal fabrication. Both methods are essential but serve best under different conditions and requirements.

Design Guidelines of Sheet Metal Notching

When designing for sheet metal notching, several key guidelines ensure functionality and manufacturability. Here are essential factors to consider regarding the width and depth of notches, along with other important design considerations:

Width and Depth Considerations

1. Minimum Width
   The minimum width of a notch should be at least equal to the thickness of the material or 1.0 mm, whichever is greater. This guideline helps avoid structural weaknesses.
2. Maximum Depth
   The depth of a notch should not exceed five times the thickness of the sheet metal. Deeper notches can compromise the integrity of the material and lead to deformation or cracking.
3. Width-to-Depth Ratio
   Maintain a balanced width-to-depth ratio to ensure structural stability. A ratio of 1:3 is commonly used as a rule of thumb.

Additional Design Tips

1. Notch Location
   Place notches away from bends and other critical stress points to prevent material weakening and potential failure.
2. Notch Shape
   Rounded corners are preferable to sharp angles in notches. Rounded corners distribute stress more evenly and reduce the risk of cracks.
3. Tool Clearance
   Ensure there is adequate clearance for the notching tool to perform without interference, which helps in maintaining the precision of the notch.
4. Symmetry
   When possible, design symmetrical notches to simplify the manufacturing process and reduce tooling costs.
5. Material Selection
   Choose materials that can withstand the notching process without significant wear or deformation. Materials with good ductility and lower hardness are typically easier to notch cleanly.
6. Kerf Consideration
   Account for the kerf, the amount of material removed during the cutting process, to ensure the final dimensions meet design specifications.
7. Testing and Prototyping
   Test the design with actual materials and notching processes to validate the design guidelines and adjust based on real-world results.

By adhering to these design guidelines, you can optimize the notching process to achieve high-quality, durable, and precise components, ensuring that the final products meet both functional and aesthetic requirements efficiently.

Conclusion

Interested in precise and efficient sheet metal notching for your projects? Contact us today to discuss how we can support your manufacturing needs with our advanced notching solutions. We’re here to help streamline your production and ensure top-quality results.

FAQ

Q: What materials can be processed with sheet metal notching?
A: We can notch a variety of materials, including steel, stainless steel, aluminum, and more, depending on your project requirements.

Q: How long does the notching process take?
A: The time required varies based on the complexity and volume of the parts. We strive to optimize the process for speed without compromising quality.

Q: Is there a minimum order quantity for notching services?
A: We offer flexible order quantities, from small batches to large-scale production runs, tailored to your needs.

Q: Can you provide custom notching shapes?
A: Absolutely! We specialize in custom solutions to meet unique design specifications and functional requirements.

Q: How do you ensure quality in the notching process?
A: Our facility uses state-of-the-art machinery and strict quality control procedures to ensure every notch meets our high standards.
