Small Batch CNC Machining 101: Everything You Need to Know

In today’s fast-paced market, businesses constantly seek efficient ways to reduce costs while maintaining high-quality production standards. This is where small batch CNC machining comes into play.

In essence, small batch CNC machining refers to the process of producing a small number of parts (typically between 1 to 100 pieces) using CNC machines. This method is highly beneficial because it allows for flexibility in production, faster turnaround times, and significant cost savings on setup. Additionally, it’s an excellent way for businesses to prototype new designs without committing to large-scale production.

To keep you hooked, let’s dive deeper into why small batch CNC machining is becoming a cornerstone in modern manufacturing strategies.

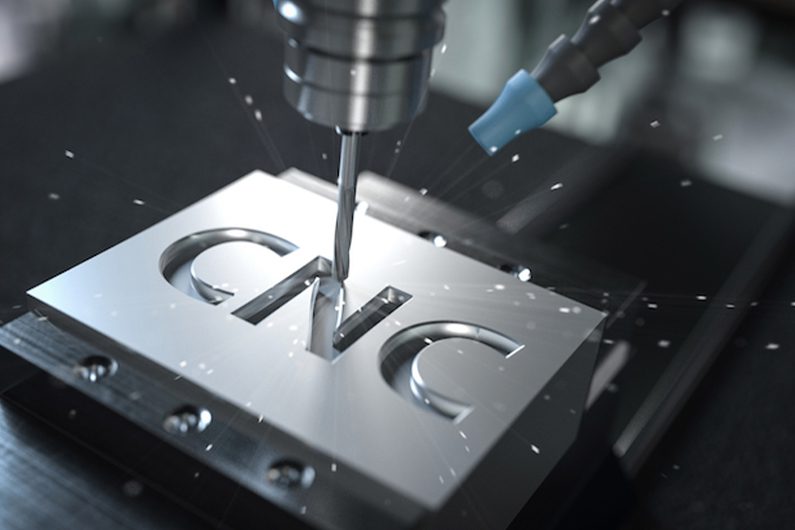

What is Small batch cnc machining?

Small batch CNC machining involves the production of limited quantities of components, typically between 1 to 100 units, using computer numerical control (CNC) technology. This process is ideal for prototypes, custom projects, and low-volume production, offering precision and flexibility without the high costs associated with large-scale manufacturing.

Advantages of Small Batch CNC Machining

Small batch CNC machining offers several key advantages that make it attractive for a variety of industries:

1. Cost-Effectiveness: Reduces the financial burden of large-scale production setups, making it more affordable to manufacture high-quality parts in lower quantities.
2. Flexibility: Allows for frequent modifications and optimizations in the design process without significant cost implications, providing a competitive edge in product development.
3. Speed: Enables quicker turnaround times from design to production, which is crucial for meeting tight deadlines and fast-paced market demands.
4. Quality: Ensures high precision and consistent quality even in complex parts, crucial for industries where accuracy is paramount, such as aerospace and medical devices.
5. Testing and Validation: Facilitates the testing of prototypes or new designs before committing to mass production, reducing the risk of costly errors or design flaws.
6. Customization: Supports the production of customized or bespoke parts tailored to specific requirements, enhancing product uniqueness and customer satisfaction.

Types of Small Batch CNC Machining

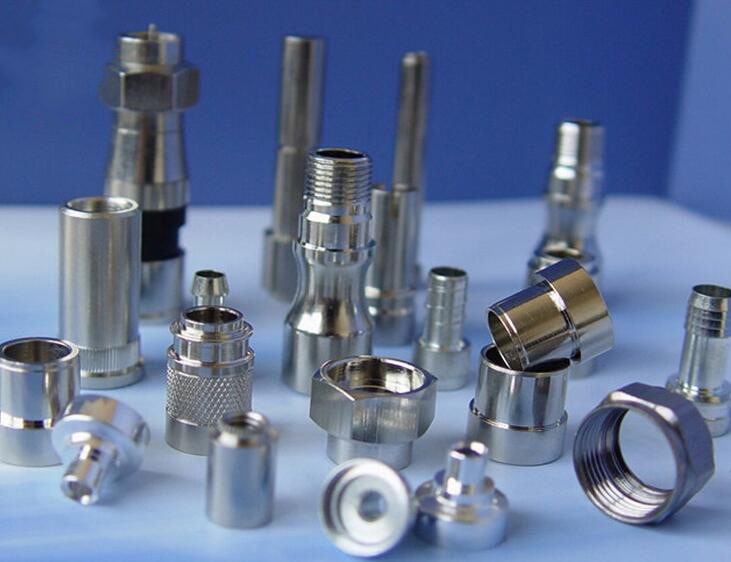

CNC Turning

CNC turning involves rotating a workpiece while a cutting tool moves in a linear fashion. This process is ideal for creating cylindrical parts and is renowned for its precision and efficiency. It’s frequently used for small batch production of components like shafts, knobs, and bushings.

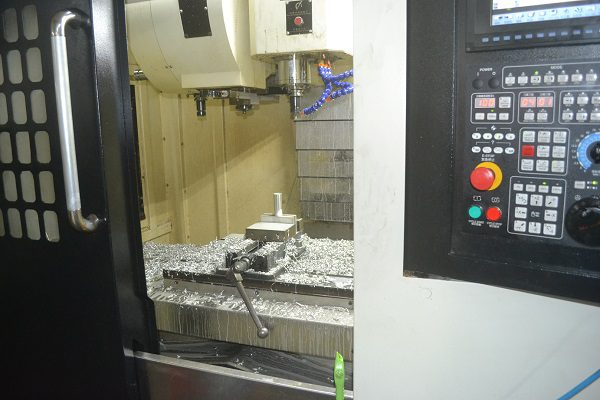

CNC Milling

CNC milling utilizes rotary cutters to remove material from a workpiece. It’s highly versatile and can produce complex shapes and features such as slots, holes, and contours. Milling is perfect for small batches of custom parts, particularly in industries where complex, three-dimensional shaping is required.

CNC Drilling

CNC drilling is used to produce round holes in a workpiece using a rotating drill bit. This method is often integrated into small batch machining processes to enhance the functionality of milled or turned parts, such as creating through holes for fasteners or venting in a housing.

Sinker EDM Machining

Sinker EDM (Electrical Discharge Machining) involves using electrical discharges to machine complex shapes in hard metals. It’s ideal for producing intricate molds, dies, and precision components that are challenging to machine using traditional methods. This technique is particularly useful for small batches where high precision is essential.

Wire EDM Machining

Wire EDM machining uses a thin wire as an electrode to cut a programmed contour in a workpiece. This process is highly accurate and can cut very hard materials, making it suitable for manufacturing detailed and extremely precise parts like stamps, gears, and other intricate components. It’s excellent for small batch runs where complex, fine details are required.

Surface Grinding

Surface grinding is a machining process that involves using a grinding wheel to achieve a smooth finish on the flat surface of a workpiece. This method is especially useful in achieving high precision and smoothness on metal parts. It’s commonly used in small batch production for creating parts with high dimensional accuracy and fine surface finishes, such as machine tool beds, fixtures, and custom tooling.

3-Axis CNC Machining

3-Axis CNC machining is characterized by the movement of the cutting tool along three axes (X, Y, and Z). This type of machining is highly efficient for parts that require operations from three directions, such as slots, milling, and drilling. It’s suitable for both flat and contour surfaces, making it versatile for small batch production of various components.

4-Axis CNC Machining

4-Axis CNC machining adds a rotary axis to the standard 3-axis setup, allowing the workpiece to be rotated, which enables multi-sided machining without repositioning. This capability is ideal for creating more complex geometries in small batches, such as cams, brackets, and intricate molds, offering more precision and reducing setup times.

5-Axis CNC Machining

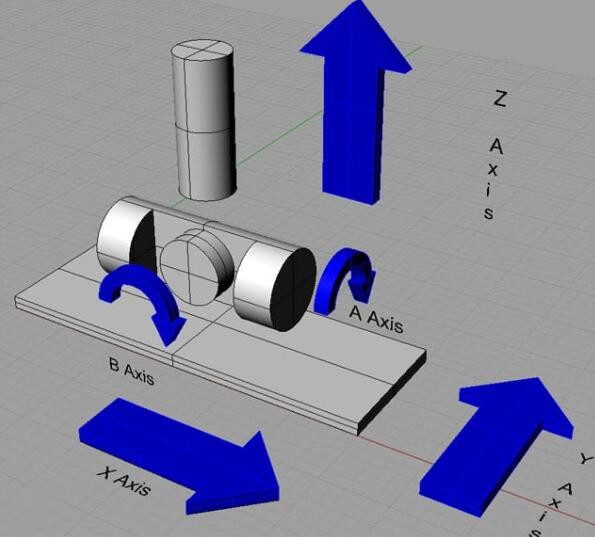

5-Axis CNC machining involves simultaneous movement along five different axes. This advanced machining capability allows for the machining of extremely complex parts from virtually any angle, with high precision and excellent finish. It’s particularly beneficial for aerospace components, automotive parts, and intricate tooling in small batch runs. The ability to work on multiple facets of a part in a single setup reduces the production time and increases the accuracy of the finished product.

What Types of Materials are Used for Small Batch CNC Machining?

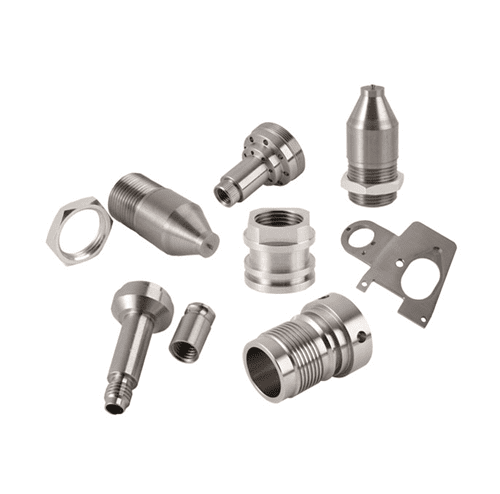

Metals

1. Aluminum
   One of the most popular materials due to its lightweight, corrosion resistance, and ease of machining. It’s used in a variety of industries, including aerospace, automotive, and electronics.
2. Stainless Steel
   Known for its strength and resistance to corrosion, stainless steel is ideal for parts that require durability and resistance to harsh environments, such as medical devices and machinery.
3. Titanium
   With an excellent strength-to-weight ratio and high resistance to heat and corrosion, titanium is used in industries like aerospace and medical implants. It’s challenging to machine, but with the right equipment, it delivers exceptional results.
4. Brass and Copper
   These non-ferrous metals are prized for their excellent machinability and conductivity. Brass is commonly used for electrical components, while copper is frequently used for heat exchangers and electrical connectors.

Plastics

1. Acrylic (PMMA)
   A lightweight, transparent plastic often used for visual applications such as displays and signage. Acrylic is easy to machine and offers excellent clarity.
2. Polycarbonate
   Known for its high impact resistance and optical clarity, polycarbonate is used in applications requiring both durability and transparency, such as lenses and protective covers.
3. Nylon
   A strong, wear-resistant plastic commonly used for gears, bushings, and bearings. Its low friction properties make it ideal for moving parts.
4. Delrin (Acetal)
   A durable, low-friction plastic that excels in precision machining, used for mechanical parts like gears, bushings, and housings.

Composites

1. Carbon Fiber
   Lightweight and strong, carbon fiber composites are ideal for high-performance applications such as automotive parts, sports equipment, and aerospace components. It requires specialized tools due to its abrasiveness.
2. Fiberglass
   Fiberglass composites combine strength and flexibility, making them ideal for a range of industries, from automotive to marine. It’s less expensive than carbon fiber and offers good durability.

Wood

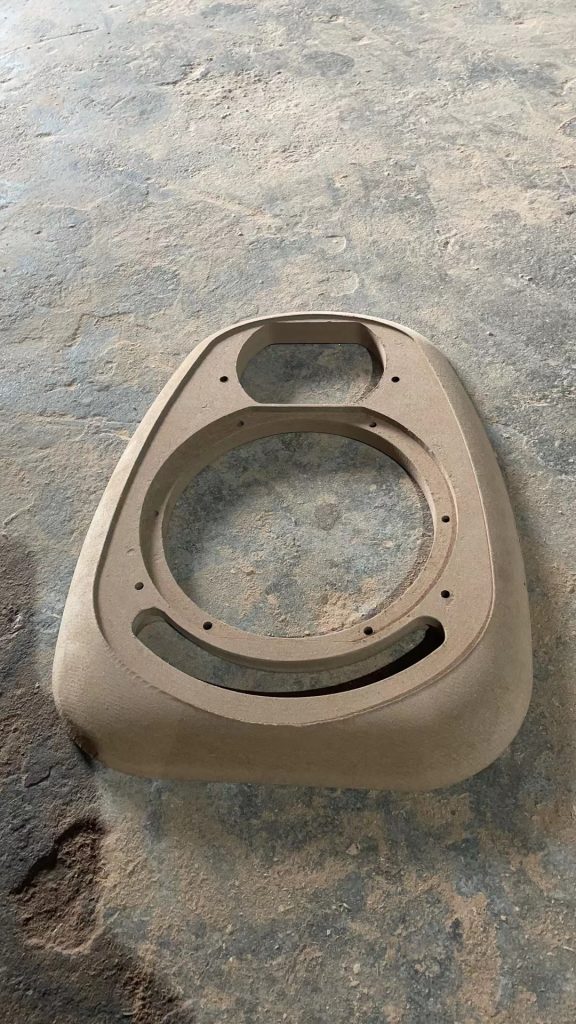

While not as common as metals and plastics, wood is still used in CNC machining, especially for prototypes, custom furniture, and artistic pieces. Hardwood varieties such as oak, maple, and cherry are commonly used for their fine grain and stability.

Foam

Lightweight foams, such as polyurethane or polystyrene, are used for prototyping and packaging. CNC machining can carve complex shapes and precise cuts into foam to create mock-ups or protective casing for fragile items.

Types of Small Batch CNC Machining Finishes

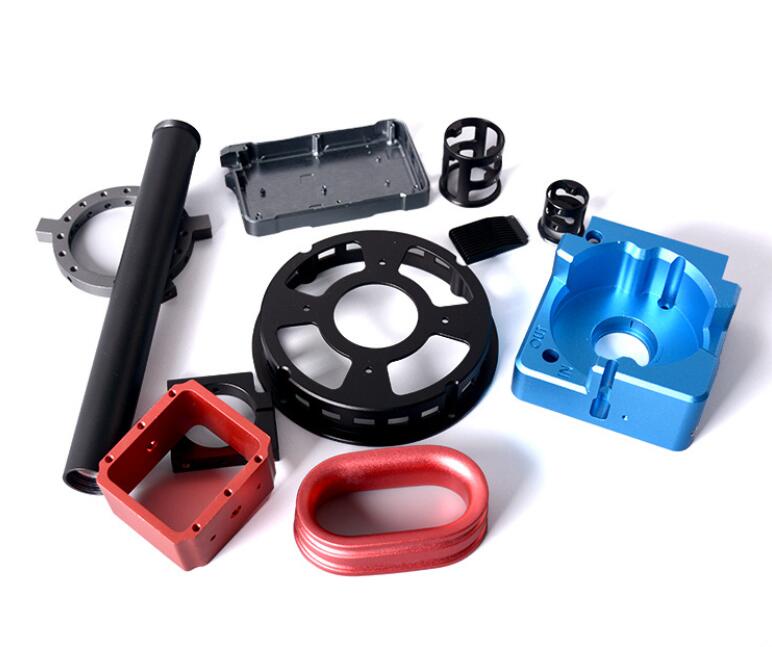

Anodizing

Anodizing is a process that increases corrosion resistance and wear properties through the formation of a hard, protective oxide layer on the surface of metal parts, typically aluminum. It also allows for coloring the part through dyeing the porous anodic film.

Powder Coating

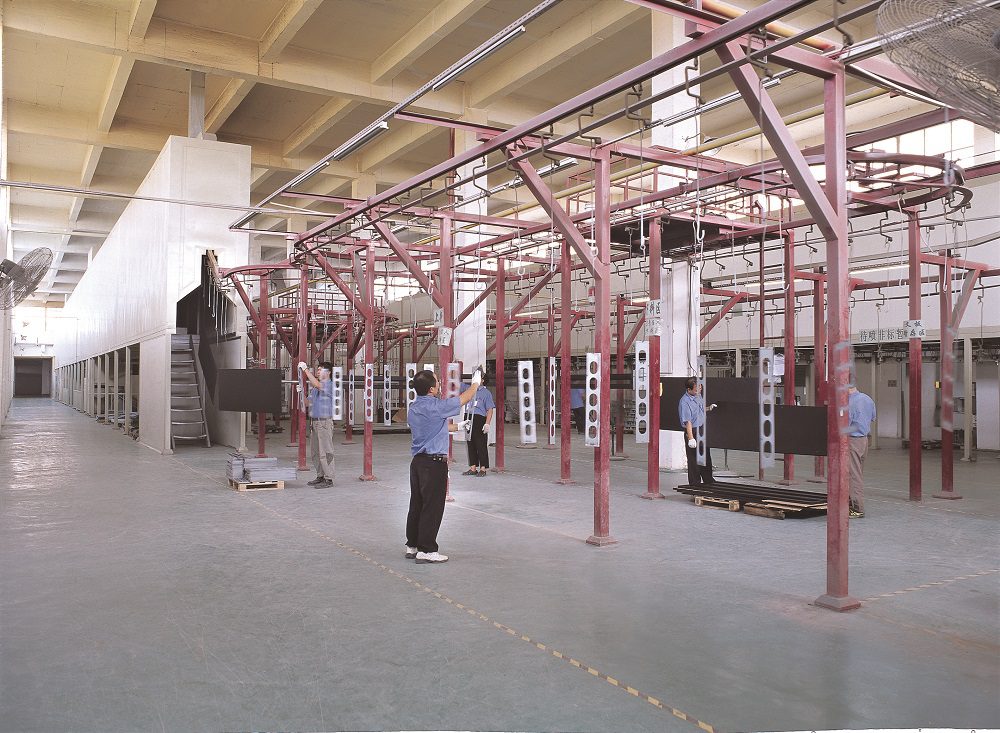

Powder coating applies a free-flowing, dry powder that is typically cured under heat to form a skin-like finish. This finish is much tougher than conventional paint and provides high resistance to chipping, scratching, and other wear. It’s suitable for a variety of metals and offers excellent aesthetic qualities.

Bead Blasting

Bead blasting is a process where small glass beads are blasted at a high pressure against the surface of the part, giving it a uniform matte or satin finish. This is particularly useful for removing surface defects and providing a consistent, cosmetic finish across all parts.

Electroplating

Electroplating involves covering the machined parts with a thin layer of another metal, such as nickel, chrome, or zinc, which can enhance corrosion resistance, increase strength, and improve electrical conductivity.

Brushing

Brushing gives metals a distinctive look with a brushed, directional texture, which is effective at hiding fingerprints and light scratches. It is often used for decorative purposes or to enhance aesthetic appeal.

Polishing

Polishing uses abrasives to create a highly shiny, mirror-like finish, enhancing the appearance of the machined part. It is particularly popular in parts that are visible or need a high-gloss finish.

Black Oxide

Black oxide is a conversion coating used to improve corrosion resistance and minimize light reflection. It is typically used on steel and iron components and offers a mild increase in protection against environmental corrosion.

Design Guidelines for Small Batch CNC Machining

Designing for small batch CNC machining involves several considerations to optimize the process and ensure high-quality outcomes. Here are key guidelines to follow when preparing designs for small batch CNC machining:

1. Minimize Complex Geometries

While CNC machining can handle complex designs, simplifying geometries where possible can significantly reduce machining time and cost. Avoid unnecessary features and consolidate multiple parts into single pieces where feasible.

2. Standardize Hole Sizes

Using standard drill sizes for holes can reduce tool change times and increase efficiency. Whenever possible, design holes to standard sizes that tools can readily produce without requiring custom tooling.

3. Optimize Wall Thickness

Ensure that walls are thick enough to withstand machining without causing deformation or breakage. Conversely, excessively thick walls can increase material costs and machining time. A balanced approach is crucial for efficient machining.

4. Avoid Deep Cavities

Deep cavities in parts can be challenging to machine and may require special tools, which can add to the cost and complexity of production. Design parts to avoid or minimize deep cavities where possible.

5. Consider Machining Allowances

Account for the material that will be removed during the machining process by adding machining allowances. This ensures that the final dimensions meet the design requirements after finishing processes.

6. Utilize Radii

Incorporating radii instead of sharp corners in your design can reduce stress concentrations and improve the strength and durability of parts. It also helps in extending the life of the cutting tools.

7. Design for Assembly

If your part will be assembled with other components, consider the requirements for assembly such as alignment features and tolerances. This helps in avoiding fit issues and facilitates easier assembly.

8. Specify Tolerances Wisely

Clearly specify tolerances that are reasonable but not overly stringent to avoid unnecessary precision that can drive up costs. Balance the need for precision with practical aspects of machining capabilities.

9. Choose Appropriate Finishes

Select finishes that not only enhance appearance but also provide necessary surface protection or functional properties. Consider the end use of the part to determine the best type of finish.

10. Feedback from Machinists

Engage with your machinists or CNC service providers early in the design process. Their expertise can offer practical insights and adjustments that optimize the manufacturability of your parts.

Applications of Small Batch CNC Machining

Small batch CNC machining is utilized across various industries for a wide range of applications. Here are some typical parts produced using this method:

• Prototypes: Test models of new products.
• Custom Parts: Unique components tailored to specific applications.
• Limited Edition Products: Exclusive, short-run items for niche markets.
• Replacement Parts: Components used for maintenance or repair.
• Tooling and Fixtures: Custom tools and assembly fixtures.
• Medical Devices: Components for surgical instruments and diagnostic equipment.
• Aerospace Components: Parts for aircraft and space vehicles.
• Automotive Parts: Custom or high-performance components like gears or brackets.
• Research and Development: Parts used in experimental applications.
• Consumer Electronics: Casings, stands, or functional parts in small quantities.
• Jigs and Assemblies: Guides or assembly aids for manufacturing processes.

What Is the Cost Aspect of Small Batch Machining?

The cost of small batch CNC machining can vary significantly based on several factors:

1. Material Costs

Different materials have varying costs. Metals like titanium and stainless steel are typically more expensive than aluminum or plastics.

2. Complexity of the Design

Complex parts require more intricate setups and possibly special tooling, which can increase the overall cost.

3. Type of Machining Process

Different CNC processes (e.g., turning, milling, 5-axis machining) have different operational costs. More complex machinery generally incurs higher costs.

4. Finishes Required

Additional finishes such as anodizing, plating, or powder coating will add to the cost of the machining process.

5. Tolerances Required

Tighter tolerances demand more precise machining and potentially more quality checks, increasing the cost.

6. Quantity

Although referred to as small batch, the exact number in the batch can affect the cost per unit. Generally, the larger the number of parts in a small batch, the lower the cost per unit due to the spread of setup costs over a larger number of parts.

7. Lead Time

Shorter lead times can drive up costs due to the need for prioritization and additional labor hours.

Conclusion

Small batch CNC machining is an essential tool for businesses seeking precision, flexibility, and cost-effectiveness in low-volume production. If you’re looking for expert machining services, we’re here to help. Contact us today to discuss your project requirements and get high-quality, custom solutions tailored to your needs.

FAQ

1. What is the minimum order for small batch CNC machining?
   The minimum order typically ranges from 1 to 100 parts, depending on the complexity and material requirements.
2. How long does a small batch CNC machining project take?
   Turnaround times vary based on complexity, but we usually complete projects within a few days to a few weeks.
3. Can CNC machining handle custom designs?
   Yes, CNC machining is ideal for custom parts and prototypes, allowing for flexibility in design and material choice.
4. What materials can be used in small batch CNC machining?
   Common materials include metals like aluminum, stainless steel, titanium, and plastics like acrylic, nylon, and Delrin.
5. Is CNC machining cost-effective for small batches?
   Yes, small batch CNC machining is cost-effective as it reduces setup costs and allows for rapid production of custom parts.
