Soft Tooling vs. Hard Tooling: A Complete Comparison

When it comes to the intricate world of manufacturing, especially in a sector as precise as CNC machining, the dilemma of choosing between soft and hard tooling is as common as it is complex. As the CEO of a leading CNC Machining Service, I’ve seen my fair share of decisions pivot on this very choice—decisions that can make or break a product’s journey from conception to the hands of the consumer.

Soft tooling generally refers to less durable tools often used for prototyping or short-run production. In contrast, hard tooling is used for long-run output due to its robustness. Both have their place in the CNC cosmos, and knowing when to use them can save time, resources, and a lot of headaches.

Are you eager to delve deeper? Excellent, because the nuances of soft versus hard tooling are not just details; they are the fine threads in the fabric of manufacturing success. I would like you to stick with me as I unravel these threads, drawing from my experiences to highlight the contrasts and considerations that will empower you to make an informed decision.

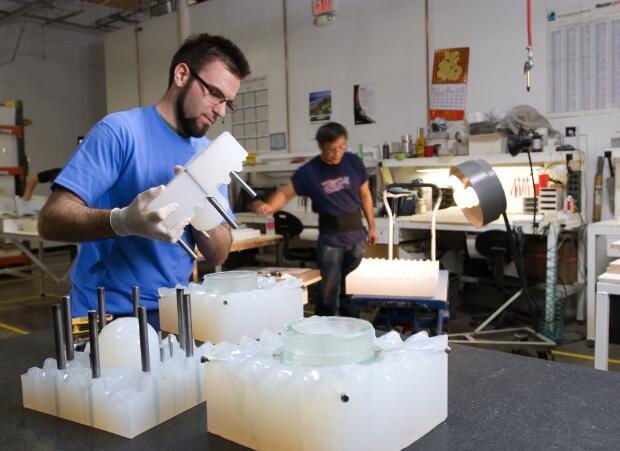

What is Soft Tooling?

In the realm of manufacturing, particularly in the dynamic environment of CNC machining, soft tooling is a term that refers to the use of tools made from less-durable materials, like aluminum or other soft metals, and sometimes even certain types of high-density plastics or composites. My company, Worthy Hardware, often leverages soft tooling for specific scenarios that require a keen balance between speed and precision.

The primary allure of soft tooling lies in its rapid turnaround times. When a client needs a prototype yesterday—or so they claim—soft tooling often comes to the rescue. This quick response capability allows us to produce parts or components quickly, typically using our high-speed CNC machines, which can handle softer materials with finesse and speed.

Moreover, soft tooling is more than just prototyping on a tight schedule. It’s also invaluable for low-volume production runs where investing in hard tooling could be more cost-effective. Say a client wants to test a new market with a custom component or needs a specialized part for a limited-edition product—soft tooling is the ideal solution here. It gives our clients the flexibility to experiment without committing to the expense of hard tooling upfront.

What are the Advantages and disadvantages of Soft Tooling?

Indeed, here’s a comprehensive table that outlines the advantages and disadvantages of soft tooling:

Advantages of Soft Tooling

Rapid Production: Soft tooling allows quicker turnaround times from concept to prototype.

Limited Durability: Soft tools wear out faster and are unsuitable for high-volume production runs.

Cost-Effectiveness: Initial costs are lower, making it ideal for small batches and prototyping.

Maintenance: This may require more frequent maintenance or repairs compared to hard tooling.

Flexibility: Easily modified, which is beneficial for prototypes and products still in the design iteration phase.

Precision: While precise, they may achieve a different level of detail than hard tooling over time due to wear.

Ease of Modification: Can be reworked or rebuilt at a lower cost and time than hard tools.

Disadvantages of Soft Tooling

Material Limitations: Generally not suitable for very high temperatures or aggressive manufacturing processes.

Design Verification: Provides a cost-effective way to verify designs before committing to hard tooling.

Scale Limitations: Not the best choice for long-term production scaling due to lesser durability.

Lower Risk: The lower investment risk encourages innovation and experimentation in design.

Potential for Damage: Softer materials may be more prone to damage and deformation.

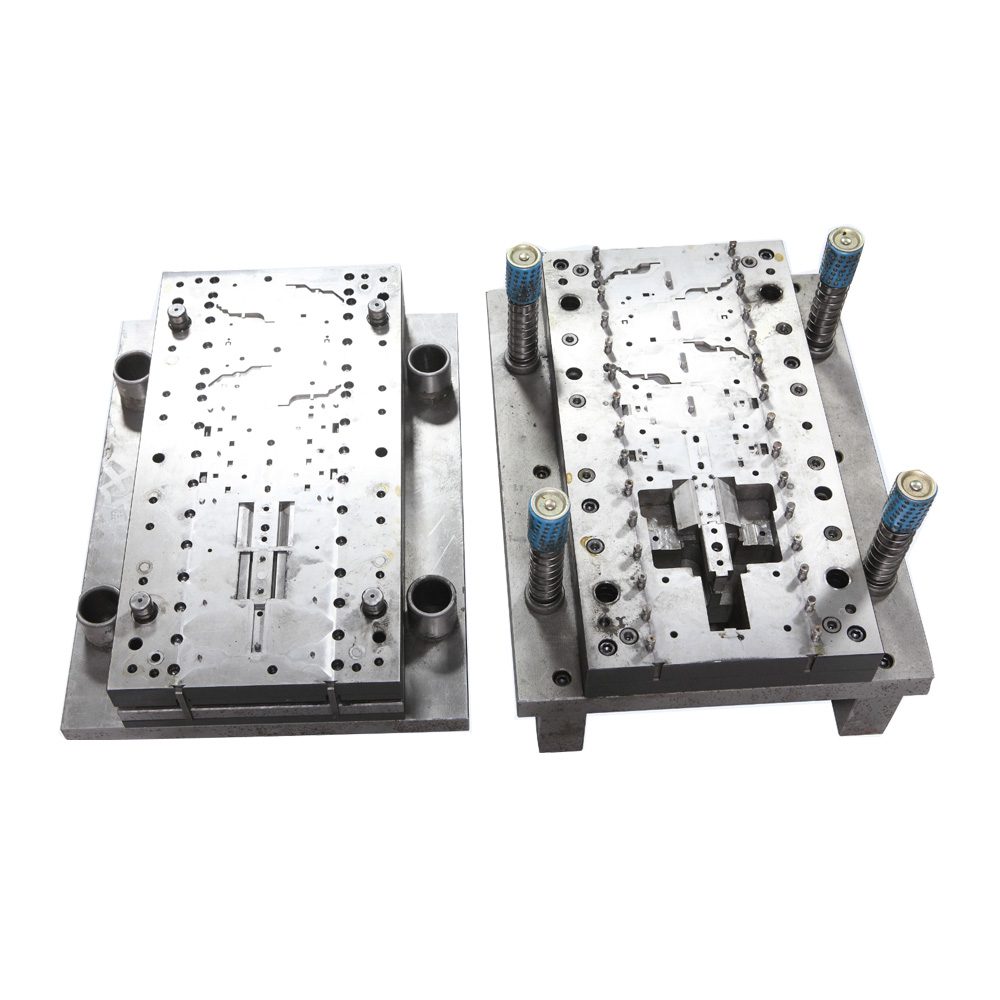

What is Hard Tooling?

Hard tooling is the heavyweight champion in the tooling arena. It involves using tools made from hardened steel or other durable materials that can withstand the demands of high-volume production cycles.

The defining characteristic of hard tooling is its durability. These tools are engineered to endure, which makes them ideal for producing large quantities of parts without significant wear. This is particularly crucial in sectors like automotive, aerospace, and medical, where precision and reliability are expected and required by strict industry standards.

Another aspect of hard tooling that stands out is the precision it offers. When manufacturing components that must fit into complex assemblies with tight tolerances, hard tooling ensures that every part is a near-perfect replica of the last. This consistency is what sets apart high-quality end products from their lesser counterparts.

The investment in hard tooling is higher upfront due to the cost of the materials and the complexity of the tool creation process. However, for long production runs, this cost is amortized over a more significant number of parts, often resulting in a lower per-unit price.

This makes complex tooling an intelligent choice for products that have a confirmed market demand and where the long-term production goals can justify the initial higher expenditure.

Hard tooling also demands advanced planning and design stability. Once a hard tool is made, making alterations can be expensive and time-consuming. That’s why we ensure that designs are locked in and tested using soft tooling before transitioning to hard tooling for full-scale production.

What are the Advantages and disadvantages of Hard Tooling?

Indeed, presenting information in a table can offer a clear and concise way to compare the advantages and disadvantages of hard tooling:

Advantages of Hard Tooling

Durability: Hard tooling is manufactured from hardened steel, which can withstand high production volumes, making it ideal for long production runs.

Higher Initial Costs: The upfront investment for hard tooling is significant due to the costlier materials and the complex manufacturing process.

Cost Efficiency at Scale: While the initial investment is high, the per-part cost decreases significantly in high-volume production, becoming more economical over time.

Less Flexibility: Once a hard tool is made, making changes can be costly and time-consuming. It’s not suited for products still in the design tuning phase.

Precision and Quality: Hard tooling can produce parts with tight tolerances and a high degree of consistency, which is critical for many industries, such as aerospace and medical devices.

Long Lead Times: The process of creating hard tools can be lengthy due to the complexity of the tools and the materials used. This can delay the start of production.

Longevity: The lifespan of hard tooling can span millions of cycles, which means less frequent replacement and maintenance.

Disadvantages of Hard Tooling

Risk of Obsolescence: If a product design changes or is discontinued, the hard tooling may become obsolete, resulting in a sunk cost.

Lower Maintenance Costs: Over time, the robustness of hard tooling means it generally requires less maintenance, reducing overall costs and production delays.

Material Limitations: Hard tooling is less effective for every material type, potentially limiting its application in some industries.

Automation Friendly: Hard tooling is well-suited for automated production lines, increasing efficiency and reducing labor costs.

Complexity in Modifications: Altering hard tooling to accommodate design changes or improvements can be almost as expensive as creating a new tool.

What Are the Material Characteristics of Soft Tooling Compared to Hard Tooling?

The materials used in tooling are critical—they dictate not only the longevity and wear resistance of the tools themselves but also influence the quality of the finished parts. Understanding the characteristics of materials in soft versus hard tooling is crucial for making informed decisions about which method to use for a given manufacturing project.

Soft Tooling Materials:

Aluminum and Other Soft Metals: Aluminum is often the go-to for soft tooling because it’s relatively easy to machine and can meet low-to-moderate production demands. Soft metals can provide a good balance between cost and durability for short runs.

Epoxy and Other Composites: Epoxy resins and composite materials are standard in soft tooling, mainly for prototyping. They can be formed into complex shapes and offer good dimensional stability for a limited number of cycles.

Silicone and Rubber: For specific applications, silicone and other elastomers can be used for flexible tooling. They’re perfect for specialized applications such as over-molding or creating parts with undercuts.

Hard Tooling Materials:

Hardened Steel: This is a staple in complex tooling for its exceptional wear resistance and ability to maintain precision over long production runs. Tool steels are available in various grades, each optimized for specific types of manufacturing processes.

Carbide: Carbide is prized for its hardness and durability, often used in cutting tools and molds that require superior wear resistance. It’s beneficial for machining abrasive materials or for very high-volume production runs.

Ceramics: In some high-wear applications, ceramics can be used for hard tooling. While not as common as steel or carbide, ceramic tools offer excellent heat resistance and hardness.

How Do Production Volumes Affect the Choice Between Soft and Hard Tooling?

Soft Tooling for Low to Medium Volumes:

Soft tooling is often the preferred route for low to medium-production volumes. Why? Because the initial costs are lower and the lead times are shorter. This makes soft tooling an ideal choice for prototyping, pilot runs, or products yet to be proven in the market.

Prototyping and Testing: For products in their infancy, soft tooling provides the flexibility to test and tweak designs without incurring the high costs associated with hard tooling adjustments.

Market Trials: Soft tooling aligns with the production of a moderate number of parts to test the market’s response. It allows for the economical production of enough units for market trials without overcommitting resources.

Hard Tooling for High Volumes:

When production demands escalate, hard tooling becomes the champion. It’s tailored for mass production, where the cost per part needs to be as low as possible.

Economies of Scale: The high initial investment in hard tooling can be justified when the production volume is increased. The cost per part decreases significantly, making it the most economical choice for large orders.

Long-term Production: For products with a stable design and confirmed market demand, hard tooling offers the robustness required for continuous, long-term production runs.

What is the Impact of Lead Times in Soft vs. Hard Tooling?

Soft Tooling Lead Times:

Soft tooling is the sprinter in the production race. It boasts significantly shorter lead times for a few reasons:

Speed of Tool Creation: Since the materials and processes involved in soft tooling are less demanding, tools can be created relatively quickly. This is particularly beneficial when there’s a pressing need to iterate designs or market opportunities demand rapid response.

Adaptability to Changes: If design modifications are necessary, soft tooling can accommodate these much faster than hard tooling. This flexibility can be a game-changer for products that are in the final stages of design refinement.

Hard Tooling Lead Times:

Hard tooling is more of a marathon runner, focusing on endurance. The lead times are longer due to:

Complexity of Tool Fabrication: Hard tooling involves working with more rigid materials and requires more precise machining, naturally extending the fabrication time.

Testing and Quality Assurance: Ensuring that hard tools meet the exacting standards necessary for long production runs adds additional time to the front end of the process.

Scheduling Constraints: The demand for hard tooling services can sometimes lead to scheduling backlogs, further extending lead times.

How Do Costs Compare Between Soft and Hard Tooling?

Soft Tooling Costs:

Lower Initial Investment: The materials and labor for creating soft tools are less expensive. This can significantly reduce upfront costs, which is crucial for companies that need to manage cash flow carefully during the design and prototyping phases.

Cost-Efficiency for Low Volumes: For short production runs, soft tooling can be remarkably cost-effective. The reduced tooling costs make it feasible to produce small quantities without a significant financial outlay.

Design Flexibility Savings: The ability to modify soft tools relatively inexpensively means that design iterations do not incur the exact high costs as they would with hard tooling, saving money throughout the development cycle.

Hard Tooling Costs:

Amortization Over High Volumes: The initial investment in hard tooling can be amortized over many parts. This means the cost per part can be lower, which is particularly important for high-volume production runs.

Reduced Wear and Maintenance: Hard tools generally require less maintenance and have a longer life span, which can result in lower costs over the life of a product.

Stable Unit Cost: For products with a long production life, hard tooling provides a regular unit cost, simplifying financial planning and pricing strategies.

Can Soft Tooling Achieve the Same Precision as Hard Tooling?

Soft tooling can achieve high precision, particularly for prototypes and low-volume runs where the finest tolerances are not the primary concern.

Hard tooling, with its robust materials and construction, stands as the benchmark for precision in high-volume manufacturing.

What is the Flexibility of Soft Tooling in Terms of Design Changes?

Flexibility of Soft Tooling:

Soft tooling is synonymous with adaptability in the manufacturing process for several reasons:

Ease of Modification: Soft tools, made from materials like aluminum or soft steel, can be modified, reworked, and even rebuilt at a fraction of the cost and time it would take to alter hard tools.

Rapid Response to Design Iterations: In the fast-paced product development environment, implementing design changes quickly is invaluable. Soft tooling allows quick iterations, often without creating a new tool from scratch.

Cost-Effective for Evolving Designs: Especially for startups or products in the early stages of market entry, where design changes are more frequent, the lower cost of modifying soft tools is a boon.

Comparatively Limited Flexibility of Hard Tooling:

Hard tooling, while excellent for stability and high-volume production, offers less flexibility once the tool is created.

Higher Modification Costs: The materials used in hard tooling, such as hardened steel or carbide, are more challenging to modify. Changes can often require fabricating a new tool, which is costly and time-consuming.

Longer Lead Times for Changes: The inherent rigidity of hard tools means that implementing design changes necessitates a longer turnaround time, which can delay production and the product’s entry into the market.

How Does the Durability of Soft Tooling Compare with Hard Tooling?

Durability of Soft Tooling:

Soft tooling, typically made from materials like aluminum, is not designed for the long haul.

Limited Lifespan: These tools wear out more quickly, especially under the stress of continuous cycles. They are ideal for prototypes, pilot runs, or low-volume production, where the tooling doesn’t face the demands of mass production.

Maintenance and Repair: Soft tools may require more frequent maintenance or repairs, which can add to the total cost of ownership. However, the ease of repair can mitigate these costs.

Susceptibility to Damage: Softer materials can be more prone to damage from misuse or unexpected production issues, potentially leading to downtime if repairs or replacements are needed.

Durability of Hard Tooling:

Hard tooling is the standard for long-term use in manufacturing.

Extended Service Life: Made from hardened steel or other durable materials, these tools can withstand the rigors of high-volume production runs with minimal wear.

Lower Maintenance Needs: While the initial cost is higher, hard tools require less maintenance. This reduces the chance of production interruptions and lowers the overall lifecycle cost.

Resilience to Stress: The robust nature of hard tooling means it can handle higher pressures and more aggressive production environments, contributing to its longevity.

Conclusion

In the comparison of soft tooling versus hard tooling, both have their distinct places in the manufacturing ecosystem—soft tooling leads in versatility and speed, ideal for rapid prototyping and low-volume runs. Hard tooling stands out for high-volume production, offering durability and cost efficiency at scale.

Whether you’re at the cusp of a breakthrough design needing a prototype or scaling up for mass production, Worthy Hardware has the expertise and technology to support your journey. Connect with us to tailor your tooling to your project’s needs, and let’s shape the future of manufacturing together. Contact us today to explore your options.
