Have you ever wondered how the intricate parts that power our world are made? As a professional in the CNC machining industry, I’m here to shed light on two pivotal manufacturing processes: Subtractive and Additive Manufacturing. These methods are at the heart of production, from aerospace to medical devices, and understanding their nuances is crucial for any industry player.

In a world where precision and efficiency are king, the choice between Subtractive and Additive Manufacturing can make or break a project. Subtractive Manufacturing, like CNC machining, carves out masterpieces from raw materials. In contrast, Additive Manufacturing, or 3D printing, builds objects layer by layer. Each method has unique strengths and limitations, impacting everything from cost to quality.

As someone who’s navigated these waters for years, I’ve seen how crucial this knowledge is. So, let’s dive deeper and explore what each manufacturing process entails and how they compare.

Understanding Subtractive Manufacturing

What is Subtractive Manufacturing

Subtractive Manufacturing is a process where material is systematically removed from a solid block, such as metal, plastic, or wood, to achieve the desired shape and dimensions. At its heart, Subtractive Manufacturing is about precision removal. It’s like editing a manuscript; you start with more than you need and carefully remove parts to achieve perfection. In our factory at Worthy Hardware, we employ this technique to produce parts that are not only precise but also meet the high-quality standards demanded by industries like aerospace, military, and medical.

Types of Subtractive Manufacturing Process

Each Subtractive Manufacturing process is suited for different materials and applications. Here are the key processes we use at Worthy Hardware:

  1. CNC Machining:
  • Materials: Metals (aluminum, brass, stainless steel), Plastics (ABS, Polycarbonate), and Composites.

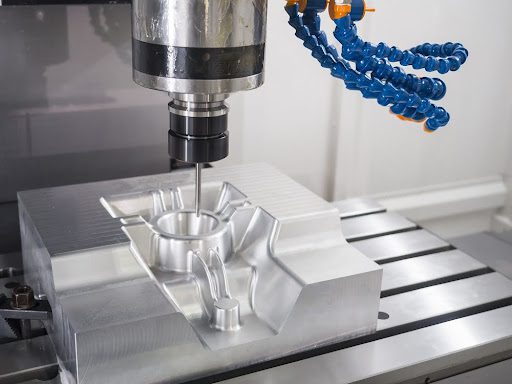

  • Description: CNC machining involves using computer-controlled machine tools to shape the material. It’s like precise sculpting, removing material to create parts with tight tolerances and complex geometries.
  1. EDM (Electrical Discharge Machining):
  • Materials: Hard metals that are difficult to machine with traditional techniques, like titanium and Hastelloy.
  • Description: EDM uses electrical sparks to mold material into a specific shape. It’s beneficial for intricate designs that are impossible to achieve with conventional machining



  1. Water Jet Cutting:
  • Materials: Metal, stone, glass, and composites.
  • Description: Water jet cutting uses a high-pressure water stream, often mixed with abrasives, to cut through materials. It’s like harnessing nature’s force in a precise stream to slice through even the most challenging materials without heat distortion.



  1. Laser Cutting:
  • Materials: Metals (steel, aluminum), Plastics, Wood, and Paper.
  • Description: Laser cutting involves using a concentrated laser beam to cut materials. It’s a game of precision and control, allowing us to cut complex shapes with high accuracy and excellent edge quality.



Advantages of Subtractive Manufacturing

Now, let’s quickly list the advantages of Subtractive Manufacturing:

  1. High Precision and Tolerance: Ideal for creating parts with tight tolerances and smooth finishes.
  2. Material Strength: The integrity of the material remains intact, offering more vital parts.
  3. Surface Finish: Capable of achieving high-quality surface finishes.
  4. Versatility: Suitable for a wide range of materials.
  5. Reliability: Proven, time-tested method with predictable results.
  6. Scalability: Efficient for large-scale production runs.
  7. Customization: Flexible in producing custom and complex designs.

Disadvantages and Limitations of Subtractive Manufacturing

Despite its numerous advantages, Subtractive Manufacturing has its limitations. In my years of experience, understanding these disadvantages is crucial for making informed decisions about production methods. Here are some fundamental limitations:

  1. Material Waste: Subtractive Manufacturing involves removing material, which can lead to significant waste, especially with complex parts.
  2. Cost of Raw Materials: Since more material is needed initially (which is then removed), the cost of raw materials can be higher than Additive Manufacturing.
  3. Machining Complexity: While it’s excellent for many complex shapes, there are limits. Undercuts and internal structures can be challenging or impossible to machine.
  4. Tool Wear: The tools used in Subtractive Manufacturing undergo wear and tear, impacting maintenance costs and downtime.
  5. Time-Intensive: Especially for complex parts, Subtractive Manufacturing can be time-consuming, affecting the overall production timeline.
  6. Size Limitations: The part size is often limited to the size of the machining equipment, which can be a constraint for large-scale parts.



Exploring Additive Manufacturing

What is Additive Manufacturing?

Manufacturing, commonly known as 3D printing, creates objects by adding material layer by layer. Think of it as building a structure with Lego bricks, each layer representing a slice of the final product. This method contrasts Subtractive Manufacturing, where the material is removed. Instead of carving out a shape, Additive Manufacturing builds it from the ground up.

In my professional journey, I’ve seen Additive Manufacturing revolutionize rapid prototyping and complex part production. It offers design freedom that traditional methods can’t match, enabling the creation of shapes and structures that were once considered impossible.



Types of Additive Manufacturing Process

In my experience with Worthy Hardware, we’ve seen various Additive Manufacturing processes, each suited for different materials and applications. Here’s a brief overview:

  1. Fused Deposition Modeling (FDM):
  • Materials: Thermoplastic polymers like ABS, PLA, and their composites.

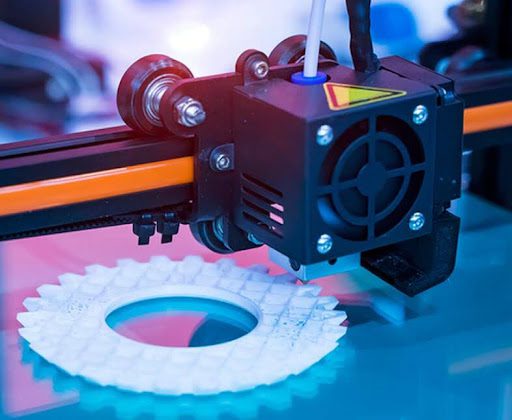

  • Description: FDM works by extruding thermoplastic filaments through a heated nozzle, layer by layer, to create an object. It’s like drawing with a pen, except the ink is molten plastic that solidifies to form a structure.
  1. Stereolithography (SLA):
  • Materials: Photopolymer resins.
  • Description: SLA uses an ultraviolet laser to cure and solidify layers of liquid resin according to the 3D design. It’s similar to developing a photograph, where light transforms a liquid into a solid in specific areas



  1. Selective Laser Sintering (SLS):
  • Materials: Thermoplastic powders, metals, ceramics, and glass.
  • Description: SLS involves using a laser to sinter powdered material, binding it together to create a solid structure. Think of it as using a laser to fuse grains of sand into a detailed sculpture.



  1. Direct Metal Laser Sintering (DMLS):
  • Materials: Metals including stainless steel, aluminum, titanium, and cobalt chrome.
  • Description: Unlike SLS, DMLS uses a laser to sinter metal powder. It’s like SLS but for metals, allowing the creation of complex, high-strength metal parts.



  1. PolyJet Printing:
  • Materials: Photopolymer resins.
  • Description: PolyJet works by jetting layers of curable liquid photopolymer onto a build tray. It’s akin to inkjet printing, but it uses a liquid that solidifies under UV light instead of ink.



  1. Electron Beam Melting (EBM):
  • Materials: Titanium alloys and other high-melting-point metals.
  • Description: EBM uses an electron beam to melt and fuse powder material layer by layer. It’s like welding but at a micro-scale to build parts.



  1. Material Jetting:
  • Materials: Photopolymer resins, wax-like materials.
  • Description: Material Jetting operates similarly to a 2D inkjet printer. It jets droplets of a photosensitive material onto a build platform and then hardens them using UV light. This process allows for high precision and fine details, making it suitable for detailed prototypes, models, and dental applications. It’s akin to painting with precision, where each droplet contributes to a clear, vivid picture.



  1.   Binder Jetting:
  • Materials: Metals, sand, ceramics.
  • Description: A liquid binding agent is selectively deposited in Binder Jetting to join powder particles. Layers of material are then bonded together to form an object. Think of it as gluing together layers of sand to create a sandcastle with precision and strength suitable for industrial use. This method is beneficial for making large parts and complex geometries that would be challenging with other forms of Additive Manufacturing.



Advantages of Additive Manufacturing

The benefits of Additive Manufacturing are numerous:

  1. Design Freedom: Allows complex designs, including internal geometries and hollow parts.
  2. Rapid Prototyping: Speeds up the development process by allowing quick production of prototypes.
  3. Customization: Ideal for custom, one-off parts, and personalization.
  4. Reduced Waste: Material is added, not removed, leading to less waste, which reduces the need for expensive and time-consuming tooling.
  5. Lightweight Structures: Enables the production of lightweight yet strong structures, particularly beneficial in the aerospace and automotive sectors.
  6. Cost-Effective for Small Runs: Particularly economical for small batch production, where the cost of creating molds or setups for traditional manufacturing is prohibitive.
  7. On-Demand Manufacturing: Reduces the need for inventory, as parts can be printed as needed.

Disadvantages and Limitations

However, Additive Manufacturing also comes with its set of challenges and limitations:

  1. Material Limitations: While the range of materials is expanding, it still needs to be expanded compared to traditional manufacturing methods.
  2. Lower Strength: Some 3D printed parts may have lower mechanical strength than those made through Subtractive Manufacturing, especially in specific orientations.
  3. Surface Finish: The layer-by-layer approach can result in a ridged surface finish that might require additional post-processing.
  4. Size Limitations: The size of parts is generally constrained by the size of the 3D printer.
  5. Slower Production for Large Quantities: Traditional methods are often faster and more cost-effective for large-scale production.
  6. High Energy Consumption: Certain Additive Manufacturing processes, especially those involving metals, can be energy-intensive.
  7. Cost of Equipment: High-end 3D printers, particularly those used for metal, can be prohibitively expensive.
  8. Post-Processing Requirements: Many 3D printed parts require cleaning, curing, or finishing.

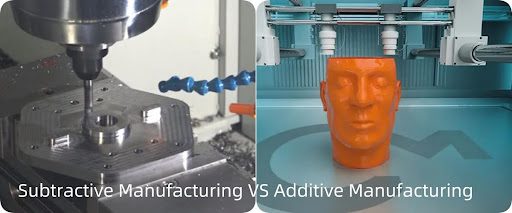

Comparing Subtractive and Additive Manufacturing

When choosing between Subtractive and Additive Manufacturing, understanding their differences is vital. Let’s break down the comparison into several critical aspects:



Process Comparison

  • Subtractive Manufacturing: It’s all about precision and control, removing material to achieve the final shape. Think of it as a sculptor chipping away at a block of marble.
  • Additive Manufacturing: This is about building complexity and detail from the ground up, layer by layer. It’s more akin to an artist painting a detailed picture.



Material Usage and Flexibility

  • Subtractive Manufacturing: Typically uses solid blocks or sheets of material, which can lead to more waste. However, it can handle a broader range of materials.
  • Additive Manufacturing: More efficient in material usage since it adds material only where needed. While offering unique material options like bio-materials, it’s limited in material choices compared to Subtractive Manufacturing.

Precision and Quality

  • Subtractive Manufacturing: Known for its high precision and quality, especially regarding surface finish and structural integrity.
  • Additive Manufacturing: While it has made significant strides in precision, it sometimes needs to catch up to the surface finish and strength achievable through Subtractive methods.

Cost Implications

  • Subtractive Manufacturing: Generally more cost-effective for larger production runs due to economies of scale. However, the initial setup and tooling can be costly.
  • Additive Manufacturing: More cost-effective for small batches and prototypes as it requires no special tooling. However, the cost of materials and machinery, especially for metals, can be high.

Speed and Efficiency

  • Subtractive Manufacturing: This can be faster for producing many identical parts but slower for complex or unique items.
  • Additive Manufacturing: Ideal for rapid prototyping and creating complex geometries quickly but can be slower and less efficient for large-scale production.



Conclusion

Worthy Hardware specializes in providing top-notch CNC machining and milling services. If you’re looking for precision parts with exceptional quality, reach out to us. We’ll help you navigate these manufacturing processes, ensuring your project’s success with our expertise and state-of-the-art technology.

Remember, in manufacturing, there’s no one-size-fits-all solution. It’s about choosing the proper process for your specific needs. Feel free to contact us for guidance on your next project, and let’s create something extraordinary together!

//]]>
