Swiss CNC machining, a term you might have come across often but might not fully understand, stands out as a beacon of precision and efficiency in the realm of complex part production. Originating from the Swiss watch industry, this technology has significantly broadened its horizon, meeting the intricate demands of various industries ranging from aerospace to medical.
Dive into the world of swiss machine tools, cnc swiss machines, and the art of swiss turning. This guide will unfold the marvels of swiss cnc machining, offering insights that can enhance your knowledge and potentially transform your manufacturing strategies.
As we move forward, get ready to delve deeper into the world of swiss machining, discovering its nuances, benefits, and its undeniable importance in today’s manufacturing ecosystem.

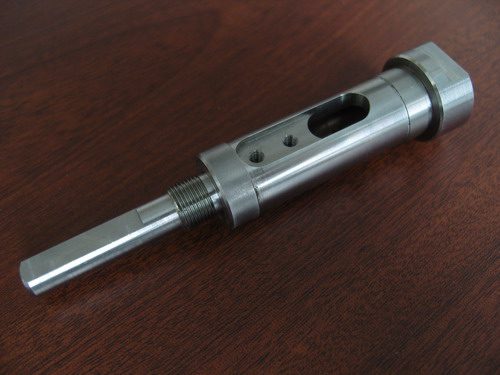

What is Swiss CNC Machining?
Swiss CNC machining is a specialized process that was initially developed in Switzerland to produce precise watch components. Today, this method is renowned globally for its ability to create incredibly intricate parts with unparalleled precision. But what differentiates it from conventional machining?
At its core, a swiss machine—specifically, a swiss cnc machine—has a unique setup wherein the workpiece is supported very close to the cutting tool, ensuring minimal vibration and superior accuracy. In a typical swiss machine cnc system, the bar stock, which is the workpiece, is rotated and moved linearly, while various tools act on it. This simultaneous action allows for efficient and precise machining in a single setup.
The highlight of swiss cnc machining is the swiss lathe or swiss machine tool. Unlike traditional lathes, the swiss lathe machine boasts a sliding headstock and guide bushing. These features enable the workpiece to move in a z-axis direction, allowing tools to act at close proximity. This is why experts and machinists often term it the swiss-type machine or swiss-type lathe.
How does Swiss CNC Machine Work?
The working principle of Swiss CNC machining is intriguingly precise and systematic, a symphony of orchestrated movements. But before diving deep, it’s essential to understand the unique configuration of a Swiss machine.
The centerpiece of a Swiss CNC machine is its sliding headstock. In contrast to fixed headstock lathes, the sliding headstock in a Swiss machine moves the bar stock through a guide bushing. This swiss-type machine setup ensures that the workpiece is supported directly adjacent to the tool, minimizing deflection and vibration.
- Bar Feeding: The process begins with a bar feeder pushing the material (bar stock) into the machine. This feeding is typically done by cnc swiss machines to ensure utmost precision.
- Machining: As the bar is fed through the Swiss machine tool, a series of tools, both stationary and rotating, act on it. Operations like Swiss turning, milling, drilling, and even complex contouring are executed flawlessly. The intricate dance between the swiss turn machine and its tools allows for multiple operations in one pass.
- Part-off Operation: After the desired features are machined into the workpiece, a part-off tool cuts the finished part from the bar stock.
- Ejection & Collection: The finished component is then ejected, and the process starts again with a fresh section of the bar stock.
Swiss turning machines, especially cnc swiss turning varieties, are renowned for their precision and ability to produce slender, elongated parts with impeccable accuracy. One can’t help but marvel at the synchronization of movements, a testament to the excellence of swiss cnc processes. If you’re interested in the detailed dynamics of the Swiss screw machining, here’s an insightful article for a deeper dive.
Advantages of Swiss CNC Machining
When weighing manufacturing options, the unique advantages of Swiss CNC machining often place it at the forefront of consideration. Here’s why:
- High Precision: The inherent design of swiss machines, especially the swiss cnc machines, ensures that the workpiece is supported very close to the tool, drastically reducing vibration. This results in parts with tighter tolerances and superior surface finishes.
- Efficiency: With swiss machine cnc setups, multiple operations like swiss turning, drilling, and milling can be executed simultaneously in one pass. This reduces the need for secondary operations, saving both time and cost.
- Flexibility: Whether it’s the swiss turning machine or a comprehensive swiss mill, these machines offer vast material versatility. From stainless steel to exotic alloys, Swiss CNC machines handle a broad spectrum of materials with ease.
- Reduced Waste: The precision of cnc swiss machining translates to minimal waste of raw material. This not only reduces costs but is also environmentally beneficial.
- Compact Footprint: Despite their capabilities, Swiss CNC lathes, including the swiss cnc lathe, often have a compact footprint, making them suitable for workshops where space is a premium.
- Consistency: With a swiss cnc machine, once the parameters are set, it churns out components with remarkable consistency, making it ideal for large-scale production.
- Rapid Prototyping: Companies like Worthy Hardware pride themselves on the ability to produce prototypes rapidly using swiss cnc machining, a testament to the process’s flexibility and efficiency. For a deeper understanding of rapid prototyping in CNC contexts, consider exploring this insightful article.

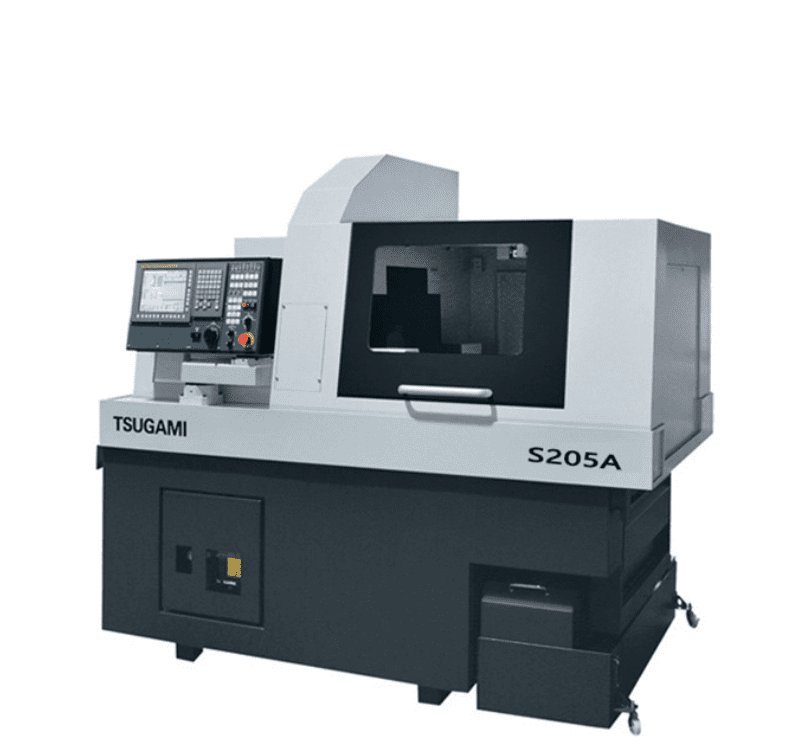

These are traditional Swiss machines that rely on cams and gears for operation. They are especially suited for large volume runs, providing consistency and speed. Though they may not possess the same level of flexibility as their CNC counterparts, they’re valued for their robustness and reliability.
CNC Swiss Machines
CNC Swiss machines represent the pinnacle of modern swiss machining technology. Controlled by computerized systems, these machines offer unparalleled precision and versatility. With a cnc swiss machine, operations can be easily programmed, allowing for rapid changeovers and the machining of complex parts. Given their capabilities, these are often the preferred choice for industries requiring high precision and intricate geometries.
Turret Screw Machines
A variant of the swiss machine, turret screw machines use a turret instead of a sliding headstock. While they share similarities with Swiss CNC machines, their setup makes them more suitable for larger diameter parts. They’re often chosen for their speed and ability to handle multiple tools simultaneously.
Key Differences Between Traditional CNC Turning and Swiss Machining
While both traditional CNC turning and Swiss machining belong to the realm of subtractive manufacturing, they present distinct characteristics and advantages. Understanding these differences is pivotal for selecting the right process for a project.
- Workpiece Support: In Swiss machining, the workpiece is fed through a guide bushing which offers very close support, significantly reducing vibration and allowing for precise operations on slender parts. This contrasts with traditional CNC turning where the workpiece might not be as closely supported.
- Complexity and Multi-Tasking: Swiss CNC machines often have multiple tools in action simultaneously, enabling drilling, milling, and Swiss turning in a single pass. Traditional CNC lathes might not always offer the same level of multitasking.
- Part Length and Diameter: Swiss turning machines, particularly cnc swiss turning, are ideal for long, slender parts due to the guide bushing’s support. Traditional CNC turning machines might struggle with such parts, especially when maintaining tight tolerances.
- Setup: Swiss CNC machines may require a more intricate setup given their complexity, but once set, they offer unparalleled consistency. Traditional CNC machines might be quicker to set up but might not always provide the same level of precision for intricate parts.
- Footprint: Given the compact nature of many swiss machines, they can offer a smaller footprint compared to some larger CNC turning machines, making them more suitable for space-constrained workshops.
- Flexibility: With cnc swiss machines, rapid changeovers and intricate designs become feasible due to computerized controls. Traditional CNC machines, while flexible, might not always match the adaptability of Swiss CNC machines.
Key Differences Between Swiss Machining and CNC Machining
Both Swiss machining and general CNC machining have revolutionized the manufacturing industry, but they cater to different needs and applications. Let’s break down their primary differences:
- Operational Principle: While both techniques use Computer Numerical Control for precise operations, Swiss machining emphasizes working on the material very close to the tool, minimizing deflection and maximizing accuracy. This contrasts with standard CNC machining which may not always work as close to the point of tool contact.
- Part Complexity: Swiss CNC machines, with their sliding headstock and multiple tools, are adept at producing highly complex parts in one operation. Conventional CNC machines might require part repositioning or multiple setups for the same level of intricacy.
- Volume & Efficiency: Swiss machines, especially CNC Swiss machines, excel at high-volume production, churning out large batches of precision parts swiftly. While CNC machines can also handle volume, Swiss CNC machining often takes the lead in speed and consistency.
- Part Dimensions: Swiss turning machines are the go-to choice for long, slender parts, thanks to their guide bushing mechanism. Traditional CNC machines might not offer the same precision for such dimensions.
- Material Wastage: Due to the precision of Swiss machining, there’s often minimal material wastage, making it cost-effective and environmentally friendly. CNC machining, depending on the operations and setup, might sometimes result in more material waste.
- Tooling & Setup: Swiss CNC machines may have more complex tooling systems and setups, but this complexity allows them to produce intricate parts seamlessly. General CNC machines, on the other hand, might have simpler setups but may not always match the capabilities of a Swiss machine.
- Applications: While both machines find use across diverse industries, Swiss CNC machining is particularly prominent in sectors demanding ultra-high precision, such as aerospace and medical devices. General CNC machining is more widespread and caters to a broader range of applications.
Where is Swiss CNC Machining Used?
Swiss CNC machining is sought-after due to its precision and the ability to produce complex and intricate parts. This machining technique is particularly suitable for producing slender and long components with tight tolerances. Here are some specific parts manufactured by Swiss CNC machines:
Bone Screws:
Used in orthopedic surgeries, these screws are often made from titanium and require the precision and tight tolerances that Swiss machining offers.
Dental Implants:
The dental industry benefits from the exactness of Swiss CNC machines to create implants that are both functional and aesthetically pleasing.
Watch Components:
From gears to pins and other minute components, luxury watch manufacturing heavily relies on the precision of Swiss machines.
Electronic Connectors:
The connectors that facilitate communication between electronic components are often slender and intricate, making them perfect candidates for Swiss CNC machining.
Fuel Injectors:
Used in automotive engines, these parts demand precision to ensure the right amount of fuel is delivered.
Aerospace Fasteners:
Given the critical nature of aerospace applications, fasteners and pins used here are manufactured to exact specifications, often using Swiss CNC machining.
Surgical Instruments:
Precision tools used in surgeries, such as scalpels and forceps, benefit from the exactness and smooth finish provided by Swiss machines.
Fiber Optic Ferrules:
Used in telecommunications and networking, these slender components need to be manufactured with extreme precision.
Spindles and Shafts:
Many industries require slender spindles and shafts that are both strong and accurate. Swiss machining is often the preferred method for their production.
Micro Springs:
Used in various applications, from electronics to medical devices, these tiny springs require the finesse that Swiss CNC machining can provide.
Conclusion
In the intricate world of manufacturing, Swiss CNC machining stands as a beacon of precision and efficiency. This specialized technique, with its unmatched accuracy, caters to a spectrum of industries, from luxury watches to critical medical devices. As technology advances, the horizon for Swiss CNC machines only broadens, promising even more innovations.
For those keen on understanding deeper nuances or looking to collaborate for precision parts, don’t hesitate. Explore Worthy Hardware’s array of CNC services and elevate your projects to unmatched standards.
FAQ on Swiss CNC Machining
What exactly is Swiss CNC Machining?
Swiss CNC Machining is a precision machining process that uses a Swiss-style lathe or Swiss-type machine to produce slender, intricate parts with high accuracy.
Why choose Swiss CNC Machining over other methods?
Swiss CNC machining provides exceptional precision, especially for long, slender parts, ensuring tight tolerances and a high-quality finish.
Is Swiss CNC Machining more expensive than traditional machining?
While Swiss CNC machining might have a higher initial cost due to its precision and complexity, it often results in fewer errors and better-quality parts, making it cost-effective in the long run.
Can I produce prototypes using Swiss CNC Machining?
Absolutely! Swiss CNC machines are not just for mass production. They are equally adept at creating prototypes, ensuring that even your initial models meet the highest quality standards.
