Exploring Tack Welding: Its Function and Significance

Welding is an integral part of the manufacturing sector, specifically in the construction of metal parts. It’s a technique used to merge materials, usually metals or thermoplastics, by using high heat to melt the parts together and allowing them to cool, causing fusion.

Among the different types of welding processes used today, one stands out due to its convenience and efficiency – tack welding. Tack welding is a type of temporary welding process often employed in fitting and assembling parts before full welding. This technique uses a short arc and low heat, minimizing potential distortions and enabling better alignment of parts. Tack welds are used to hold pieces together, preventing them from moving out of alignment during the primary welding process.

Stay tuned, as this post will provide you with comprehensive knowledge about tack welding, which is invaluable for anyone in the manufacturing sector, particularly those interested in welding processes, custom metal parts, and sheet metal welding.

The Essence and Function of Tack Welding

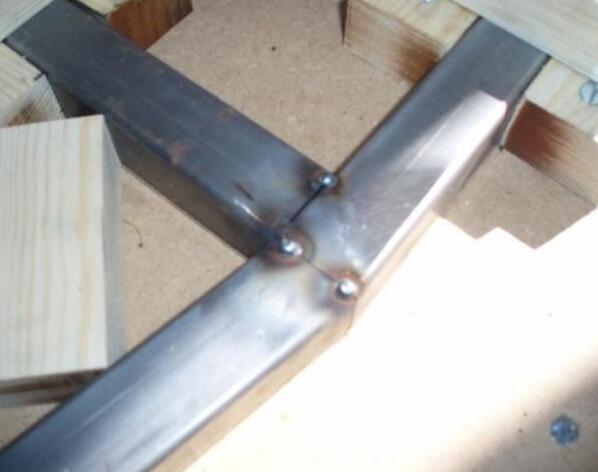

What is Tack Welding?

The concept of tack welding is vital for anyone seeking to understand the depths of this intricate process. A tack weld is a type of welding where a small, temporary weld is used to hold pieces of metal together. Tack welds are applied prior to a more thorough, permanent welding process. It’s comparable to a rough draft or a blueprint, providing a general idea of where things should go, before committing fully to the final product.

From the smallest tap weld to more significant projects, the tack welder is a vital tool in any manufacturing operation. The tack welder creates a preliminary connection between two pieces of metal, allowing the fabricator to ascertain the suitability of the joint before the final weld. This kind of tack welding meaning is crucial in understanding the overall process.

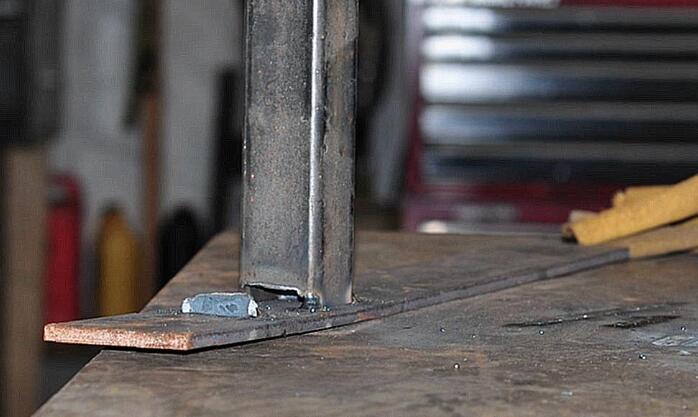

The Role of Tack Welding

Tack welding plays a critical role in aligning and holding parts together, ensuring that they are correctly positioned before the final welding process. The strength of the tack weld is crucial in this phase, but it is also important to note that it is designed for temporary use. The strength required from the tack weld often depends on the specific application and the materials being used.

Tack welds serve a purpose in both manual and automated welding processes. Skilled welders use tack welds in manual welding to ensure a good fit and maintain alignment during the welding process. Similarly, tack welding machines are used in automated processes for their efficiency and precision.

The Usage Scenarios of Tack Welding

Tack welding is commonly used in a variety of manufacturing and construction scenarios. One of the most common is in sheet metal welding, where it’s used to hold pieces in place before final welding. Tack welding stainless steel and tack welding aluminum are common uses in the aerospace and automotive industries.

Tack welding is not limited to these industries alone; its flexibility extends to numerous applications where metal parts need to be held together temporarily. From intricate electrical assemblies to large-scale industrial structures, the use of tack welds proves to be indispensable.

The versatility of tack welding also extends to different types of welding processes. Whether it’s MIG tack welding, tig tack welding, or using a small tack welder, the principles remain the same. The critical thing to remember is that a tack weld’s purpose is to maintain the alignment and joint gap of the pieces to be welded, regardless of the specific welding process used.

To answer a few common queries: Is tack welding strong? The strength of tack welds is sufficient to hold parts together during the final welding process. But remember, tack welds are designed to be temporary. Can you tack weld with a MIG? Yes, MIG welding is commonly used for tack welding. It provides the speed and flexibility required for this process.

The Critical Role of Tack Welding

The Duties and Significance of Tack Welding

Tack welding serves a fundamental role in the welding process, acting as a temporary means of holding workpieces together before the application of the final weld. This process serves various duties, including:

• Securing alignment: It ensures that pieces remain properly aligned throughout the welding process. Any misalignment during welding can result in a faulty product.
• Preventing distortion: The application of tack welds at strategic points on the workpiece can help limit the heat distortion that could otherwise warp the materials.
• Aid in complex assemblies: In the construction of more complex assemblies, tack welds can hold different parts together in the correct position, facilitating the final welding process.
• Time and cost-efficiency: By holding pieces securely in place, tack welding can reduce the time needed for final welding, thereby lowering the overall cost.

Its significance cannot be overstated; tack welding is essential in maintaining the quality, accuracy, and integrity of the final weld.

Managing the Welding Process

The welding process involves more than just joining two pieces of metal together. It requires careful management and attention to detail to ensure a high-quality result.

In managing the welding process, one must consider:

• Heat input: It’s crucial to manage the amount of heat applied to prevent overheating and warping. This is where tack welding is beneficial; it provides the necessary holding power without the extended heat input that could warp or otherwise damage the workpiece.
• Material characteristics: Different materials require different welding techniques, temperatures, and filler materials. The welder must understand these requirements to make the right decisions during the process.
• Welding sequence: Welding should follow a predetermined sequence to avoid residual stress and distortion. Here, tack welding helps keep the parts in the right place as the final weld proceeds along the planned sequence.
• Safety: Above all, safety is paramount. The welding environment should be kept clean, and personal protective equipment (PPE) should always be used.

The Impact of Tack Welding on Producing Superior Quality Products

Tack welding is instrumental in producing high-quality products. Without it, maintaining the alignment and spacing of the parts during welding could be challenging, leading to defects in the final product.

The careful application of tack welds helps maintain the correct positioning of parts, reducing the chances of defects such as warping, shrinkage, or misalignment. It also ensures a smooth, efficient welding process, reducing the chances of mistakes or rework.

Tack welding is more than just a preparatory step; it’s a critical factor in quality control. By ensuring that everything is correctly set up before the final weld is performed, tack welding plays a vital role in producing superior quality products. It’s a testament to the old adage, “Well begun is half done.” With a good start from effective tack welding, the final welding process is more likely to yield excellent results.

Tack Welding Working Process

A Broad View of the Welding Process

The welding process is a multi-faceted procedure that involves several stages, each of which requires meticulous attention to detail. At a high level, these stages typically include:

1. Preparation: This stage involves cleaning and aligning the pieces to be joined. The surface must be free of impurities to ensure the best possible weld.
2. Tack Welding: As discussed earlier, small tack welds are applied to keep the workpieces in place during the final welding process.
3. Welding: This is where the primary fusion of the materials occurs. The process involves the application of heat and sometimes pressure, usually with the aid of electrodes.
4. Cleaning and Inspection: After the welding, any slag or residue is cleaned off, and the weld is inspected for quality and integrity.

This process is an over-simplified view of the welding procedure, with each stage involving several smaller steps and considerations.

The Use of Electrodes, Heat, and Pressure

The actual welding process involves using a power supply to create an electric arc between the electrodes and the metal workpieces. The intense heat generated by this arc melts both the base metals and the filler metal (if used), creating a pool of molten metal that solidifies to form the weld joint once cooled.

In some welding methods, pressure is also applied either during or after the creation of the molten pool to help the joint formation. This combination of heat and pressure ensures a strong bond between the workpieces.

The Necessity of Small Tack Welds

As mentioned in the previous sections, tack welds are small, temporary welds used to hold the workpieces in place before the final weld. The use of these tack welds is necessary for several reasons:

1. Alignment: Tack welds ensure that the pieces remain properly aligned throughout the welding process.
2. Prevent Distortion: They can limit the heat distortion that could otherwise warp the materials.
3. Ease Complex Assemblies: Tack welds hold different parts together in the correct position, which is particularly useful in complex assemblies.
4. Efficiency: By securing the pieces, tack welding can reduce the time needed for the final welding, thereby improving efficiency.

Material Selection for Tack Welding

In the world of welding, one can work with a diverse range of metals. However, it’s essential to recognize that not all metals respond to welding, especially tack welding, in the same way. Some common metals used in welding and are suitable for tack welding include:

1. Steel: It’s a popular choice in many industries due to its strength and durability. Both carbon steel and stainless steel can be effectively tack welded.
2. Aluminum: Lighter and more heat-sensitive than steel, aluminum requires careful control during tack welding to prevent warping or burn-through.
3. Copper: This metal is more challenging to weld due to its high thermal conductivity but can be tack welded with the right equipment and technique.
4. Nickel Alloys: These materials can be tack welded, although they generally require more specialized knowledge and equipment.

Factors to Consider for Different Material Thicknesses

The thickness of the material plays a significant role in the tack welding process. Here are some factors to keep in mind when dealing with different material thicknesses:

1. 1. Welding Current: Thicker materials require a higher welding current for proper fusion during the tack welding process.
   2. Electrode Size: A larger electrode diameter is typically used for tack welding thicker materials.
   3. Welding Technique: Thicker materials may require specific techniques, like multi-pass welding, to ensure full penetration and a strong tack weld.
   4. Heat Input: Thicker materials can absorb more heat without distorting, but care must still be taken to avoid excessive heat input that could lead to warping or cracking.

Types of Tack Welding

Tack welding is a preliminary welding process used to hold parts together before final welding. Depending on the application, several types of tack welds can be used. Below, we’ll delve into five key categories: Regular Tack Weld, Bridge Tack Weld, Thermit Tack, Hot Tacking, and Ultrasonic Tack.

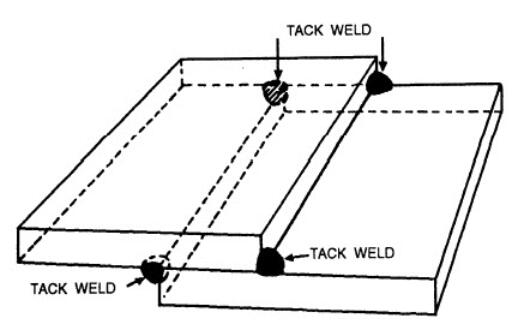

Regular Tack Weld

A Regular Tack Weld is the most common form of tack welding. It involves placing small welds along the joint to temporarily secure the pieces in position before the final welding process. These welds are typically spaced apart and removed as the final weld is performed.

Bridge Tack Weld

Bridge Tack Welds are used when it’s necessary to prevent distortion or maintain alignment between pieces during the final welding process. Here, the tack welds are created between the workpieces rather than on the joint itself. These welds can provide increased stability, particularly when dealing with larger or heavier components.

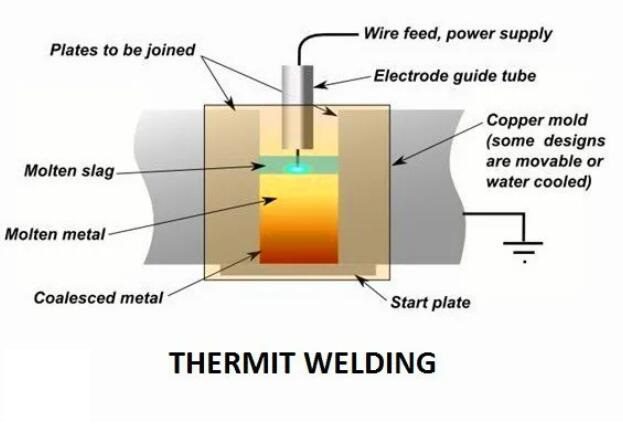

Thermit Tack

A Thermit Tack refers to a tack welding process that uses the exothermic reaction of a thermit mixture to create the weld. This method is used for materials that are difficult to weld using conventional techniques or where high welding temperatures are required. Thermit tack welding is commonly used in applications like rail track welding.

Hot Tacking

Hot Tacking involves placing tack welds while the material is hot, typically during a preheating process. This technique can help reduce the risk of cracking in materials that are sensitive to thermal shock, such as high-carbon steel or certain types of stainless steel.

Ultrasonic Tack

Finally, Ultrasonic Tack Welding uses high-frequency vibration to create a solid-state bond between materials. This method is typically used in plastic welding but can also be applied to certain metals. Ultrasonic tack welding offers the advantage of being a quick, efficient, and low-heat method of tack welding.

Four Forms of Tack Welds

In the realm of tack welding, there are diverse forms of tack welds that can be used to secure workpieces before final welding. These are largely determined by the orientation and geometry of the workpieces. In this section, we’ll discuss four distinct forms: Square Tack Welds, Vertical Tack Welds, Right Angle Tack Welds, and Right Angle Corner Tack Welds.

Square Tack Welds

Square Tack Welds are tack welds that have been made in a square or rectangular formation. This approach is usually used on flat surfaces where the pieces need to be held at a specific distance from each other. The tack welds are positioned in a way to distribute the holding force evenly across the workpieces.

Vertical Tack Welds

In contrast, Vertical Tack Welds are used when the workpieces are positioned vertically. The welder applies the tack welds in a vertical direction. This form of tack welding can be slightly more challenging due to the effects of gravity, but it is essential in many applications, especially in construction and infrastructure projects.

Right Angle Tack Welds

Right Angle Tack Welds are utilized when two pieces of metal are to be joined at a right angle. These welds are used to hold the pieces in the correct alignment and ensure that the angle doesn’t change during the final welding process.

Right Angle Corner Tack Welds

Lastly, Right Angle Corner Tack Welds are specifically used for joining two pieces at a corner where they meet at a right angle. These types of welds require a high level of skill, as they must be applied precisely to ensure the pieces remain correctly aligned throughout the final welding process.

Effective Strategies for Superior Tack Welds

Quality tack welding is a crucial element in any welding project. Proper execution of this technique can ensure that the final welds are strong, precise, and visually appealing. Here are some effective strategies to achieve superior tack welds.

Guidelines for Executing High-Quality Tack Welds

High-quality tack welds demand practice, knowledge, and the right approach. The welder should understand the importance of aligning the workpieces correctly and securely. Additionally, the duration and intensity of the heat applied during tack welding should be controlled to prevent over-heating or deformation.

Evaluating the Metal Piece

Before commencing with the tack welding, it’s crucial to evaluate the metal piece. Understand its properties, composition, thickness, and how it reacts to heat. This information will guide the adjustment of the welding parameters and the selection of the right welding method and filler material.

Purifying the Metal Filler Wire

Purifying the metal filler wire is a step often overlooked but can significantly impact the quality of your tack welds. Before use, clean the filler wire to remove any oil, dust, or oxidation that may contaminate the weld.

Utilizing Tape to Secure Parts

Tape can be used to secure parts temporarily, especially for small or intricate pieces that may be challenging to hold in place during tack welding. Just ensure that the tape is removed before the final welding to avoid any potential damage or contamination.

Grasping the Area and Managing Distortion

Managing distortion is a vital skill in tack welding. Preheating the area, applying intermittent tack welds, and allowing for cooling periods can help control and reduce distortion.

Employing Sturdy Filler Wire

The selection of a sturdy filler wire is crucial. The filler wire’s composition should be compatible with the base metal and possess the necessary mechanical properties to withstand the loads and stresses that the final product will be subjected to.

Administering Balanced Heat and Allowing for Cooling

Lastly, always ensure that you are administering balanced heat and allowing sufficient time for cooling between tack welds. This will help minimize distortion, prevent over-heating, and lead to higher quality welds.

The Pros and Cons of Tack Welding

Like any other process or technique, tack welding too comes with its set of benefits and limitations. Understanding these can provide a comprehensive perspective and help make informed decisions in the welding process.

The Benefits of Tack Welding

Tack Welding offers numerous advantages that make it an essential part of the welding procedure:

1. 1. 1. Securing Components: Tack welds are ideal for holding components in place temporarily. They ensure that the pieces do not move during the final welding process, thereby promoting alignment and precision.
      2. Preventing Distortion: When handled properly, tack welds can minimize the distortion of the workpiece during welding. They distribute the heat evenly, preventing the warping often caused by intense, localized heating.
      3. Time-Efficient: Tack welding is a quick process that saves time, especially when dealing with large or complex assemblies.
      4. Versatility: Tack welding can be used with a wide variety of metals and thicknesses, making it versatile and suitable for many applications.

The Limitations of Tack Welding

Despite its many advantages, tack welding does have its limitations:

1. 1. 1. Risk of Imperfections: If not properly executed, tack welds can cause imperfections like porosity, cracks, or inclusions in the final weld. These can compromise the structural integrity of the weldment.
      2. Requires Skill and Precision: Tack welding demands a high level of skill and precision. A slight misalignment or an incorrect welding parameter could lead to poor quality welds.
      3. Possibility of Distortion: While tack welds can minimize distortion when correctly done, they can also cause distortion if applied improperly. For instance, if the tack welds are too large or applied too frequently, they can lead to undue stress and distortion.

Contrasting Tack Welding and Spot Welding

While Tack Welding and Spot Welding are both common methods used in the welding industry, they serve different purposes and operate on distinct principles. Understanding their differences is key in determining the most suitable method for a specific welding task.

Tack Welding

Tack Welding is a process where small, temporary welds are used to hold components together before a full welding operation is conducted. The primary purpose of these welds is to ensure that the parts do not shift or distort during the final welding process.

1. 1. 1. Versatility: Tack Welding can be used with a wide range of metals and material thicknesses. This makes it a versatile method suitable for various applications.
      2. Prevention of Distortion: When correctly applied, tack welds can distribute the heat evenly, thus minimizing distortion during the final welding process.
      3. Skills Required: Tack welding requires a high level of skill and precision to ensure alignment and prevent imperfections in the final weld.

Spot Welding

On the other hand, Spot Welding is a type of resistance welding where two or more sheets of metal are joined by applying heat and pressure to a small area. The heat is usually provided by an electric current.

1. 1. 1. Specific Use: Spot Welding is primarily used for joining thin sheets of metal, especially in the automotive industry.
      2. Simplicity: Spot Welding is a relatively simple process that does not require a high level of skill.
      3. Fast and Efficient: Spot Welding is a fast and efficient method that is ideal for high-volume production.

In conclusion, while both Tack Welding and Spot Welding are valuable techniques, their applications are distinct, and choosing between them largely depends on the specific requirements of the welding task at hand.

Conclusion

As we conclude, it’s clear that tack welding is a powerful tool in the welder’s arsenal. With the right approach, tack welding can greatly enhance the quality of your welding projects, lead to more efficient production times, and ultimately, result in superior finished products. It’s not just a preliminary step but a critical one that paves the way for the successful completion of any welding project.

Whether you’re a seasoned professional or a beginner in the welding field, understanding and applying tack welding effectively can significantly upgrade your skillset. Always remember, quality welding is not just about joining pieces of metal together, it’s about creating strong, durable, and safe structures that stand the test of time. And tack welding is a big part of that.
