How to Choose the Right Methods to Make Translucent and Transparent Parts?

Imagine this: You’ve designed a part that’s sleek, modern, and requires that chic, transparent finish. But when you get to production, the result is a part that’s more cloudy than clear. Frustration mounts. Why? Choosing the correct method to achieve transparency in your legs is as crucial as the design itself. And that’s where the challenge—and my expertise—comes in.

When aiming for that perfect see-through component, you need a process that aligns with your material choice, design intricacies, and final application. Whether it’s a high-clarity prototype or a batch of lenses for intricate electronics, I’ll walk you through the steps to ensure your end product is as clear as your vision.

Stay tuned because I will highlight the not-so-transparent topic of creating transparent and translucent parts. Let’s demystify the processes together and turn clarity into your competitive advantage.

What Is Transparent Material And Its Advantage?

Transparent materials are the crystal-clear choice for when you want no barriers between your product and the viewer’s eye. Think of it as glass; you can see right through it, and it’s as honest as materials come—no hidden surprises. The advantage? Transparency equates to purity in many consumers’ minds. It offers an unobstructed view of internal components, which is not just aesthetically pleasing but can be crucial for diagnostic parts in medical or electronic devices.

From a manufacturing standpoint, transparent materials provide the versatility needed in various applications—from medical equipment, where sterility is paramount, to the automotive industry, where clarity can impact safety. Additionally, transparent materials often boast high tensile strength and durability despite their see-through nature. It’s like the superhero of materials: it can take a punch (or pressure) and remain visually undisturbed.

What Is Translucent Material And Its Advantage?

Translucent materials are the middle ground between the absolute clarity of transparent materials and the opaque mystery of non-see-through substances. These materials allow light to pass through, but objects on the other side are not distinctly visible. It’s like the frosted glass of a shower door—enough light comes in to keep you from stumbling around but keeps the details private.

The advantage of using translucent materials lies in their ability to diffuse light. This quality is particularly beneficial when you want to illuminate something without revealing the harshness of the light source or when you aim to give a product a soft, premium look and feel. It’s a favorite in the world of LEDs and electronic devices, where you want the glow without the glare.

Translucent materials often provide a greater level of design flexibility as well. They can hide internal components while still indicating the presence of something behind the veil. This can stimulate curiosity and add depth to your product’s aesthetic. Plus, scratches and other minor imperfections are less conspicuous on translucent surfaces, which can be a significant advantage in the longevity of the product’s appearance.

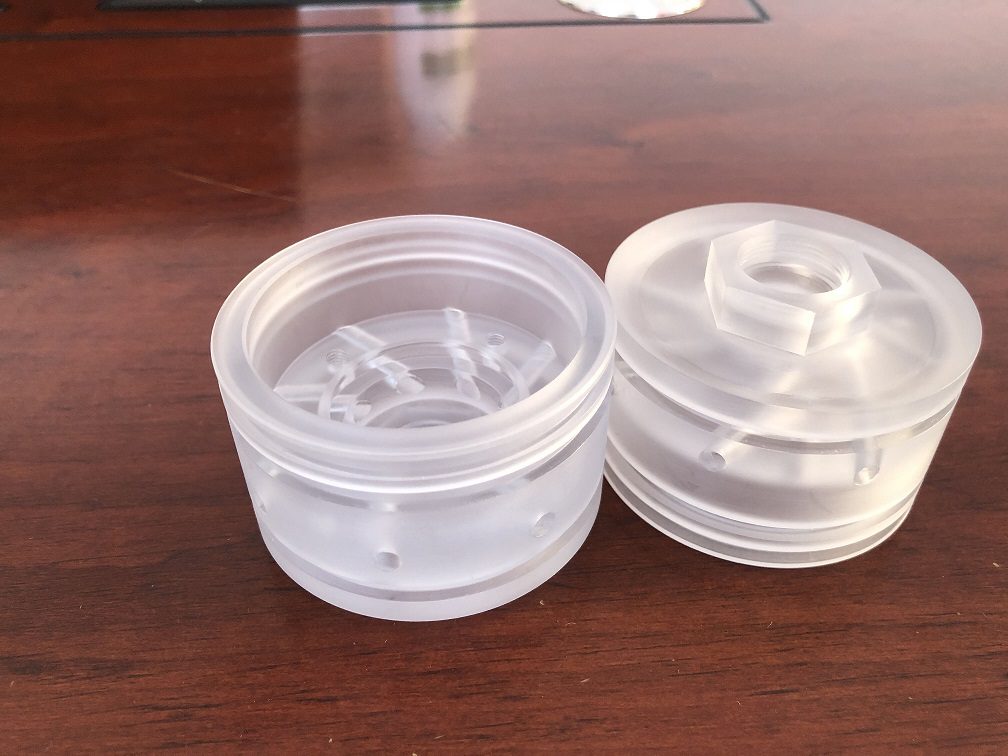

The Difference Between Translucent And Transparent?

The technical distinction between translucent and transparent materials is about light transmission—how light passes through a substance. Acceptable materials are the virtuosos of clarity; they allow light to pass through with little to no distortion, enabling objects on the other side to be seen with perfect or near-perfect clarity.

Translucent materials, on the other hand, scatter the light as it passes through. This scattering effect prevents a clear view of the objects behind them, creating an aesthetic that is both practical and appealing for specific applications.

In the technical realm of manufacturing, particularly in CNC machining, the production approach for each type differs significantly. With transparent materials, every machining mark or internal stress can affect clarity, so the manufacturing process must be meticulously managed to prevent such flaws. This often requires fine-tuning machine parameters, using specialized cutting tools, and sometimes incorporating post-processing methods like flame polishing or annealing to enhance transparency.

For translucent materials, the objective is to achieve a uniform surface that diffuses light effectively. The manufacturing process might allow for a broader range of cutting conditions or tool choices since surface imperfections are less visible. However, achieving uniformity in translucence is still a challenge; it demands a consistent approach to the material’s thickness and finish across the entire part.

Process Method – SLA

Stereolithography, commonly known as SLA, a laser cures photopolymer resin layer by layer, a process that feels like coaxing solid forms out of liquid by sheer will—and precision.

For transparent materials, SLA is a strong contender due to its ability to produce parts with high-resolution features and a glass-like surface straight out of the printer. It’s akin to the finesse of a master jeweler—meticulous and refined. When producing translucent parts, SLA similarly shines by allowing for precise control over wall thickness and, thus, the degree of light diffusion.

Post-processing plays a starring role in achieving the desired level of clarity or transparency with SLA. For transparent pieces, post-curing and subsequent sanding and polishing can elevate the clarity to rival that of molded glass. It’s a labor of love to take part from the matte finish of printing to the sparkling clarity of a finished lens or window.

However, SLA does come with a few considerations. The materials used in SLA are generally less robust than those used in CNC machining or injection molding, often making them less suited for functional parts that require durability. There’s also the matter of size limitations and the support structures that SLA necessitates, which can introduce post-processing challenges.

Process Method – CNC Machining

Unlike additive manufacturing processes like SLA, CNC Machining is a subtractive process, where material is removed from a solid block to reveal the final product.

CNC Machining is ideal for creating transparent parts due to its ability to achieve incredibly smooth surface finishes and tight tolerances. For example, when machining acrylic, one can achieve a glass-like clarity that’s hard to distinguish from actual glass. On the other hand, translucent parts can be machined with specific surface textures or finishes that perfectly diffuse light.

The key advantages of CNC Machining include:

• Material Versatility: CNC Machining can handle a wide range of materials, both plastics and metals, which is a significant benefit when producing durable, high-quality transparent and translucent parts.
• Precision: The level of detail and accuracy of CNC Machining means features can be cut with high precision, which is crucial for maintaining the optical properties of transparent parts.
• Finish Options: CNC Machining can produce parts with a variety of surface finishes, from mirror-like polishes to matte textures that influence the translucency of a material.

However, there are also technical considerations unique to machining transparent materials:

• Tool Marks: Any imperfections, such as tool marks or scratches, will be visible in transparent materials, so a high degree of skill is required to produce a clear finish.
• Internal Stresses: Machining can introduce stresses into transparent materials, potentially leading to cracks or fractures, especially along the edges of acrylic.
• Post-Processing: Achieving true transparency often requires extensive post-processing, including polishing or flame polishing, which adds to the manufacturing time and cost.

• Acrylic is renowned for its glass-like clarity and can be flame-polished to achieve a high-gloss surface finish.

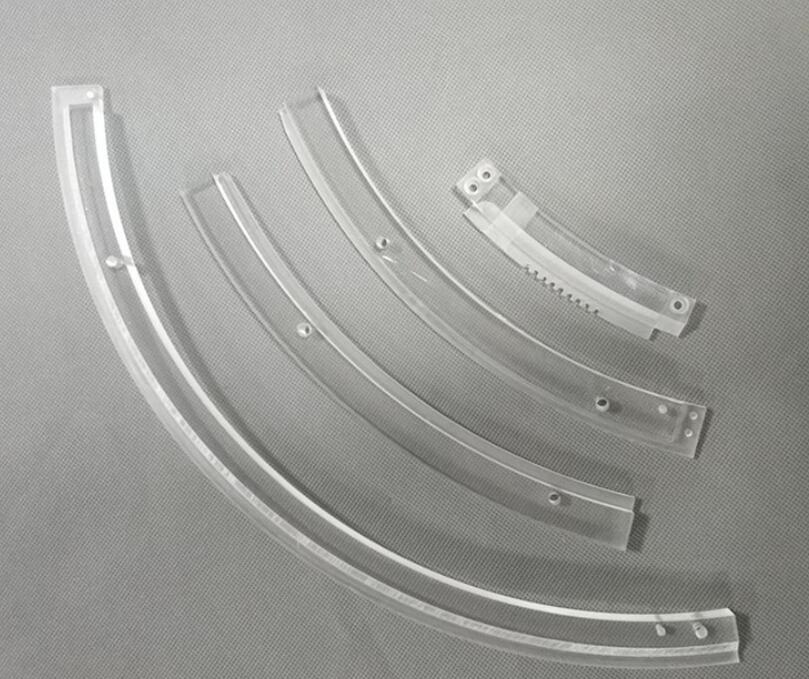

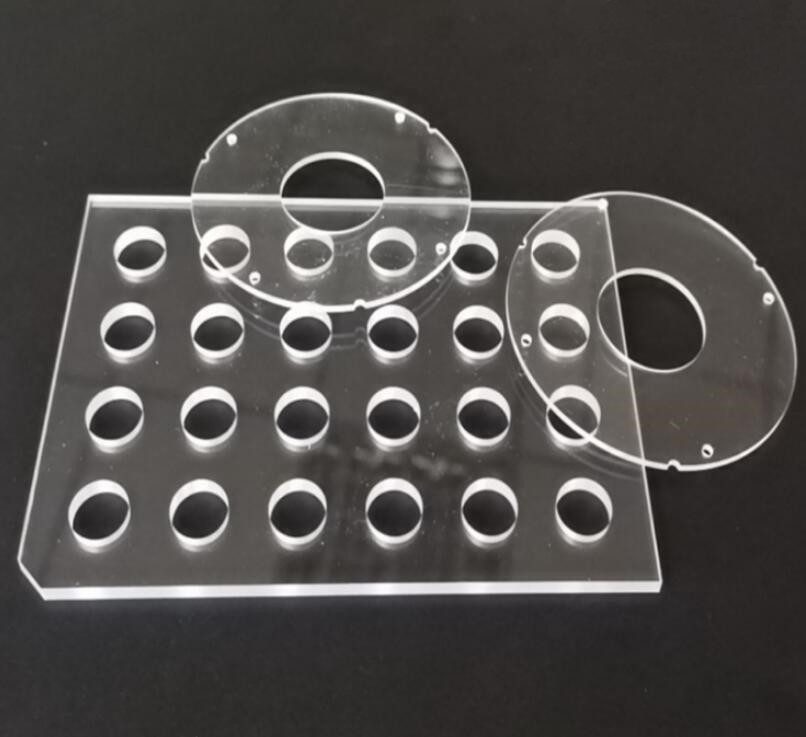

• Polycarbonate is known for its impact resistance and can be polished; however, it is more prone to scratching.
• Polyethylene and Polypropylene are not typically used for their clarity, but they can be made translucent for applications that require light diffusion.
• Polystyrene can be transparent, but it is brittle and typically used in applications where the part is not subject to stress.
• PET and PETG offer good clarity and are favored for their ease of machining and chemical resistance.

Process Method – Urethane Casting

By casting liquid polyurethane resins into silicone molds, urethane casting creates parts that can mimic the clarity and color of injection-molded pieces but with the soft touch of small-batch attention.

This method is especially suited for mid-volume production runs where the cost of a full-blown injection mold is not justified. It’s like having a bespoke suit tailor-made; it fits just right without the price tag of haute couture.

Transparent parts made through urethane casting can look virtually indistinguishable from those made with more expensive tooling methods—meanwhile, translucent parts benefit from the subtle textures and hues achieved with different resin formulations.

The benefits of urethane casting for these types of parts include:

• Speed: Silicone molds can be created rapidly compared to steel or aluminum molds used in injection molding.
• Cost-Effectiveness: It’s more economical for low to mid-volume production runs.
• Material Options: Various clear and tinted urethanes are available to achieve the desired level of translucency or transparency.
• Finish and Color: Parts can be painted, tinted, or textured according to specifications, offering a wide range of aesthetic options.

Nevertheless, with urethane casting, one must be mindful of:

• Material Properties: While there are many urethane resins available, their physical properties can vary widely, and they generally don’t match the strength of materials like polycarbonate or acrylic.
• Limited Life of Molds: Silicone molds degrade over time and with use, limiting the number of parts that can be cast before the quality diminishes.

Process Method – Injection Molding

Injection molding is akin to the orchestral maestro of manufacturing, conducting an ensemble of molten thermoplastic into pre-constructed metal molds to shape intricate parts with repeatable precision.

Injection molding is ideal for large production runs, where the initial cost of creating the metal molds can be amortized over a high volume of parts. It’s like the printing press of the plastics world—set it up for your run, and it reliably replicates part after part with unwavering fidelity.

Here are some of the standout attributes of injection molding for transparent and translucent parts:

• Scalability: Perfect for high-volume production, reducing the per-part cost significantly.
• Material Selection: There’s a vast array of transparent plastics suitable for injection molding, from acrylics and polycarbonates to more apparent polypropylene grades.
• Precision and Consistency: Parts are molded with tight tolerances and high repeatability.
• Surface Finish: Injection molding can achieve excellent surface finishes right out of the mold, often eliminating the need for post-processing.

Of course, it’s not all sunshine and rainbows. There are considerations and challenges to be aware of:

• Upfront Costs: The cost of mold production can be high, making injection molding less economical for small production runs.
• Design Restrictions: While it offers excellent precision, injection molding imposes design constraints. Undercuts, for example, can complicate mold design and increase costs.
• Material Behavior: Not all transparent materials are suited for injection molding. Some may yellow over time or have different shrink rates, which must be accounted for in the design.

Process Method – Vacuum Casting

This process begins with a master model, typically created using stereolithography (SLA) or a similar method. A silicone mold is then crafted around this master. The real magic happens when a two-part polyurethane resin is mixed, degassed, and poured into the silicone mold under vacuum. The result? Parts with excellent detail fidelity and surface finish that can mimic the properties of harder, production-quality plastics.

Key Highlights of Vacuum Casting:

• Fidelity and Finish: Vacuum casting produces parts with fine details and smooth surfaces.
• Material Versatility: You can choose from a range of clear and translucent resins to mimic various thermoplastics.
• Cost-Effectiveness: It’s more economical for small batches than traditional manufacturing methods like injection molding.
• Speed: Rapid turnaround times make it a favorite for prototypes and market testing.

But like any process, it has its considerations:

• Durability of Molds: Silicone molds wear out after about 20-25 copies, so it’s unsuitable for high-volume production.
• Size Limitations: The size of the parts can be limited by the equipment used to create and house the silicone molds.
• Material Properties: While vacuum-cast parts look and feel like injection-molded parts, their mechanical properties may differ.

Process Method – 3D Printing

3D printing, or additive manufacturing, is another method used extensively for creating both translucent and transparent parts. It includes a variety of techniques, but when it comes to transparency, certain practices like SLA (Stereolithography) and material jetting stand out.

Critical Aspects of 3D Printing for Transparent Parts:

• Layer-by-Layer Precision: 3D printing adds material in thin layers, allowing for intricate designs and complex geometries that might be impossible with other methods.
• Variety of Clear Materials: There are specific resins and filaments designed for 3D printing that can achieve transparent qualities.
• Post-Processing: To achieve higher levels of transparency, post-processing, such as sanding, polishing, and clear coating, is often necessary.

However, 3D printing also presents its own set of challenges:

• Surface Clarity: The layering effect inherent in 3D printing can cause a “frosted” appearance, which may require extensive post-processing to clear.
• Structural Integrity: While 3D printed parts can look the part, they might sometimes have different strength or temperature resistance than those made with traditional manufacturing techniques.

What Surface Finish Could Be Used?

Here, I’ll walk you through the range of surface finishes that can be applied to enhance the clarity and function of CNC machined, 3D printed, or cast parts.

A Spectrum of Finishes:

• Polishing: This is the most common method used to bring a transparent part to high clarity. It can be done manually or with specialized equipment for uniformity.
• Sanding: Starting with a coarse grit and moving to a finer grit can help remove layer lines from 3D-printed parts or machining marks from CNC-produced pieces.
• Clear Coating: Applying a clear coat can not only improve the part’s aesthetic but can also protect it from environmental factors.
• Flame Polishing: Applying a flame to heat the surface quickly can gloss over imperfections, especially on acrylics, enhancing clarity.

Here’s a rundown of finishes suitable for different processes:

Conclusion

Choosing the right methods to create translucent and transparent parts is no small feat—it requires a keen understanding of materials, processes, and finishes. But it’s not a journey you need to undertake alone. At Worthy Hardware, we’re not just equipped with state-of-the-art technology; we’re your partners in turning vision into reality.
