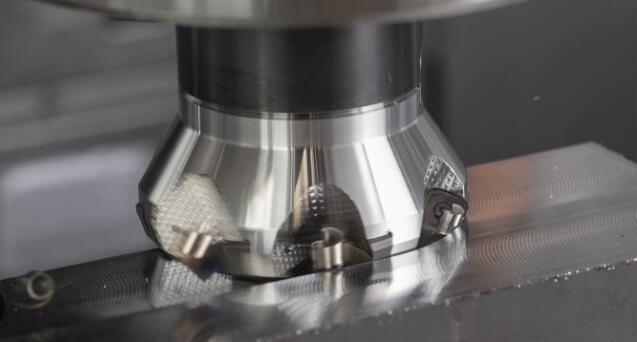

Face milling is like the facial grooming of the milling world. It’s about creating a nice, finished surface at the top or bottom of a workpiece. Unlike plain milling, face milling uses a cutter with teeth both on the periphery and the face, effectively making your workpiece presentable. Face milling is your go-to operation when you want a smooth, polished look.
Angular Milling
Angular milling is for those moments when you need a little slant in your life. It’s used to mill surfaces at an angle. The setup involves tilting the milling cutter from the perpendicular axis, often at an angle of 45 to 60 degrees. It’s like giving your workpiece a stylish, diagonal cut that serves form and function.
Profile Milling
Profile milling is all about style and curves; it’s the sculptor’s tool of the milling world. This operation creates contours and intricate shapes, cutting vertically and horizontally into the workpiece. Imagine carving a winding river through a landscape—that’s what profile milling feels like, only with metal or wood instead of earth.
End Milling
End milling is the Swiss army knife in your toolbox. This operation uses an end-milling cutter, and you can perform various tasks like drilling, slot cutting, and contouring. It’s like having a multi-talented performer who can sing, dance, and act—you pull it out when you need a bit of everything.
Form Milling
Form milling is the artist of the milling operations. A specially shaped cutter allows you to create curves, concave, convex, or any other complex forms on the workpiece. It’s about translating imagination into reality, transforming a block of material into something that’s visually and functionally appealing.
Gear Milling
Ah, gear milling, the matchmaker. This operation is all about crafting gears that mesh well with others. Specialized cutters are used to create the teeth on bags, which must be done with extreme precision to avoid mechanical failures. It’s like constructing a well-oiled machine, quite literally.
Slot Milling
Slot milling is your go-to when cutting narrow slots into the material. It’s like threading a needle but with metal or wood. Usually, a cylindrical cutter plunges into the workpiece to create spaces of specific dimensions. It’s an operation that demands precision because slots are often critical for assembly or other subsequent operations.
Side Milling
Side milling is about creating vertical walls and flat surfaces on the side of the workpiece. If face milling is the top coat, side milling is the trim or edging. This operation cuts a workpiece on its side to create flat vertical surfaces. It’s like making the side panels of a bookshelf—you need those edges to be crisp for the whole thing to look good.
Gang Milling
Gang milling is the multitasking maven of milling operations. In this setup, multiple cutters are mounted on the same spindle. The idea is to perform different functions in a single pass, like a Swiss Army knife gives you various tools in one package. It’s a time-saver and a game-changer for complex projects that require varied cuts.
Thread Milling
Thread milling is the couturier’s detail in metalwork, which is essential when you need to make screw threads. Special thread mills are used to cut the threads into the workpiece. This operation is about precision and timing because one wrong move can ruin the thread pattern, affecting the part’s function. It’s the couture-level tailoring of the milling world—each thread must be impeccable.
Helical Milling
Helical milling is like the gymnastics of milling operations. It involves a set of complex, helical tooth paths. The milling cutter follows a helical path as it moves along the workpiece, ideal for drilling holes with a large diameter or for dealing with difficult-to-machine materials. It’s like watching a gymnast stick a complex landing—exhilarating and precise.
Index Milling
Index milling is about precision and repetition. The workpiece is held on an index plate, and the cutter moves in an indexed manner for each cut. This allows for high-precision, repetitive operations and is often used in mass-production settings. It’s the assembly line of milling operations where consistency and speed are king.
