What is Sheet Metal Fabrication? A Complete Guide

Imagine standing at the heart of an advanced civilization, surrounded by masterpieces of engineering and construction. Everything from the car you drive to the smartphone in your pocket has one thing in common: sheet metal fabrication. It’s an art, a science, and a testament to human ingenuity. Curious? Stick with me, and we’ll embark on a journey deep into the world of sheet metal.

Sheet metal fabrication is how metal sheets are meticulously manipulated into various shapes and sizes to serve different purposes. It’s like sculpting but with metal, precision, and a touch of finesse.

Why should you care? Understanding the intricacies of sheet metal fabrication not only elevates your knowledge of everyday products but also helps you make informed business decisions, especially in industries like Electronics, Military, Aerospace, and more. Buckle up; this is going to be a fascinating ride!

What is Sheet Metal Fabrication?

As the name implies, sheet metal is formed into thin, flat pieces that can vary in thickness. These sheets are the canvas upon which our fabrication story unfolds.

The “fabrication” part involves a series of operations using specialized tools and machinery to transform this plain sheet into functional parts and components. Think of it like origami, but instead of paper, we’re using metal, and instead of making swans and dragons, we’re crafting parts for electronics, aerospace, automotive, and many more sectors. [^fake-link-1^]

Now, it’s more complex than just bending or cutting metal. The process requires immense precision and expertise. One minor mistake and the entire piece could be rendered useless. It’s a dance of accuracy, where measurements are crucial, and there’s little room for error.

Our approach at Worthy Hardware is to offer a range of sheet metal materials, including aluminum, copper, steel, and stainless steel. These materials have unique properties, strengths, and weaknesses, making them suitable for various applications

How Sheet Metal Fabrication Works?

While it may sound straightforward, sheet metal fabrication is a complex process with multiple stages. Each stage ensures the final product meets specifications and quality standards.

Sheet Metal Design Stage

Before any cutting or bending begins, there’s the design stage. This is the most critical phase of the process, as everything that follows depends on an accurate and efficient design.

1. Conceptualization: It all starts with an idea or a need. Whether it’s a component for a robotic assembly or a part for an aerospace module, the design process begins by understanding the function the piece must serve.

1. Blueprint Creation: Using advanced Computer-Aided Design (CAD) software, engineers draft a detailed part design. This blueprint will include specifics like dimensions, tolerances, and material specifications. At Worthy Hardware, we ensure that these designs are optimized for functionality and manufacturability.

1. Prototyping: Before full-scale production, a prototype is often created. This allows for real-world testing and ensures the design translates well into a physical product. Any necessary adjustments to the plan are made at this stage.

Sheet Metal Cutting Stage

Once the design is finalized, we move to the cutting stage. This is where our sheet metal begins to take shape.

1. Selection of Material: An appropriate sheet metal material is selected. Depending on the design requirements, aluminum for its lightweight properties, or stainless steel for its durability, the right choice is crucial for the end product’s success.

1. Cutting Methods: There are several methods to cut sheet metal, and the choice often depends on the design complexity and the material used. Some standard techniques include:

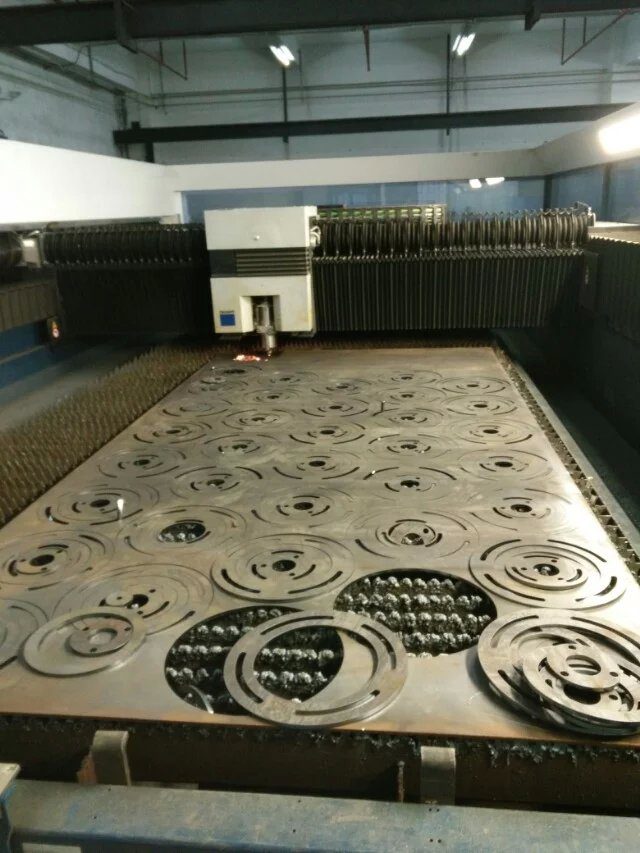

• Laser Cutting: A high-intensity laser beam is used to melt the metal, giving a precise and clean cut.
• Waterjet Cutting: A high-pressure stream of water mixed with abrasive materials cuts through the metal. It’s beneficial for thicker sheets and when heat might adversely affect the metal.
• Plasma Cutting: This method involves a plasma torch cutting through the metal. It’s faster than other methods but might not be as precise as laser cutting.

Sheet Metal Bending Stage

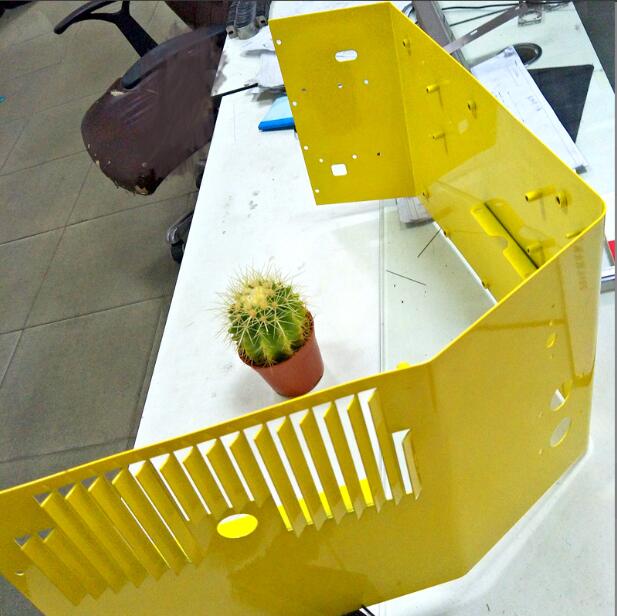

The art of transforming a flat piece of metal into a three-dimensional shape largely hinges on the bending process.

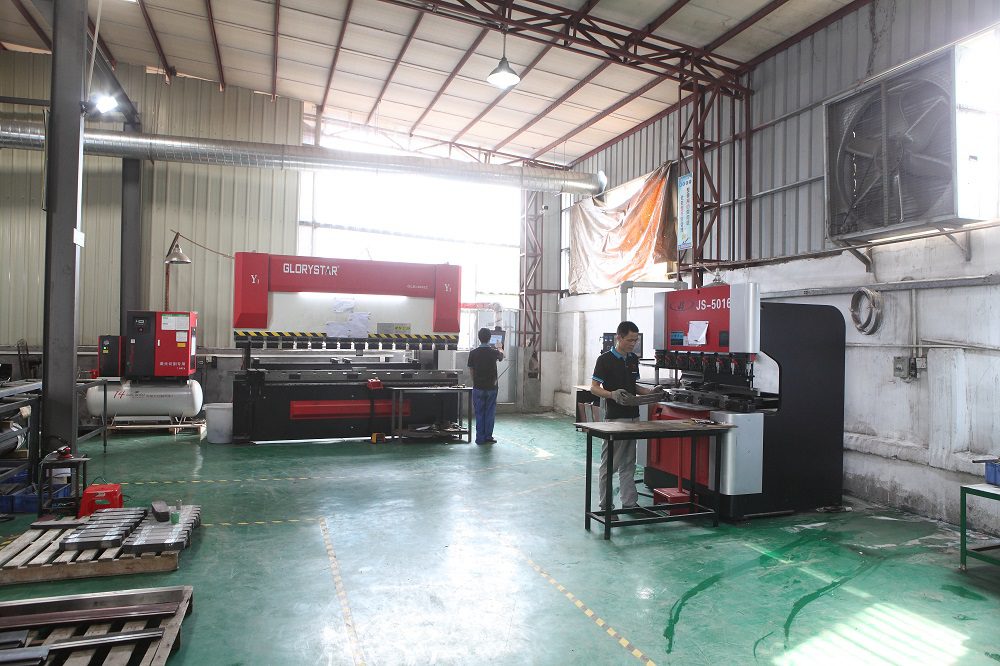

1. Bending Equipment: Hydraulic press brakes are commonly used in the bending process. They force a die or a punch to bend the sheet metal at specific angles.

1. Bending Techniques: There are different techniques employed depending on the requirement:

• Air Bending: The sheet metal only touches the tooling at a few points, and the force applied causes the bend. It’s the most common technique because of its versatility.

• Bottom Bending: The sheet metal is pressed firmly against the die, creating a more pronounced bend. This method offers higher precision.

• Coining: A significant amount of force is applied to embed the sheet metal into the die. It’s a precise method, but it requires more energy.

3. 3. Bending Considerations: One must be cautious about the metal’s bend radius and grain direction. An incorrect bend can lead to a weakened structure or even cracks. Worthy Hardware utilizes advanced software and skilled technicians to ensure accurate and efficient bending every time.

Sheet Metal Forming Stage

While bending focuses on changing the angle of the metal sheet, forming gives it more complex shapes and contours.

1. Forming Methods:

• Stamping involves placing the sheet metal in a press and using a die to form specific shapes. It’s widely used because of its ability to produce high volumes quickly.
• Deep Drawing: Used for making deep, hollow shapes like cans or bowls. The sheet metal is drawn into a die by a mechanical punch.
• Roll Forming: As the name suggests, this method involves passing the sheet metal through rolls to achieve the desired cross-section.

1. Tooling: The forming process’s precision heavily depends on the quality and maintenance of the tools used. Dies and punches need to be regularly inspected and maintained to prevent defects in the formed parts.

1. Forming Challenges: Forming sheet metal has its challenges. Issues like tearing, wrinkling, or springback (when the metal tries to revert to its original shape) can arise. But with expert knowledge, quality tooling, and precise calculations, these challenges are efficiently managed.

Sheet Metal Finish Stage

After all the cutting, bending, and forming, we approach the finishing stage. This phase is crucial, as it not only adds aesthetic appeal but also enhances the durability and functionality of the fabricated parts.

1. Cleaning: The first step is to thoroughly clean the metal to remove any oils, dirt, or residues. This ensures that subsequent finishes adhere properly.
2. Surface Finishing:

• Grinding: Removes burrs and sharp edges, making the piece safer and aesthetically pleasing.
• Polishing: This provides a smooth, mirror-like finish, especially on metals like stainless steel or aluminum.
• Blasting: Techniques like sandblasting or bead blasting create a uniform matte surface by shooting abrasive materials at the metal surface.

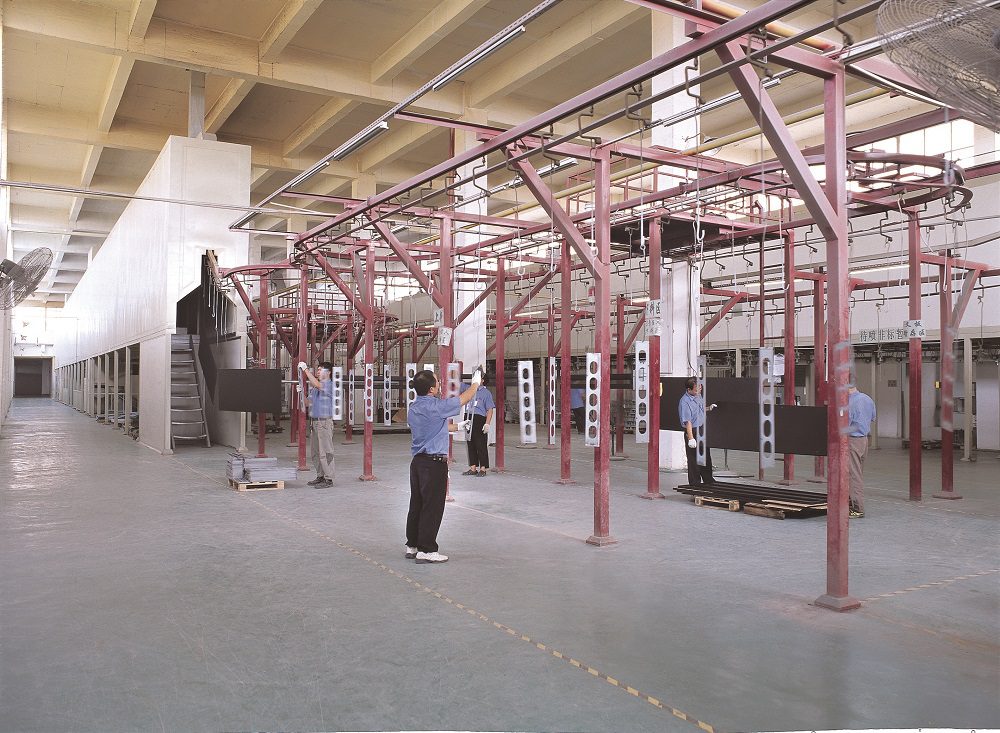

1. Protective Coatings: Depending on the intended use and environment, different coatings can be applied:

• Painting: Adds color and can protect against corrosion.
• Powder Coating: A dry powder is applied electrostatically and cured under heat, resulting in a hard, durable finish.
• Galvanization: A process where a protective zinc layer is applied to prevent rusting.
• Anodizing: Especially for aluminum parts, this process thickens the natural oxide layer, making the surface harder and more resistant to corrosion.

Sheet Metal Assembly Stage

The final stage of the fabrication process is assembling the individual components into a cohesive unit.

1. Welding is the process of joining two metal parts by melting the areas in question and adding a filler material to form a joint. There are different welding methods like TIG, MIG, and spot welding, each with its advantages.
2. Riveting: A more traditional method involves joining pieces using metal pins or rivets.
3. PEM Insert Installation: As part of Worthy Hardware’s assembly services, we install PEM (Press-fit Embedded) inserts. These are internally threaded Hardware that provide a strong thread in metal sheets, useful for attaching other components.
4. Fastening involves using screws, bolts, and other Hardware to join components.

Sheet Metal Material Types

The selection of the suitable material is foundational in sheet metal fabrication. It determines not only the functionality of the final product but also its aesthetics, durability, and cost. Let’s delve into the primary types of materials that we at Worthy Hardware offer and their unique characteristics.

Aluminum:

Characteristics: Lightweight, highly malleable, and resistant to corrosion.

Applications: Due to its weight advantage, aluminum is popular in aerospace, automotive, and consumer electronics. It’s also commonly used in food processing equipment because of its non-toxic nature.

Copper:

Characteristics: Exceptional electrical conductivity, malleability, and natural resistance to microbes.

Applications: Widely used in electrical components, roofing materials, and in some healthcare settings because of its antimicrobial properties.

Steel:

Characteristics: An alloy of iron and carbon, steel is known for its high tensile strength and durability.

Variants:

• Carbon Steel: Can range from low to high carbon content. The more carbon it contains, the harder it becomes.
• Alloy Steel: Contains other elements like chromium or nickel, enhancing specific properties.
• Tool Steel: High carbon content and can withstand significant wear and tear.

Applications: From construction to automotive, steel’s strength and versatility make it a staple in numerous industries.

Stainless Steel:

Characteristics: An alloy of iron, chromium, and often nickel. It’s known for its corrosion resistance, especially to rusting.

Applications: Ideal for food and beverage industries, medical equipment, and anywhere corrosion resistance is paramount.

Brass:

Characteristics: An alloy of copper and zinc. It boasts decent strength and excellent corrosion resistance. It also has a golden appearance.

Applications: Often used in decorative fixtures, musical instruments, and specific mechanical applications.

Bronze:

Characteristics: An alloy primarily of copper, combined typically with tin. It’s more complicated than pure copper and has excellent resistance to corrosion and metal fatigue.

Applications: Used in making coins, medals, and statues, as well as in industrial applications where resistance to wear is essential.

Titanium:

Characteristics: Extremely strong yet lightweight, and it’s resistant to corrosion.

Applications: Predominantly used in aerospace industries but also found in medical implants and high-end sports equipment.

Nickel Alloys:

Characteristics: Known for their resistance to heat, corrosion, and certain chemicals.

Applications: Typically used in harsh environments like oil rigs, jet engines, and medical devices.

Sheet Metal Applications

The adaptability of sheet metal has led to its use in many industries and for varied purposes. Here’s a comprehensive look at its most common applications:

Electronics:

Circuit Board Shields: Protects components from electromagnetic interference.

Enclosures and Casings: For computers, servers, and other electronic devices to protect delicate internal components.

Automotive:

Body Panels: Doors, hoods, and trunks.

Internal Components: Dashboards, seat frames, and even specific engine components.

Aerospace:

Aircraft Structures: Fuselage sections, wings, and tail sections.

Instrumentation Panels: Protects and houses the controls and instruments.

Construction:

Roofing: Both for structural support and as an external surface.

HVAC Systems: Ducting and venting components.

Medical:

Instrument Trays: Used during surgeries and procedures.

Enclosures for Medical Devices, Such as MRI machines or dialysis equipment.

Military and Defense:

Vehicle Components: For tanks, trucks, and armored vehicles.

Weaponry Parts: Casing for ammunition and parts for firearms.

Robotics:

Structural Frames: Provides the basic structure for robots.

Protective Covers: Shields sensitive components from external factors.

Industrial Machinery:

Machine Casings: Protects the operator from moving parts and contains noise.

Conveyor Components: Such as belts and rollers.

Consumer Goods:

Appliances: External and internal components for refrigerators, ovens, and washing machines.

Furniture: Metal bases, frames, and decorative elements.

Energy:

Solar Panels: Metal framing that holds solar cells.

Wind Turbines: Internal structural components.

Food and Beverage:

Cookware: Pots, pans, and baking sheets.

Beverage Cans: Often made of aluminum due to its lightweight and corrosion-resistant properties.

Transportation:

Train and Subway Components: From the external body to internal seating.

Ship Hulls and Parts: Especially in smaller vessels.

Sheet Metal Advantages

As a transformative process, sheet metal fabrication offers a host of benefits that cater to various industrial requirements. These advantages have solidified its position as a cornerstone in manufacturing and construction. Let’s delve into these benefits:

Versatility:

Whether the aerospace sector requires lightweight yet strong components or the food industry needs corrosion-resistant equipment, sheet metal’s diverse material options cater to varied demands.

Durability and Strength:

Even when thin, sheet metal can be solid and resistant to wear and tear, making it ideal for longevity applications.

Cost-Efficiency:

Sheet metal fabrication can be more economical than other manufacturing methods, especially when producing large quantities. Advanced machinery and techniques also allow for efficient material usage, minimizing waste.

Lightweight:

Materials like aluminum provide strength comparable to steel but at a fraction of the weight, making them indispensable in industries like aerospace and automotive.

Aesthetic Appeal:

With finishing processes, sheet metal components can be visually appealing, making them suitable for consumer-facing products and architectural applications.

Sustainability:

Many metals are recyclable, making sheet metal fabrication an environmentally-friendly choice. This attribute aligns with global pushes towards sustainability and eco-friendly manufacturing practices.

Rapid Production:

With modern machinery and techniques, large sheet metal parts can be fabricated quickly, catering to industries with tight production schedules.

Customization:

One of sheet metal fabrication’s crowning glories is the ability to produce custom components tailored to precise specifications. This flexibility ensures unique solutions for unique challenges.

Thermal Conductivity:

Metals like aluminum and copper are excellent conductors of heat, making them ideal for applications like heat sinks in electronics or cookware in the culinary world.

Malleability:

Sheet metal can be bent, stretched, and formed into intricate shapes without losing strength, allowing diverse applications across various sectors.

Conclusion

Sheet metal fabrication is not just a process; it’s an art, a science, and a testament to human innovation. Every step combines precision, expertise, and dedication, from the initial design phase to the final assembly.

As we’ve explored, its applications span numerous industries, emphasizing its importance in our daily lives. At Worthy Hardware, we are proud to participate in this journey, supporting initiatives worldwide with our top-tier sheet metal fabrication services.
