What is Automatic Bar Machining?

Automatic bar machining is a process that uses computer-controlled machinery to automatically machine parts from metal rods. These machines, commonly referred to as bar feeders or auto bar machines, handle the entire production process from feeding the raw material to cutting and finishing the product. This method is highly efficient, reducing labor costs and minimizing material wastage.

Continuing, the brilliance of automatic bar machining lies in its ability to enhance productivity without sacrificing quality. It’s a game-changer for those of us looking to optimize our operations and scale up production with consistency. Stay tuned as we delve deeper into the mechanics and benefits of this fascinating technology.

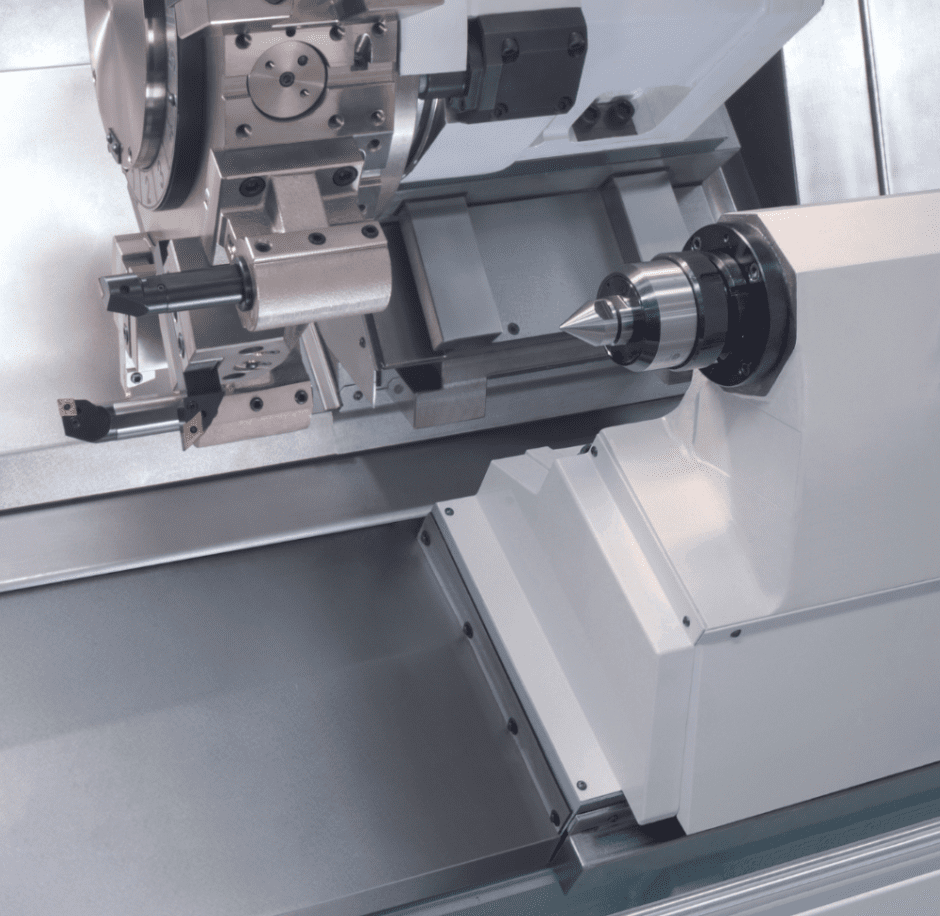

What Are the Basic Principles of Automatic Bar Machining?

Automatic bar machining operates on a set of core principles that ensure efficiency, precision, and scalability in the production of machined parts. At its heart, this process revolves around the automatic feeding of material into a machine where various tools perform cutting, drilling, and finishing operations. Here’s a closer look at these principles:

1. Material Feeding: The process begins with the automatic feeding of bar stock—typically round or hexagonal metal rods—into the machining center. This is facilitated by a bar feeder that pushes the stock through a guide channel, maintaining stability and precision as the material moves.
2. Rotational Cutting: Once the bar stock is in place, the machine employs cutting tools that rotate at high speeds. These tools are mounted on a turret or a slide, allowing them to engage with the material from various angles and positions. As the bar rotates, the tools cut it to the specified dimensions and shapes.
3. Multiple Tooling: One of the standout features of automatic bar machining is the ability to use multiple tools simultaneously. This multi-tooling capability enables performing several operations like drilling, turning, and milling in a single setup, dramatically reducing cycle times.
4. Precision Control: Throughout the machining process, advanced sensors and control systems monitor and adjust the operation parameters. This ensures that each part is machined to exact specifications, maintaining high levels of precision and minimizing the risk of errors.
5. Automated Part Offloading: After a part is completely machined, it is cut off from the bar stock and the machine prepares to start the next cycle automatically. This continuous operation mode allows for uninterrupted production runs, optimizing productivity.
6. Programming and Setup: The entire operation is governed by computer numerical control (CNC), which allows for detailed programming of the machining tasks. Technicians can input precise measurements and cutting specifications, and the machine executes these commands with exact accuracy.

What Materials Can Be Used in Automatic Bar Machining?

Steel: Often the material of choice due to its strength and durability, steel can be machined into parts that require high resistance to wear and impact. Both alloy steel and carbon steel are popular for their differing properties, with alloy steel providing enhanced hardness and carbon steel offering excellent formability.

Stainless Steel: Known for its corrosion resistance, stainless steel is preferred in environments that are prone to rust or where there is regular contact with moisture. It is widely used in the medical, food processing, and marine industries.

Aluminum: Aluminum is prized for its lightweight nature and good corrosion resistance, making it ideal for aerospace, automotive, and consumer electronics applications. It is easier to machine than steel and stainless steel, allowing for quicker processing times.

Brass: This material is often selected for its aesthetic qualities and its relatively low friction coefficient. Brass is easy to machine and is commonly used in plumbing, electrical, and decorative applications.

Copper: Copper is excellent for electrical conductivity and is thus a top choice for electrical components, including connectors and terminals. It also has good thermal conductivity, making it suitable for heat exchangers.

Plastics: Various plastics can be machined using automatic bar machining, including PVC, nylon, and acetal. Plastics are used when weight, cost, or corrosion resistance are factors, and they find applications in a multitude of industries from automotive to consumer goods.

Titanium: Although more challenging to machine due to its toughness and wear on tools, titanium’s strength-to-weight ratio and corrosion resistance make it invaluable for aerospace and medical devices.

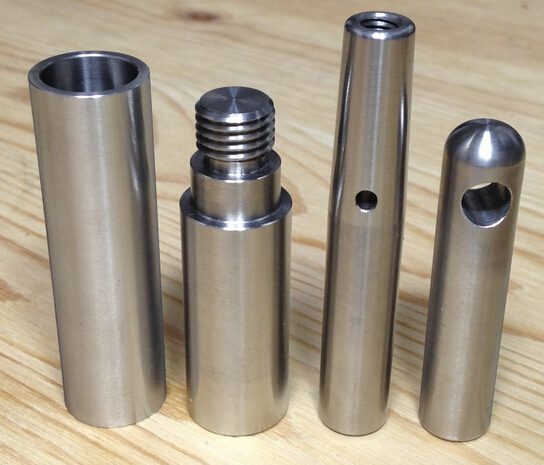

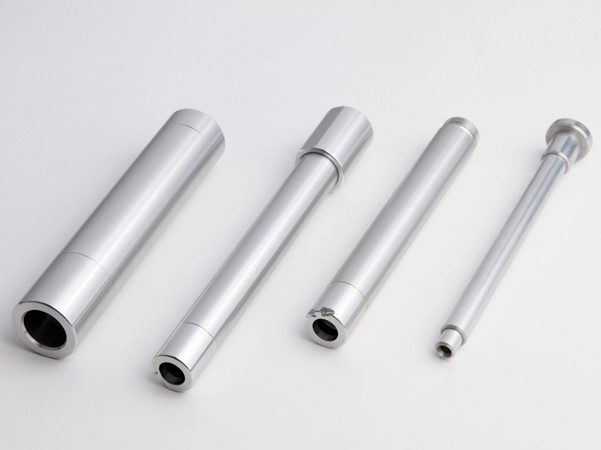

What Types of Products Are Commonly Made with Automatic Bar Machines?

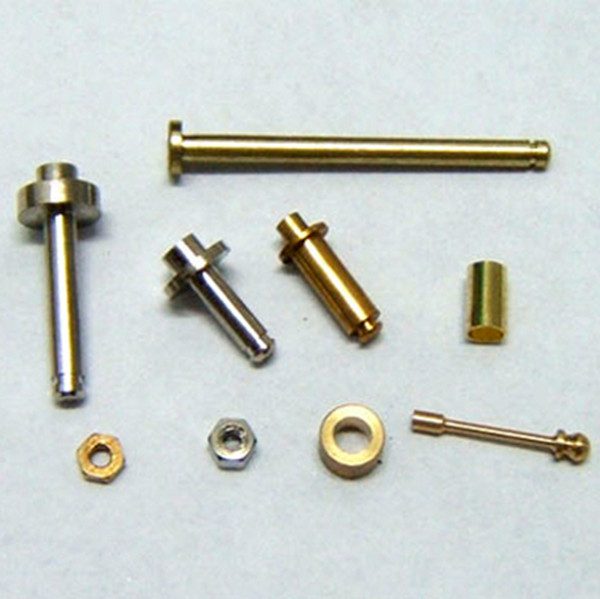

Fasteners and Screws: One of the most common applications of automatic bar machining is the production of fasteners and screws. These components require precise threads and consistent quality, which automatic bar machines can achieve efficiently.

Shafts and Spindles: These critical components are used in numerous mechanical and electrical systems. Automatic bar machines can produce shafts and spindles with the necessary precision, ensuring smooth operation in applications such as motors, power transmission systems, and automotive drivetrains.

Fittings and Connectors: In plumbing, automotive, and aerospace industries, fittings and connectors made with automatic bar machines are crucial for ensuring secure and leak-proof connections due to their precise dimensions and consistency.

Pins and Rivets: Pins and rivets are essential for joining parts in machinery and structures without the need for adhesives or welding. Automatic bar machining provides the necessary accuracy for these small yet vital components.

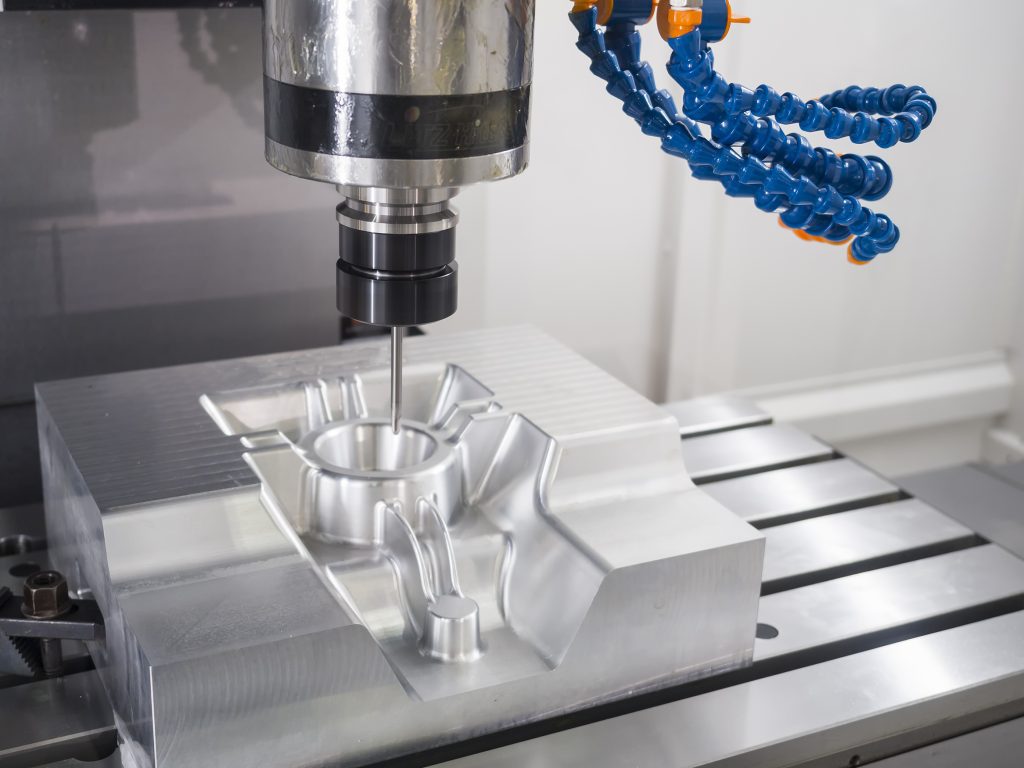

How Does Automatic Bar Machining Compare to CNC Machining?

Efficiency and Volume

Automatic Bar Machining is designed for high efficiency in the production of large volumes of parts. It excels in operations where the same part is produced repeatedly. This process is less flexible but faster for long production runs due to the continuous feed of material and simultaneous use of multiple tools.

CNC Machining provides greater flexibility and is better suited for complex designs and low to medium volume production. It can quickly switch between different operations and is ideal for custom or specialized projects that require precise, intricate work.

Complexity and Precision

Automatic Bar Machining machines are highly effective at producing simple to moderately complex parts with excellent precision. However, they are generally limited to the shapes that can be created by the rotation of the bar stock and the tools available.

CNC Machining allows for the creation of highly complex parts with intricate geometries. With advanced CNC machines, it is possible to achieve extremely tight tolerances and fine details, making it the preferred choice for complicated designs.

Setup and Operation

Automatic Bar Machining requires significant setup time initially, as the machine must be configured with the appropriate tools and programs. However, once set up, the machines can run with minimal supervision, making them highly efficient for long production runs.

CNC Machining also requires setup but can be more quickly reconfigured for different jobs. CNC machines are generally operated by skilled technicians who can adjust parameters and change setups based on the project requirements, offering higher versatility.

Cost Implications

Automatic Bar Machining tends to have a lower per-unit cost at high volumes due to faster production rates and less labor per part. This makes it an economical choice for large batches of standard parts.

CNC Machining may involve higher per-unit costs, especially for low-volume production, due to longer setup times and more intensive labor. However, the flexibility to produce complex designs without the need for specific tooling can offset the higher costs in certain applications.

Material Usage

Automatic Bar Machining is generally limited to materials that come in bar form, which can be a limitation if the desired material is only available in sheets or other forms.

CNC Machining is more versatile in terms of the materials it can handle, including plastics, metals, and composites in various shapes and sizes.

What Are the Advantages of Using Automatic Bar Machining?

High Production Efficiency

Automatic bar machines are designed to operate continuously without interruption, significantly boosting production rates. They can run unattended for extended periods, allowing for lights-out manufacturing. This increases throughput and helps meet large order volumes quickly, making it ideal for high-demand scenarios.

Cost-Effectiveness

With its ability to produce parts rapidly and with minimal human intervention, automatic bar machining reduces labor costs per unit. The efficient use of material and reduced waste also contribute to cost savings, particularly in large-volume production runs. These factors combine to offer a lower overall cost of operation and production.

Consistency and Precision

One of the most significant advantages of automatic bar machining is its ability to maintain high precision and consistency across thousands of parts. Machines are programmed with precise specifications to ensure that each part is produced with minimal variation, which is crucial for industries requiring uniformity, such as automotive and aerospace.

Versatility in Materials

While traditionally associated with metal rods, modern automatic bar machines can handle a variety of materials, including metals like aluminum, brass, and stainless steel, as well as certain types of plastics. This versatility allows manufacturers to use automatic bar machining across a wide range of applications.

Reduced Setup Time for Long Runs

Although the initial setup for automatic bar machining can be time-intensive, it becomes an advantage for long production runs. Once the machine is set up, it can produce parts repeatedly without the need for frequent adjustments or setups. This is particularly beneficial in standardized production processes where the design does not change often.

Enhanced Safety

The automation of the bar machining process minimizes the need for manual handling of the machines during operation. This reduces the risk of accidents and injuries, contributing to a safer work environment. The enclosed nature of these machines also helps in containing debris and reducing workplace hazards.

Scalability

Automatic bar machining allows for easy scaling of production operations. Companies can start with a single machine and increase capacity by adding more machines as demand grows. The consistency of the machines’ output also ensures that scaling up does not compromise the quality of the parts.

Minimal Waste Production

Automatic bar machines are designed to maximize material usage, effectively reducing waste. This not only lowers material costs but also supports environmental sustainability efforts, an increasingly important consideration for modern businesses.

What Are the Limitations of Automatic Bar Machining?

Limited to Certain Shapes and Sizes

Automatic bar machining primarily works with bar stock, which inherently limits the types of shapes and sizes that can be produced. The process is ideal for parts that are cylindrical or have rotational symmetry but may not be suitable for parts that require complex geometries or intricate detailing outside of the cylindrical scope.

Material Restrictions

Though versatile, automatic bar machines are best suited to materials that can be formed into rods or bars, such as metals and some plastics. This restricts the use of materials that are only available in other forms like sheets, blocks, or special profiles, potentially limiting the scope of applications.

Initial Setup and Changeover Times

Setting up automatic bar machines for a new production run can be time-consuming, particularly when changing the type of material or part design. The initial setup involves configuring the machine with the right tools and programming it to meet specific production requirements, which can lead to downtime between production runs.
