Everything You Need to Know About Battery Contacts

Battery contacts are specifically designed to ensure a reliable electrical connection between the battery and the device. They are crafted to withstand constant insertion and removal, and to maintain conductivity even under varying environmental conditions. Knowing the basics of how these contacts work and what materials are best suited for specific applications can greatly enhance the performance and longevity of your devices.

Continuing to delve into the details will reveal not just how battery contacts function, but how you can select and maintain them to ensure optimal performance of your electronic devices. Stay tuned to uncover the intricacies of these small yet significant components.

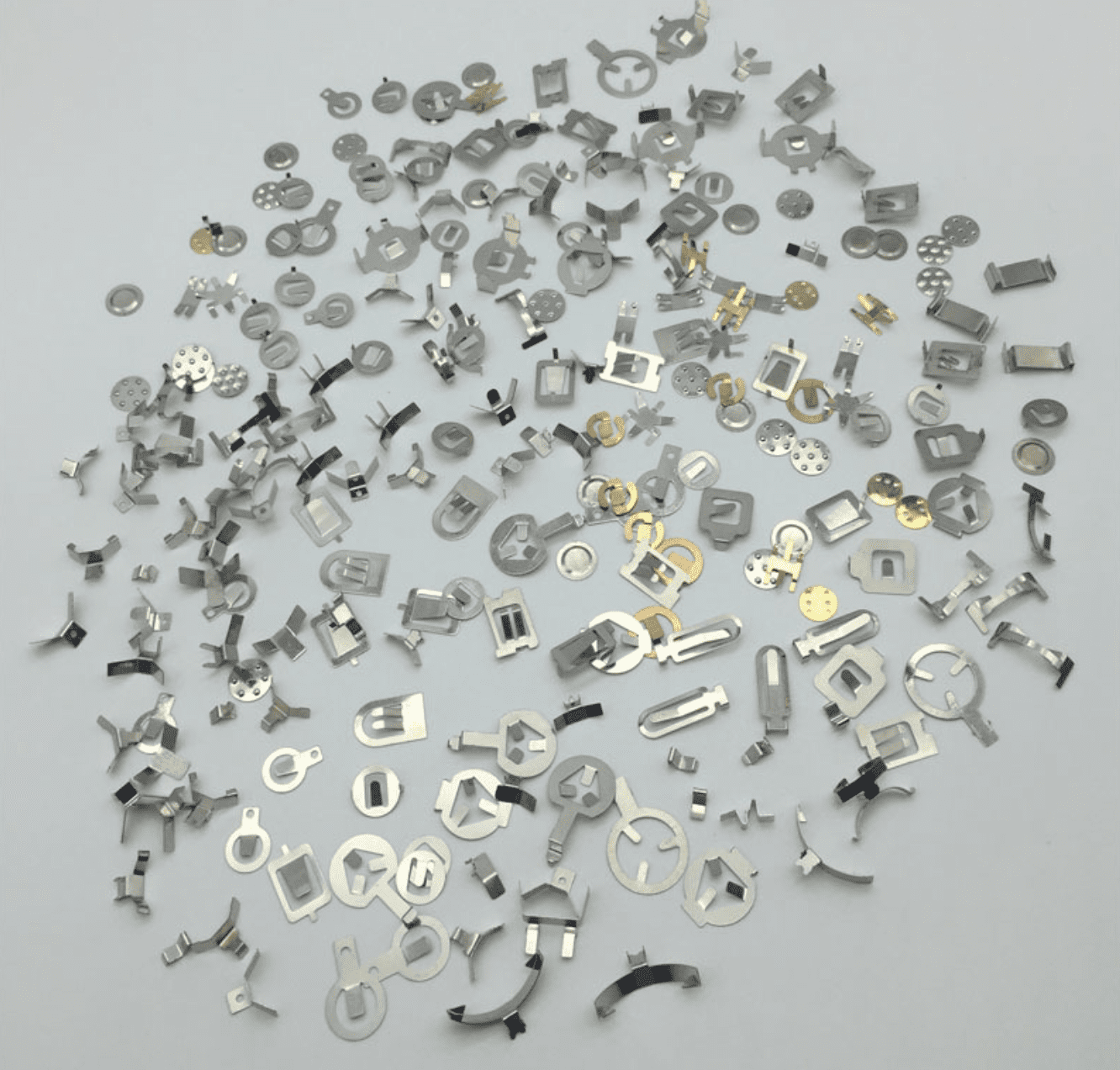

What Are Battery Contacts?

Battery contacts,also named Battery terminals, are the electrical conductors designed to connect the battery to the electronic circuit of a device. These components ensure a stable and continuous power supply by facilitating an efficient transfer of electricity.

Typically, they are made from metals that conduct electricity well, such as copper or brass, and are engineered to resist corrosion and wear.

How Do Battery Contacts Work?

Battery contacts work by physically and electrically connecting the battery terminals to the device’s power management system. They are designed to maintain a secure fit, ensuring contact is consistent, even under conditions that may cause movement or vibration.

This consistent contact is crucial for delivering stable power from the battery to the device, enabling reliable operation and preventing power interruptions.

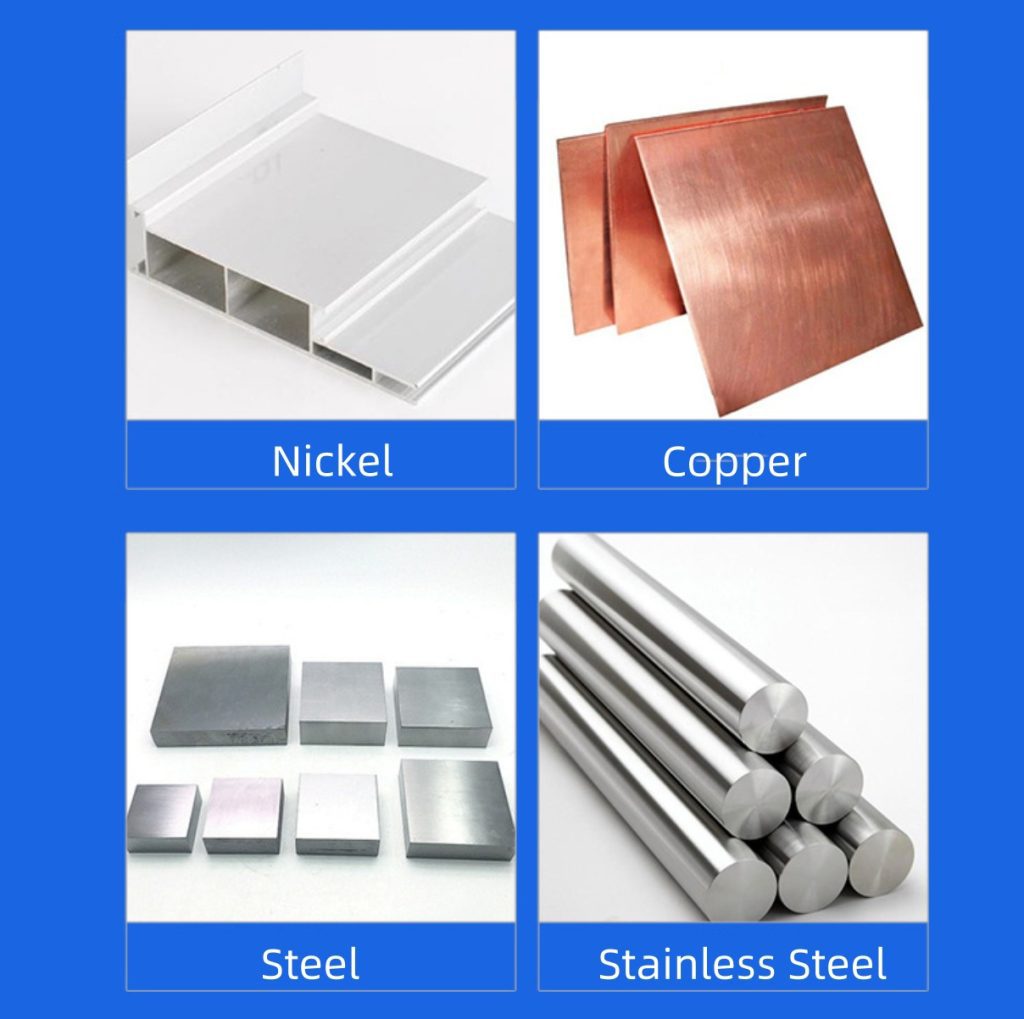

What Materials Are Commonly Used for Battery Contacts?

The most common materials used for battery contacts include brass, copper, nickel, and stainless steel. Each material offers specific benefits:

Brass is favored for its excellent conductivity and resistance to corrosion.
Copper is used for its superior electrical conductivity and flexibility.
Nickel is often chosen for its durability and corrosion resistance, making it ideal for harsh environments.
Stainless steel is used for its strength and resistance to oxidation, although it has lower conductivity than the other materials.

How to Choose the Right Material for Battery Contacts?

Conductivity Needs: If high conductivity is crucial, copper is often the best choice due to its excellent electrical properties.

Environmental Factors: For devices exposed to moisture or chemicals, corrosion-resistant materials like nickel or stainless steel are advisable.

Mechanical Wear: For devices that involve frequent battery replacement or vibration, durable materials such as brass or stainless steel are recommended.

Cost Efficiency: While copper offers high conductivity, it may be more expensive. Brass can be a cost-effective alternative with reasonably good conductivity and durability.

Compliance and Standards: Ensure the material chosen complies with industry standards and certifications relevant to the device’s use.

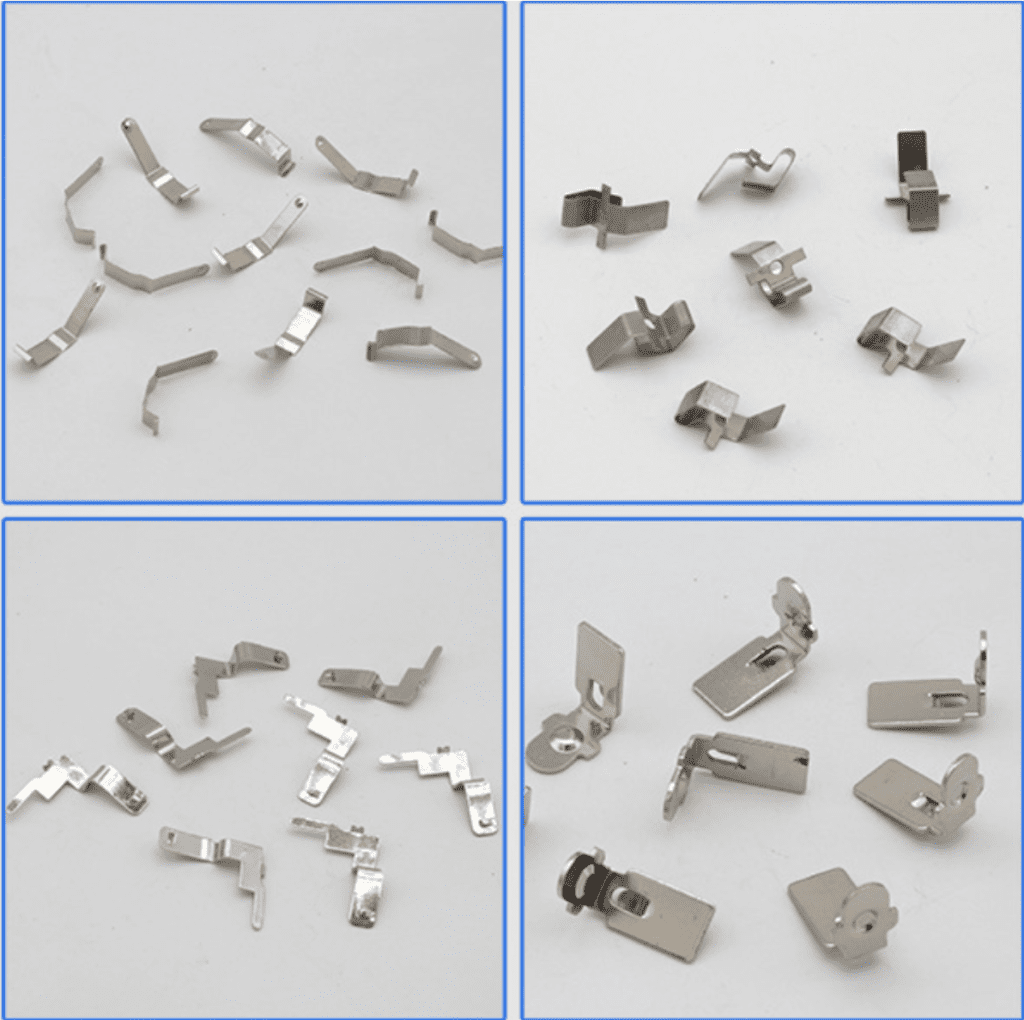

What Are the Different Types of Battery Contacts?

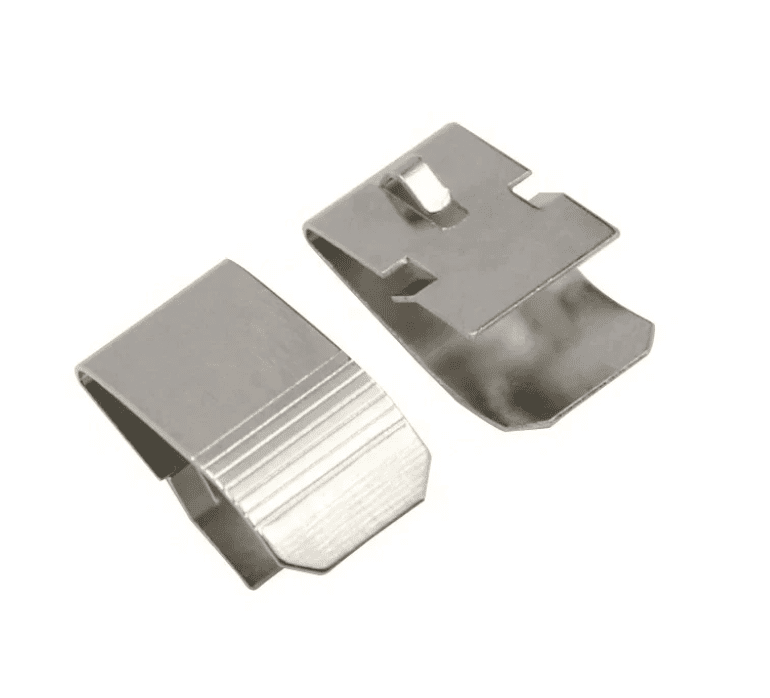

Leaf Spring Contacts

These are flexible and can accommodate variations in battery size, ensuring a tight fit and consistent contact. They are ideal for devices where battery dimensions might slightly vary.

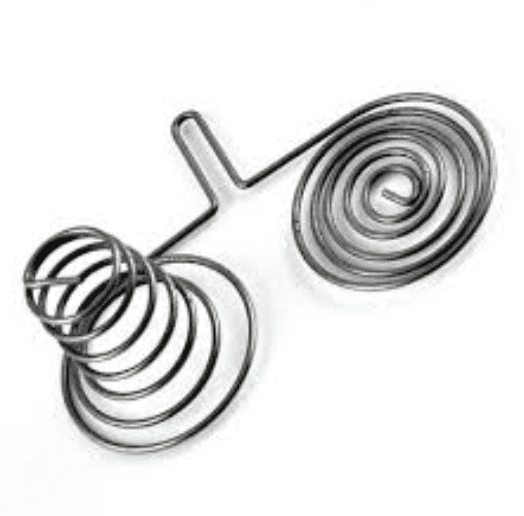

Coil Spring Contacts

Known for their durability and robustness, coil spring contacts provide a strong, consistent force against the battery, ensuring a reliable connection even in devices subject to shaking or frequent movement.

Button Contacts

Typically used in small electronic devices, button contacts are small, round, and provide a point contact. They are compact and are used where space is at a premium.

Sliding Contacts

These allow for easy battery insertion and removal, sliding along the battery terminal during installation or removal. This type is commonly found in larger battery compartments.

PCB Mounted Contacts

These contacts are directly mounted on a printed circuit board and are typically used in highly compact devices where space-saving is critical. They can be tailored for specific shapes and configurations.

SMD (Surface-Mount Device) Contacts

Designed for automated assembly processes, SMD contacts are soldered directly onto the surface of the circuit board, making them suitable for high-volume production and devices with limited internal space.

Cantilever Contacts

These are single-piece contacts that exert a force on the battery terminal using a cantilever mechanism. They offer a balance between ease of battery installation and reliable connectivity.

Common Issues with Battery Contacts

Corrosion: Exposure to moisture, high humidity, or corrosive environments can lead to corrosion, which impairs the electrical conductivity of the contacts. Corroded contacts can cause intermittent or total loss of power.

Wear and Tear: Frequent battery changes or poor contact design can lead to physical wear and tear. Over time, this can result in loose contacts that fail to maintain a stable connection, leading to power fluctuations.

Spring Fatigue: In contacts that use springs (like coil or leaf springs), repeated use can cause the springs to lose their tension, reducing the pressure they exert on the battery terminals. This reduced pressure can lead to poor contact and unreliable device operation.

Dirt and Debris: Accumulation of dirt, dust, or debris on the battery contacts can obstruct the electrical connection, leading to poor performance. Regular cleaning is necessary to maintain optimal function.

Improper Material Choice: Using materials that are not suited for the specific environmental or operational conditions of the device can lead to faster degradation and failure of the contacts.

Manufacturing Defects: Inconsistencies during the manufacturing process, such as improper plating, misaligned parts, or inadequate quality control, can result in defective contacts that fail prematurely.

Tips for Maintaining and Troubleshooting Battery Contacts

Maintenance Tips

Regular Cleaning: Use a clean, dry cloth to wipe the contacts regularly. For more stubborn dirt or grime, use a cotton swab dipped in isopropyl alcohol to gently clean the contacts.
Anti-Corrosion Measures: Apply a thin layer of petroleum jelly or appropriate anti-corrosion spray to the contacts. This helps prevent rust and corrosion, especially in humid environments.
Tighten Loose Contacts: If the contacts become loose, carefully adjust them to ensure a snug fit with the battery terminals. This prevents power loss and intermittent connectivity.
Check for Wear and Tear: Inspect the contacts periodically for signs of wear or damage. Replace worn-out or damaged contacts to maintain optimal performance.
Environment Control: Store and use devices in environments that minimize exposure to extreme temperatures and humidity, which can accelerate the degradation of battery contacts.

Troubleshooting Tips

Intermittent Device Operation: Check the contacts for cleanliness and proper alignment. Clean or adjust as necessary to improve the connection.
Device Not Powering On: Ensure that the battery is properly installed and that the contacts are not bent or broken. Test with a new battery to rule out battery issues.
Reduced Device Performance: Look for signs of corrosion or excessive wear. Replace the contacts if they appear degraded or are not functioning properly.
Unexpected Power Losses: Tighten any loose contacts and check for environmental factors that could be affecting the contacts, such as excessive dust or moisture.
Diagnostic Tools: Use a multimeter to test the continuity of the battery contacts. Lack of continuity can indicate a broken contact or poor connection.

Conclusion

For personalized assistance or to explore our range of solutions tailored to meet your specific requirements, please do not hesitate to contact us. Our team is dedicated to providing expert advice and support to ensure your devices perform at their best.

FAQ

Q: How often should battery contacts be cleaned?
A: Clean battery contacts every few months or whenever you notice a buildup of dirt or grime.

Q: What should I use to clean battery contacts?
A: Use a soft, dry cloth or a cotton swab moistened with isopropyl alcohol for effective cleaning.

Q: Can battery contacts be repaired, or do they need to be replaced?
A: Some battery contacts can be adjusted or repaired, but if there is significant wear or corrosion, replacement is recommended.

Q: Are there specific materials that are better for battery contacts in high humidity areas?
A: Yes, materials like nickel and stainless steel are better suited for high humidity environments due to their corrosion-resistant properties.

Q: How do I know if the battery contacts are causing power issues in my device?
A: Test the contacts with a multimeter to check for proper continuity. If the contacts show discontinuity, they may need cleaning or replacing.
