What is Heavy Metal Fabrication and its Types

Heavy metal fabrication involves cutting, bending, and assembling metal structures from various raw materials. This process typically uses thicker plates and involves more complex machining operations than standard metal fabrication. From skyscrapers to bridges, the applications are as diverse as they are critical, demanding expertise and advanced technology to ensure precision and durability.

As we delve deeper, you’ll discover that heavy metal fabrication isn’t just about transforming metal; it’s about crafting the backbone of modern infrastructure. Stay tuned as we explore the various techniques and applications that define this fascinating field.

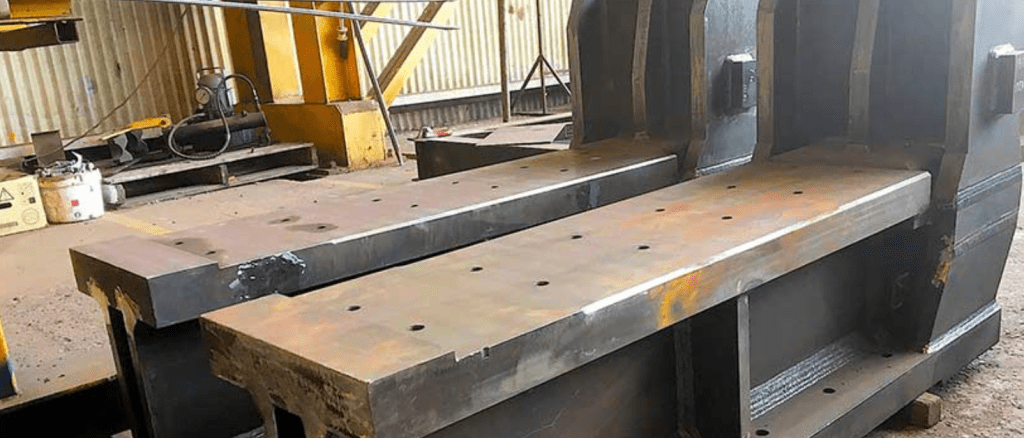

What is Heavy Metal Fabrication

Heavy metal fabrication is a specialized industrial process that involves the construction of machines and structures from various raw metal materials. This process typically includes multiple steps such as cutting, bending, welding, machining, and assembling to create final products. Unlike lighter metal fabrication, heavy metal fabrication deals with thicker materials and larger-scale projects.

The raw materials used can vary from plate metal, expanded metal, tube stock, welding wire, and castings. These materials are transformed into products such as structural frames for buildings and heavy equipment, industrial machinery, and other large-scale metal components. The process often requires advanced machinery, such as plasma cutters, water jets, and high-power lasers, along with various types of welding equipment to handle the thickness and toughness of the materials involved.

Types of Heavy Metal Fabrication

Structural Metal Fabrication

Structural metal fabrication involves creating components and frameworks used in construction and industrial settings. This process includes the manufacturing of beams, frames, and supports that are essential for building structures like skyscrapers, bridges, and large commercial buildings.

The materials used are typically heavy gauge steel or other durable metals that can support considerable weight and withstand environmental stresses. Techniques such as heavy-duty cutting, bending, and welding are used to ensure that the structural integrity meets the required safety standards.

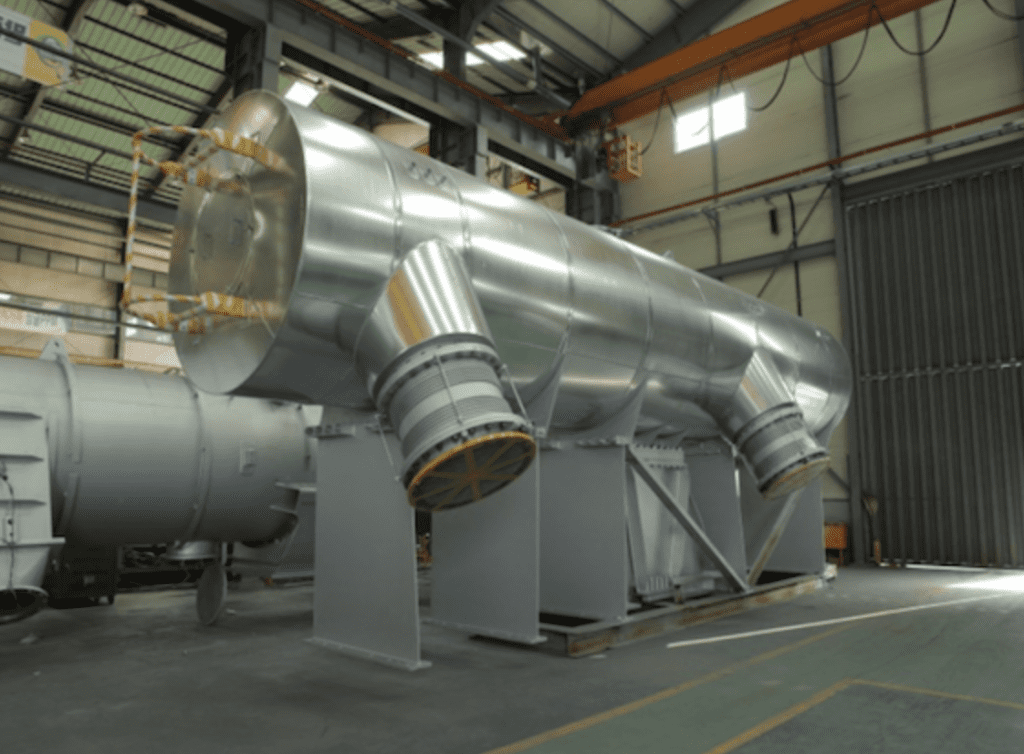

Heavy Metal Machining

Enhanced Geometric Complexity: 5-axis CNC machines can handle complex geometries that are not possible with 3-axis machines. This allows for the production of more intricate designs without the need for multiple machine setups.

Improved Surface Finish: The ability to approach the workpiece from multiple angles reduces the need for manual finishing processes. This leads to a better surface finish directly off the machine, which is crucial for high-quality parts in industries like aerospace and automotive.

Reduced Setup Time: Because the machine can perform complex machining operations from multiple angles, it reduces the number of setups required. This not only speeds up the manufacturing process but also reduces the potential for errors associated with repositioning the part.

Increased Tool Life: The advanced control over the tool’s angle and position allows for optimal cutting conditions, which can extend tool life. This reduces the cost of tooling and downtime needed for replacements.

Heavy metal machining refers to the process of shaping metal parts using various machine tools. Unlike lighter fabrication methods that might use manual or semi-automatic machinery, heavy metal machining often requires larger, more powerful equipment such as lathes, milling machines, and drill presses that can handle tougher and thicker metals.

This process is crucial for creating precision components that must fit into larger assemblies accurately. Machining processes are especially important in the creation of high-strength, high-precision components used in automotive engines, large-scale machinery, and other applications where dimensional accuracy and surface smoothness are critical.

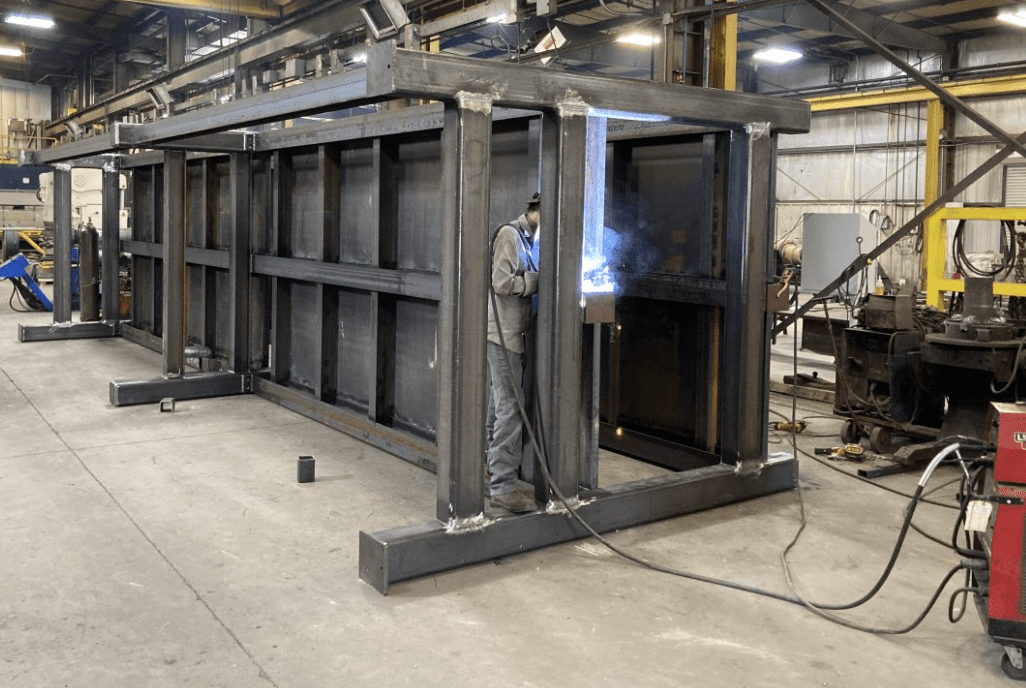

Welding

Welding is a fundamental technique in heavy metal fabrication used to join metal parts together. It involves the application of heat, and sometimes pressure, along with a filler material to create a strong joint between two metal pieces. Various welding techniques are employed depending on the material type and the required strength of the joint. Common methods include:

• Shielded Metal Arc Welding (SMAW): Often used in construction and repair work for heavy steel structures.
• Gas Metal Arc Welding (GMAW/MIG): Suitable for both thin and thick materials, providing high productivity.
• Gas Tungsten Arc Welding (GTAW/TIG): Used for welding thin sections of stainless steel and non-ferrous metals like aluminum.
• Flux Cored Arc Welding (FCAW): Commonly applied in construction projects for its ability to create strong bonds in thick materials.

Heavy Metal Cutting

Heavy metal cutting is the process of slicing large and thick metal sections into smaller parts or desired shapes. This is usually the first step in the fabrication process and is accomplished using various tools and techniques, including:

• Oxy-fuel Cutting: Effective for cutting very thick steel plates using a torch that burns a mixture of fuel gas and oxygen.
• Plasma Cutting: Ideal for cutting different types of metals with precision by using a high-velocity jet of ionized gas.
• Waterjet Cutting: Uses a high-pressure stream of water, often mixed with an abrasive material, capable of cutting thick materials without altering their intrinsic properties.

Forming and Shaping

Forming and shaping involve altering the physical shape of metal without removing any material. Techniques used in heavy metal fabrication include:

• Bending: This involves deforming metal around a specific axis. Hydraulic press brakes are commonly used for this purpose, providing the force necessary to bend thick metal plates.
• Rolling: Used to form cylindrical shapes and can be performed on heavy plates and rolled sections. Rolling machines, or rollers, gradually curve the metal through a series of movements.
• Forging: Involves shaping metal using localized compressive forces, often delivered by a hammer or a die. Forging is particularly useful for strengthening the material through deformation, making it invaluable for components that require high strength and durability.

Applications of Heavy Metal Fabrication

Construction Industry

In construction, heavy metal fabrication is vital for creating structural elements that form the backbone of buildings, bridges, and other infrastructural projects. Steel beams, girders, and columns fabricated through heavy metal processes ensure the safety and longevity of these structures under various environmental and load conditions.

Automotive and Aerospace

Both the automotive and aerospace industries rely on heavy metal fabrication for the production of critical components that require high strength and precision. In automotive manufacturing, this includes chassis and engine components, while in aerospace, it involves parts for airframes and engines that must withstand extreme pressures and temperatures.

Energy Sector

Heavy metal fabrication is essential in the energy sector, particularly for the construction of oil rigs, pipelines, and wind turbines. These structures require materials that can endure harsh conditions and provide long-lasting performance, attributes ensured through rigorous fabrication techniques.

Shipbuilding

The shipbuilding industry benefits significantly from heavy metal fabrication, which is used to construct ship hulls and other structural components. The ability to fabricate large, sturdy parts that can resist corrosive marine environments is crucial for building reliable and safe vessels.

Heavy Machinery and Equipment

Fabrication processes are key in manufacturing heavy machinery used in mining, agriculture, and manufacturing. Components such as frames, gears, and hydraulic components are often produced using heavy metal fabrication techniques to ensure they can handle the stresses and strains of operational demands.

Military and Defense

In the defense sector, heavy metal fabrication is used to produce armored vehicles, naval ships, and aircraft. These applications require materials that not only offer high durability but also provide protection against combat scenarios.

Art and Sculpture

Interestingly, heavy metal fabrication also finds a place in the art world, where it is used to create large-scale sculptures and installations. Artists often collaborate with fabricators to turn their visions into durable and monumental metal artworks that can withstand the elements when displayed outdoors.
