An Overview of Precision Screw Machining

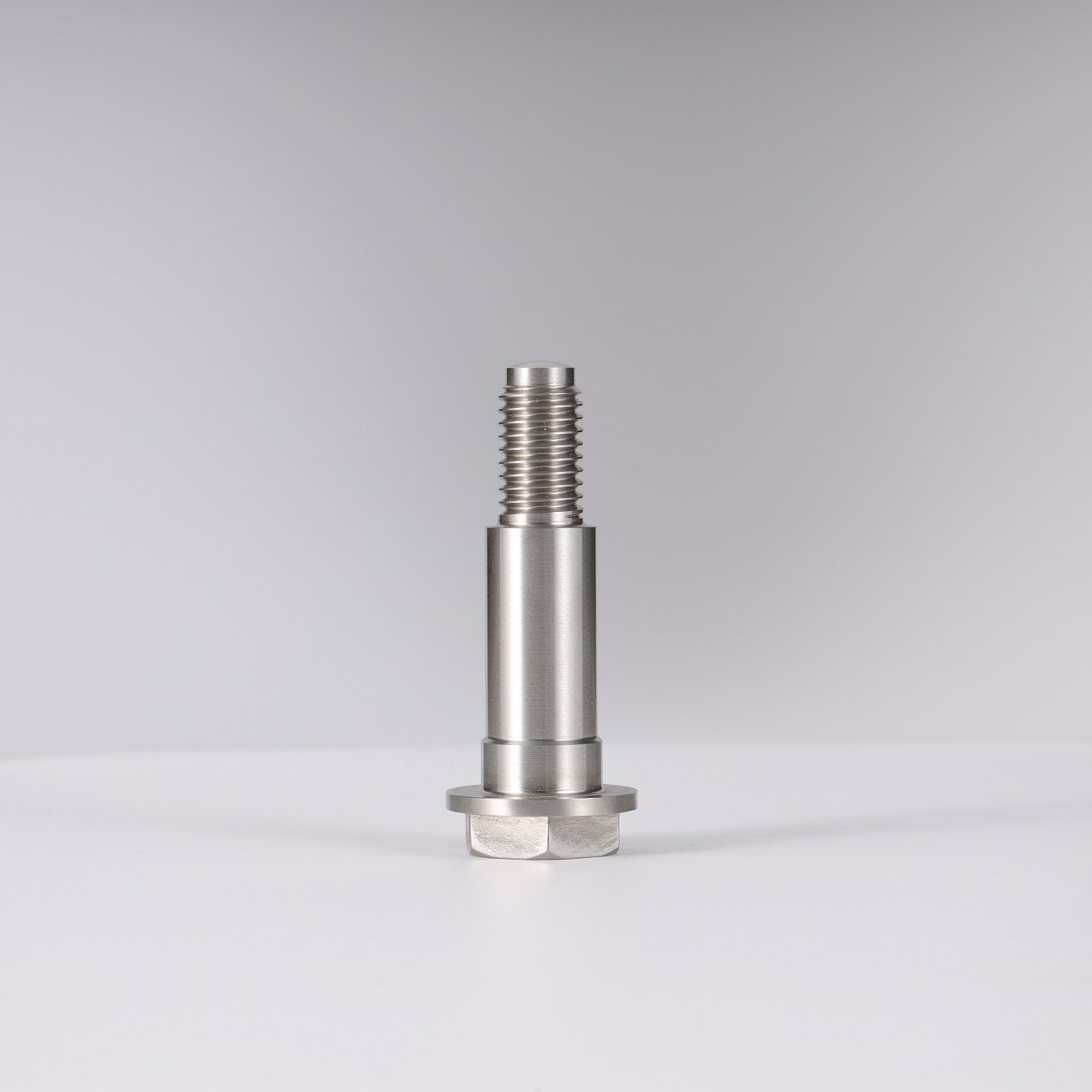

Precision screw machining refers to a manufacturing process used to produce small, high-precision components with impressive speed and consistency. This method utilizes a type of lathe that allows multiple cutting operations simultaneously, making it an efficient choice for large volumes of parts. Its capability to work with various materials and maintain tight tolerances makes it an essential tool in industries ranging from aerospace to electronics.

Continuing this discussion promises to unveil more about how leveraging the capabilities of precision screw machining can transform your production lines. Stick with me as we explore the inner workings, benefits, and extensive applications of this fascinating machining process.

What is Precision Screw Machining?

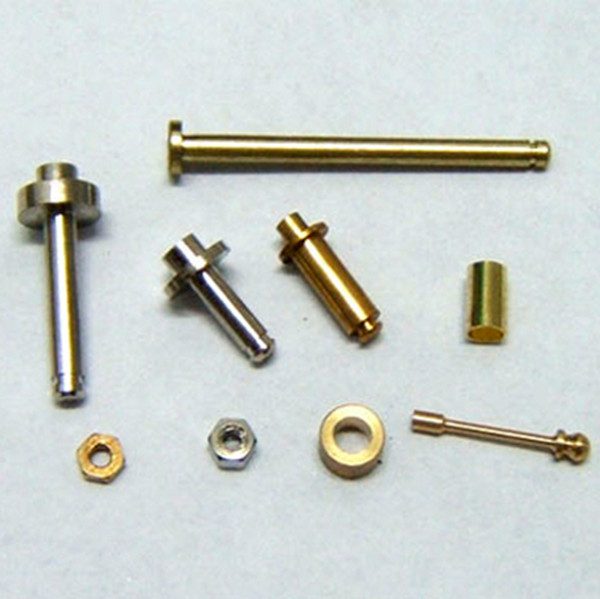

Precision screw machining is a specialized manufacturing process that employs the use of screw machines, also known as Swiss-style or automatic lathes, to produce small, intricate parts with a high degree of accuracy and precision. The term “screw machine” might be a bit misleading as these machines are used to manufacture a wide variety of parts, not just screws.

This process is distinguished by its ability to support multiple cutting actions simultaneously on the same piece, facilitated by a rotating workpiece and a series of cutting tools. The key advantage here is the machine’s capability to perform several operations—such as turning, drilling, milling, and threading—all without needing to remove the workpiece from the machine. This multi-functional approach not only increases efficiency but also enhances the precision with which parts are made.

Screw machines can be either mechanically driven or CNC (computer numerical control) operated, with the latter offering greater flexibility, control, and precision. CNC screw machines are particularly valued for their ability to program complex parts and repeat these specifications with minimal variance, making them ideal for high-volume production runs where consistency and quality are paramount.

What Are The Types of Screw Machines?

1. Turret Screw Machines

Turret screw machines are designed for high-volume, high-speed production of smaller, precise parts. They feature a turret that holds a variety of tools, allowing for quick tool changes during the machining process.

This type of screw machine is typically used for manufacturing parts that require multiple operations, such as drilling, turning, and threading, without the need for operator intervention.

2. Cam-Operated Screw Machines

Cam-operated screw machines are often used for producing medium to large batches of smaller components. The cam mechanism controls the movement of tools and workpieces, creating a highly efficient and precise process.

These machines are particularly favored for their reliability and speed in producing standard parts like screws, bolts, and nuts.

3. CNC Screw Machines

CNC screw machines, or Computer Numerical Control screw machines, offer the highest level of precision and flexibility. These machines are controlled by computer programs, allowing operators to design complex parts with intricate specifications.

CNC screw machines are ideal for producing parts in low to medium quantities with tight tolerances, especially when customized or intricate shapes are required.

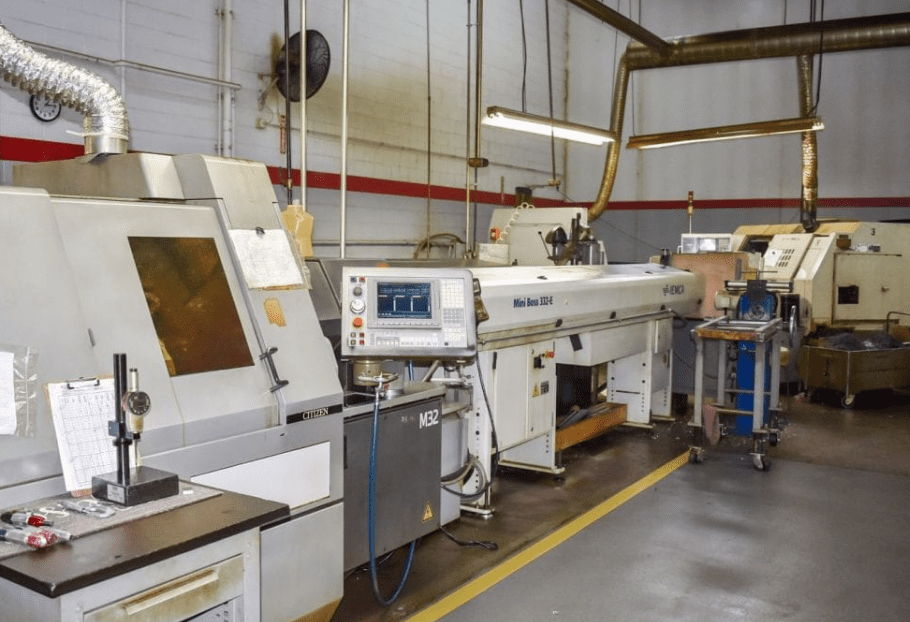

4. Swiss-Type Screw Machines

Swiss-type screw machines are a specific kind of CNC machine that excels at machining small, complex parts with high precision. The key feature of these machines is the sliding headstock, which allows the workpiece to be held securely while it is fed through the machine.

This design is particularly advantageous when working with long, slender parts or parts that require multiple operations performed simultaneously. These machines are commonly used in industries like aerospace and medical device manufacturing.

How does Screw Machines Work?

https://www.youtube.com/watch?v=LVwbmSyAWOI

1. Loading the Material: The process begins by placing a raw workpiece, typically in the form of a metal bar or rod, into the machine’s chuck. This workpiece is held securely in place as it rotates.
2. Tooling Operations: As the workpiece spins, multiple cutting tools, such as drills, lathes, or mills, move into position to perform various machining operations. The tools are programmed or controlled to perform specific tasks like turning, drilling, tapping, or threading.
3. Multiple Cutting at Once: One of the unique features of screw machines is the ability to perform multiple cutting operations simultaneously. The machine’s turret or tool holder is equipped with several tools, allowing for efficient, rapid production of complex parts.
4. Automatic Feed and Adjustments: The machine feeds the material automatically, adjusting the tool positions as needed. This eliminates the need for manual tool changes, speeding up the process and reducing human error.
5. Finishing Operations: Once the primary machining is complete, the screw machine may perform finishing operations, such as polishing or deburring, to ensure the part meets its required specifications.
6. Part Ejection: Once the part is complete, it is ejected from the machine, ready for further assembly or use.

What are the Materials Commonly Used in Screw Machining?

• Stainless Steel
• Aluminum
• Brass
• Copper
• Carbon Steel
• Titanium
• Plastics (e.g., Delrin, Nylon)
• Bronze
• Beryllium Copper
• Alloy Steels

Which Applications of Screw Machining in Various Industries?

• Aerospace: Precision components like connectors, fasteners, and structural parts.
• Automotive: Manufacturing of engine components, transmission parts, and suspension systems.
• Medical: Production of implants, surgical instruments, and medical device components.
• Electronics: Small parts such as connectors, terminals, and circuit board components.
• Military and Defense: Production of specialized fasteners, valves, and structural components.
• Oil and Gas: Creation of parts for pumps, valves, and other machinery used in harsh environments.
• Consumer Goods: Manufacturing of small household appliance parts and accessories.
• Telecommunications: Production of components used in communication devices and systems.

Choosing the Right Screw Machine for Your Project

1. Production Volume: For high-volume production, CNC screw machines or cam-operated machines are ideal. These machines can handle large quantities with minimal adjustments. However, for low to medium volumes, Swiss-type or turret screw machines may provide the best balance of speed and precision.
2. Material Type: The material you plan to machine plays a crucial role in selecting a screw machine. For harder materials like titanium or stainless steel, you’ll want a machine with more robust cutting tools and capabilities, such as CNC or Swiss-type machines. For softer materials, cam-operated or turret machines might suffice.
3. Precision Requirements: If your project demands tight tolerances and high precision, CNC screw machines are the best choice. They offer superior control and repeatability, making them suitable for intricate parts that require exact measurements.
4. Part Complexity: Complex parts with multiple operations might require Swiss-type screw machines or multi-axis CNC machines. These machines excel in performing several operations at once, reducing handling time and ensuring consistency.
5. Budget: Finally, consider the cost of the machine and the long-term investment. CNC screw machines, while highly accurate, tend to be more expensive due to their advanced technology. If budget is a concern, cam-operated or turret machines might be a more economical option for simpler tasks.
