The Comprehensive Guide to Sheet Metal Frames: Processes, Benefits, and Applications

Published by Worthy Hardware at December 3, 2024

What are Sheet Metal Frames?

Sheet metal frames are structural components made from thin, flat sheets of metal that are cut, bent, and assembled to form a strong framework. These frames are commonly used in various industries such as automotive, construction, and electronics. They serve as the foundational support for larger products, ensuring stability and strength while remaining lightweight and cost-effective. The frames can be custom-designed to meet specific needs, making them a versatile choice for many applications.

Common materials used in sheet metal frames

Here’s a table outlining common materials used in sheet metal frames and their corresponding surface treatments:

Material	Grades	Zinc	Nickel Plate	Black Oxide	Anodize	Tin Plate	Passivate
Steel	A36, A572, A992	Yes	Yes	Yes	No	No	Yes
Stainless Steel	304, 316, 430, 410	Yes	Yes	Yes	Yes	No	Yes
Aluminum	6061, 5052, 3003	Yes	Yes	Yes	Yes	Yes	Yes
Galvanized Steel	SGCC, SPCC, G90	Yes	No	Yes	No	No	Yes
Copper	C11000, C14500	No	Yes	Yes	No	No	Yes
Brass	C26000, C28000	No	Yes	Yes	No	No	Yes

Zinc: Typically used for corrosion protection through galvanization.
Nickel Plate: Offers excellent resistance to corrosion and wear, often used for enhancing durability.
Black Oxide: Provides a black, protective coating that offers some corrosion resistance.
Anodize: A coating process mainly used for aluminum, increasing corrosion resistance and surface hardness.
Tin Plate: Coating applied to steel to protect it from rust and corrosion, commonly used in food packaging.
Passivate: A treatment that enhances the corrosion resistance of stainless steel by removing free iron from the surface.

What are the Manufacturing Processes?

These processes include cutting, forming, assembly, and finishing, all of which contribute to the precision and quality of the frame.

Cutting and Forming

The first steps in creating a sheet metal frame are cutting and forming the raw material into the desired shapes and sizes. This is where precision matters the most. Here’s how it works:

Cutting: The metal sheets are first cut into the appropriate sizes using different techniques such as laser cutting, punching, or shearing. Laser cutting is especially popular due to its precision and ability to handle complex designs. Punching uses a punch press to create holes or shapes in the metal, while shearing is used for straight-line cuts. These methods allow manufacturers to create parts that fit together perfectly.
Forming: After cutting, the next step is forming the metal into specific shapes. This is typically done through bending, stamping, or pressing. In bending, machines apply pressure to the metal to form a bend along a straight line. Stamping involves pressing a die onto the metal to create specific patterns or shapes, and pressing uses mechanical force to shape the metal into the required form. The goal is to create components that are both functional and precise.

Assembly and Finishing

Once the sheet metal pieces are cut and formed, the next steps involve assembling them into the final frame and applying finishing touches to enhance durability and appearance.

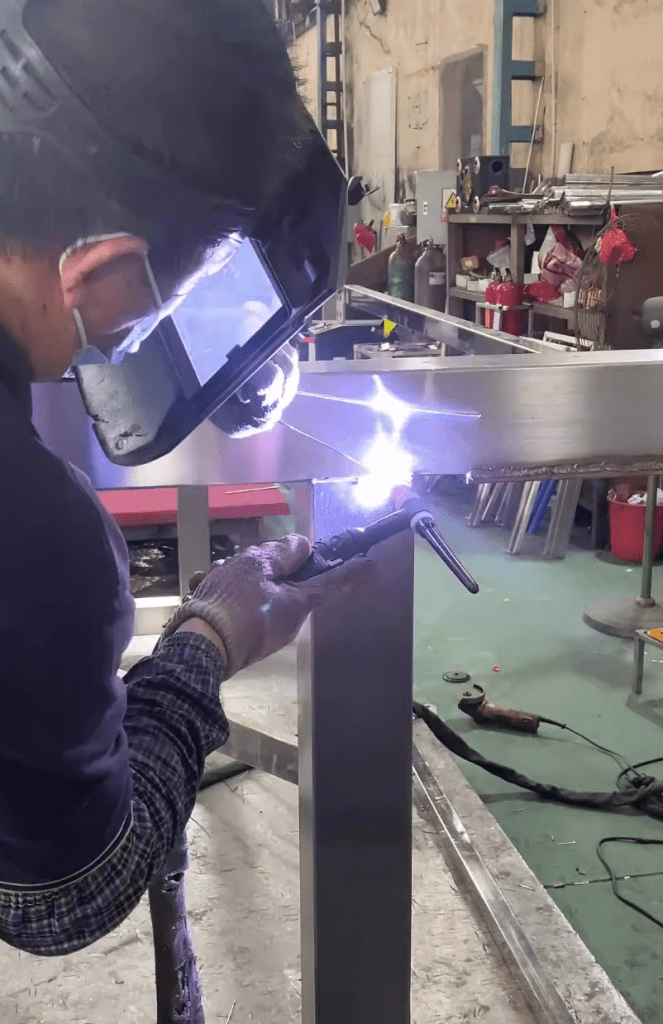

Assembly: The individual pieces of the frame are then joined together using various techniques such as welding, riveting, or bolting. Welding is the most common method, where the edges of the metal parts are melted and fused together. It creates a strong, permanent bond. Riveting involves inserting a metal pin through the pieces and fastening them, while bolting uses screws to hold the pieces together. The choice of joining method depends on the application and the strength required.
Finishing: After assembly, the frame may undergo additional finishing processes to improve its performance and appearance. This can include powder coating (a protective layer applied to the surface), painting (to provide a specific color and finish), or anodizing (especially for aluminum, which increases corrosion resistance and surface hardness). Passivating is another process, mainly used for stainless steel, where a protective oxide layer is formed on the surface to enhance corrosion resistance. Other finishing techniques like Black Oxide coatings can provide aesthetic appeal while adding protection from rust and wear.

Applications of Sheet Metal Frames

1. Automotive Industry

In the automotive sector, sheet metal frames are critical components in the construction of vehicles. They are used to create the chassis, body panels, and structural supports of cars, trucks, and buses. The ability to withstand heavy loads, resist impact, and offer crash protection makes sheet metal frames invaluable in this industry.

Steel and aluminum are commonly used due to their strength-to-weight ratios, offering both safety and fuel efficiency.

2. Construction and Infrastructure

In the construction industry, sheet metal frames are often used for scaffolding, building facades, and structural reinforcements. Galvanized steel frames are particularly popular here due to their corrosion resistance and ability to support heavy weights.

Sheet metal frames also play a role in the creation of doors, windows, and structural supports in commercial and residential buildings. Their ability to withstand harsh environmental conditions while maintaining strength makes them perfect for construction applications.

3. Electronics and Technology

Sheet metal frames are often used in the manufacturing of enclosures for electronic devices such as computers, servers, smartphones, and other consumer electronics. The frames provide physical protection for delicate components and help in dissipating heat, ensuring the longevity and performance of the devices.

Aluminum is frequently chosen for its lightweight properties, making it ideal for products that need both durability and portability.

4. Aerospace Industry

In the aerospace industry, sheet metal frames are essential in the construction of aircraft, satellites, and spacecraft. The frames must be lightweight yet extremely durable to withstand the forces experienced during flight.

Titanium and aluminum alloys are commonly used due to their high strength-to-weight ratio, and the frames are often custom-designed for each specific model. These frames contribute significantly to the overall performance and safety of the aircraft.

5. Heavy Machinery and Industrial Equipment

Sheet metal frames are used extensively in the manufacturing of machinery, industrial equipment, and storage systems. These frames are used to house engines, motors, and other heavy machinery components, providing the necessary structure to ensure functionality and safety.

The steel frames used in these applications can endure heavy vibrations, high pressures, and extreme temperatures, making them indispensable in the manufacturing of heavy-duty machinery.

6. Furniture and Home Appliances

In the world of home appliances and furniture, sheet metal frames are commonly used to build appliance housings and furniture structures. For example, refrigerators, washing machines, and air conditioning units all rely on sheet metal frames for structural integrity and durability.

Additionally, steel frames are often used in office furniture, shelving units, and storage cabinets, where strength and reliability are paramount.

7. Military and Defense

The military and defense sectors also rely on sheet metal frames for creating vehicle chassis, weaponry supports, protective enclosures, and heavy-duty storage units.

These frames must be built to withstand extreme conditions, including high levels of stress, shock, and environmental exposure. Armor plating and corrosion-resistant metals are often incorporated into these frames for added protection.

8. Renewable Energy Systems

Sheet metal frames play a key role in the creation of solar panel mounts, wind turbine frames, and solar tracker systems. The strength and durability of these frames ensure that renewable energy systems can withstand the elements while remaining structurally sound.

Aluminum and stainless steel are popular choices here, offering excellent resistance to corrosion from outdoor exposure while maintaining lightweight properties for ease of installation.

9. Medical Equipment

In the medical field, sheet metal frames are used in the construction of medical device housings, hospital equipment, and furniture. For example, the frames of X-ray machines, MRI scanners, and hospital beds are typically made from sheet metal to provide structural stability and protection for sensitive electronics. The materials used are chosen for their durability and ability to meet stringent hygiene and safety standards.

10. Art and Design

Lastly, sheet metal frames are also used in art installations, furniture design, and architectural projects. Artists and designers often turn to sheet metal for creating structural frameworks that need to be both visually appealing and functional. The ability to shape and manipulate metal into intricate forms gives designers the flexibility to create unique pieces while ensuring structural integrity.

Conclusion

Sheet metal frames offer unmatched durability, cost-effectiveness, and flexibility across various industries. Whether you’re designing a new product or need reliable structural support, we’re here to help. Contact us today for expert guidance and assistance in selecting the perfect sheet metal frame for your project. We look forward to working with you!

FAQ

1. What are the most common materials used for sheet metal frames?

The most common materials are steel, aluminum, and stainless steel, each offering unique benefits based on strength, weight, and corrosion resistance.

2. How are sheet metal frames customized?

Sheet metal can be easily cut, bent, welded, and formed into virtually any shape, making it highly customizable for different applications.

3. How long do sheet metal frames last?

With proper maintenance, sheet metal frames can last for decades, particularly those made from corrosion-resistant materials like stainless steel.
